FST8515A datasheet, PDF - EEWORLD Datasheet

FST8515A: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 40A, 15V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size143KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com; Environmental Compliance

Download Datasheet Parametric Compare View All

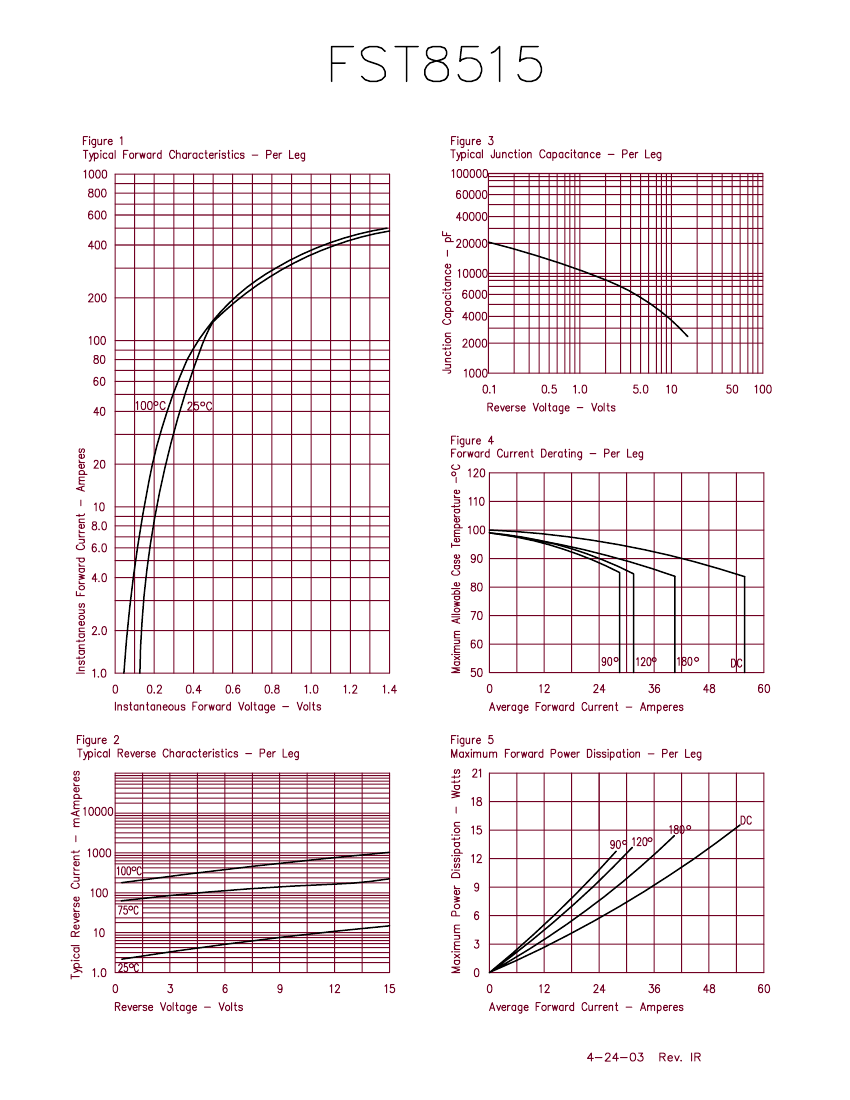

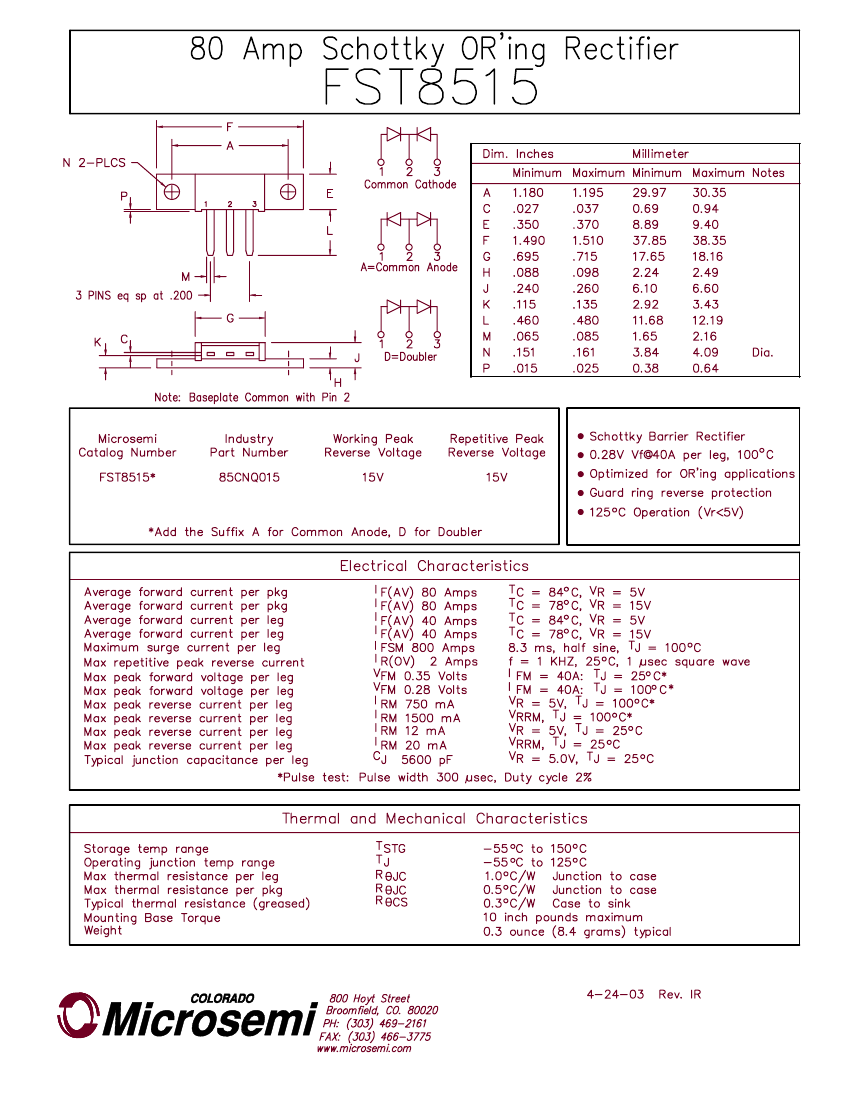

FST8515A Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 40A, 15V V(RRM), Silicon,

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Microsemi
package instruction	R-XSFM-T3
Reach Compliance Code	compliant
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	ANODE
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.28 V
JESD-30 code	R-XSFM-T3
Maximum non-repetitive peak forward current	800 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	40 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	15 V
surface mount	NO
technology	SCHOTTKY
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

	FST8515A	FST8515D
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 40A, 15V V(RRM), Silicon,	Rectifier Diode, Schottky, 1 Phase, 2 Element, 40A, 15V V(RRM), Silicon,
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Microsemi	Microsemi
package instruction	R-XSFM-T3	R-XSFM-T3
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	ANODE	ANODE AND CATHODE
Configuration	COMMON ANODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.28 V	0.28 V
JESD-30 code	R-XSFM-T3	R-XSFM-T3
Maximum non-repetitive peak forward current	800 A	800 A
Number of components	2	2
Phase	1	1
Number of terminals	3	3
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Maximum output current	40 A	40 A
Package body material	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	15 V	15 V
surface mount	NO	NO
technology	SCHOTTKY	SCHOTTKY
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
