FSS115LTRTB: DescriptionRectifier Diode, Schottky, 1 Element, 1A, 150V V(RRM), Silicon, DO-219AA, ROHS COMPLIANT, PLASTIC, M1F, 2 PIN; CategoryDiscrete semiconductor diode; File Size275KB，4 Pages; ManufacturerFagor Electrónica

Download Datasheet Parametric Compare View All

FSS115LTRTB Overview

Rectifier Diode, Schottky, 1 Element, 1A, 150V V(RRM), Silicon, DO-219AA, ROHS COMPLIANT, PLASTIC, M1F, 2 PIN

FSS115LTRTB Parametric

Parameter Name	Attribute value
Maker	Fagor Electrónica
package instruction	ROHS COMPLIANT, PLASTIC, M1F, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FREE WHEELING DIODE, LOW POWER LOSS
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-219AA
JESD-30 code	R-PDSO-F2
JESD-609 code	e3
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Guideline	AEC-Q101
Maximum repetitive peak reverse voltage	150 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	MATTE TIN
Terminal form	FLAT
Terminal location	DUAL

Preview

Download Datasheet

View All

FSS12L........FSS115L

1.0 Amp. Surface Mount Schottky Barrier Rectifier

Voltage

20 V to 150 V

Current

1.0 A

DO-219AA (M1F)

FEATURES

Low profile package

Ideal for automated placement

Low power losses, high efficiency

High surge current capability

Guarding for overvoltage protection

Low forward voltage drop

Solder dip 260ºC, 10s

AEC-Q101 qualified

Component in accordance to RoHS 2011/65/EU

and WEEE 2002/96/EC

Meets MSL level 1, per J-STD-020, LF maximum

peak of 260º C

MECHANICAL DATA

Case

DO-219AA (M1F). Epoxy meets UL 94V-0

flammability rating.

Polarity

Color band denotes cathode end.

Terminals

Matte tin plated leads, solderable per

MIL-STD-750 Method 2026, J-STD-002 and JESD22-B102.

Consumer grade, meets JESD 201 class 1A whisker test

TYPICAL APPLICATIONS

Used in low voltage high frequency inverters, freewheeling,

dc-to-dc converters, and polarity protection applications.

Maximum Ratings and Electrical Characteristics at 25 ºC

FSS12L FSS13L FSS14L FSS16L FSS110L FSS115L

Marking Code

RRM

RMS

(AV)

FSM

Maximum Recurrent Peak Reverse Voltage (V)

Maximum RMS Voltage (V)

Maximum DC Blocking Voltage (V)

Maximum Average Forward Rectified Current

Peak Forward Surge Current, 8.3 ms

Single Half Sine-wave Superimposed on

Rated Load (JEDEC Metod)

Maximum Instantaneous Forward Voltage

@ 0.5A

(Note 1)

@ 1.0A

Maximum DC Reverse Current

@ Tj = 25 °C at Rated DC Blocking

(Note 3)

Voltage @ Tj = 100 °C

Maximum Thermal Resistance

Operating Temperature Range

Storage Temperature Range

(Note 2)

L12

L13

L14

L16

LX0

LX5

1.0 A

30 A

100

150

105

150

0.385 V

0.45 V

0.43 V

0.50 V

0.51 V

0.55 V

0.58 V

0.70 V

0.80 V

0.75 V

0.90 V

th (j-a)

th (j-c)

stg

8.0 mA

0.4 mA

6.0 mA

100 °C/W

45 °C/W

0.05 mA

0.5 mA

-55 to + 125 °C

-55 to + 150 °C

Notes: 1. Pulse Test: 300µ Pulse Width, 1% Duty Cycle

2. Thermal Resistance from Junction to Case per diode

3. Pulse test: Pulse width

40ms

www.fagorelectronica.com

Document Name: fss1l

Version: Oct-11

Page Number: 1/4

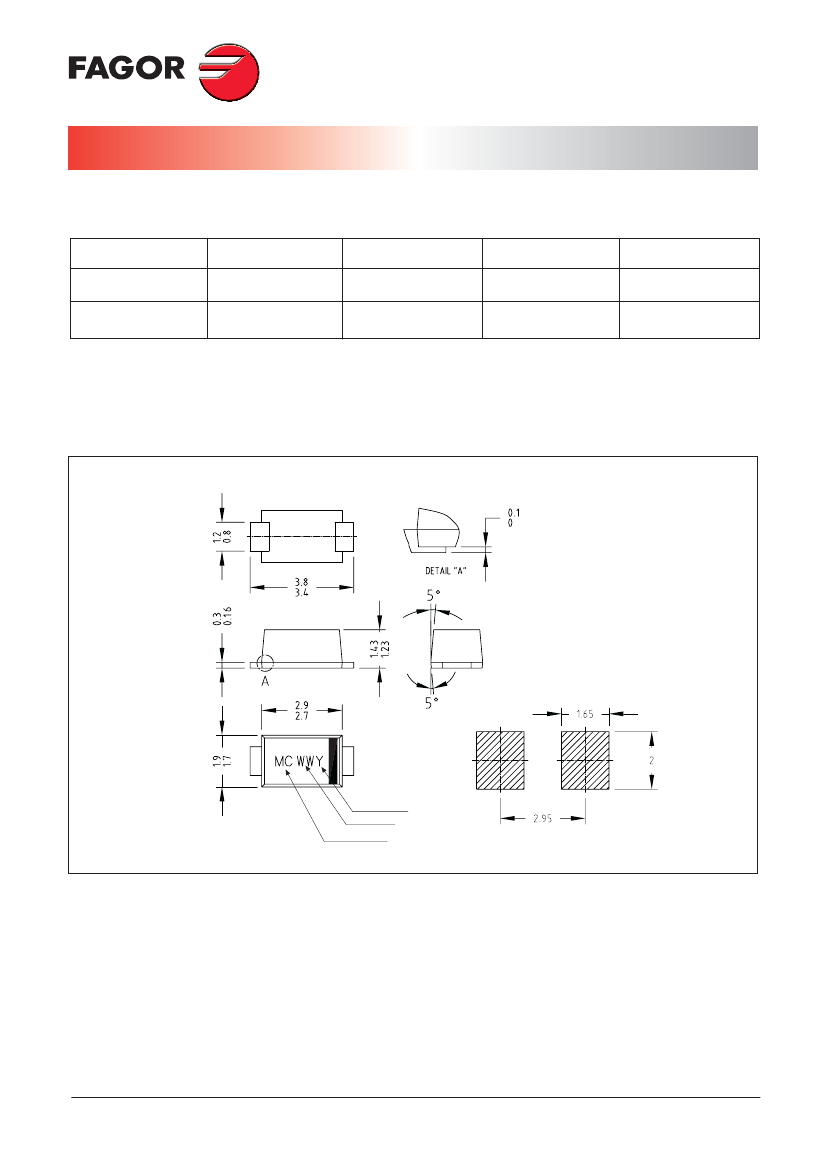

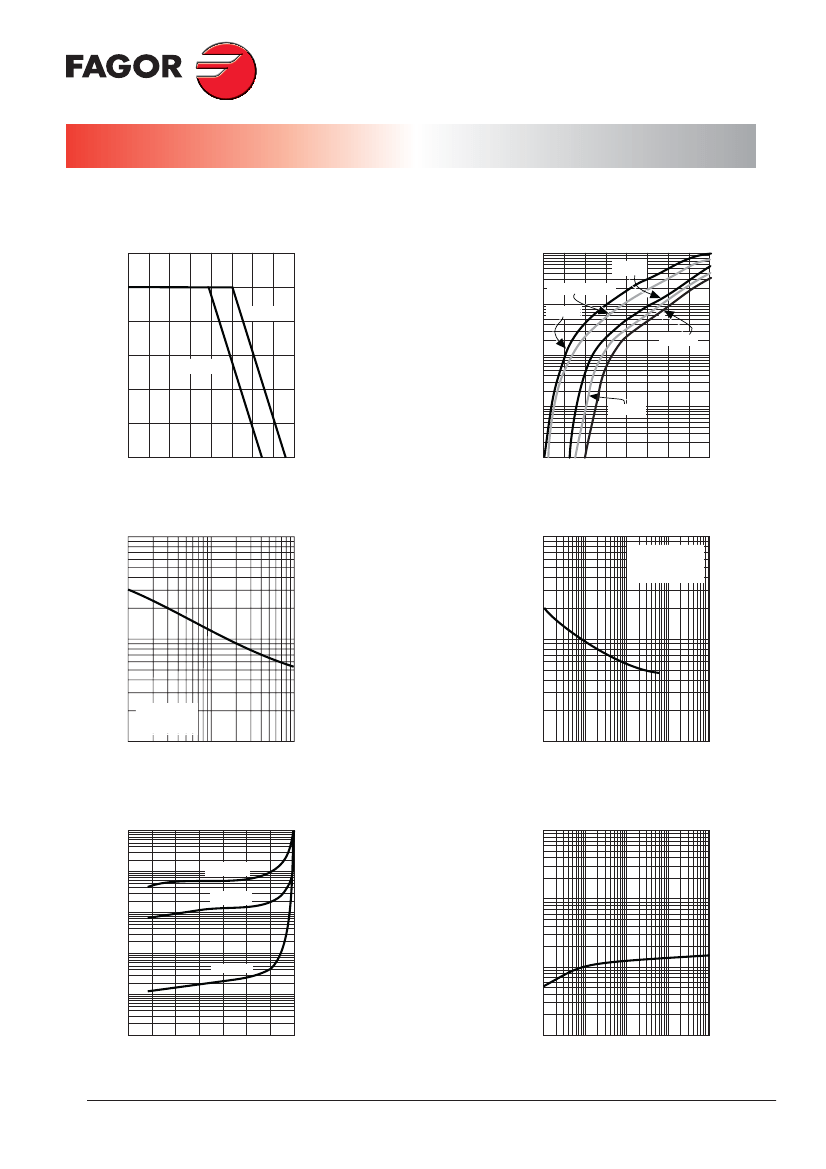

FSS12L........FSS115L

1.0 Amp. Surface Mount Schottky Barrier Rectifier

Disclaimer

All product, product specifications and data are subject to change without notice to improve reliability,

function or design or otherwise.

Fagor Electrónica, S.Coop., its affiliates, agents, and employees, and all persons acting on its or their

behalf (collectively, "Fagor"), disclaim any and all liability for any errors, inaccuracies or incompleteness contained

in any datasheet or in any other disclosure relating to any product.

Fagor makes no warranty, representation or guarantee regarding the suitability of the products for any particular

purpose or the continuing production of any product. To the maximum extent permitted by applicable law,

Fagor disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all

liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied

warranties, including warranties of fitness for particular purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Fagor's knowledge

of typical requirements that are often placed on Fagor products in generic applications. Such statements are not

binding statements about the suitability of products for a particular application. It is the customer's responsibility

to validate that a particular product with the properties described in the product specification is suitable for use in a

particular application. Parameters provided in datasheets and/or specifications may vary in different applications

and performance may vary over time. All operating parameters, including typical parameters, must be validated

for each customer application by the customer's technical experts. Product specifications do not expand or

otherwise modify Fagor's terms and conditions of purchase, including but nos limited to the warranty expressed

therein.

Except as expressly indicated in writing. Fagor products are not designed for use in medical, life-saving, or

life-sustaining applications or for any other application in which the failure of the Fagor product could result in

personal injury or death. Customers using or selling Fagor products not expressly indicated for use in such

applications do so at their own risk and agree to fully indemnify and hold Fagor and its distributors harmless from

and against any and all claims, liabilities, expenses and damages arising or resulting in connection with such use

or sale, including attomeys fees, even if such claim alleges that Fagor or its distributor was negligent regarding

the design or manufacture of the part. Please contact authorized Fagor personnel to obtain written terms and

conditions regarding products designed for such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this

document or by any conduct of Fagor, Product names and markings noted herein may be trademarks of their

respective owners.

www.fagorelectronica.com

Document Name: fss1l

Version: Oct-11

Page Number: 4/4
