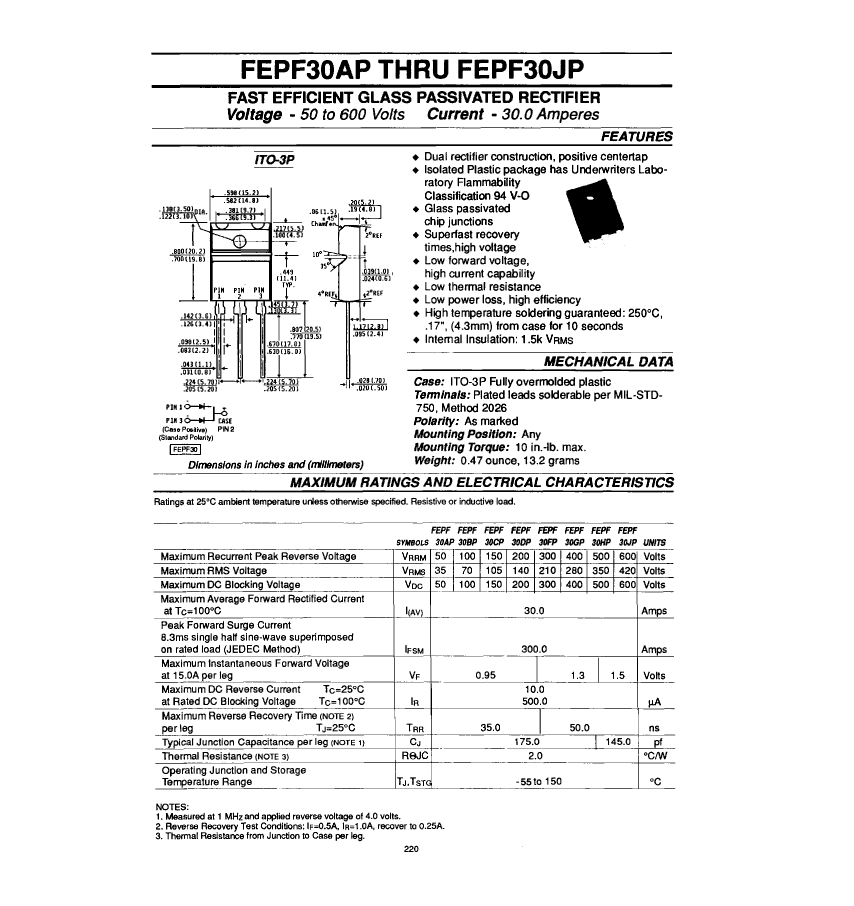

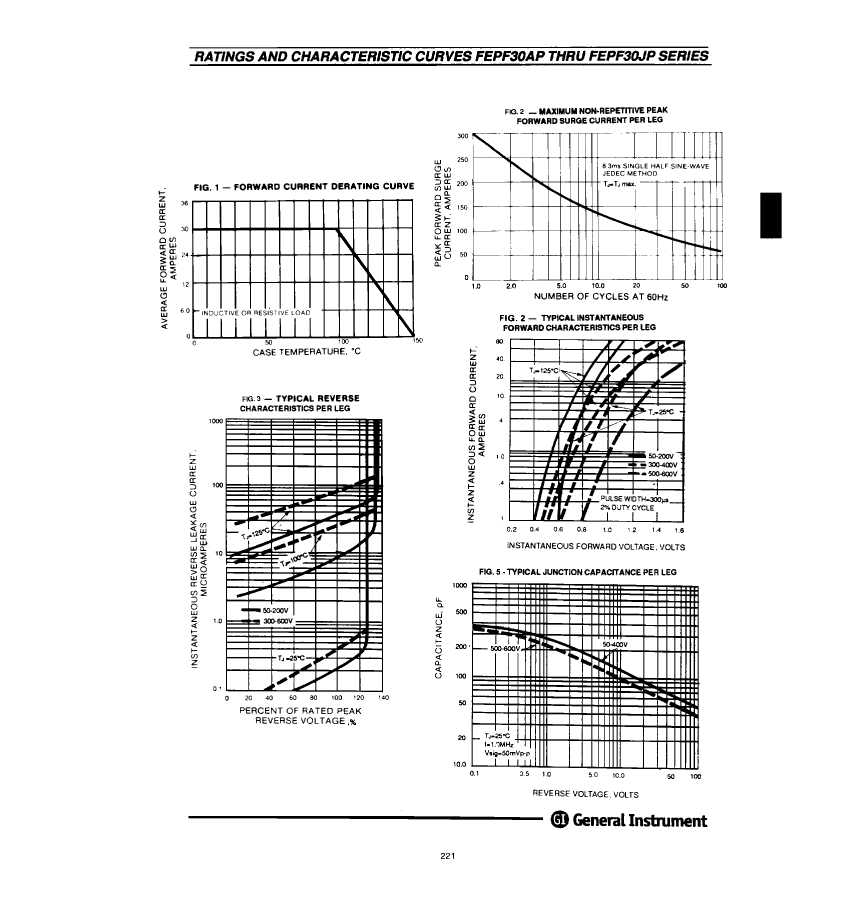

FEPF30AP: DescriptionRectifier Diode, 1 Phase, 2 Element, 30A, 50V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size80KB，2 Pages; ManufacturerGeneral Instrument Corp

Download Datasheet Parametric Compare View All

FEPF30AP Overview

Rectifier Diode, 1 Phase, 2 Element, 30A, 50V V(RRM), Silicon,

FEPF30AP Parametric

Parameter Name	Attribute value
Maker	General Instrument Corp
Reach Compliance Code	unknown
Other features	LOW POWER LOSS
application	EFFICIENCY
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.95 V
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	300 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	30 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	50 V
Maximum reverse current	10 µA
Maximum reverse recovery time	0.035 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

Preview

Download Datasheet

View All

FEPF30AP Related Products

	FEPF30AP	FEPF30GP	FEPF30JP	FEPF30DP	FEPF30HP	FEPF30BP	FEPF30FP	FEPF30CP
Description	Rectifier Diode, 1 Phase, 2 Element, 30A, 50V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 30A, 400V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 30A, 600V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 30A, 200V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 30A, 500V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 30A, 100V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 30A, 300V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 30A, 150V V(RRM), Silicon,
Maker	General Instrument Corp	General Instrument Corp	General Instrument Corp	General Instrument Corp	General Instrument Corp	General Instrument Corp	General Instrument Corp	General Instrument Corp
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Other features	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.95 V	1.3 V	1.5 V	0.95 V	1.5 V	0.95 V	1.3 V	0.95 V
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Maximum non-repetitive peak forward current	300 A	300 A	300 A	300 A	300 A	300 A	300 A	300 A
Number of components	2	2	2	2	2	2	2	2
Phase	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	30 A	30 A	30 A	30 A	30 A	30 A	30 A	30 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	50 V	400 V	600 V	200 V	500 V	100 V	300 V	150 V
Maximum reverse current	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA
Maximum reverse recovery time	0.035 µs	0.05 µs	0.05 µs	0.035 µs	0.05 µs	0.035 µs	0.05 µs	0.035 µs
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
