BR24A08F-WE2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> BR24A08F-WE2

BR24A08F-WE2: DescriptionEEPROM, 1KX8, Serial, CMOS, PDSO8; Categorystorage storage; File Size245KB，5 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BR24A08F-WE2 Overview

EEPROM, 1KX8, Serial, CMOS, PDSO8

BR24A08F-WE2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	SOP, SOP8,.25
Reach Compliance Code	compliant
Data retention time - minimum	40
Durability	1000000 Write/Erase Cycles
I2C control byte	1010DMMR
JESD-30 code	R-PDSO-G8
memory density	8192 bit
Memory IC Type	EEPROM
memory width	8
Number of terminals	8
word count	1024 words
character code	1000
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
organize	1KX8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	SERIAL
power supply	3/5 V
Certification status	Not Qualified
Serial bus type	I2C
Maximum standby current	0.000002 A
Maximum slew rate	0.002 mA
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
write protect	HARDWARE

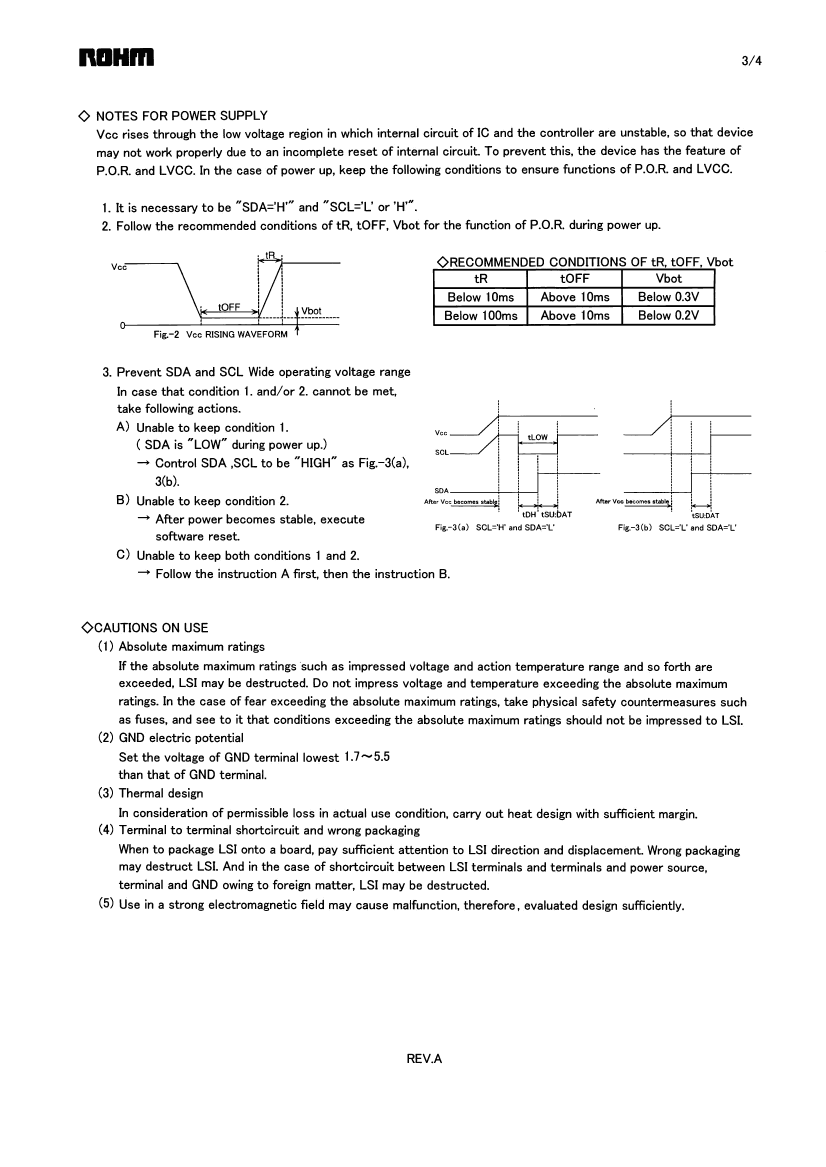

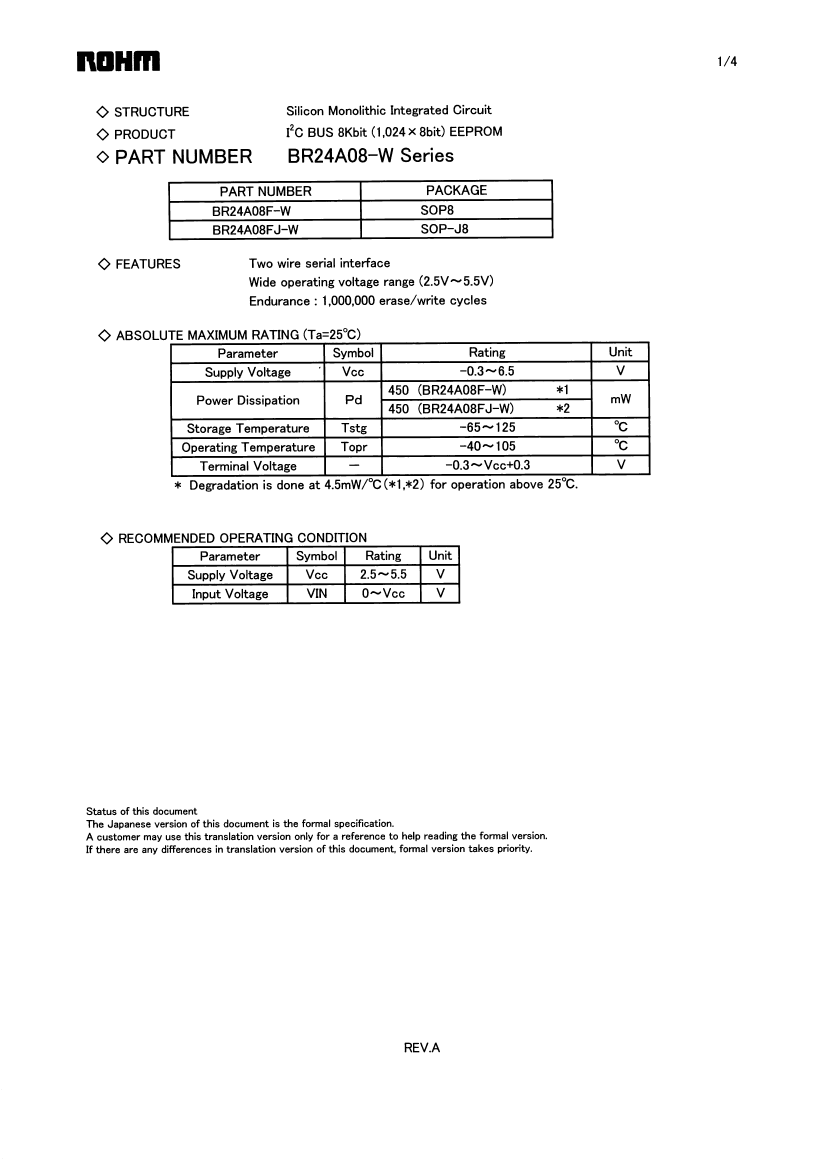

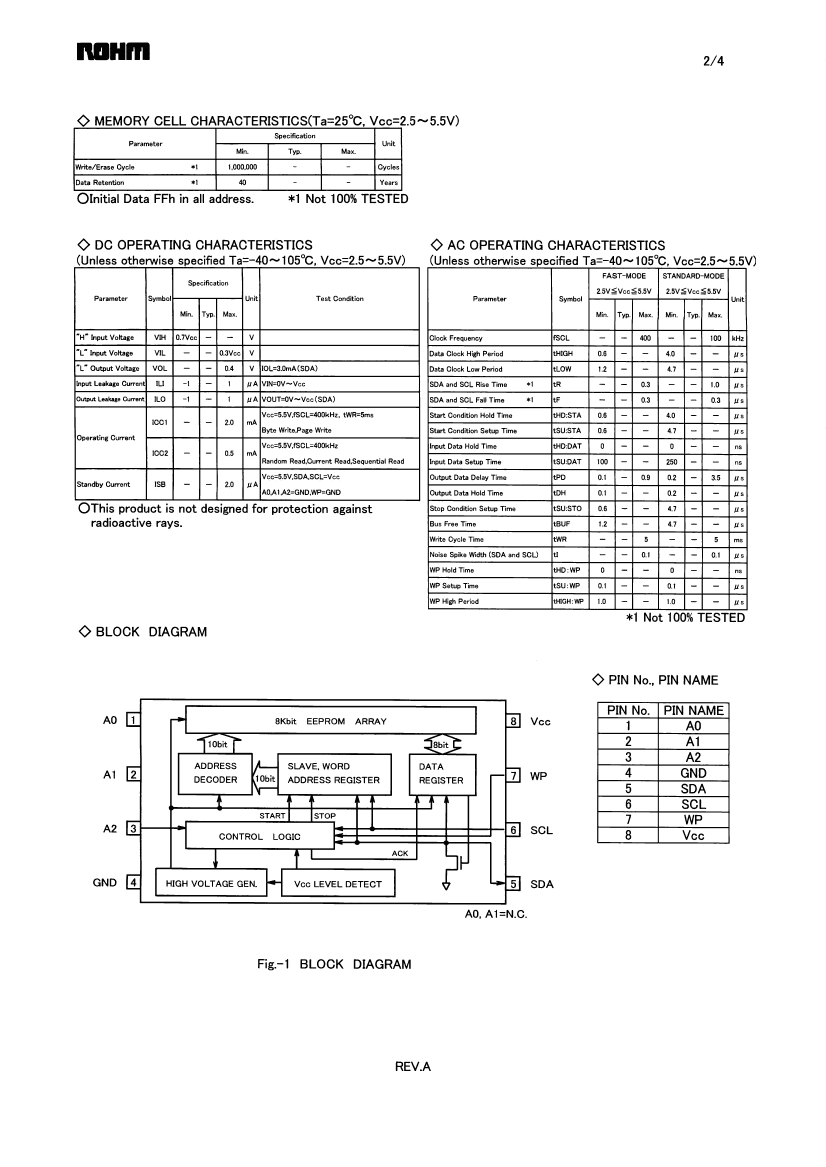

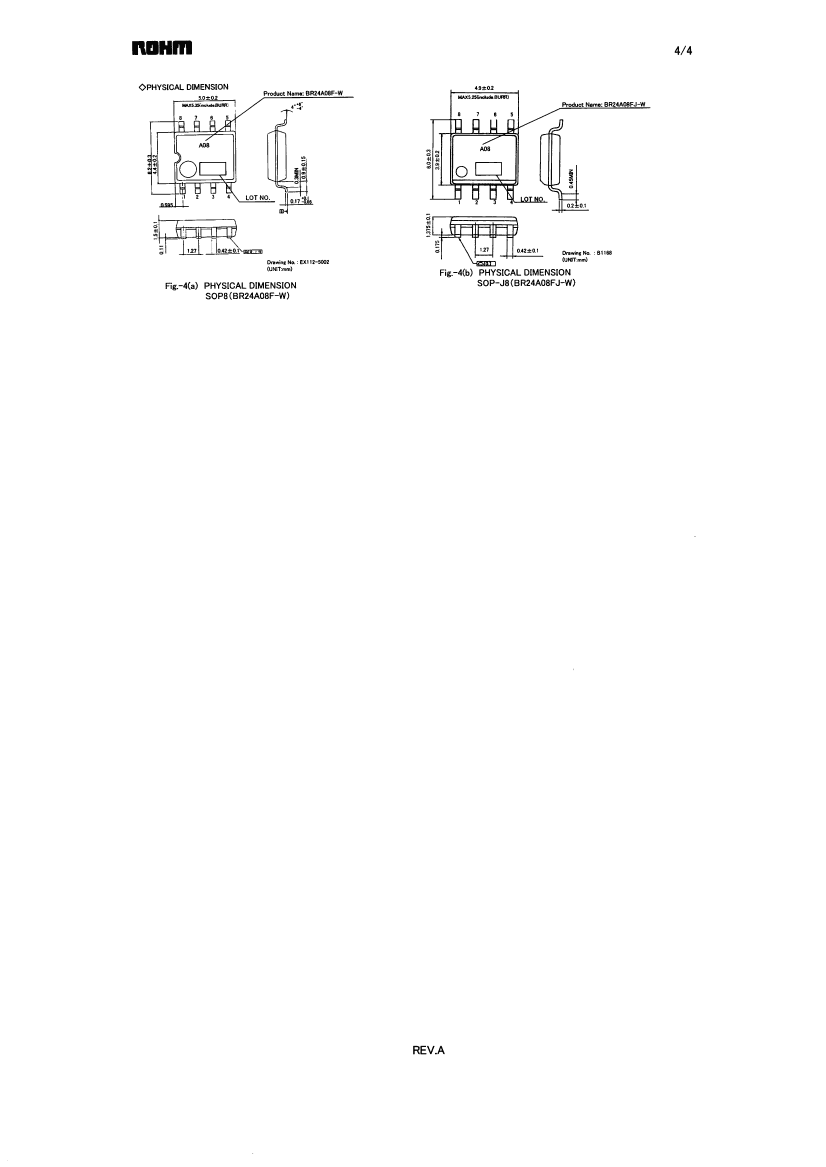

BR24A08F-WE2 Preview

Appendix

Notes

No technical content pages of this document may be reproduced in any form or transmitted by any

means without prior permission of ROHM CO.,LTD.

The contents described herein are subject to change without notice. The specifications for the

product described in this document are for reference only. Upon actual use, therefore, please request

that specifications to be separately delivered.

Application circuit diagrams and circuit constants contained herein are shown as examples of standard

use and operation. Please pay careful attention to the peripheral conditions when designing circuits

and deciding upon circuit constants in the set.

Any data, including, but not limited to application circuit diagrams information, described herein

are intended only as illustrations of such devices and not as the specifications for such devices. ROHM

CO.,LTD. disclaims any warranty that any use of such devices shall be free from infringement of any

third party's intellectual property rights or other proprietary rights, and further, assumes no liability of

whatsoever nature in the event of any such infringement, or arising from or connected with or related

to the use of such devices.

Upon the sale of any such devices, other than for buyer's right to use such devices itself, resell or

otherwise dispose of the same, no express or implied right or license to practice or commercially

exploit any intellectual property rights or other proprietary rights owned or controlled by

ROHM CO., LTD. is granted to any such buyer.

Products listed in this document are no antiradiation design.

The products listed in this document are designed to be used with ordinary electronic equipment or devices

(such as audio visual equipment, office-automation equipment, communications devices, electrical

appliances and electronic toys).

Should you intend to use these products with equipment or devices which require an extremely high level

of reliability and the malfunction of which would directly endanger human life (such as medical

instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers

and other safety devices), please be sure to consult with our sales representative in advance.

It is our top priority to supply products with the utmost quality and reliability. However, there is always a chance

of failure due to unexpected factors. Therefore, please take into account the derating characteristics and allow

for sufficient safety features, such as extra margin, anti-flammability, and fail-safe measures when designing in

order to prevent possible accidents that may result in bodily harm or fire caused by component failure. ROHM

cannot be held responsible for any damages arising from the use of the products under conditions out of the

range of the specifications or due to non-compliance with the NOTES specified in this catalog.

Thank you for your accessing to ROHM product informations.

More detail product informations and catalogs are available, please contact your nearest sales office.

ROHM

Customer Support System

www.rohm.com

2007 ROHM CO.,LTD.

THE AMERICAS

EUPOPE

ASIA

JAPAN

webmaster@ rohm.co. jp

21, Saiin Mizosaki-cho, Ukyo-ku, Kyoto 615-8585, Japan

TEL : +81-75-311-2121

FAX : +81-75-315-0172

Appendix1-Rev2.0

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
