CDRH6D26HPNP-560MB: DescriptionGeneral Purpose Inductor, 56uH, 20%, 1 Element, Ferrite-Core, SMD, 2626, ROHS COMPLIANT; CategoryPassive components inductor; File Size128KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CDRH6D26HPNP-560MB Overview

General Purpose Inductor, 56uH, 20%, 1 Element, Ferrite-Core, SMD, 2626, ROHS COMPLIANT

CDRH6D26HPNP-560MB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	2626
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	2626
structure	Magnetically Shielded
core material	Ferrite
DC Resistance	0.425 Ω
Nominal inductance(L)	56 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDRH
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package height	2.6 mm
Package length	6.7 mm
Package form	SMT
Package width	6.7 mm
method of packing	Box
Maximum rated current	0.75 A
series	CDRH6D26/HP
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

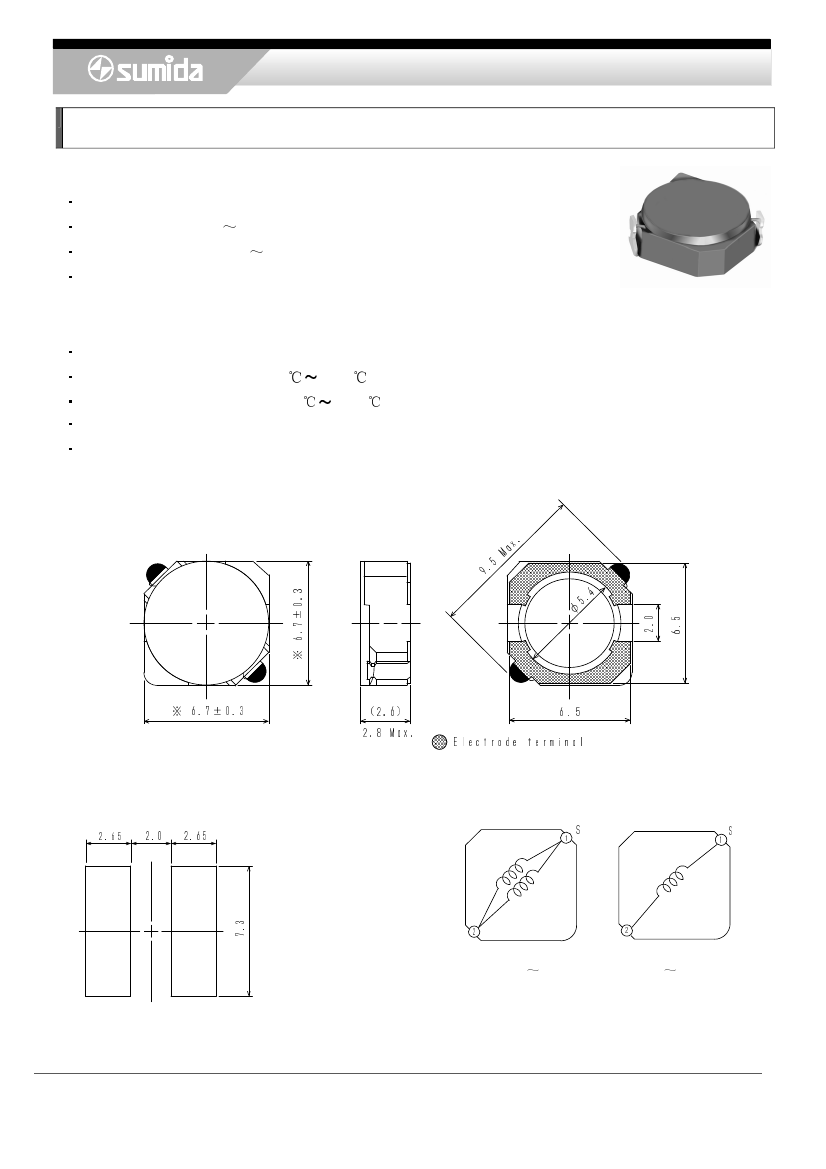

Power Inductors <SMD Type: CDRH Series>

Type: CDRH6D26/HP

◆

Product Description

7.0×7.0mm Max.(L×W ) , 2.8mm Max. Height.

Inductance range: 1.5 100

µH

.

Rated current range: 0.55 4.6A.

Custom design is available.

◆

Feature

Magnetically shielded construction.

Operating temperature range: -40

+105 (Including coil’s self temperature rise).

Ideally used in Mobile phone, MP3, PDA ,HDD,DSC/DVC, etc as DC-DC converter inductors.

RoHS compliance and Halogen Free.

◆

Dimensions (mm)

◆

Land Pattern (mm)

56.2

0.2

56.2

◆

Schematics (Bottom)

S

1

“S” is winding start

Please refer to the sales offices on our website for a representative near you

www.sumida.com

½

(1.5

10)

(12 100)

6 2

. .

5 0

2

φ

4.5

l an im re t ed or tce l E

5.6

S

1

.9

M5

.xa

2

.xaM 8.2

)6.2(

℃ ½℃

Storage temperature range: -40

※

6

.

7

±

0

.

3

½

7

.

3

3.0±7.6 ※

½

・

+105 .

1/2
