M74HC259B1N datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> M74HC259B1N

PDF

M74HC259B1N: DescriptionHC/UH SERIES, LOW LEVEL TRIGGERED D LATCH, TRUE OUTPUT, PDIP16, PLASTIC, DIP-16; Categorylogic logic; File Size185KB，7 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

M74HC259B1N Overview

HC/UH SERIES, LOW LEVEL TRIGGERED D LATCH, TRUE OUTPUT, PDIP16, PLASTIC, DIP-16

M74HC259B1N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	not_compliant
Other features	1:8 DMUX FOLLOWED BY LATCH; RESET ACTIVE ONLY WHEN LATCH ENABLE IS HIGH
series	HC/UH
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	D LATCH
MaximumI(ol)	0.004 A
Number of digits	1
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2/6 V
Prop。Delay @ Nom-Sup	48 ns
propagation delay (tpd)	41 ns
Certification status	Not Qualified
Maximum seat height	5.1 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	LOW LEVEL
width	7.62 mm

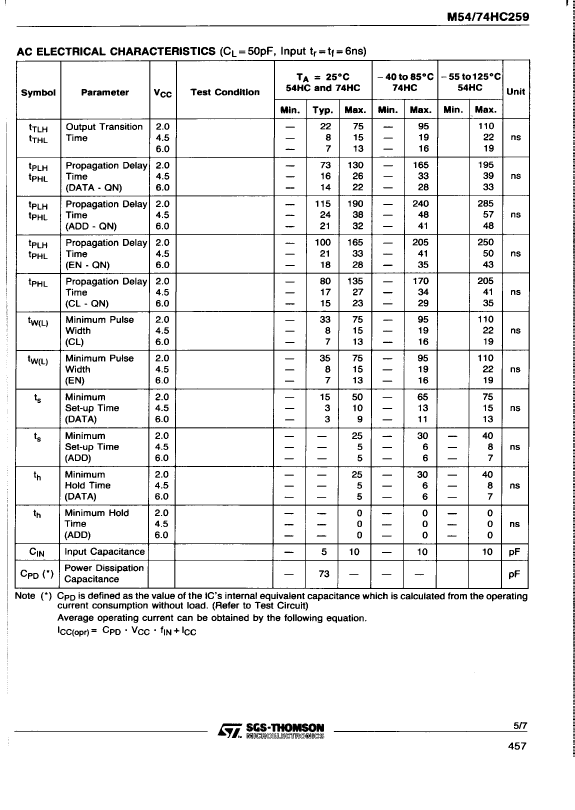

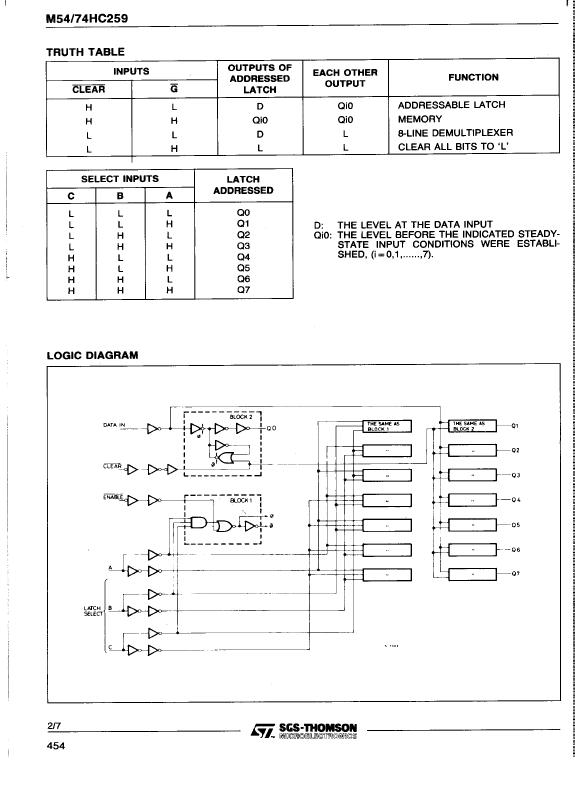

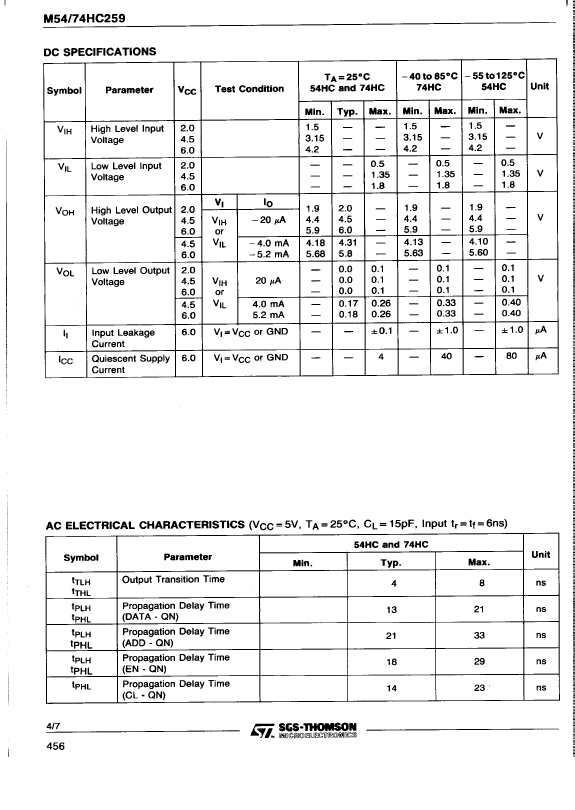

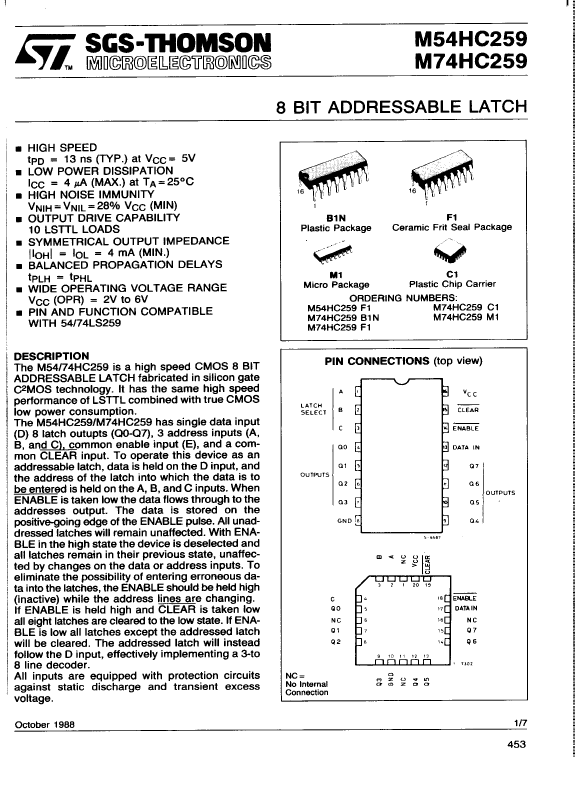

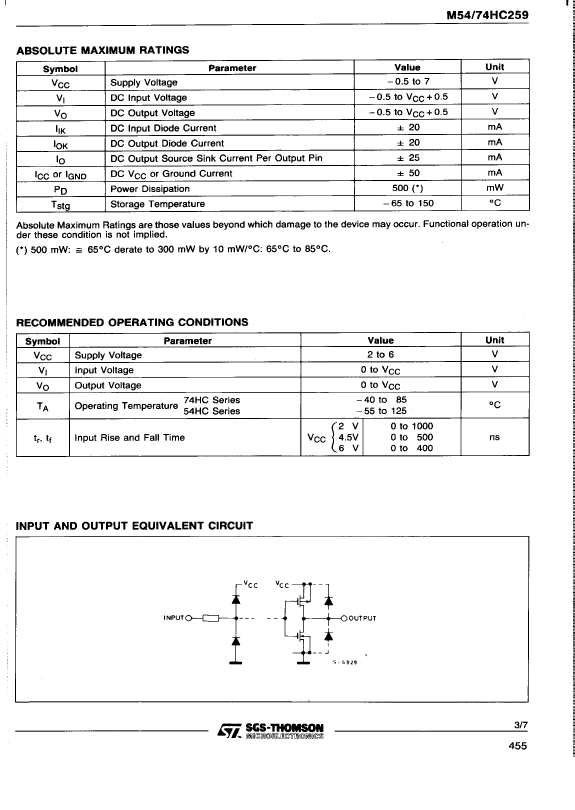

M74HC259B1N Preview

This Material Copyrighted By Its Respective Manufacturer

This Material Copyrighted By Its Respective Manufacturer

This Material Copyrighted By Its Respective Manufacturer

This Material Copyrighted By Its Respective Manufacturer

This Material Copyrighted By Its Respective Manufacturer

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

M74HC259B1N Related Products

	M74HC259B1N	M54HC259F1	M74HC259M1	M74HC259C1
Description	HC/UH SERIES, LOW LEVEL TRIGGERED D LATCH, TRUE OUTPUT, PDIP16, PLASTIC, DIP-16	HC/UH SERIES, LOW LEVEL TRIGGERED D LATCH, TRUE OUTPUT, CDIP16, FRIT SEALED, CERAMIC, DIP-16	HC/UH SERIES, LOW LEVEL TRIGGERED D LATCH, TRUE OUTPUT, PDSO16, MICRO, GULLWIING, PLASTIC, DIP-16	HC/UH SERIES, LOW LEVEL TRIGGERED D LATCH, TRUE OUTPUT, PQCC20, PLASTIC, LCC-20
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Parts packaging code	DIP	DIP	SOIC	QLCC
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	MICRO, GULLWIING, PLASTIC, DIP-16	QCCJ, LDCC20,.4SQ
Contacts	16	16	16	20
Reach Compliance Code	not_compliant	not_compliant	not_compliant	_compli
Other features	1:8 DMUX FOLLOWED BY LATCH; RESET ACTIVE ONLY WHEN LATCH ENABLE IS HIGH	1:8 DMUX FOLLOWED BY LATCH; RESET ACTIVE ONLY WHEN LATCH ENABLE IS HIGH	1:8 DMUX FOLLOWED BY LATCH; RESET ACTIVE ONLY WHEN LATCH ENABLE IS HIGH	1:8 DMUX FOLLOWED BY LATCH; RESET ACTIVE ONLY WHEN LATCH ENABLE IS HIGH
series	HC/UH	HC/UH	HC/UH	HC/UH
JESD-30 code	R-PDIP-T16	R-GDIP-T16	R-PDSO-G16	S-PQCC-J20
JESD-609 code	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	D LATCH	D LATCH	D LATCH	D LATCH
MaximumI(ol)	0.004 A	0.004 A	0.004 A	0.004 A
Number of digits	1	1	1	1
Number of functions	1	1	1	1
Number of terminals	16	16	16	20
Maximum operating temperature	85 °C	125 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-55 °C	-40 °C	-40 °C
Output polarity	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	SOP	QCCJ
Encapsulate equivalent code	DIP16,.3	DIP16,.3	SOP16,.25	LDCC20,.4SQ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	2/6 V	2/6 V	2/6 V	2/6 V
propagation delay (tpd)	41 ns	50 ns	41 ns	41 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.1 mm	5 mm	1.75 mm	4.57 mm
Maximum supply voltage (Vsup)	6 V	6 V	6 V	6 V
Minimum supply voltage (Vsup)	2 V	2 V	2 V	2 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	MILITARY	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	J BEND
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger type	LOW LEVEL	LOW LEVEL	LOW LEVEL	LOW LEVEL
width	7.62 mm	7.62 mm	3.9 mm	8.9662 mm
Prop。Delay @ Nom-Sup	48 ns	57 ns	48 ns	-
