74LS00PC datasheet, PDF - EEWORLD Datasheet

74LS00PC: DescriptionLS SERIES, QUAD 2-INPUT NAND GATE, DSO14; Categorysemiconductor logic; File Size61KB，1 Pages; ManufacturerETC1

Download Datasheet Parametric View All

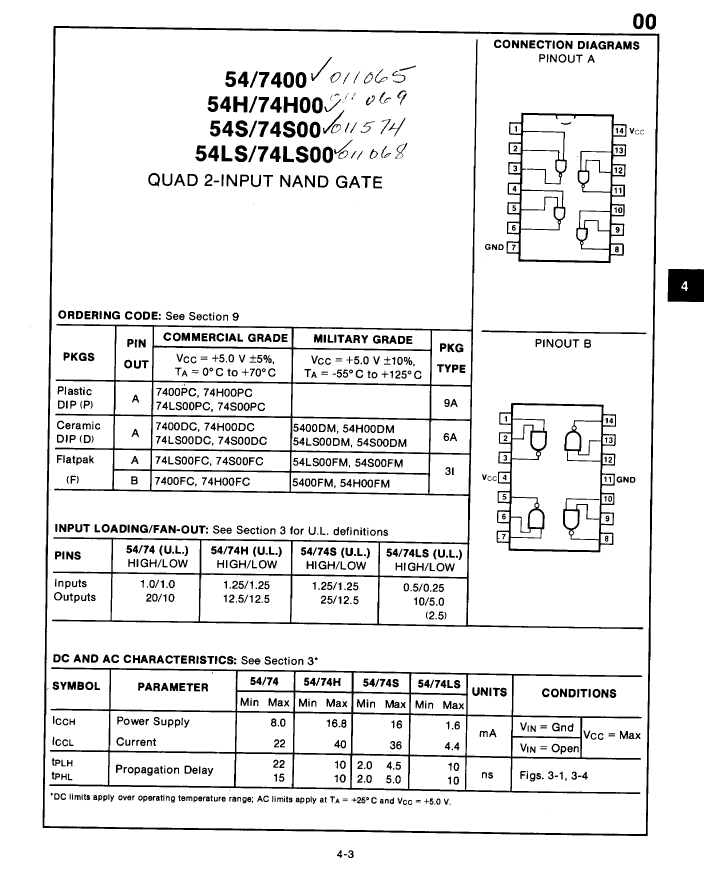

74LS00PC Overview

LS SERIES, QUAD 2-INPUT NAND GATE, DSO14

Parameter Name	Attribute value
Number of functions	4
Number of terminals	14
Maximum operating temperature	70 Cel
Minimum operating temperature	0.0 Cel
Maximum supply/operating voltage	5.25 V
Minimum supply/operating voltage	4.75 V
Rated supply voltage	5 V
Processing package description	DFP-14
state	DISCONTINUED
Craftsmanship	TTL
packaging shape	RECTANGULAR
Package Size	SMALL OUTLINE
surface mount	Yes
Terminal form	FLAT
terminal coating	TIN LEAD
Terminal location	DUAL
Packaging Materials	UNSPECIFIED
Temperature level	COMMERCIAL
series	LS
Logic IC type	NAND
Number of inputs	2
propagation delay TPD	10 ns
