CY7C342B-35HMB datasheet, PDF - EEWORLD Datasheet

CY7C342B-35HMB: DescriptionUV PLD, 75ns, 128-Cell, CMOS, CQCC68, WINDOWED, LCC-68; CategoryProgrammable logic devices Programmable logic; File Size744KB，18 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric View All

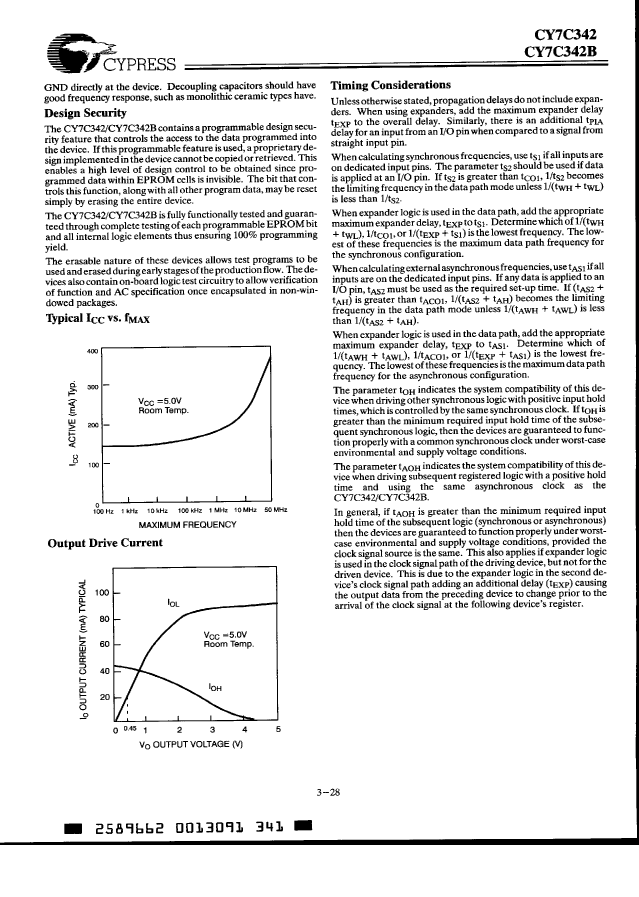

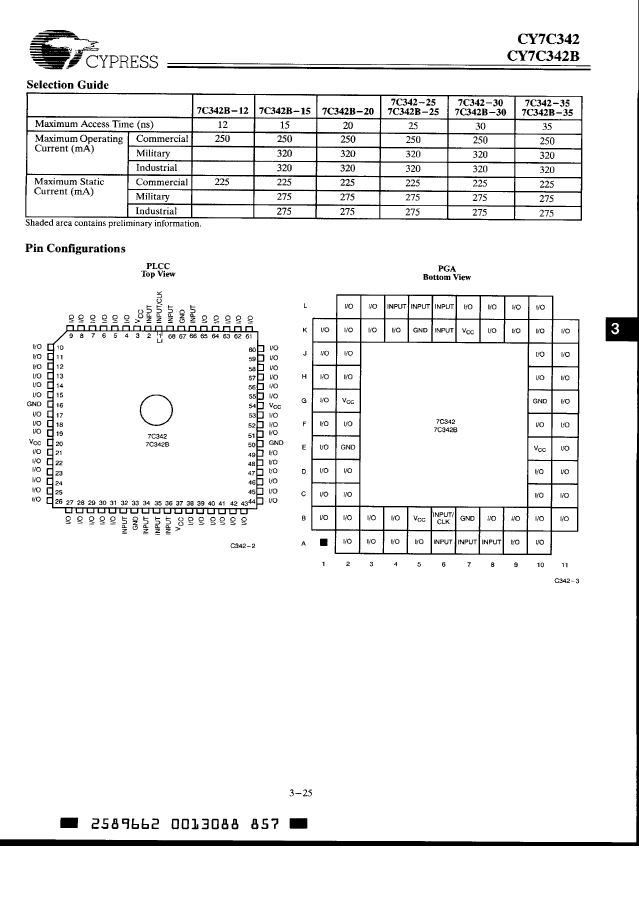

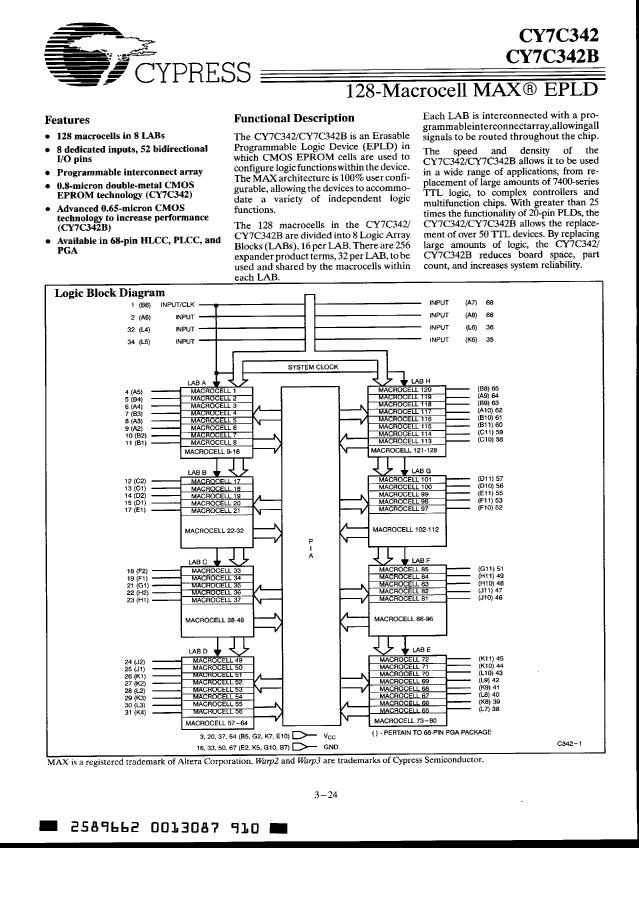

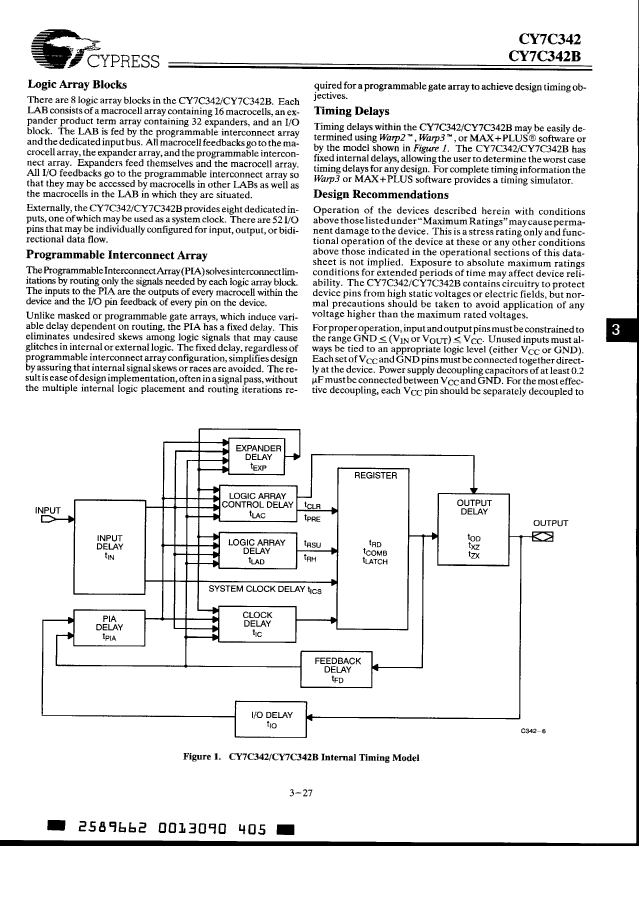

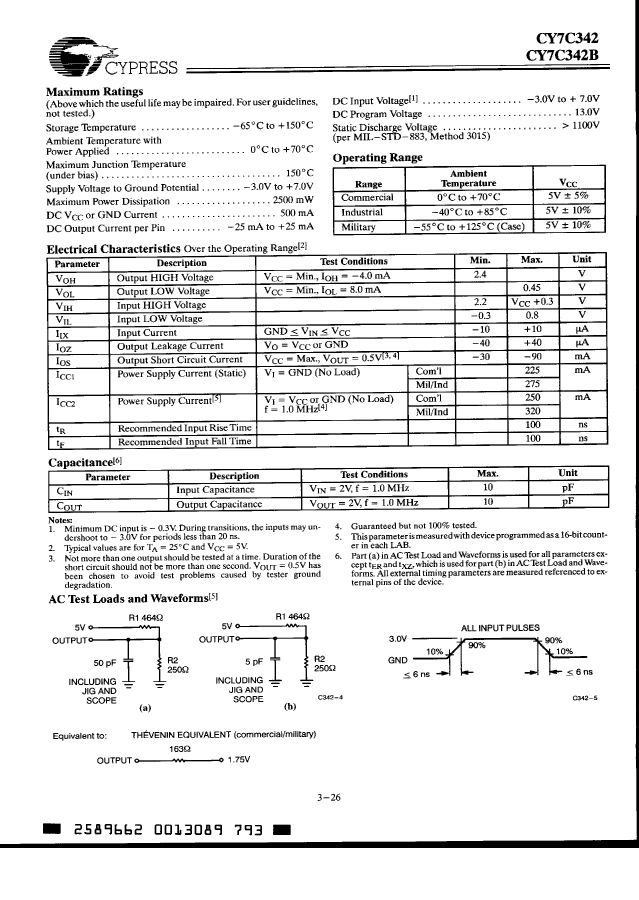

CY7C342B-35HMB Overview

UV PLD, 75ns, 128-Cell, CMOS, CQCC68, WINDOWED, LCC-68

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Cypress Semiconductor
Parts packaging code	LCC
package instruction	WQCCJ, LDCC68,1.0SQ
Contacts	68
Reach Compliance Code	not_compliant
ECCN code	3A001.A.2.C
Other features	LABS INTERCONNECTED BY PIA; 8 LABS; 128 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK
maximum clock frequency	22.2 MHz
In-system programmable	NO
JESD-30 code	S-CQCC-J68
JESD-609 code	e0
JTAG BST	NO
length	24.13 mm
Dedicated input times	7
Number of I/O lines	52
Number of macro cells	128
Number of terminals	68
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	7 DEDICATED INPUTS, 52 I/O
Output function	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WQCCJ
Encapsulate equivalent code	LDCC68,1.0SQ
Package shape	SQUARE
Package form	CHIP CARRIER, WINDOW
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Programmable logic type	UV PLD
propagation delay	75 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.08 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
width	24.13 mm

This Material Copyrighted By Its Respective Manufacturer
