PW5750-4R7MB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> PW5750-4R7MB

PW5750-4R7MB: DescriptionGeneral Purpose Inductor, 4.7uH, 20%, 2220,; CategoryPassive components inductor; File Size175KB，2 Pages; ManufacturerFenghua (HK) Electronics Ltd.

Download Datasheet Parametric View All

PW5750-4R7MB Overview

General Purpose Inductor, 4.7uH, 20%, 2220,

PW5750-4R7MB Parametric

Parameter Name	Attribute value
Maker	Fenghua (HK) Electronics Ltd.
package instruction	2220
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	2220
structure	Unshielded
DC Resistance	0.0574 Ω
Nominal inductance(L)	4.7 µH
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	PW
Package height	4.7 mm
Package length	5.7 mm
Package form	SMT
Package width	5 mm
method of packing	Bulk
Maximum rated current	2.7 A
self resonant frequency	30 MHz
series	PW
shield	NO
Tolerance	20%

Preview

Download Datasheet

View All

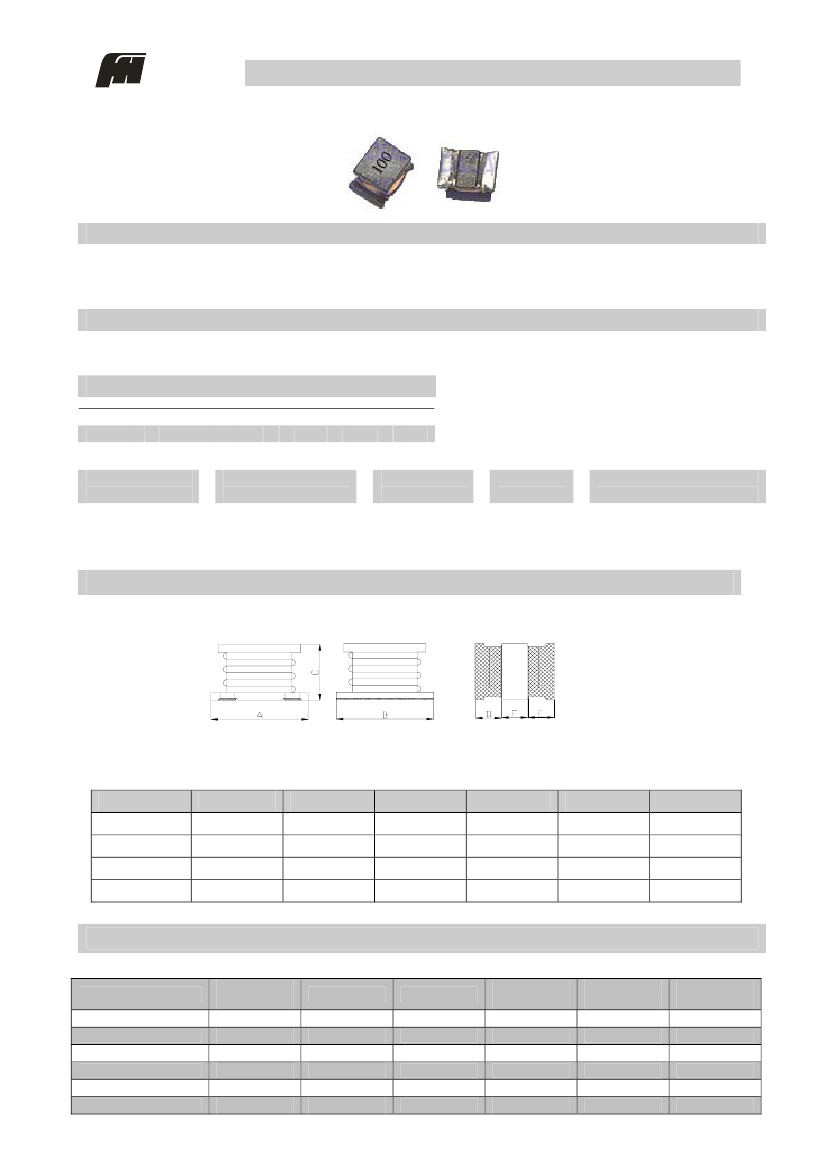

系列功率电感

PW Series SMD Power Inductors

特征

FEATURES

·超薄

·小尺寸，大电流

·适合于表面贴装,适合于回流焊

· Low profile

··small dimension,High saturation current

· SMT type, suitable for solder reflow

应用

APPLICATIONS

·移动通信,笔记本电脑

·DC/DC

½换

·Portable communication equipment, Notebook Computer

· DC/DC converters

产品规格型号表示方法

ORDERING CODE

①

产品代号

Code

3225

②

—

220

③

④

③

⑤

④

误差

Tolerance

⑤

包装方式

规格尺寸

Dimensions

(L×W×T) (mm)

感量(µH)

Inductance

系列

功率电感

3216

3225

4532

5750

3.2×1.6×1.8

3.2×2.5×2.0

4.5×3.2×3.0

5.7×5.0×4.7

100

150

220

±10%

±20%

Packaging Style

Tape&Reel

Bulk

外½尺寸

Dimensions

单½(Unit)：mm

型号

Part

PW3216

PW3225

PW4532

PW5750

3.0±0.3

3.2±0.3

4.5±0.3

5.7±0.3

1.6±0.3

2.5±0.3

3.2±0.3

5.0±0.3

1.8±0.3

2.0±0.2

3.0±0.2

4.7±0.3

0.70

1.00

1.30

0.70

1.00

1.30

0.70

1.10

1.20

1.50

电性½参数

Electrical Characteristics

PW3216

Series

Inductance

（μH）

0.47

1.0

2.2

4.7

Tolerance

±20%

Test Freq.

1MHz

SRF(MHz)

Min

180

100

DCR (Ω)

Max

0.210

0.364

0.533

0.845

1.69

3.90

Isat

(A)

0.70

0.51

0.43

0.34

0.23

0.16

Part Number

PW3216-R47MT

PW3216-1R0MT

PW3216-2R2MT

PW3216-4R7MT

PW3216-100MT

PW3216-220MT
