DAMZ7H2SNA197 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DAMZ7H2SNA197

DAMZ7H2SNA197: DescriptionD Subminiature Connector, 7 Contact(s), Female, Solder Terminal, #4-40, Receptacle,; CategoryThe connector The connector; File Size48KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/; Environmental Compliance

Download Datasheet Parametric View All

DAMZ7H2SNA197 Overview

D Subminiature Connector, 7 Contact(s), Female, Solder Terminal, #4-40, Receptacle,

DAMZ7H2SNA197 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ITT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	7 weeks 1 day
Other features	COMPATIBLE CONTACT: DM53744-98, EMI/RFI SHIELDED, PANEL MOUNT
body width	0.187 inch
subject depth	0.494 inch
body length	1.541 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact arrangement	S5C2
Contact to complete cooperation	GOLD FLASH
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	7.5 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
insulator material	POLYESTER
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation option 1	#4-40
Installation option 2	CLINCH NUT
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Termination type	SOLDER
Total number of contacts	7
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

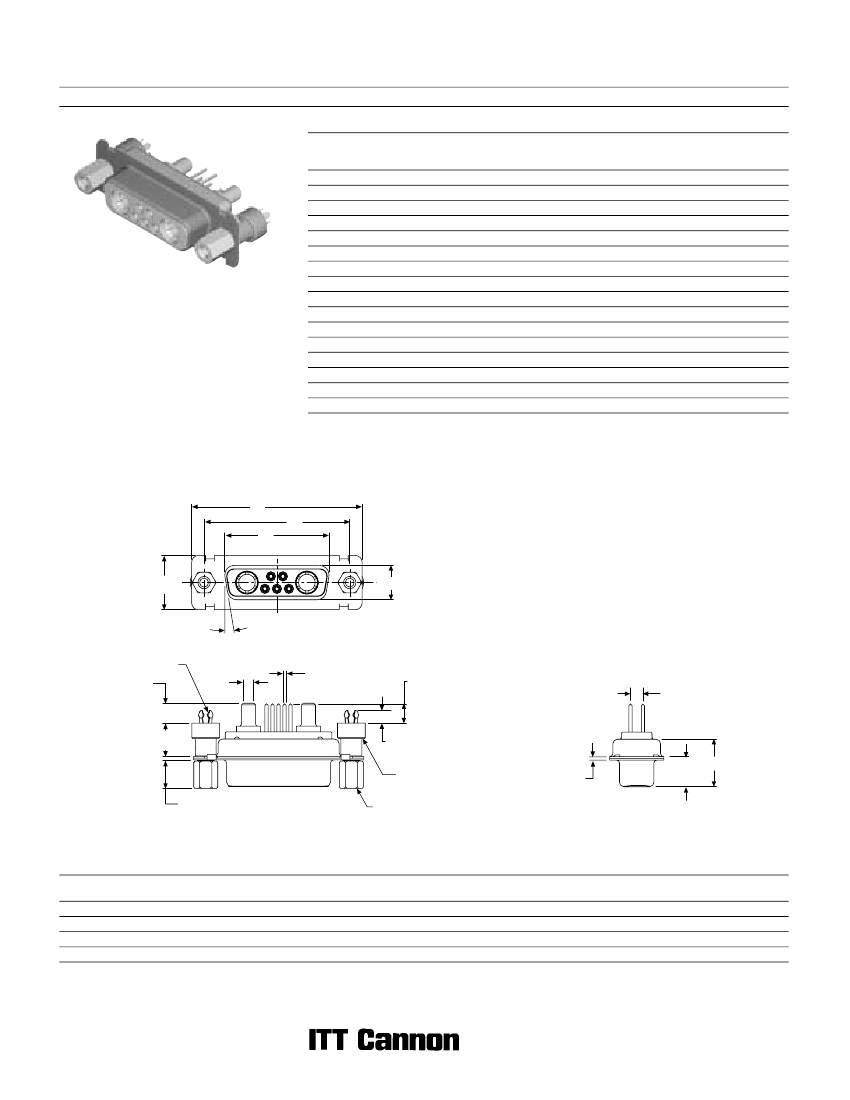

D Subminiature

40 A High Power Straight — Standard PC Tails (Sizes DE-DC)

Receptacle

Part Numbers with Standoff #4-40 UNC

Shell Size

Layout

5W1

7W2

11W1

3W3

3WK3

5W5

9W4

13W3

17W2

21W1

8W8

13W6

17W5

21WA4

25W3

27W2

Part Number

Without Screw Locks

Without Boardlocks

DEMV5H1SNA197

DAMV7H2SNA197

DAMV11H1SNA197

DAMV3H3SNA197

DAMV3HK3SNA197TM

DBMV5H5SNA197

DBMV9H4SNA197

DBMV13H3SNA197

DBMV17H2SNA197

DBMV21H1SNA197

DCMV8H8SNA197

DCMV13H6SNA197

DCMV17H5SNA197

DCMV21HA4SNA197

DCMV25H3SNA197

DCMV27H2SNA197

Part Number

Without Screw Locks

With Boardlocks

DEMZ5H1SNA197

DAMZ7H2SNA197

DAMZ11H1SNA197

DAMZ3H3SNA197

DAMZ3HK3SNA197TM

DBMZ5H5SNA197

DBMZ9H4SNA197

DBMZ13H3SNA197

DBMZ17H2SNA197

DBMZ21H1SNA197

DCMZ8H8SNA197

DCMZ13H6SNA197

DCMZ17H5SNA197

DCMZ21HA4SNA197

DCMZ25H3SNA197

DCMZ27H2SNA197

Combo D



Reader’s Resource

For contact cavity arrangements,

see page 223.

For P.C. hole patterns, see pages 257-258.

For panel cutouts, see page 221.

Part Number

With Screw Locks

With Boardlocks

DEMN5H1SNA197

DAMN7H2SNA197

DAMN11H1SNA197

DAMN3H3SNA197

DAMN3HK3SNA197TM

DBMN5H5SNA197

DBMN9H4SNA197

DBMN13H3SNA197

DBMN17H2SNA197

DBMN21H1SNA197

DCMN8H8SNA197

DCMN13H6SNA197

DCMN17H5SNA197

DCMN21HA4SNA197

DCMN25H3SNA197

DCMN27H2SNA197

Note: For contacts with 30 microinches gold substitute K126 for A197. Example: DEMV5H1SNK126

For DD shell sizes, see page 69.

Keyed.

Engaging Face

10°

BOARDLOCK

4,65

(.183)

Ø 3,18

(.125)

Ø 0,76

(.030)

4,52 (.178)

2,84

(.112)

7,62

0,25

(.300

.010)

2,92

(.115)

STANDOFF

#4-40 UNC

6,50

0,25

(.256

.010)

SCREW LOCK

#4-40 UNC

Screw lock, boardlock and high power contact

removed for clarity

Dimensions

Shell Size

±0,38

(.015)

30,81 (1.213)

39,14 (1.541)

53,04 (2.088)

69,32 (2.729)

±0,13

(.005)

16,33 (.643)

24,66 (.971)

38,38 (1.511)

54,84 (2.159)

±0,13

(.005)

24,99 (.984)

33,32 (1.312)

47,04 (1.852)

63,50 (2.500)

±0,13

(.005)

7,90 (.311)

±0,38

(.015)

12,55 (.494)

±0,25

(.010)

10,90 (.429)

±0,38

(.015)

6,94 (.273)

±0,25

(.010)

0,76 (.030)

Dimensions are shown in mm (inch)

Dimensions subject to change
