Shifter, F/FAST Series, 4-Bit, TTL, PDSO16,

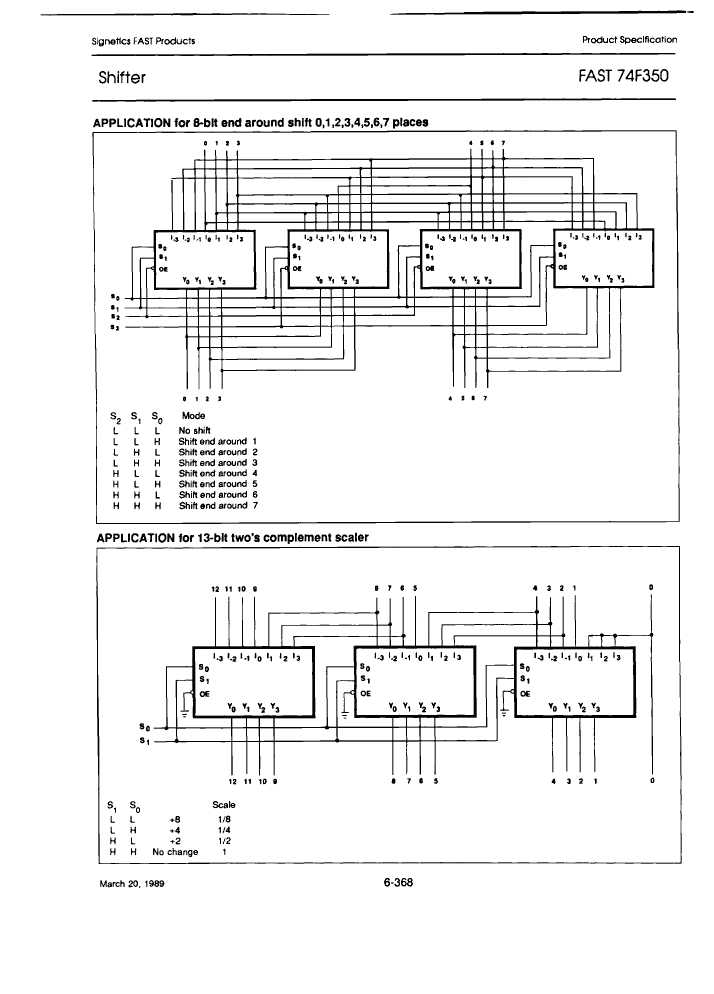

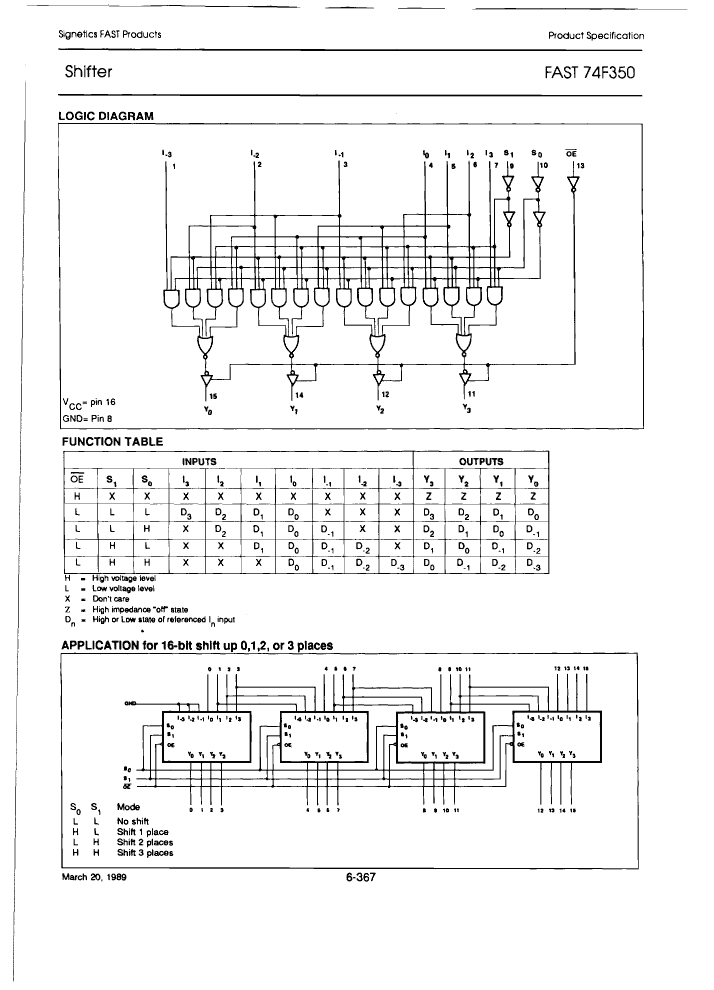

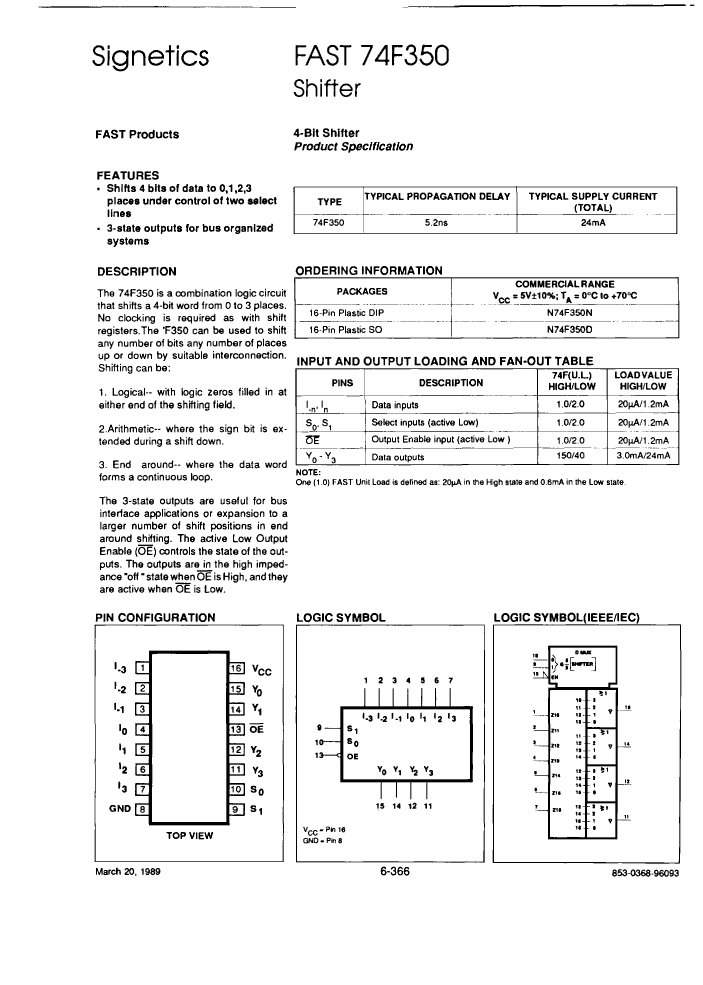

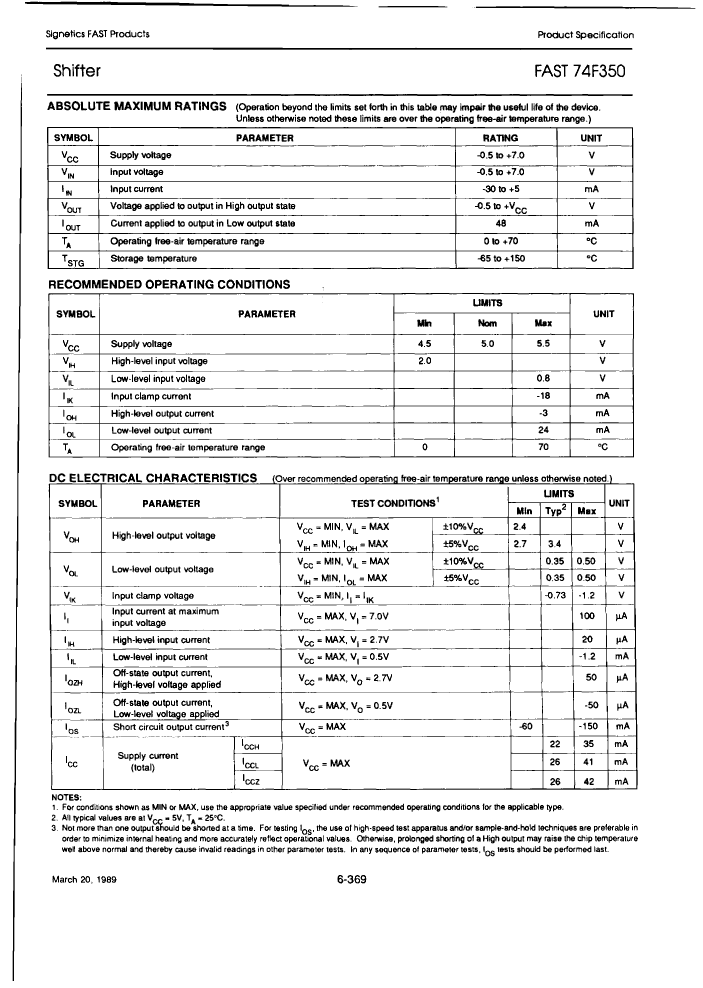

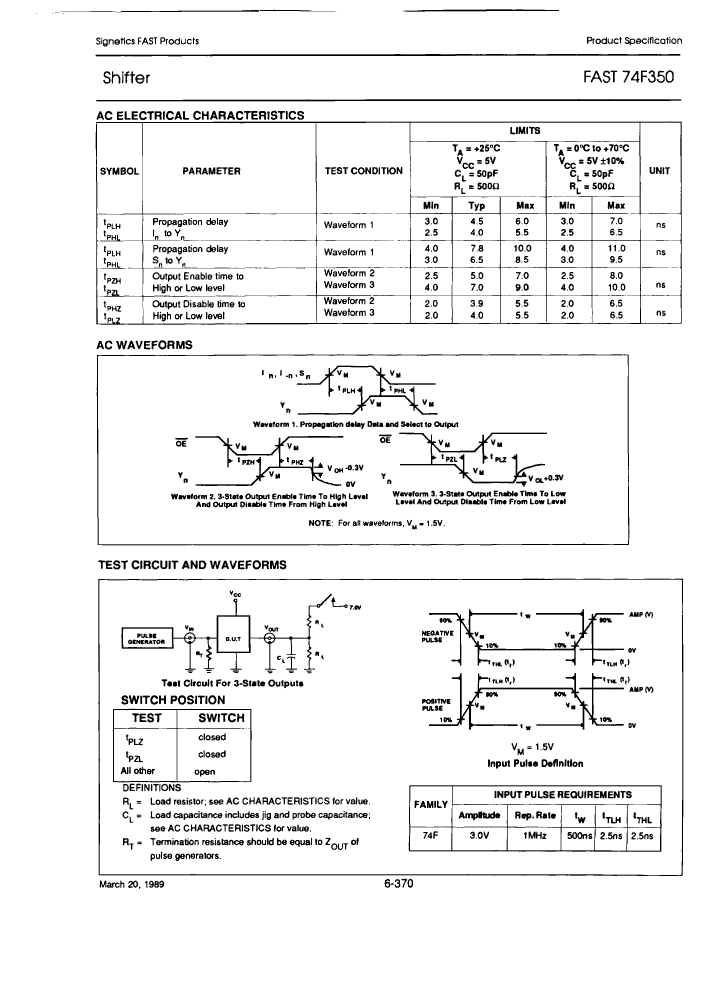

| Parameter Name | Attribute value |
| Maker | YAGEO |
| package instruction | , |
| Reach Compliance Code | unknown |
| Other features | WITH BARREL SHIFTING |
| series | F/FAST |
| JESD-30 code | R-PDSO-G16 |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | SHIFTER |
| Number of digits | 4 |
| Number of functions | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output characteristics | 3-STATE |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Maximum supply current (ICC) | 41 mA |
| propagation delay (tpd) | 9.5 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal form | GULL WING |
| Terminal location | DUAL |
| 74F350D | 74F350D-T | N74F350D-T | 74F350N | N74F350N | N74F350D | |
|---|---|---|---|---|---|---|
| Description | Shifter, F/FAST Series, 4-Bit, TTL, PDSO16, | Shifter, F/FAST Series, 4-Bit, TTL, PDSO16, | Shifter, F/FAST Series, 4-Bit, TTL, PDSO16, | Shifter, F/FAST Series, 4-Bit, TTL, PDIP16, | Shifter, F/FAST Series, 4-Bit, TTL, PDIP16, | Shifter, F/FAST Series, 4-Bit, TTL, PDSO16, |
| Maker | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknow |
| Other features | WITH BARREL SHIFTING | WITH BARREL SHIFTING | WITH BARREL SHIFTING | WITH BARREL SHIFTING | WITH BARREL SHIFTING | WITH BARREL SHIFTING |
| series | F/FAST | F/FAST | F/FAST | F/FAST | F/FAST | F/FAST |
| JESD-30 code | R-PDSO-G16 | R-PDSO-G16 | R-PDSO-G16 | R-PDIP-T16 | R-PDIP-T16 | R-PDSO-G16 |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | SHIFTER | SHIFTER | SHIFTER | SHIFTER | SHIFTER | SHIFTER |
| Number of digits | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 16 | 16 | 16 | 16 | 16 | 16 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | IN-LINE | IN-LINE | SMALL OUTLINE |
| Maximum supply current (ICC) | 41 mA | 41 mA | 41 mA | 41 mA | 41 mA | 41 mA |
| propagation delay (tpd) | 9.5 ns | 9.5 ns | 9.5 ns | 9.5 ns | 9.5 ns | 9.5 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES | NO | NO | YES |
| technology | TTL | TTL | TTL | TTL | TTL | TTL |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | GULL WING | GULL WING | GULL WING | THROUGH-HOLE | THROUGH-HOLE | GULL WING |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Base Number Matches | - | 1 | 1 | 1 | 1 | - |
