FEATURES / BENEFITS
Suitable for all Class 1, Div 2, Groups A, B, C, D
hazardous environments, T4 rated
Inherent safety capability; low electrical/thermal energy
and high light output
Unique optically designed lens to enhance LED
operation and provide 360
o
visibility
Weather/corrosion resistant lamp assembly and
housing
Self-contained wiring compartment eliminates
additional boxes
Available as a single or dual unit
Resistant to shock and vibration
Threaded 1” and 3/4” bottom hub for mounting
Lasts years longer than existing Xenon units
5 year warranty
IP 66 / NEMA 4X rated
Potted & sealed for longer life
LEDs > 10+ years life expectancy
Can be mounted in any orientation
US PATENT# 6,425,678
“LED BASED”
HAZARDOUS LOCATION
FLASHING VISUAL SIGNALS
ETL Listed in compliance with
UL1598 and UL844 for use in
Class 1, Div 2 Hazardous Locations
APPLICATION
The Dialight Visual Signal Light is an LED BASED Class 1, Division 2 certified fixture. Used for visual indication
in hazardous environments, providing a valuable solution to the petrochemical industry facilities.
OPERATING CONDITIONS
Temperatures ranging from -40
o
F to +131
o
F (-40
o
C to
+55
o
C). Will withstand wind in excess of 150 mph
(240 kph), salt fog.
MATERIALS / FINISH
Cast aluminum housing and stainless steel hardware.
Electro-statically applied powdercoat of aviation orange paint.
ELECTRICAL SPECIFICATIONS
OPERATING VOLTAGE
(50-60HZ)
INPUT POWER
(DURING ON-TIME)
NOMINAL INPUT VA
(DURING ON-TIME, 60HZ INPUT)
MIN
NOM
MAX
MIN
MAX
MIN
MAX
120 VAC UNITS
230 VAC UNITS
12 - 48 VDC UNITS
* 60 Hz Input
96
192
10
120
240
-
132
264
53
10*
13*
10
18*
19*
25
33
72
-
60
106
-
Dialight Corporation
Dialight Europe Ltd.
Exning Road, Newmarket, England, CB8 0AX
Tel: +44 (0) 1638 666541 • Fax: +44 (0) 1638 561735
www.dialight-obstruction-lights.com
A Subsidiary of Dialight PLC
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778
www.dialight.com
MDTF860FLS_C
HAZARDOUS LOCATION
FLASHING VISUAL SIGNALS

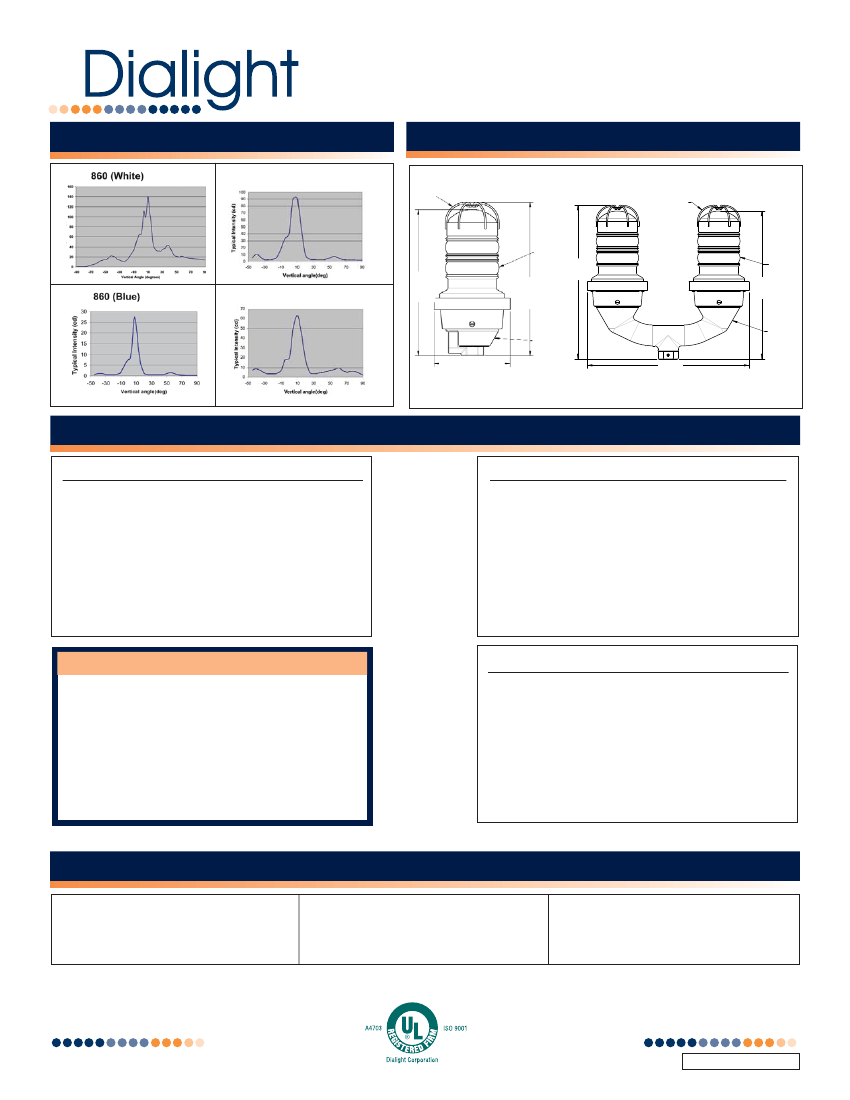

PHOTOMETRIC DATA
860 (Green)
Shield
Shield
MECHANICAL DIMENSIONS
Lens
Assembly
11.21
[284.6]
REF
11.77
[298.9]
REF
14.77
[375.2]
860 (Yellow & Red)
Lens
Assembly
14.21
[360.8]
BI-DIRECTIONAL
WIRE HOUSING
Dual Wire
Housing
15.54
[394.7]
5.79 [147]
REF
Dimensions are in inches [mm]
ORDERING INFORMATION
Single Units
Single, Red
Single, Green
Single, Yellow (Amber)
Single, Blue
Single, White
FLS-XR0Y-001
FLS-XG0Y-001
FLS-XY0Y-001
FLS-XB0Y-001
FLS-XW0Y-001
**Double Units
Double, Red
Double, Green
Double, Yellow (Amber)
Double, Blue
Double, White
FLS-XR0Y-002
FLS-XG0Y-002
FLS-XY0Y-002
FLS-XB0Y-002
FLS-XW0Y-002
note:
X
indicates certification
Y indicates voltage
(See Certification / Voltage Chart)
note:
X
indicates certification
Y indicates voltage
(See Certification / Voltage Chart)
Replacement Light Assemblies
Single, Red
Single, Green
Single, Yellow (Amber)
Single, Blue
Single, White
FLS-XR0Y
FLS-XG0Y
FLS-XY0Y
FLS-XB0Y
FLS-XW0Y
CERTIFICATION / VOLTAGE CHART
X = 2:
Y = 1:
Y = 2:
Y = 8:
**Certification pending
Class 1, Div 2
120 VAC
230 VAC
**12-48 VDC
note:
X
indicates certification
Y indicates voltage
(See Certification / Voltage Chart)
WEIGHTS & MEASUREMENTS
PART NUMBER
Single Unit
Dual Unit
Dialight Europe Ltd.
Exning Road, Newmarket, England, CB8 0AX
Tel: +44 (0) 1638 666541 • Fax: +44 (0) 1638 561735
www.dialight-obstruction-lights.com
A Subsidiary of Dialight PLC
APPROX. SHIPPING WEIGHT
7.14 lbs
16.06 lbs
CONTAINER DIMENSIONS
16” x 9” x 8”
22” x 17” x 9”
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778
www.dialight.com
MDTF860FLS_C
