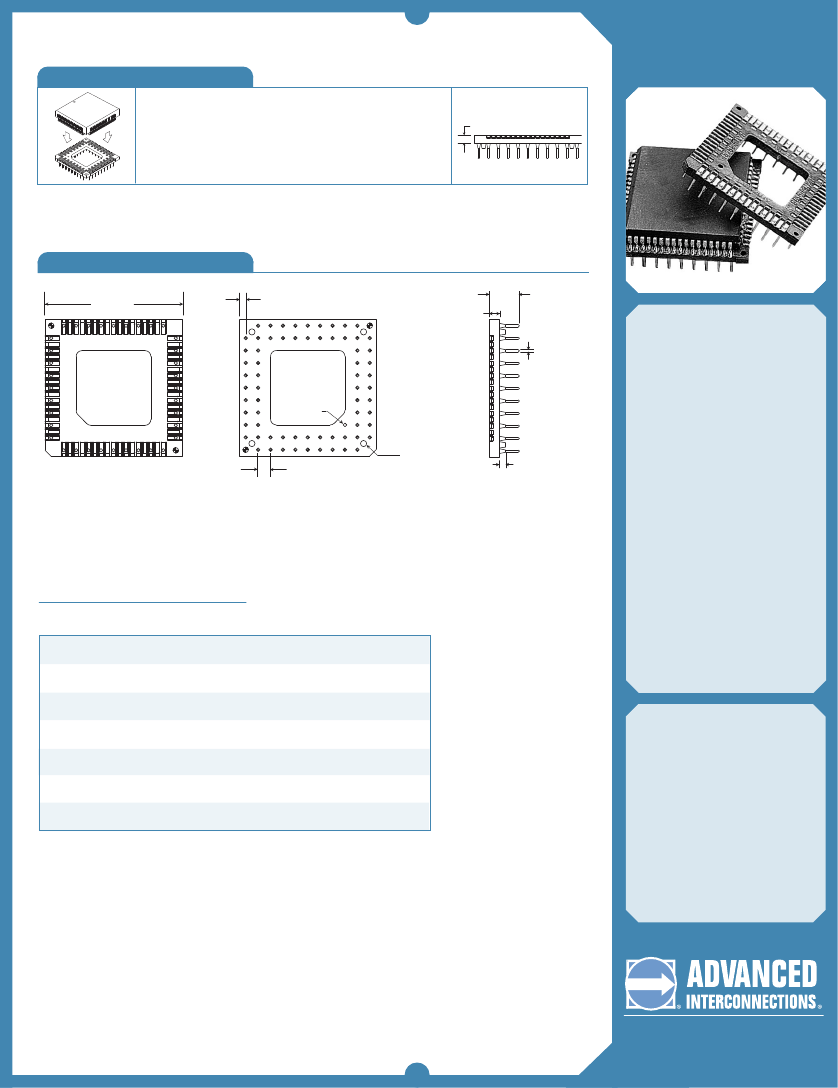

PLCC Adapters with Murphy Circuits
Table of Models
PLCC
®
Adapters for JEDEC .050/(1.27mm) Pitch PLCCs (Leaded Type A)
Description:
PLCC to PGA Adapter (2819)
Material: High Temp. Glass Filled Thermoplastic*
Index: -60°C to 220°C (-76°F to 428°F)
Device attach service available.
Adapters
.080
(2.03)
A
PA
T.
D
V
A
N
C
E
D
P/N
28
19
-6
8S
N
o.
51
6
84
32
AD
M
E
IN
U.S
.A
.
*Note: This product is not RoHS Compliant.
Dimensional Information
A Sq.
P/N 2819-68S
.050 Typ.
(1.27)
.235
(5.97)
.080
(2.03)
.018 Dia.
(.46)
Features:
• Adapter allows PLCC devices to be
solderable or socketable in a thru-
hole application.
• Molded locating ribs aid in device
placement.
• Ribs between “J” leads eliminate
shorting.
.050
(1.27)
Polarization
Pin
PAT. NO. 5168432
.100 Typ.
(2.54)
4 standoffs
for soldering
into PCB
• Adapts JEDEC PLCC packages to
standard PGA footprints.
• .100/(2.54mm) pin to pin spacing
allows more space for conductor
runs on PCB.
• Polarization pin option available.
• Saves space (X, Y, and Z) when
used with Advanced PGA (LIF)
sockets.
Top View of Adapter
(68 Pin Shown)
Bottom View of Adapter
(68 Pin Shown)
Part Numbers
With Standoffs
2819-28S
2819-44S
2819-52S
2819-68S
2819-84S
2819-100S
2819-124S
With Polarization
Pin & Standoffs
2819-28SP
2819-44SP
2819-52SP
2819-68SP
2819-84SP
2819-100SP
2819-124SP
No. of
Positions
28
44
52
68
84
100
124
A
.500
(12.70)
.800
(20.32)
.900
(22.86)
1.100
(27.94)
1.300
(33.02)
1.500
(38.10)
1.800
(45.72)
• Allows testing with standard test
clips.
• Standoffs aid soldering operation.
• Device attach services available.
Specifications:
Terminals:
Brass - Copper Alloy
(C36000) ASTM-B-16
Plating:
Tin/Lead over Nickel
Circuit:
Copper Circuit, Tin/Lead Plated
Tin/Lead per MIL-P-81728
Nickel per QQ-N-290
Also available without standoff - consult factory.
Consult factory for RoHS Compliant options.
inch/(mm)
Products shown covered by patents issued and/or pending. Specifications subject to change without notice.
59
5 Energy Way, West Warwick, RI 02893 USA
Tel: 800.424.9850 | 401.823.5200
Fax: 401.823.8723
info@advanced.com | www.advanced.com
Catalog 16A
