FREQX22/30/10/-20+70/32PF/100R datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> FREQX22/30/10/-20+70/32PF/100R

FREQX22/30/10/-20+70/32PF/100R: DescriptionParallel - Fundamental Quartz Crystal, 16MHz Min, 21MHz Max, ROHS COMPLIANT, ULTRA-MINIATURE, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size92KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

FREQX22/30/10/-20+70/32PF/100R Overview

Parallel - Fundamental Quartz Crystal, 16MHz Min, 21MHz Max, ROHS COMPLIANT, ULTRA-MINIATURE, SMD, 4 PIN

FREQX22/30/10/-20+70/32PF/100R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Euroquartz
package instruction	ROHS COMPLIANT, ULTRA-MINIATURE, SMD, 4 PIN
Reach Compliance Code	compliant
Other features	AT-CUT CRYSTAL, TAPE AND REEL
Ageing	2 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	50 µW
frequency stability	0.001%
frequency tolerance	30 ppm
load capacitance	32 pF
Installation features	SURFACE MOUNT
Maximum operating frequency	21 MHz
Minimum operating frequency	16 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L2.5XB2.0XH0.6 (mm)/L0.098XB0.079XH0.024 (inch)
Series resistance	100 Ω
surface mount	YES

Preview

Download Datasheet

View All

EURO

QUARTZ

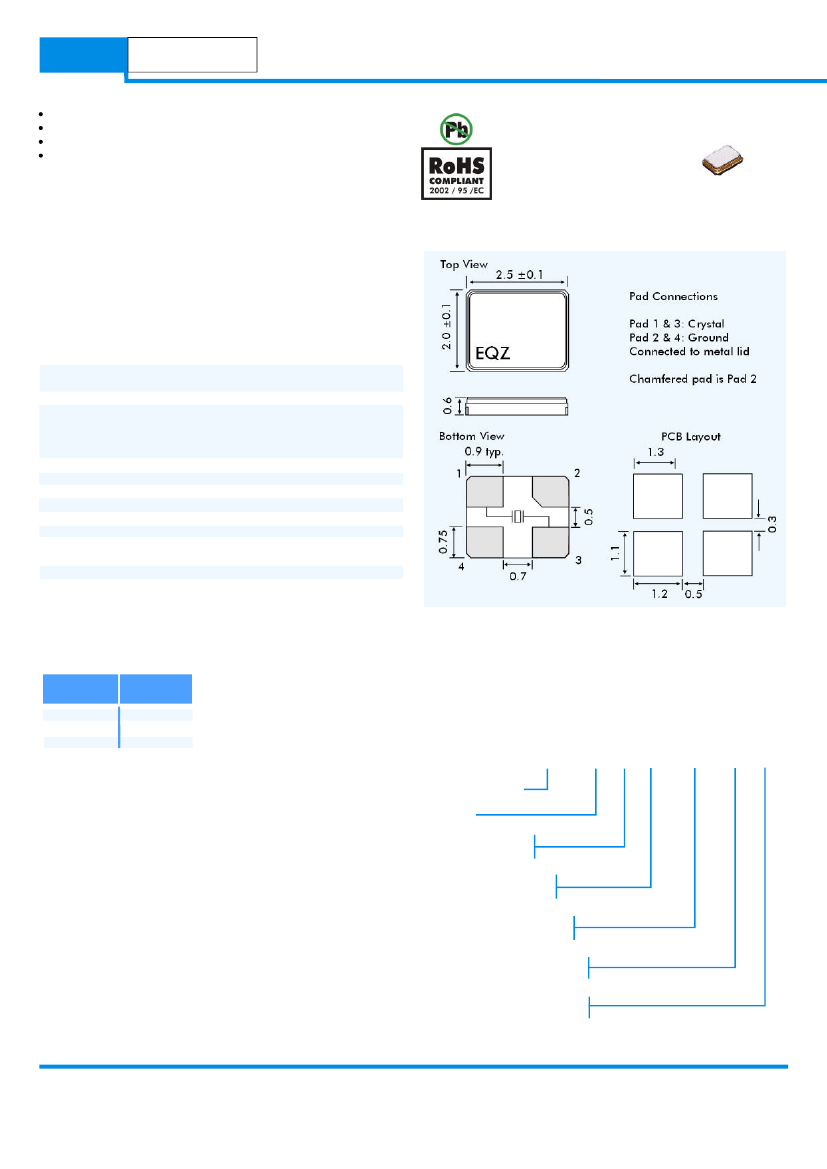

Frequency range 16MHz to 54MHz, fundamental mode

Ultra-miniature package 2.5 x 2.0 x 0.6mm

Packaged in standard EIA tape and reel

Ideal for PDAs, hand-held GPS, PCMCIA etc.

X22 CRYSTALS

2.5 x 2.0 x 0.6mm SMD

DESCRIPTION

X22 crystals are ultra-miniature AT-cut crystals covering the frequency

range 16MHz to 54MHz in fundamental mode. Their small size and low

mass makes these crystals ideal for miniaturized hand-held equipment

and similar high-density applications.

OUTLINE & DIMENSIONS

SPECIFICATION

Frequency Range

AT-Cut Fundamental:

Calibration Tolerance at 25ºC:

Frequency stability

-10° to +60°C

-20° to +70°C

-40° to +85°C

Storage Temperature:

Equivalent Series Resistance:

Shunt Capacitance (C0):

Load Capacitance (CL):

Ageing:

Drive level:

Reflow Soldering:

Packaging:

16.0MHz to 54.0MHz

±10ppm, ±20ppm, ±30ppm

from ±10ppm (±5ppm available)

from ±10ppm

from ±15ppm

-50°~+105°C

See table

2pF to 4pF typical, 5pF maximum

Series or from 9pF to 32pF

<±2ppm per year at +25°C

50 microWatt, 100 microW max.

10s maximum at 260°C twice

or 180s at 230°C, once.

EIA tape and reel

EQUIVALENT SERIES RESISTANCE

Frequency

Range MHz

16.0~21.0

21.0~26.0

26.1~54.0

ESR

Ohms Max.

100

PART NUMBER GENERATION

Part numbers for MT crystals are generated as follows:

Example:

20.000MHz X22/10/30/-10+60/12pF/100R

Nominal Frequency

Package

Calibration tolerance

at 25°C (±ppm)

Temperature Stability

over temp. range (±ppm)

Operating Temp. Range (°C)

(Lower and upper limits)

Load Capacitance

(Either SR for series or CL in pF)

Equivalent Series Resistance

(When special value is required)

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk
