DV410A0323 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> DV410A0323

DV410A0323: DescriptionSnap Acting/Limit Switch, SPDT, Momentary, 1.1mm, Solder Terminal, Plain Lever Actuator, Through Hole-right Angle, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size83KB，2 Pages; ManufacturerBULGIN; Websitehttp://www.bulgin.co.uk/; Environmental Compliance

Download Datasheet Parametric Compare View All

DV410A0323 Overview

Snap Acting/Limit Switch, SPDT, Momentary, 1.1mm, Solder Terminal, Plain Lever Actuator, Through Hole-right Angle, ROHS COMPLIANT

DV410A0323 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	BULGIN
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator stroke	1.1 mm
Actuator type	PLAIN LEVER
body width	10.7 mm
body height	6.4 mm
Body length or diameter	20 mm
Contact (AC) maximum rated R load	5A@250VAC
Maximum contact current (AC)	5 A
Maximum contact voltage (AC)	250 V
JESD-609 code	e4
Manufacturer's serial number	V4
Installation features	THROUGH HOLE-RIGHT ANGLE
Maximum operating force	2.26 N
Maximum pre-travel	0.6 mm
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH
Terminal surface	Gold (Au)
Termination type	SOLDER

Preview

Download Datasheet

View All

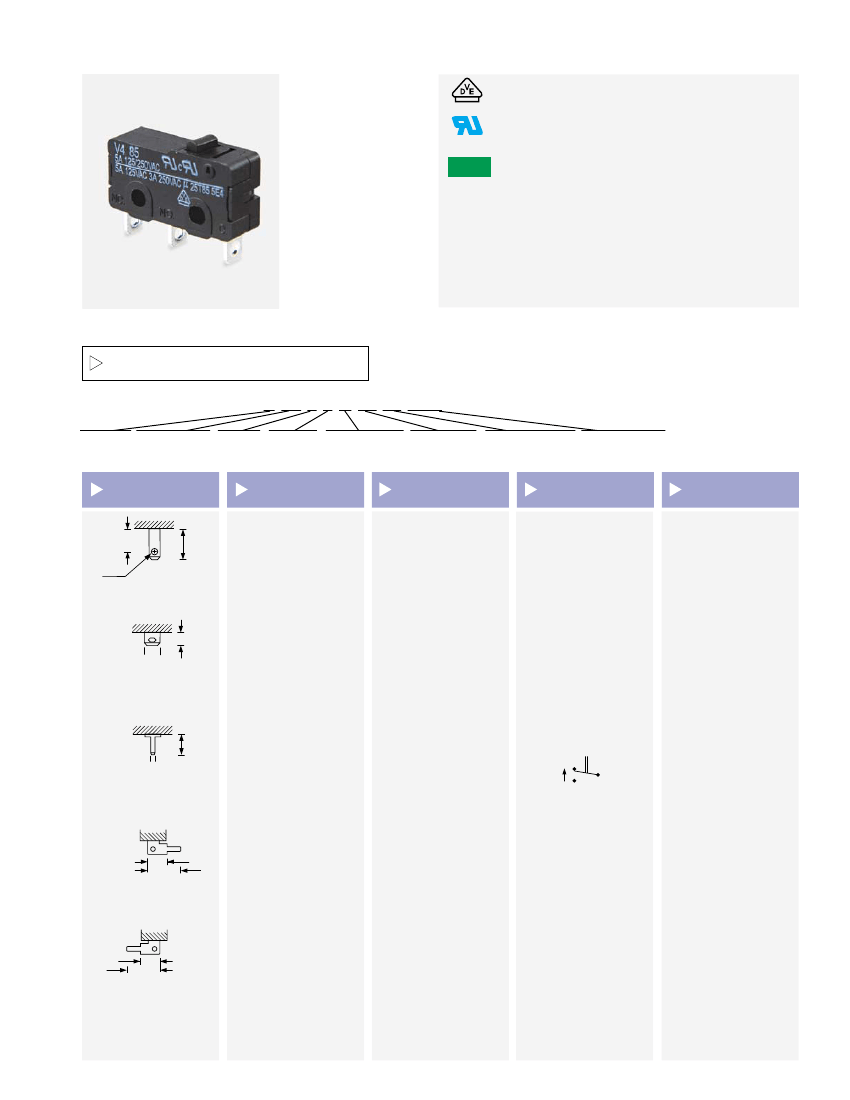

V4 Snap-action Switches

Ratings up to 5A,

250Vac

Up to 5A 250Vac

5A 125Vac, 3A 250Vac 5E4

Snap action switches

5A 125/250Vac UL file no. E45221

Industry standard V4

Changeover, NO or NC

function

Choice of terminals and

actuators

Further options include

gold plated contacts,

levers and terminals

RoHS

RoHS compliant

µ contact gap.

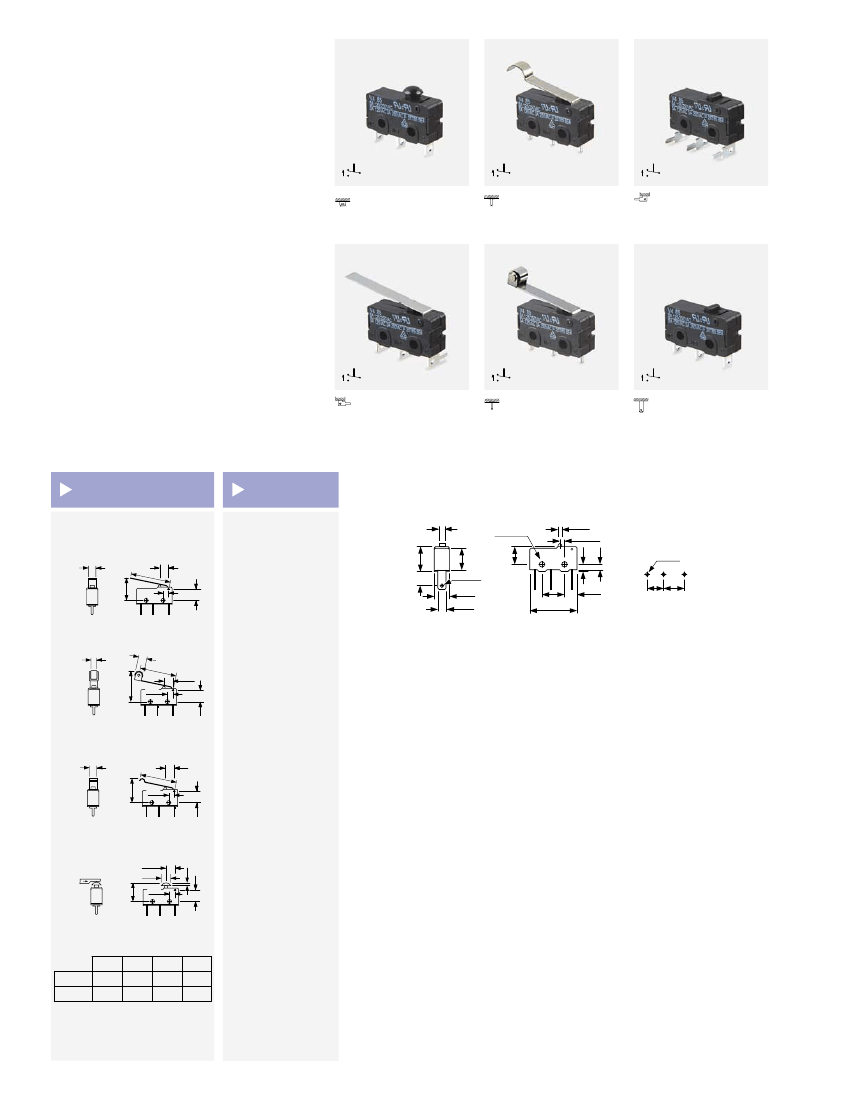

ORDER FORMAT

P V4 1 0 N 01 23 AAA

TERMINAL SWITCH SERIES

VARIANT FUNCTION LEVER POSITION

LEVER SHAPE

OPERATING FORCE

OTHER FEATURES

TERMINAL

6.0

7.6

SWITCH SERIES

VARIANT

FUNCTION

LEVER POSITION

ø1.65

2.8 x 0.5

3.4

3.2

Solder

Standard T85

Standard ratio

4.0

1.2

PCB

ON-(ON)

(momentary 1 side)

4.8

8.4

High Temperature T125

No lever

RH PCB

4.8

8.4

LH PCB

Viewed from non plunger end

(NC terminal end)

ARCOLECTRIC CORPORATION

31-315 Plantation Drive, Thousand Palms, CA 92276 Tel: 760-343-3650 Fax: 760-343-3651 email: info@arcolectric.com

DV410A0323 Related Products

	DV410A0323	XV410A0623	JV410N0016	PV410N0016
Description	Snap Acting/Limit Switch, SPDT, Momentary, 1.1mm, Solder Terminal, Plain Lever Actuator, Through Hole-right Angle, ROHS COMPLIANT	Snap Acting/Limit Switch, SPDT, Momentary, 1.1mm, Solder Terminal, Roller Type Actuator, Through Hole-straight, ROHS COMPLIANT	Snap Acting/Limit Switch, SPDT, Momentary, 1.1mm, Solder Terminal, Through Hole-right Angle, ROHS COMPLIANT	Snap Acting/Limit Switch, SPDT, Momentary, 1.1mm, Quick Connect Terminal, Panel Mount, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Actuator stroke	1.1 mm	1.1 mm	1.1 mm	1.1 mm
body width	10.7 mm	6.4 mm	10.7 mm	6.4 mm
body height	6.4 mm	10.7 mm	6.4 mm	10.7 mm
Body length or diameter	20 mm	20 mm	20 mm	20 mm
Contact (AC) maximum rated R load	5A@250VAC	5A@250VAC	5A@250VAC	5A@250VAC
Maximum contact current (AC)	5 A	5 A	5 A	5 A
Maximum contact voltage (AC)	250 V	250 V	250 V	250 V
JESD-609 code	e4	e4	e4	e4
Manufacturer's serial number	V4	V4	V4	V4
Installation features	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-STRAIGHT	THROUGH HOLE-RIGHT ANGLE	PANEL MOUNT
Maximum operating force	2.26 N	2.26 N	1.57 N	1.57 N
Maximum pre-travel	0.6 mm	0.6 mm	0.6 mm	0.6 mm
surface mount	NO	NO	NO	NO
Switch action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
switch function	SPDT	SPDT	SPDT	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH
Terminal surface	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)
Termination type	SOLDER	SOLDER	SOLDER	QUICK CONNECT
Maker	BULGIN	-	BULGIN	BULGIN
