DRS3-4: DescriptionRotary Switch, 4 Positions, 3P4T, On-on-on-on, Circular, 0.125A, 28VDC, 16 PCB Hole Cnt, Solder Terminal, Rotary Shaft Actuator, Through Hole-right Angle,; CategoryMechanical and electronic products switch; File Size545KB，3 Pages; ManufacturerFujisoku Corporation

Download Datasheet Parametric Compare View All

DRS3-4 Overview

Rotary Switch, 4 Positions, 3P4T, On-on-on-on, Circular, 0.125A, 28VDC, 16 PCB Hole Cnt, Solder Terminal, Rotary Shaft Actuator, Through Hole-right Angle,

DRS3-4 Parametric

Parameter Name	Attribute value
Maker	Fujisoku Corporation
Reach Compliance Code	unknown
Actuator length	0.492 inch
Actuator type	ROTARY SHAFT
body width	12.4968 mm
body height	32.9946 mm
Body length or diameter	15.0114 mm
Nozzle length	0.256 inch
Casing type	1/4-40
Center contact plating	GOLD OVER NICKEL
Contact (AC) maximum rated R load	0.125A@28VAC
Maximum contact current (AC)	0.125 A
Maximum contact current (DC)	0.125 A
Contact (DC) maximum rated R load	0.125A@28VDC
Contact function	ON-ON-ON-ON
Contact resistance	0.2 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	28 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	500VAC V
Electrical life	10000 Cycle(s)
End contact plating	GOLD OVER NICKEL
Graduation angle	30 deg
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DRS
Installation features	THROUGH HOLE-RIGHT ANGLE
Number of positions	4
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
PCB hole count	16
Solderability	HAND
surface mount	NO
Switch action	CIRCULAR
switch function	3P4T
Switch type	ROTARY SWITCH
Terminal length	0.157 inch
Termination type	SOLDER
Washability	SOLVENT

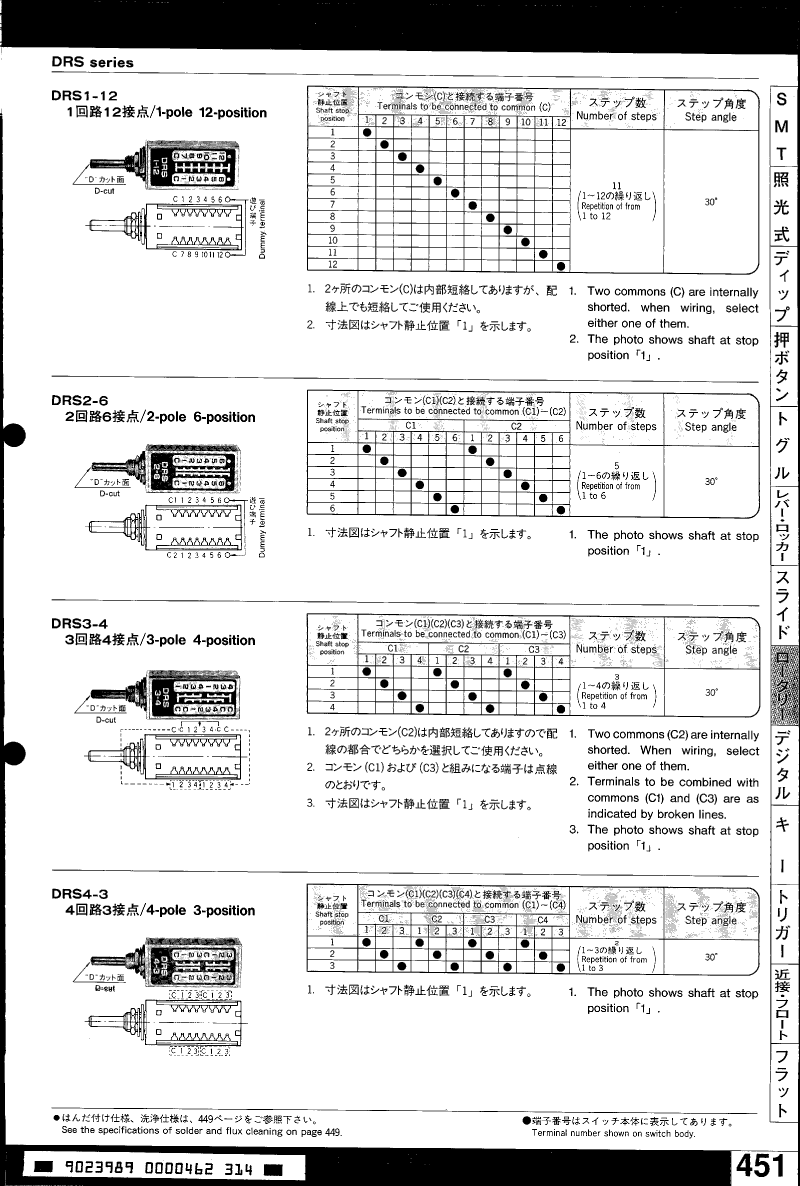

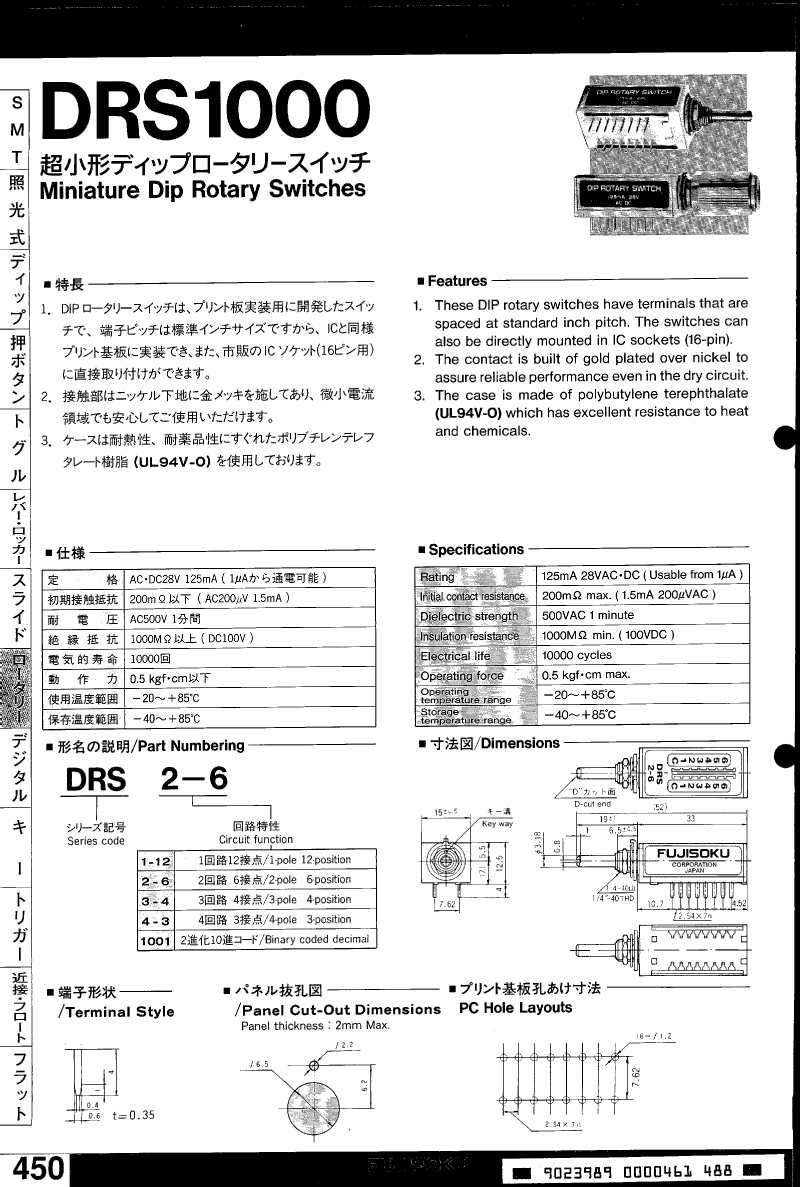

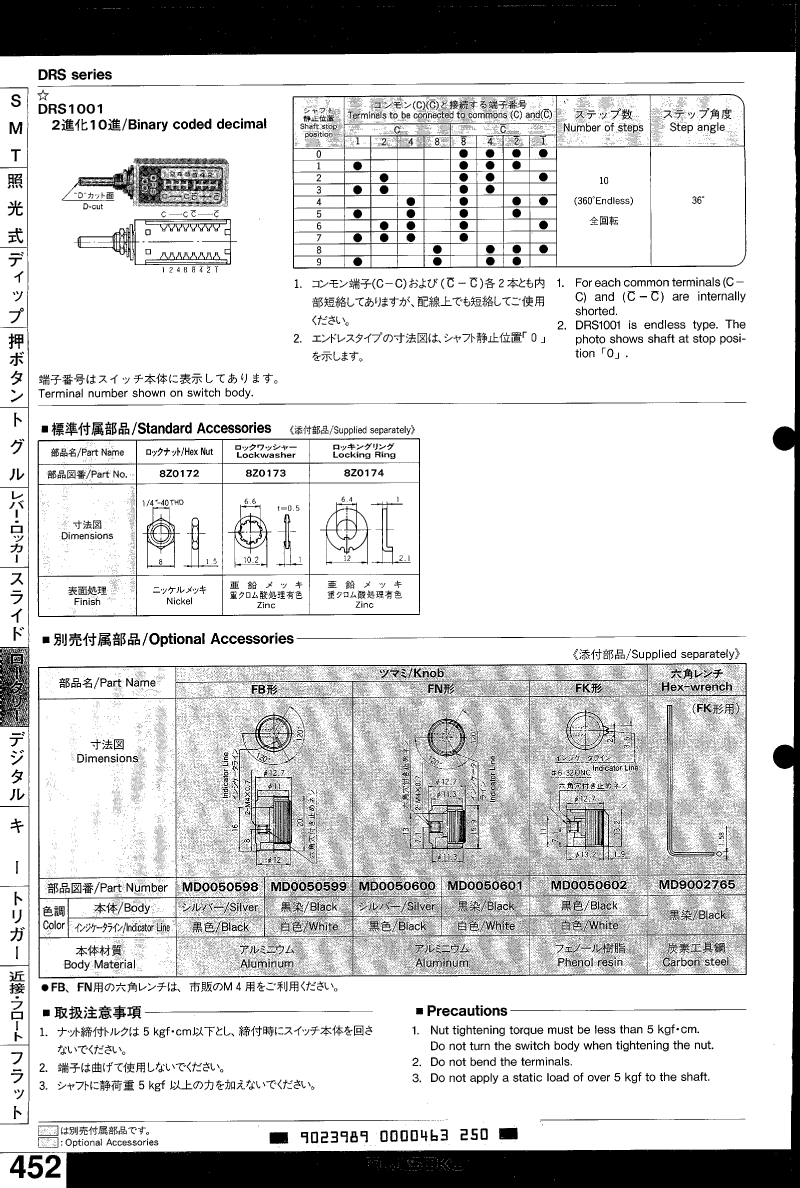

Preview

Download Datasheet

View All

DRS3-4 Related Products

	DRS3-4	DRS4-3	DRS1-12	DRS1001	DRS2-6
Description	Rotary Switch, 4 Positions, 3P4T, On-on-on-on, Circular, 0.125A, 28VDC, 16 PCB Hole Cnt, Solder Terminal, Rotary Shaft Actuator, Through Hole-right Angle,	Rotary Switch, 3 Positions, 4P3T, On-on-on, Circular, 0.125A, 28VDC, 16 PCB Hole Cnt, Solder Terminal, Rotary Shaft Actuator, Through Hole-right Angle,	Rotary Switch, 12 Positions, SP12T, On-on, Circular, 0.125A, 28VDC, 16 PCB Hole Cnt, Solder Terminal, Rotary Shaft Actuator, Through Hole-right Angle,	Rotary Coded Switch, 10 Positions, Binary Coded Decimal, On-on, Circular, 0.125A, 28VDC, 16 PCB Hole Cnt, Solder Terminal, Rotary Shaft Actuator, Through Hole-right Angle,	Rotary Switch, 6 Positions, DP6T, On-on, Circular, 0.125A, 28VDC, 16 PCB Hole Cnt, Solder Terminal, Rotary Shaft Actuator, Through Hole-right Angle,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Actuator length	0.492 inch	0.492 inch	0.492 inch	0.492 inch	0.492 inch
Actuator type	ROTARY SHAFT	ROTARY SHAFT	ROTARY SHAFT	ROTARY SHAFT	ROTARY SHAFT
body width	12.4968 mm	12.4968 mm	12.4968 mm	12.4968 mm	12.4968 mm
body height	32.9946 mm	32.9946 mm	32.9946 mm	32.9946 mm	32.9946 mm
Body length or diameter	15.0114 mm	15.0114 mm	15.0114 mm	15.0114 mm	15.0114 mm
Nozzle length	0.256 inch	0.256 inch	0.256 inch	0.256 inch	0.256 inch
Casing type	1/4-40	1/4-40	1/4-40	1/4-40	1/4-40
Center contact plating	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact (AC) maximum rated R load	0.125A@28VAC	0.125A@28VAC	0.125A@28VAC	0.125A@28VAC	0.125A@28VAC
Maximum contact current (AC)	0.125 A	0.125 A	0.125 A	0.125 A	0.125 A
Maximum contact current (DC)	0.125 A	0.125 A	0.125 A	0.125 A	0.125 A
Contact (DC) maximum rated R load	0.125A@28VDC	0.125A@28VDC	0.125A@28VDC	0.125A@28VDC	0.125A@28VDC
Contact function	ON-ON-ON-ON	ON-ON-ON	ON-ON	ON-ON	ON-ON
Contact resistance	0.2 mΩ	0.2 mΩ	0.2 mΩ	0.2 mΩ	0.2 mΩ
contact time	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	28 V	28 V	28 V	28 V	28 V
Maximum contact voltage (DC)	28 V	28 V	28 V	28 V	28 V
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Electrical life	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)
End contact plating	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Graduation angle	30 deg	30 deg	30 deg	36 deg	30 deg
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DRS	DRS	DRS	DRS	DRS
Installation features	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE
Number of positions	4	3	12	10	6
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
PCB hole count	16	16	16	16	16
Solderability	HAND	HAND	HAND	HAND	HAND
surface mount	NO	NO	NO	NO	NO
Switch action	CIRCULAR	CIRCULAR	CIRCULAR	CIRCULAR	CIRCULAR
switch function	3P4T	4P3T	SP12T	BINARY CODED DECIMAL	DP6T
Switch type	ROTARY SWITCH	ROTARY SWITCH	ROTARY SWITCH	ROTARY CODED SWITCH	ROTARY SWITCH
Terminal length	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Washability	SOLVENT	SOLVENT	SOLVENT	SOLVENT	SOLVENT
Maker	Fujisoku Corporation	-	-	Fujisoku Corporation	Fujisoku Corporation
