S215
ENGINEERING DATA SHEET
RELAY SOCKET
10 AMP
BASIC SOCKET SERIES DESIGNATION FOR:
Series M215 (DC Coil)
GENERAL CHARACTERISTICS
Crimp tool
Insertion and extraction tool
Weight
Temperature range
M 22520/7-01 with turret M 22520/7-12.
MS 27534-20 or M 81969/16-01.
15g max.
-70° C to +125° C.
This connection is designed to the standards and requirements of MIL-S-12883 Contacts and hardware to be delivered disassembled in
plastic bag. Tolerances unless otherwise specified ±0.12mm.
AMERICAS
6900 Orangethorpe Ave.
P.O. Box 5032
Buena Park, CA 90622
.
.
Tel: (01) 714-736-7599
Fax: (01) 714-670-1145
EUROPE
2 Rue Goethe
57430 Sarralbe
France
.
.
Tel: (33) 3 87 97 31 01
Fax: (33) 3 87 97 96 86
ASIA
Units 602-603 6/F Lakeside 1
No.8 Science Park West Avenue
Phase Two, Hong Kong Science Park
Pak Shek Kok, Tai Po, N.T.
Hong Kong
Tel: (852) 2 191 3830
Fax: (852) 2 389 5803
Featuring
LEACH
©
power and control solutions
www.esterline.com
Data sheets are for initial product selection and comparison. Contact Esterline Power Systems prior to choosing a component.
Date of issue: 3/06
-8-
Page 1 of 3

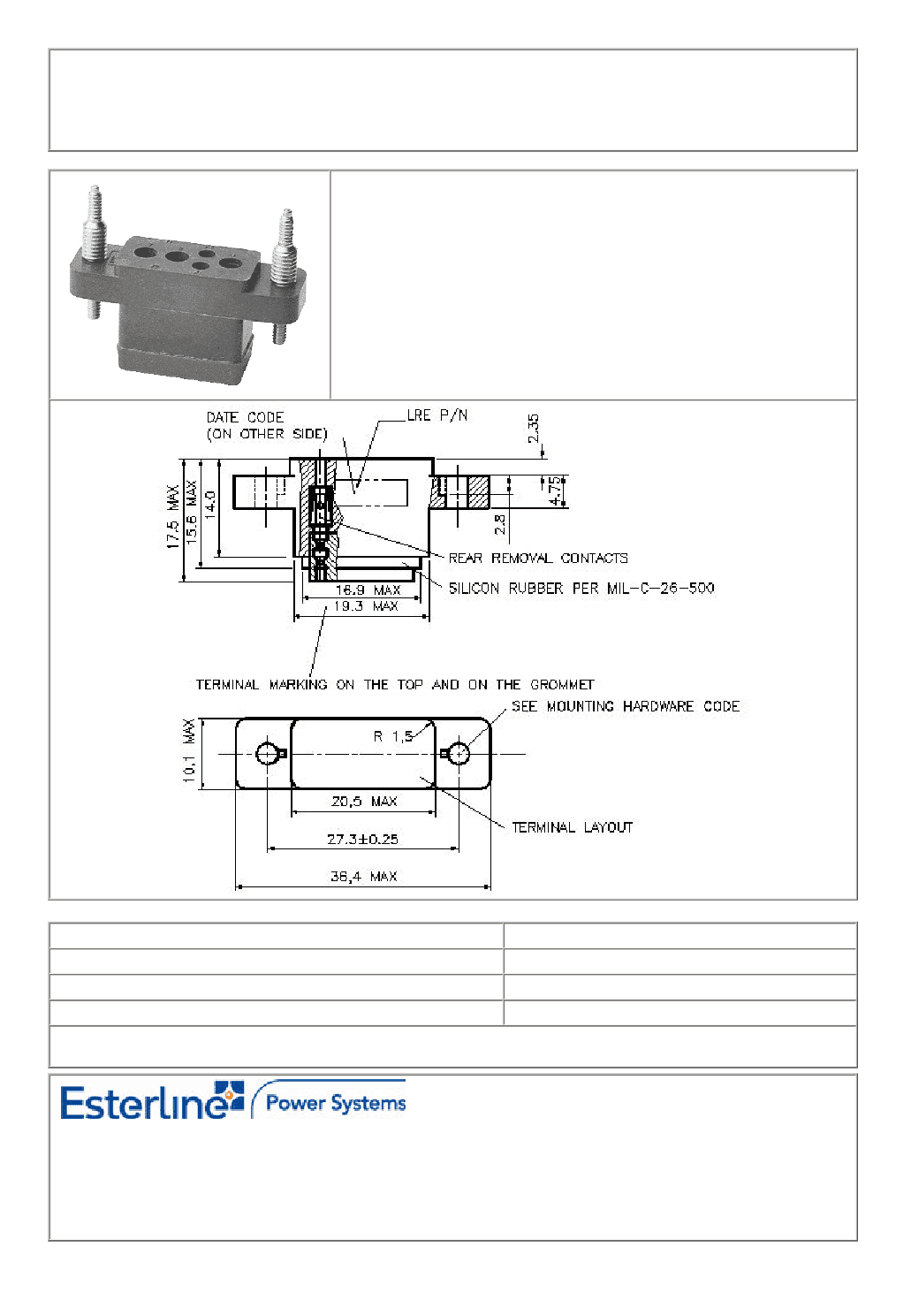

TERMINAL LAYOUT
S215
CODE A
10.15
5.10
2.62
0,2

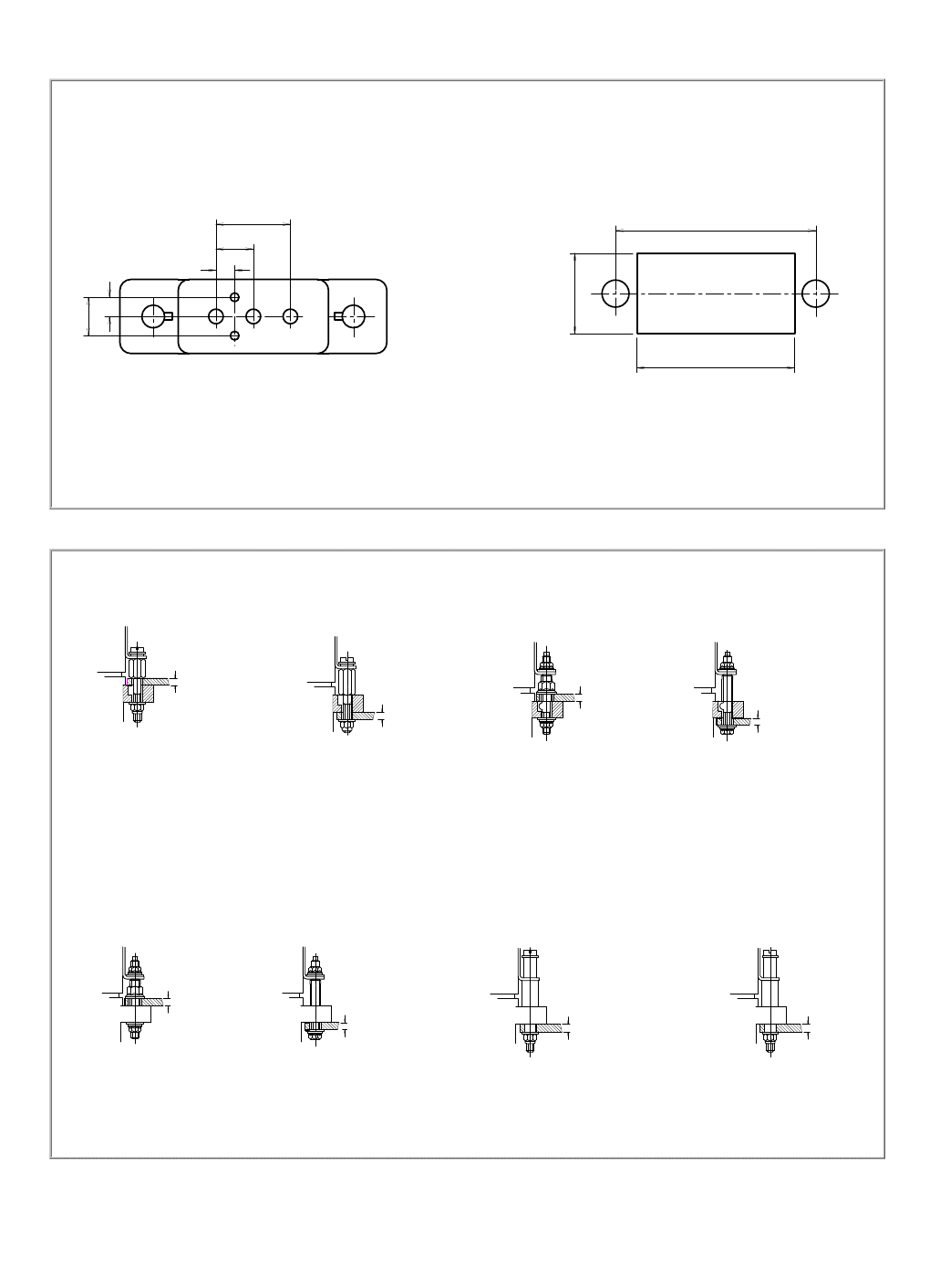

MOUNTING HOLE LAYOUT
27,3
2.55
X1
5.24
A3
A2
X2
A1
11
±
21,5
-0,3
FOR HOLE CLEARANCE,
SEE HARDWARE CODE
MOUNTING HARDWARE
CODE 1 : 14-464-01
LOOSE METRIC
HARDWARE
BOTTOM MOUNT
-0.5
CODE 2 : 14-464-02
LOOSE METRIC
HARDWARE
TOP MOUNT
CODE 3 : 14-464-03
LOOSE UNC HARDWARE PER M12883/46
BOTTOM MOUNT
2,3 MAX
TOP MOUNT
2
MOUNTING HOLE:3,6 mm
MOUNTING TORQUE
0,45 Nm ±0,1 Nm
MOUNTING HOLE:3,6 mm
MOUNTING TORQUE
0,45 Nm ±0,1 Nm
MOUNTING HOLE:4,4 mm
MOUNTING HOLE:3,2 mm
MOUNTING TORQUE
THREAD SIZE 2,8:0,45 Nm - THREAD SIZE 4,2:1,1 Nm
CODE 4 : 14-464-05
FIXED UNC HARDWARE PERMIL12883/46
BOTTOM MOUNT
2,3 MAX
TOP MOUNT
CODE 5 : 14-464-06
FIXED METRIC HARDWARE
TOP MOUNT
CODE 6 : 14-464-07
FIXED UNC HARDWARE
TOP MOUNT
2,3 MAX
2,3 MAX
2
-0.5
MOUNTING HOLE:4,4 mm
MOUNTING HOLE:3,2 mm
MOUNTING TORQUE
THREAD SIZE 2,8:0,45 Nm - THREAD TORQUE 4,2:1,7 Nm
MOUNTING HOLE:3,6 mm
FOR RELAYS WITH CODE B TERMINALS
MONTING TORQUE 0,45 Nm
2.3 MAX
MOUNTING HOLE:3,6 mm
FOR RELAYS WITH CODE C TERMINALS
MOUNTING TORQUE 0,45 Nm
Date of issue: 3/06
-9-
2.3 MAX
Page 2 of 3
GROMMET TO SEAL ON WIRE INSULATION DIA
Code A
S215
Dia 0.86 ......1.85mm
CONTACT SIZE AND STYLE
Code 0
Without contacts
Code 1
14 422 00
Crimp end to
accomodate
AWG16-18-20
MIL-C-39029/22-193
Code 4
31 242 00
Crimp end to
accomodate
AWG16-18-20
MIL-C-39029/101-554
Contact mating end #16
Contact mating end #16
COIL
11-16-191
MIL-C-39029/22-191
SOCKET NUMBERING SYSTEM
S215 A
1
A
1
1-Basic socket designation________________________|
|
|
|
|
2-Terminal Layout_____________________________________|
|
|
|
3-Mounting Hardware_______________________________________|
|
|
4-Grommet to seal on wire insulation__________________________|
|
5-Contact size and style___________________________________________|
MS/LRE CROSS REFERENCE LIST
MS - Number
|
|
|
LRE P/N
S215-A4A1
Date of issue:
3/06
- 10 -
Page 3 of 3
