D25P1C8PV00 datasheet, PDF - EEWORLD Datasheet

D25P1C8PV00: DescriptionD Subminiature Connector, 25 Contact(s), Male, Press Fit Terminal; CategoryThe connector The connector; File Size102KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

D25P1C8PV00 Overview

D Subminiature Connector, 25 Contact(s), Male, Press Fit Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Manufacturer's serial number	D25P1C8PV00
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Termination type	PRESS FIT
Total number of contacts	25
UL Flammability Code	94V-0

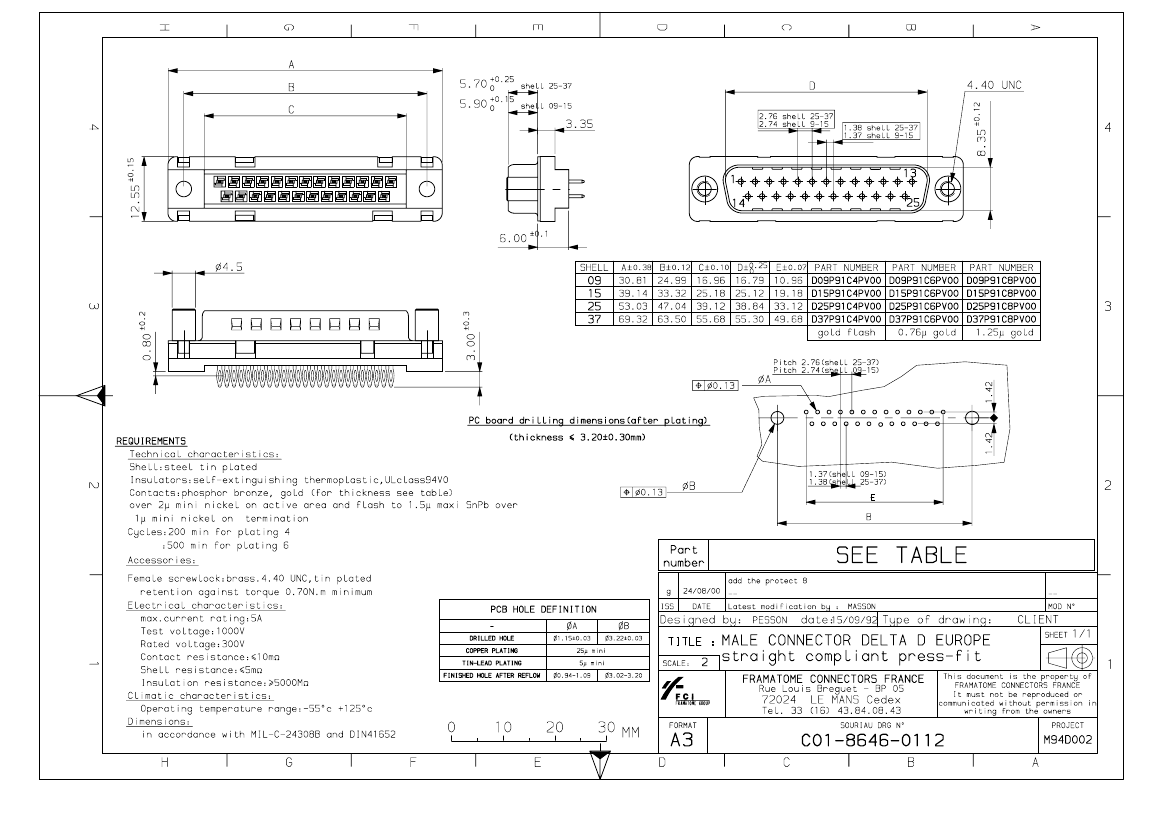

PDM: Rev:G

STATUS:

Released

Printed: Mar 02, 2004

	D25P1C8PV00	D15P1C4PV00	D15P1C6PV00	D15P1C8PV00	D25P1C4PV00	D25P1C6PV00
Description	D Subminiature Connector, 25 Contact(s), Male, Press Fit Terminal	D Subminiature Connector, 15 Contact(s), Male, Press Fit Terminal	D Subminiature Connector, 15 Contact(s), Male, Press Fit Terminal	D Subminiature Connector, 15 Contact(s), Male, Press Fit Terminal	D Subminiature Connector, 25 Contact(s), Male, Press Fit Terminal	D Subminiature Connector, 25 Contact(s), Male, Press Fit Terminal
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	D25P1C8PV00	D15P1C4PV00	D15P1C6PV00	D15P1C8PV00	D25P1C4PV00	D25P1C6PV00
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	3/B	2/A	2/A	2/A	3/B	3/B
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	25	15	15	15	25	25
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
