Marvell 88SE9130
SATA 6 Gb/s Host Controller
PRODUCT OVERVIEW
The Marvell
®
88SE9130 host controller offer cost-effective solution of connecting Serial ATA (SATA) to a PCI Express
(PCIe) 2.0 host. This host controller supports two 6 Gb/s SATA peripheral interface ports and a one-lane 5.0 Gb/s
PCIe host interface. In addition, it features hardware RAID to offload host CPU, Marvell proprietary HyperDuo
technology for automated SSD/HHD tiering, and AHCI interface for inbox driver support. A complete suite of RAID
0/1 and HyperDuo software is provided, including the OS device driver, BIOS/FW, and a management utility.
6 Gb/s
6 Gb/s
SATA 6 Gb/s
NCQ
PM Control
/FBS
Enclosure
Mgmt
HW RAID 0/1
Dual Configuration
OSC
PCIe 2.0 x1
GPIO
(LEDs)
PCIe
TWSI
Flash
Fig 1. Block Diagram
MODEL
• Marvell RAID
• Marvell HyperDuo Technology
• 6 Gb/s SATA Ports
• SATA 3.0 Compliant
• PCIe 2.0 Compliant
• Native Command Queuing
• eSATA Support
• Hardware RAID
• AHCI Inbox Driver Support
• Enclosure Management
• Two-Wire Serial Interface (TWSI)
• GPIO Support
• SPI Flash Interface
• Port Multiplier Support
• FIS-Based Switching
• On-Chip Oscillator
• Power
• Package Size/Type
*support customer’s own RAID software
88SE9130
Yes, RAID 0/1
Yes, please refer to HyperDuo product brief
2
6 Gb/s SATA PHY with speed negotiation to backward support 3 and 1.5 Gb/s
Support 1x PCI Express 2.0 interface (5.0 Gb/s)
32 outstanding commands per port for high performance
Flexible SATA ports support internal or external (up to 5m) SATA links
Yes
Yes
I2C support
Interface for external EEPROM containing configuration information
LEDs status monitoring
External flash containing configuration data and/or boot code
RAID support through Marvell Storage Utility (MSU) and driver
Better performance with simultaneous commands
Low-cost crystal support
1W
9mm×9mm / 76-pin QFN
Marvell
88SE9130
APPLICATIONS
The Marvell 88SE9130 SATA host controller is ideal solution for RAID on motherboard (ROMB) and cost-effective host
bus adapter (HBA). It allows PCIe-based host systems to control up to two SATA 6Gb/s drives and enables the Marvell
proprietary HyperDuo technology. Embedded with ARM-based CPU makes this product a pure hardware RAID controller
and enables inbox driver support without additional driver installation. The included Marvell Storage Utility (MSU)
provides a user-friendly interface to end users while the Marvell RAID driver allows the drives to be used with SATA
port multiplier for increased system performance and capacity.
Marvell HyperDuo offers a break-through embedded technology for new generation 6Gb/s SATA controllers, starting
with the Marvell 88SE9130. Based on years of research and patent-pending software and hardware, HyperDuo enables
80% of the performance of a solid state drive (SSD) at less than half the cost. Configured with one hard drive and one
SSD, HyperDuo uses intelligent algorithms to automatically migrate hot data to SSD while enabling all data to be safely
stored on a larger capacity SATA hard disk drive (HDD).
Fully programmable on-chip transceivers support SATA, eSATA, and xSATA at 6 Gb/s and backward compatible to
1.5 and 3 Gb/s. Built-in support for SATA Port Multipliers with FIS-based switching ensures maximum performance.
The small footprint of the device and the very few required external components take up a minimal amount of board
space, easing system design and reducing cost. In addition, embedded enclosure management via I2C protocol further
reduces system cost.
Chipset
Flash
ROM
Marvell
88SE9130
Two SATA
6 Gb/s ports
South
Bridge
Marvell
88SE9130
1 SATA SSD
+
1 SATA HDD
PCIe 2.0 x 1

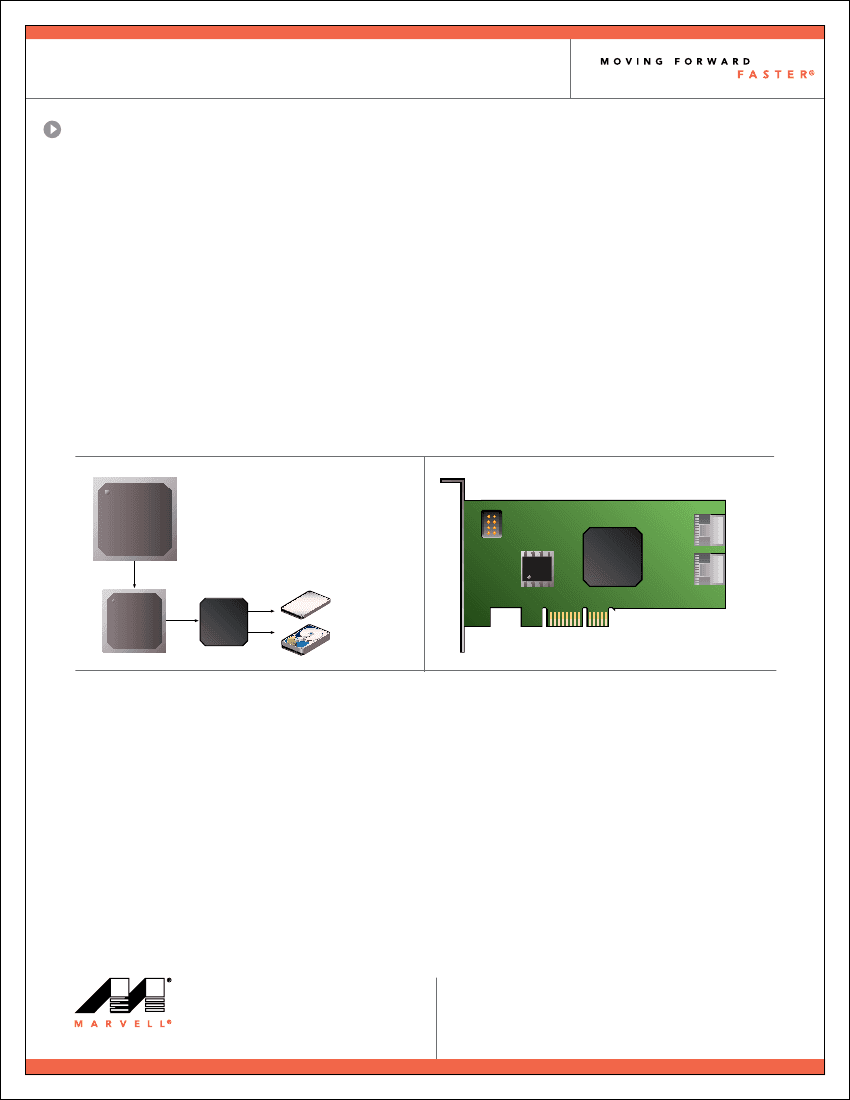

Fig 2. RAID-On-Motherboard Application
Fig 3. SATA RAID HBA Application
THE MARVELL ADVANTAGE:
Marvell chipsets come with complete reference designs which include board layout designs, software,
manufacturing diagnostic tools, documentation, and other items to assist customers with product evaluation and production. Marvell’s
worldwide field application engineers collaborate closely with end customers to develop and deliver new leading-edge products for quick
time-to-market. Marvell utilizes world-leading semiconductor foundry and packaging services to reliably deliver high-volume and low-cost
total solutions.
ABOUT MARVELL:
Marvell is a leader in storage, communications, and consumer silicon solutions. Marvell’s diverse product portfolio includes
switching, transceiver, communications controller, processor, wireless, power management, and storage solutions that power the entire
communications infrastructure, including enterprise, metro, home, storage, and digital entertainment solutions. For more information, visit our
Web site at
www.marvell.com.
Marvell Semiconductor, Inc.
5488 Marvell Lane
Santa Clara, CA 95054
Phone 408.222.2500
www.marvell.com
Copyright © 2011. Marvell International Ltd. All rights reserved. Marvell, Moving Forward
Faster, and the Marvell logo are registered trademarks of Marvell or its affiliates. All other
trademarks are the property of their respective owners.
88SE9130-002
1/11
