ASF1-FREQ-D-J-T datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> ASF1-FREQ-D-J-T

Preview

ASF1-FREQ-D-J-T: DescriptionCMOS/TTL Output Clock Oscillator, 0.312MHz Min, 125MHz Max, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN; CategoryPassive components oscillator; File Size264KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASF1-FREQ-D-J-T Overview

CMOS/TTL Output Clock Oscillator, 0.312MHz Min, 125MHz Max, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

ASF1-FREQ-D-J-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
Other features	TRISTATE FUNCTION; TAPE AND REEL
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
Manufacturer's serial number	ASF1
Installation features	SURFACE MOUNT
Maximum operating frequency	125 MHz
Minimum operating frequency	0.312 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS/TTL
Output load	5 TTL, 50 pF
physical size	5.0mm x 3.2mm x 1.1mm
longest rise time	10 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	40/60 %

Preview

Download Datasheet

View All

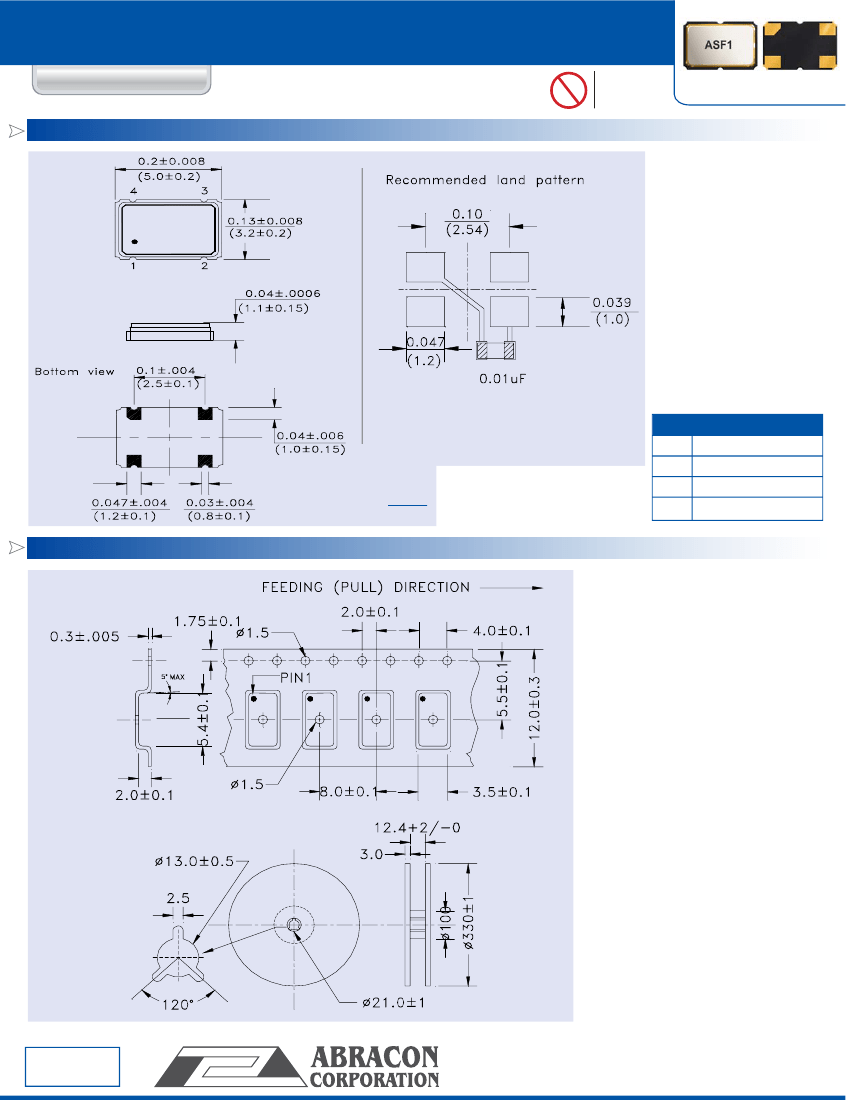

5.0V CERAMIC SMD LOW PROFILE

CRYSTAL CLOCK OSCILLATOR

ASF1

FEATURES:

• Compact and low in height

• Low current consumption

• Tri state function

• Suitable for high density SMT

• Tight stability option

• Seam sealed package

• Reflow capable

Pb

RoHS

Compliant

APPLICATIONS:

• CCD clock for VTR camera

• Equipment connected to PC or PC cards

• Thin equipment

• Wireless communication

5.0 x 3.2 x 1.1 mm

| | | | | | | | | | | | | | |

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N:

Frequency:

Operating temperature:

Storage temperature:

Overall Frequency Stability:

Supply voltage (Vdd):

Current Consumption:

(Full Load)

Symmetry at 1/2 Vdd:

Rise and Fall Times(Tr/Tf):

Output load:

Output Voltage:

Tri State:

Start-up-time:

Aging per year:

Phase Jitter RSM:

ASF1

321 kHz to 125 MHz

-10°C to +70°C (see option)

- 55°C to + 125°C

±100 ppm max. (see option)

5.0 Vdc ± 10%

15 mA max for 321kHz ~ 30MHz

45 mA max for 30MHz ~ 80MHz

85 mA max for 80MHz ~ 125MHz

40/60% max. (see option)

10 ns max.

5TTL max., 50pF max

VOH = 0.9*Vdd min.

VOL = 0.1*Vdd max.

"1" or open: Oscillation; VIH

≥

0.7*Vdd

"0": Output disabled (HI-Z); VIL < 0.3*Vdd

10 mS max.

±5 ppm @25°C

1pS max. (12k ~ 20MHz)

OPTIONS AND PART IDENTIFICATION:

(Left blank if standard)

ASF1 - Frequency -

-

Operating Temp. Range

Overall Frequency Stability

Packaging

T

Tape and Reel

1,000pcs

D

E

F

N

L

-10°C to +60°C

-20°C to +70°C

-30°C to +70°C

-30°C to +85°C

-40°C to +85°C

J(*)

R

K

H

B

C

±20ppm

±25ppm

±30ppm

±35ppm

±40ppm

±50ppm

Symmetry

S

45/55% @ 1/2Vdd

* Temp option D and E and standard temp. only

Please contact ABRACON if parts are intended for life dependent applications.

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 1.4.08

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

|

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
