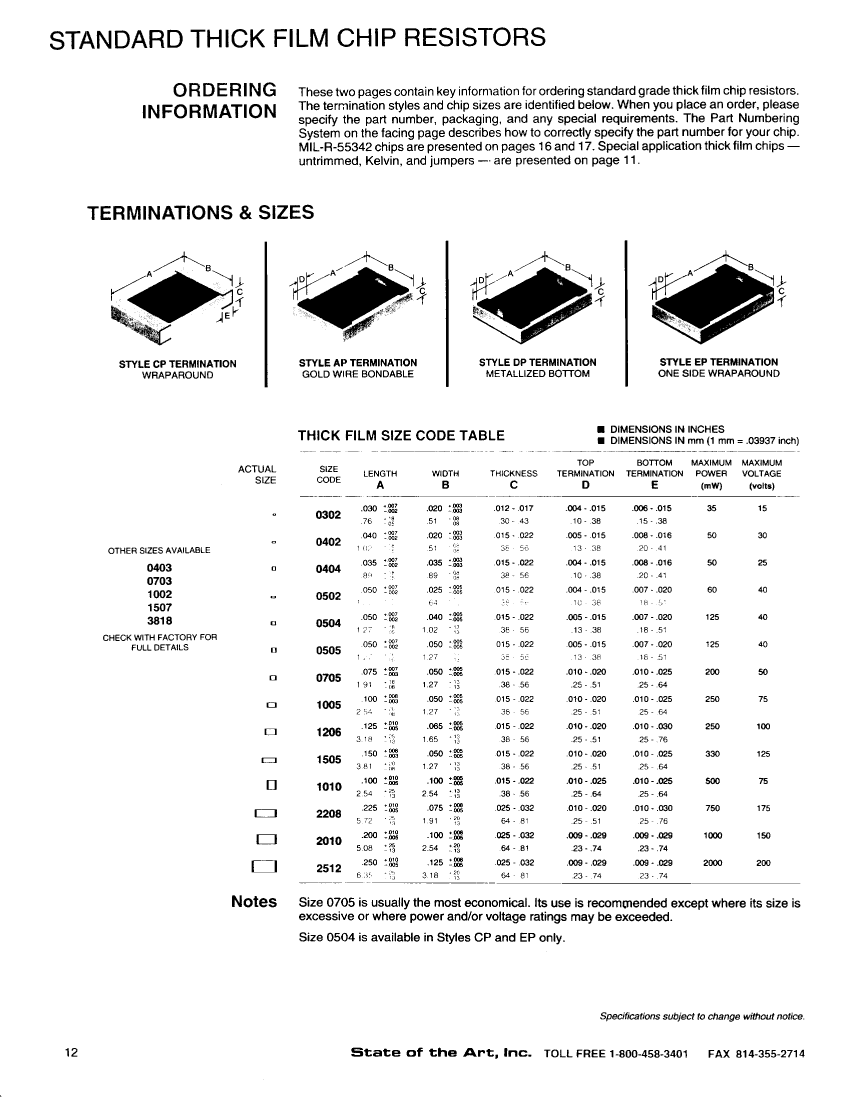

Preview

C0402: DescriptionRESISTOR; JUMPER, METAL GLAZE/THICK FILM, 0.05W, 0.5; 1; 2; 5; 10; 20%, 100; 200; 300ppm, 0ohm - 40000000ohm, SURFACE MOUNT, 0402, CHIP; CategoryPassive components The resistor; File Size170KB，2 Pages; ManufacturerState of the Art Inc.

Download Datasheet Parametric Compare View All

C0402 Overview

RESISTOR; JUMPER, METAL GLAZE/THICK FILM, 0.05W, 0.5; 1; 2; 5; 10; 20%, 100; 200; 300ppm, 0ohm - 40000000ohm, SURFACE MOUNT, 0402, CHIP

C0402 Parametric

Parameter Name	Attribute value
Maker	State of the Art Inc.
package instruction	CHIP
Reach Compliance Code	unknown
Manufacturer's serial number	C
Installation features	SURFACE MOUNT
Number of terminals	2
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK; TR, 7/13 INCH
Rated temperature	70 °C
Resistor type	FIXED RESISTOR
size code	0402
surface mount	YES
technology	METAL GLAZE/THICK FILM
Terminal shape	ONE SURFACE; WRAPAROUND
Operating Voltage	30 V

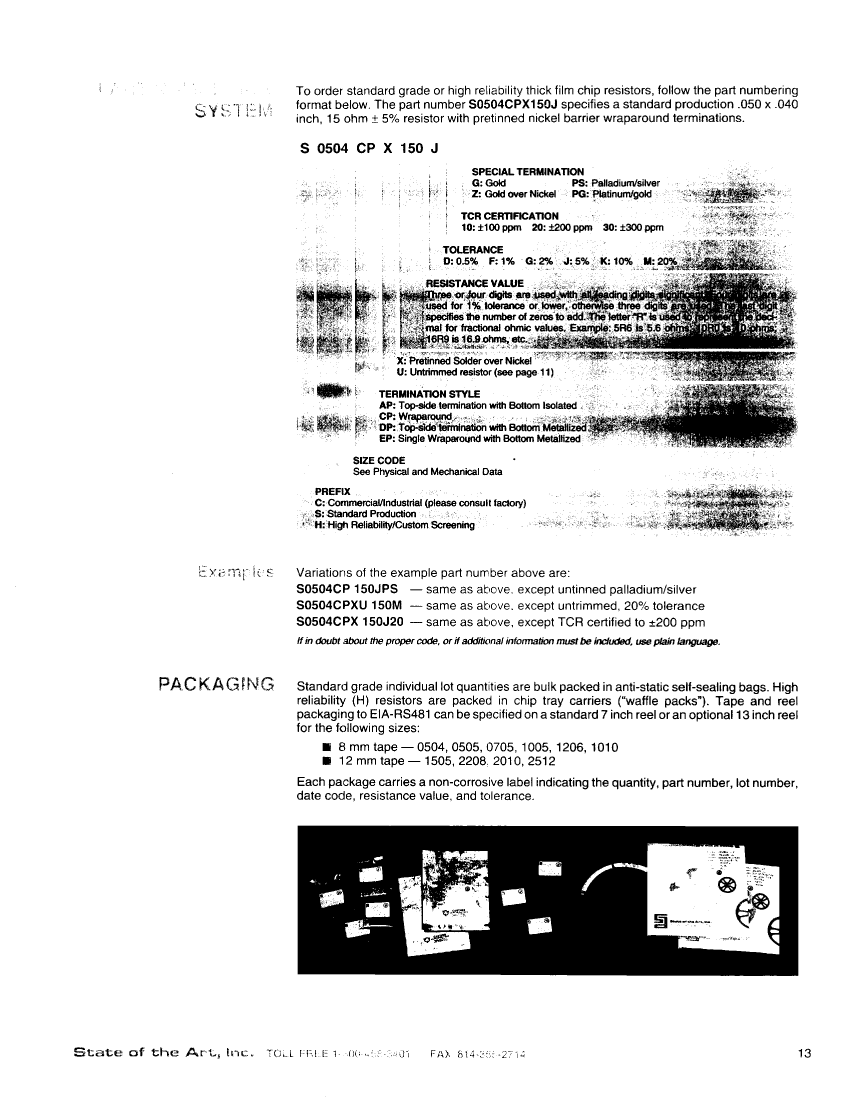

Preview

Download Datasheet

View All

C0402 Related Products

	C0402	C1206	C1010	C1005	C2208	C1507	H3818
Description	RESISTOR; JUMPER, METAL GLAZE/THICK FILM, 0.05W, 0.5; 1; 2; 5; 10; 20%, 100; 200; 300ppm, 0ohm - 40000000ohm, SURFACE MOUNT, 0402, CHIP	RESISTOR; JUMPER, METAL GLAZE/THICK FILM, 0.25W, 0.5; 1; 2; 5; 10; 20%, 100; 200; 300ppm, 0ohm - 40000000ohm, SURFACE MOUNT, 1206, CHIP	RESISTOR; JUMPER, METAL GLAZE/THICK FILM, 0.5W, 0.5; 1; 2; 5; 10; 20%, 100; 200; 300ppm, 0ohm - 40000000ohm, SURFACE MOUNT, 1010, CHIP	RESISTOR; JUMPER, METAL GLAZE/THICK FILM, 0.25W, 0.5; 1; 2; 5; 10; 20%, 100; 200; 300ppm, 0ohm - 40000000ohm, SURFACE MOUNT, 1005, CHIP	RESISTOR; JUMPER, METAL GLAZE/THICK FILM, 0.75W, 0.5; 1; 2; 5; 10; 20%, 100; 200; 300ppm, 0ohm - 40000000ohm, SURFACE MOUNT, 2208, CHIP	RESISTOR; JUMPER, METAL GLAZE/THICK FILM, 0.5; 1; 2; 5; 10; 20%, 100; 200; 300ppm, 0ohm - 40000000ohm, SURFACE MOUNT, 1507, CHIP	RESISTOR; JUMPER, METAL GLAZE/THICK FILM, 0.5; 1; 2; 5; 10; 20%, 100; 200; 300ppm, 0ohm - 40000000ohm, SURFACE MOUNT, 3818, CHIP
Maker	State of the Art Inc.	State of the Art Inc.	State of the Art Inc.	State of the Art Inc.	State of the Art Inc.	State of the Art Inc.	State of the Art Inc.
package instruction	CHIP	, 1206	, 1010	, 1005	CHIP	CHIP	CHIP
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Manufacturer's serial number	C	C	C	C	C	C	H
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	2	2	2	2	2	2	2
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	BULK; TR, 7/13 INCH	BULK; TR, 7/13 INCH	BULK; TR, 7/13 INCH	BULK; TR, 7/13 INCH	BULK; TR, 7/13 INCH	BULK; TR, 7/13 INCH	BULK; TR, 7/13 INCH; WAFFLE PACK
Rated temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Resistor type	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
size code	0402	1206	1010	1005	2208	1507	3818
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM
Terminal shape	ONE SURFACE; WRAPAROUND	ONE SURFACE; WRAPAROUND	ONE SURFACE; WRAPAROUND	ONE SURFACE; WRAPAROUND	ONE SURFACE; WRAPAROUND	ONE SURFACE; WRAPAROUND	ONE SURFACE; WRAPAROUND
Operating Voltage	30 V	100 V	75 V	75 V	175 V	-	-
