0.56 Inch (14.2mm) 1 Digit

NUMERIC STICK DISPLAY

AlGaAs Red (645nm) MAN6260E, MAN6280E

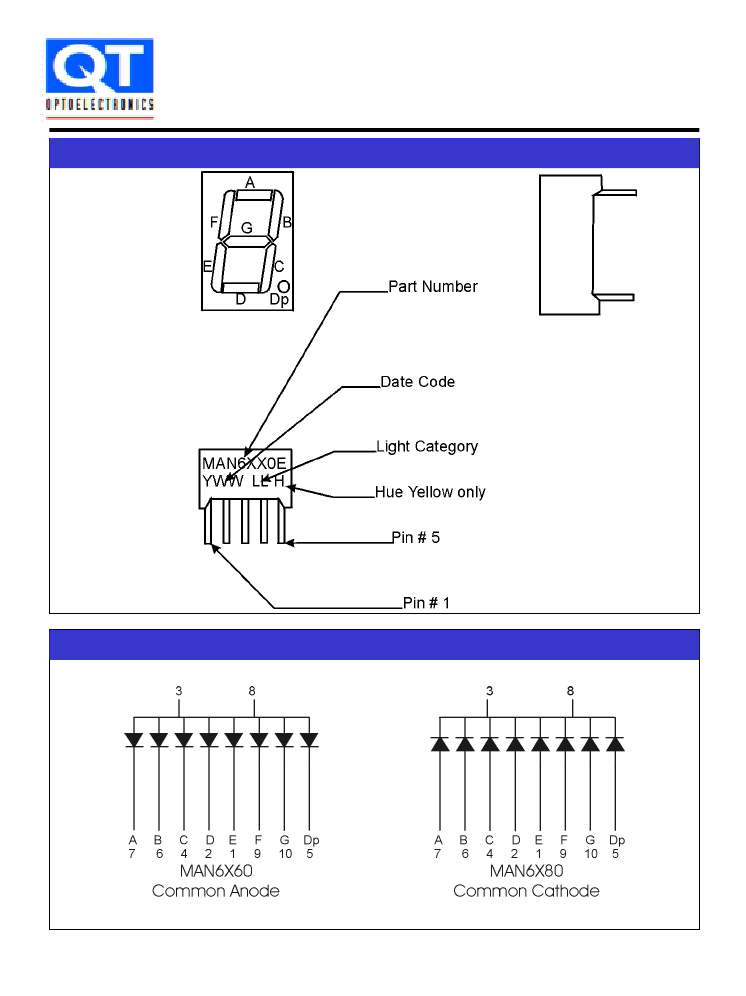

PACKAGE DIMENSIONS

FEATURES

•Bright Bold Segments

•Common Anode/Cathode

•Low Power Consumption

•Low Current Capability

•Neutral Segments

•Grey Face

•Epoxy Encapsulated PCB

•High Performance

•High Reliability

APPLICATIONS

•Appliances

NOTES:

•Dimensions are in mm (Inches)

•Tolerances are +/- 0.25 (0.010)

unless otherwise stated.

•Automotive

•Instrumentation

•Process Control

MODELS AVAILABLE

Part Number

MAN6260E

MAN6280E

Colour

Description

Special

Low Current Capability

AlGaAs 645nm Single Digit, RHDP, Common Anode

AlGaAs 645nm Single Digit, RHDP, Common Cathode

(For other colour options, contact your local area Sales Manager)
