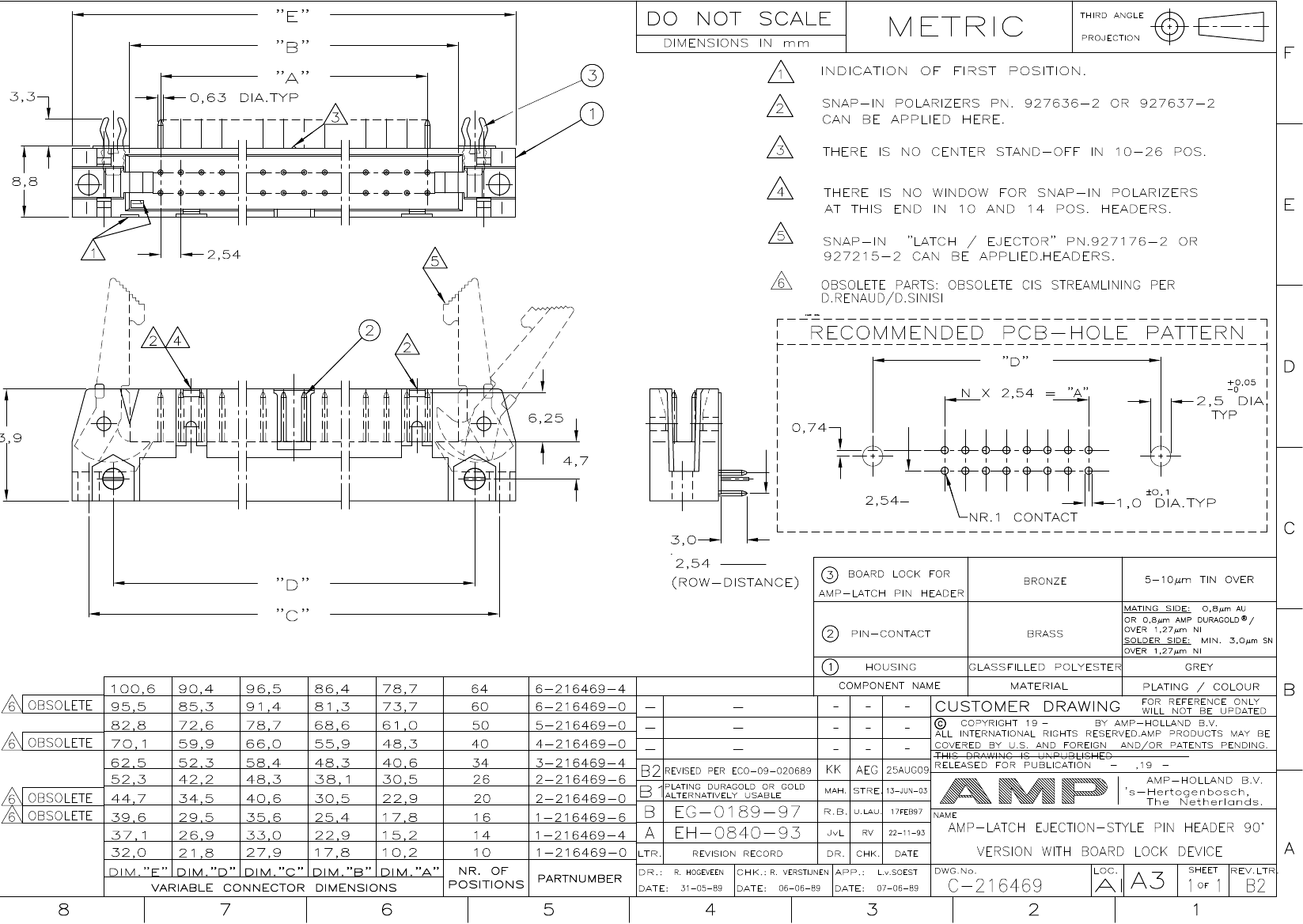

Preview

3-216469-4: Description34 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size102KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

3-216469-4 Overview

34 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

3-216469-4 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Other features	AMP-LATCH
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	216469
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	34

Preview

Download Datasheet

View All

3-216469-4 Related Products

	3-216469-4	2-216469-6	5-216469-0	M80-4T10801F3-07-321-11-321	M80-4T10801F3-08-322-10-322	6-216469-4
Description	34 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	26 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	50 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	Board Connector, Female, Straight, Solder Terminal, Locking, Black Insulator, Plug	Board Connector, Female, Straight, Solder Terminal, Locking, Black Insulator, Plug	64 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER
Reach Compliance Code	unknown	unknow	unknown	compliant	compliant	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	FEMALE	FEMALE	MALE
Manufacturer's serial number	216469	216469	216469	M80	M80	216469
Mixed contacts	NO	NO	NO	YES	YES	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	STRAIGHT	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Other features	AMP-LATCH	AMP-LATCH	AMP-LATCH	-	-	AMP-LATCH
DIN compliance	NO	NO	NO	-	-	NO
Filter function	NO	NO	NO	-	-	NO
IEC compliance	NO	NO	NO	-	-	NO
MIL compliance	NO	NO	NO	-	-	NO
Number of rows loaded	2	2	2	-	-	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	-	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-	-	2.54 mm
Total number of contacts	34	26	50	-	-	64
Is it Rohs certified?	-	conform to	conform to	incompatible	incompatible	conform to
Contact to complete cooperation	-	GOLD (30) OVER NICKEL	NOT SPECIFIED	AU	AU	NOT SPECIFIED
Contact completed and terminated	-	TIN	TIN	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN
Contact material	-	BRASS	BRASS	BERYLLIUM COPPER	BERYLLIUM COPPER	BRASS
JESD-609 code	-	e3	e3	e0	e0	e3
