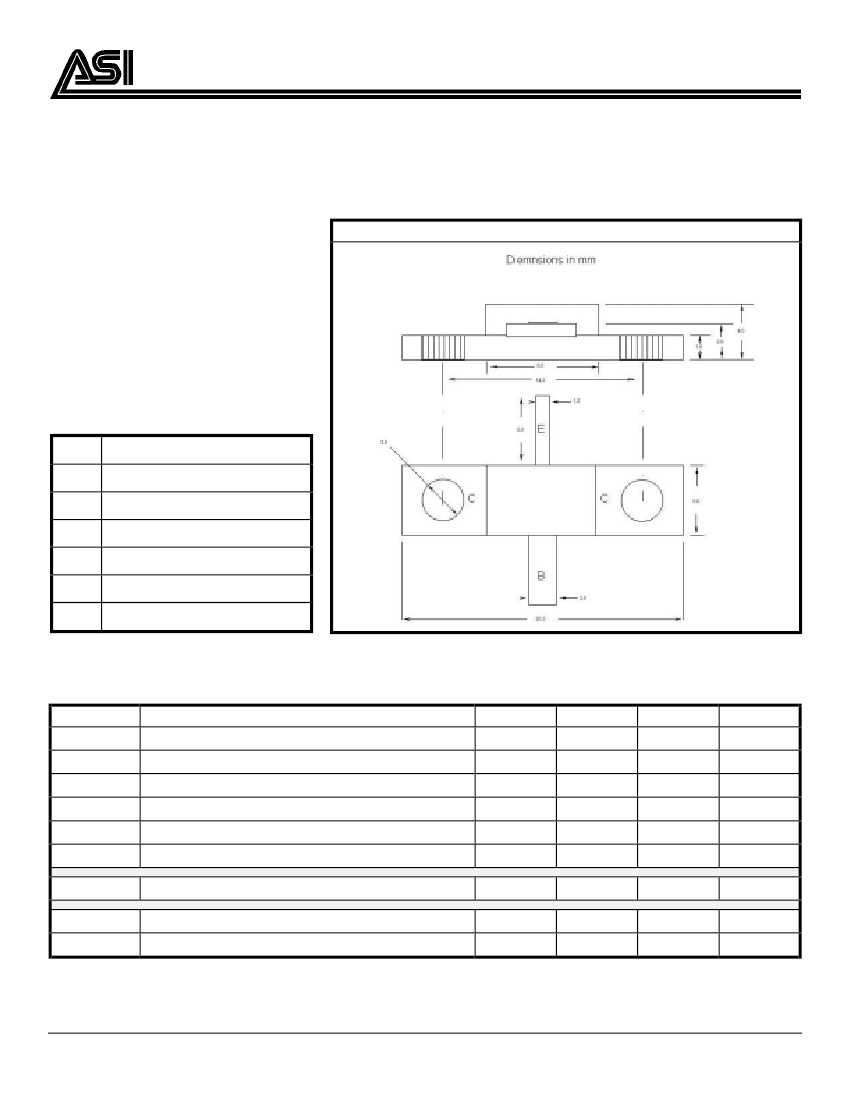

2SC2951

NPN SILICON HIGH FREQUENCY TRANSISTOR

DESCRIPTION:

The

ASI

2SC2951

is a High

Frequency Transistor Designed for

General Purpose Oscillator

Applications up to 10 GHz.

PACKAGE STYLE .200 2L FLG

FEATURES:

•

P

OSC

= 630 mW Typical at 7.5 GHz

•

Omnigold™

Metallization System

MAXIMUM RATINGS

I

C

V

CE

V

CB

P

DISS

T

J

T

STG

θ

JC

440 mA

16 V

25 V

9.7 W @ T

C

= 25 °C

-65 to +200 °C

18 °C/W

CHARACTERISTICS

SYMBOL

BV

CEO

BV

CBO

BV

EBO

I

CBO

I

EBO

h

FE

C

OB

S21

P

OSC

2

T

C

= 25 °C

TEST CONDITIONS

I

C

= 1.0 mA

I

C

= 100

µA

I

E

= 100

µA

V

CB

= 15 V

V

EB

= 1.0 V

V

CE

= 8.0 V

V

CB

= 10 V

V

CC

= 8.0 V

V

CE

= 12 V

I

C

= 200 mA

I

C

= 200 mA

I

C

= 200 mA

f = 1.0 MHz

f = 1.0 GHz

f = 7.5 GHz

MINIMUM TYPICAL MAXIMUM

16

25

1.5

1.0

4.0

20

2.9

3.5

630

200

4.0

UNITS

V

µ

A

µA

---

pF

dB

mW

A D V A N C E D S E M I C O N D U C T O R, I N C.

7525 ETHEL AVENUE

•

NORTH HOLLYWOOD, CA 91605

•

(818) 982-1202

•

FAX (818) 765-3004

Specifications are subject to change without notice.

REV. B

1/1
