TSB5000431DS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> TSB5000431DS

TSB5000431DS: DescriptionBarrier Strip Terminal Block, 30A, 1 Row(s), 1 Deck(s); CategoryThe connector terminals; File Size191KB，5 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

TSB5000431DS Overview

Barrier Strip Terminal Block, 30A, 1 Row(s), 1 Deck(s)

TSB5000431DS Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLYAMIDE, 94V-2
Fastening method	SCREW
Manufacturer's serial number	TSB500
Installation type	CABLE
Number of layers	1
Rows	1
Number of channels	4
Rated current	30 A
Rated voltage	250 V
safety certificate	UL; CSA
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Wire gauge	12 AWG

Preview

Download Datasheet

View All

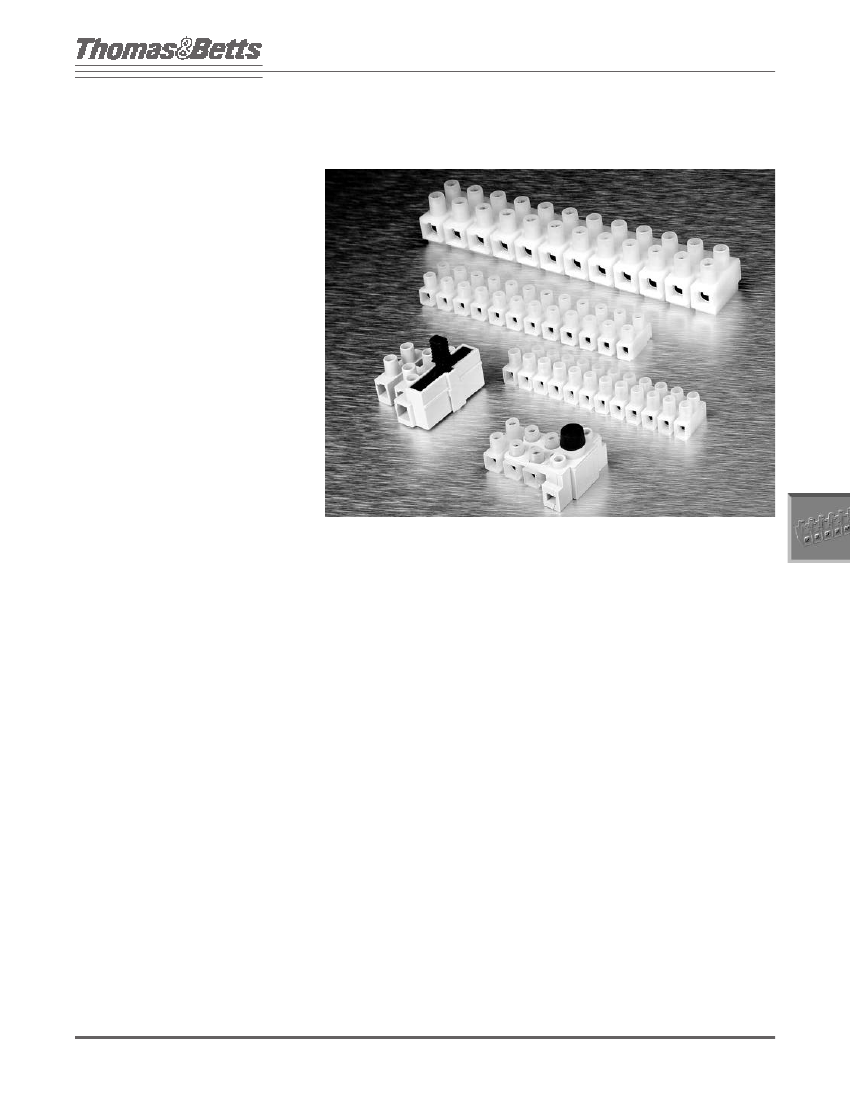

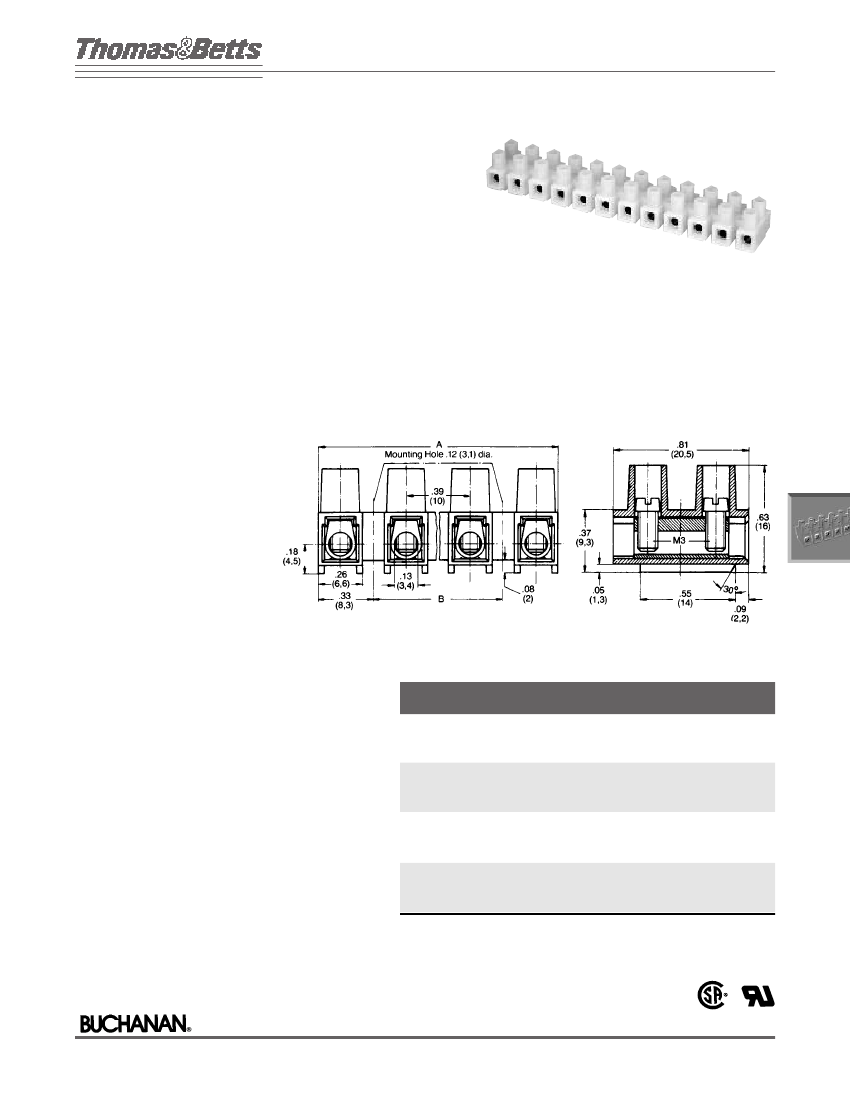

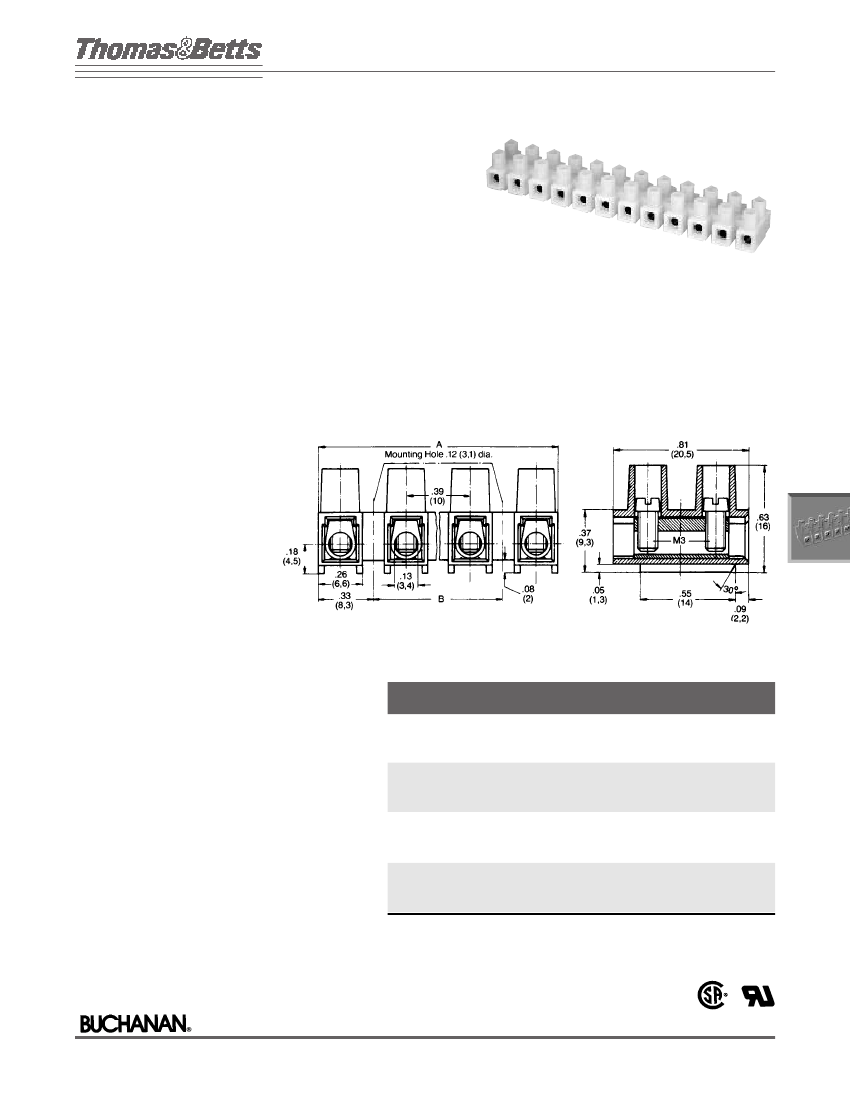

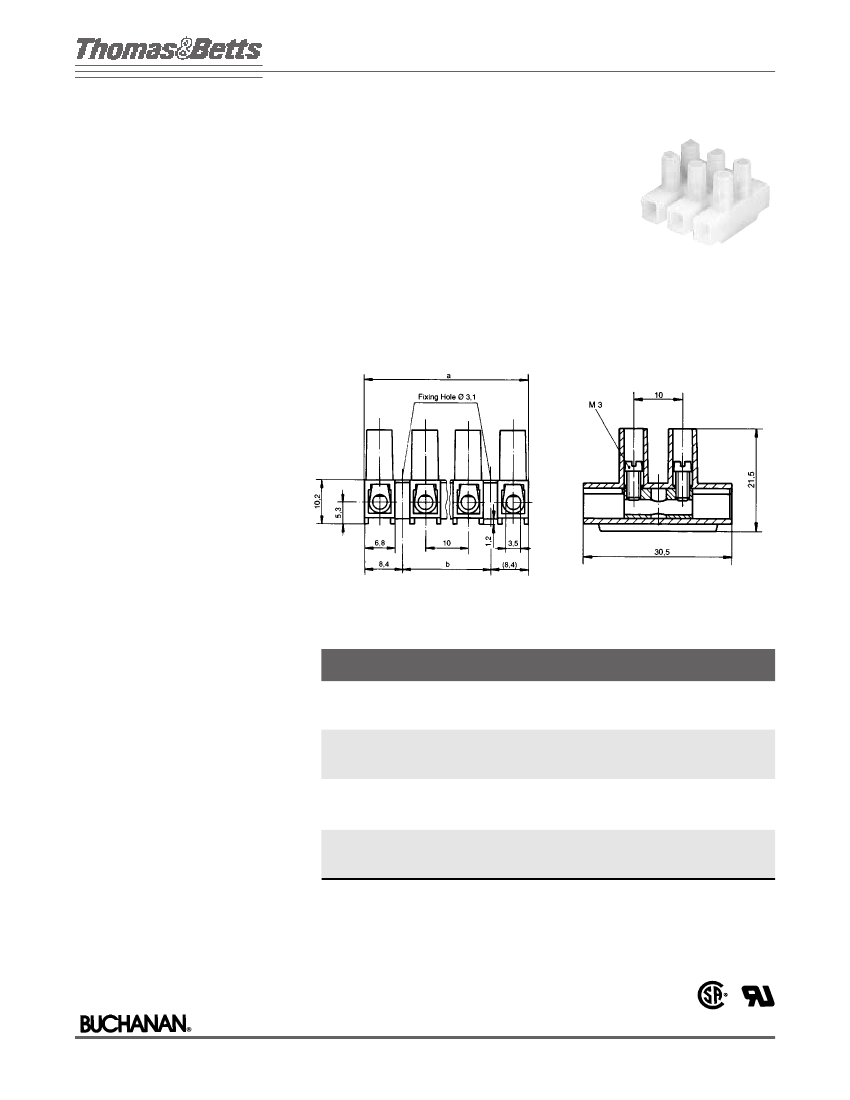

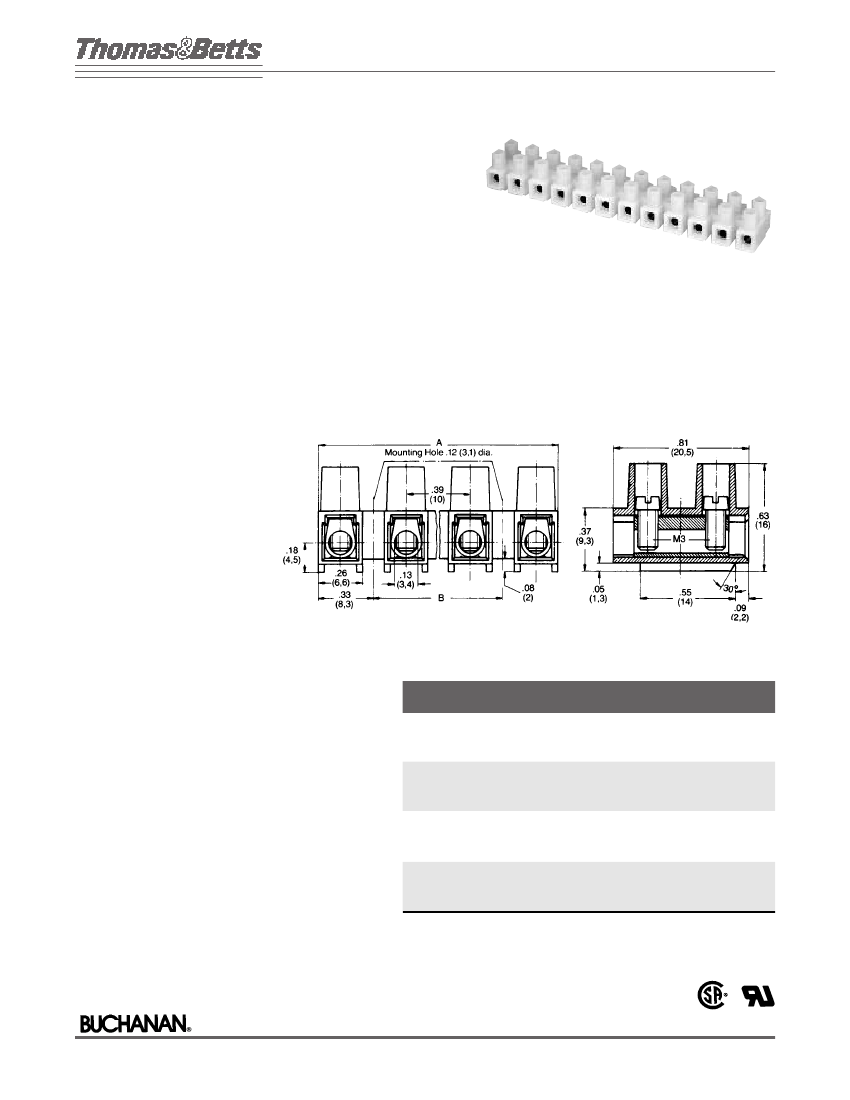

Europa Blocks

ESCRIPTION

/ A

PPLICATION

Thomas and Betts offers the most

extensive line of Europa products in

five pitches:

• 8mm

• 10mm

• 12mm

• 13.5mm

• 14.5mm

Two connection styles are available.

The Wire Protector version supplies a

plate to shield the wire from being cut

by the screw. The Tunnel connection

is the same design, but without the

sheilding plate – it is ideal for solid

wire or where the most economical

price is required.

EUROPA BLOCKS

PPLICATIONS

• Motor Controls

INCLUDE

• Power Supplies

• Telecom

• Valve Actuators

• Spa Controllers

• Lighting

eliminate twisting and breakage of

stranded wire during connection.

• High circuit density — five models

provide from 21 to 38 circuits per

foot.

• “Dead-front” construction — both

screws and tubular contacts are

recessed in housing for safety and

to prevent short circuits.

• Captive screws — zinc with

chromate plated steel screws are

captive in tin plated brass contacts.

They are supplied “backed-out”

and ready to wire.

• Flammability rating of UL94V-2 is

standard.

High

Temperature

versions with UL94V-0 are

available.

ESIGN

DVANTAGES

• Modular design — cut into smaller

sections without altering electrical

properties or order product molded

to length. Mounting holes between

every circuit.

• Tubular contacts — connect

stripped, unterminated solid or

stranded wire directly to each

contact — no wire lugs needed.

• High voltage and current ratings —

rated up to 600 volts and up to 65

amps depending on model and

wire size used.

• Broad Wire Range — use wire from

#6 to #26 AWG depending on

model selected.

• Wire protectors — all models

available with wire protectors to

Thomas & Betts Electronics/OEM Division Tel: 901-252-7766 Fax: 901-252-1312

229
