Plug-In
Frequency Mixer
Level 7 (LO Power +7 dBm)
Operating Temperature
Storage Temperature
RF Power
IF Current
SBL-1X+
10 to 1000 MHz
Features
• excellent conversion loss, 5.88 dB typ.
• good L-R & L-I isolation, 40 dB typ.
• rugged welded construction
CASE STYLE: A06
PRICE: $9.70 ea. QTY (1-9)
Maximum Ratings
-55°C to 100°C
-55°C to 100°C
50mW
40mA
Applications
• VHF/UHF
• defense & satellite communications
+ RoHS compliant in accordance
with EU Directive (2002/95/EC)
The +Suffix has been added in order to identify RoHS
Compliance. See our web site for RoHS Compliance
methodologies and qualifications.
Pin Connections
LO
RF
IF
GROUND
CASE GROUND
^ pins must be connected together externally
8
3,4^
1
2,5,6,7
2,5,6,7
FREQUENCY
(MHz)
LO/RF
f
L
-f
U
10-1000
5-500
1 dB COMP.: +1 dBm typ.
Electrical Specifications
CONVERSION LOSS
(dB)
Mid-Band
m
—
X
5.88
σ
.10
LO-RF ISOLATION
(dB)
M
Typ.
40
Min.
30
Typ.
30
U
Min.
20
Typ.
50
L
LO-IF ISOLATION
(dB)
M
Min.
45
Typ.
40
Min.
35
Typ.
35
U
Min.
25
IF
L
Total
Range
Max. Max. Typ. Min.
7.5
8.0
50
40

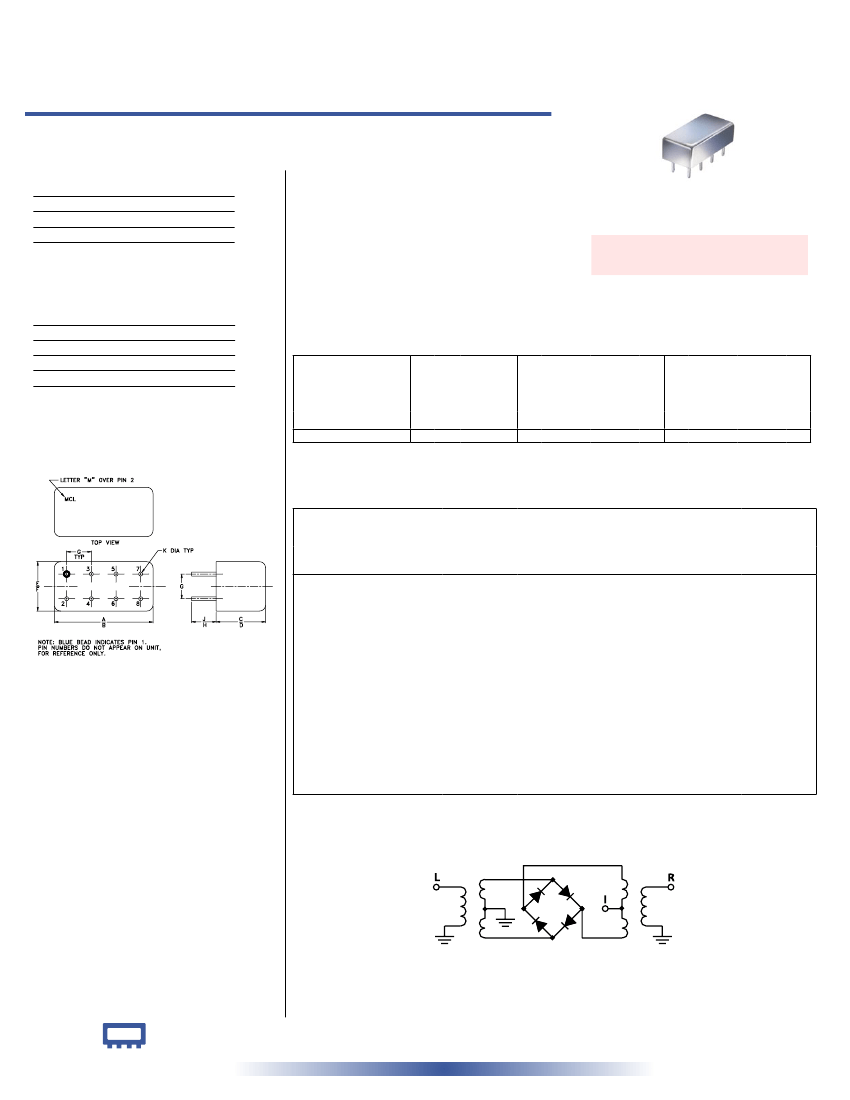

Outline Drawing
L = low range [f
L
to 10 f
L
]
m= mid band [2f
L
to f
U
/2]
M = mid range [10 f
L
to f
U
/2]
U = upper range [f
U
/2 to f
U
]
Typical Performance Data
Frequency
(MHz)
Conversion
Loss
(dB)
LO
40.00
50.00
80.00
70.00
130.32
170.00
223.50
285.63
347.76
409.88
470.00
534.13
596.26
627.32
689.45
751.58
782.64
844.76
906.89
970.00
LO
+7dBm
5.91
6.07
5.97
6.02
6.05
6.14
6.19
6.25
6.34
6.56
6.55
6.24
5.86
5.95
5.84
5.77
5.92
5.87
5.87
6.04
Isolation
L-R
(dB)
LO
+7dBm
52.58
51.57
48.88
44.82
42.05
40.99
40.18
38.29
35.80
33.93
31.47
30.58
29.34
29.13
28.51
28.01
27.68
27.52
27.40
27.28
Isolation
L-I
(dB)
LO
+7dBm
57.65
56.10
51.40
46.42
42.49
40.75
39.56
37.94
36.81
35.80
35.23
33.53
34.86
35.78
35.11
34.75
33.85
32.09
30.31
30.12
VSWR RF
Port
(:1)
LO
+7dBm
1.11
1.07
1.07
1.08
1.10
1.12
1.16
1.23
1.29
1.34
1.37
1.36
1.33
1.27
1.27
1.40
1.51
1.88
2.10
2.89
VSWR LO
Port
(:1)
LO
+7dBm
2.50
2.58
2.46
2.54
2.40
2.34
2.31
2.35
2.38
2.48
2.51
2.60
2.65
2.64
2.84
3.02
3.03
3.15
3.11
3.07
RF
10.00
20.00
50.00
100.00
160.32
200.00
253.50
315.63
377.76
439.88
Outline Dimensions (
A
B
.770
.800
19.56 20.32
C
.285
7.24
D
.310
7.87
inch
mm
)
E
F
.370
.400
9.40 10.16
500.00
564.13
626.26
657.32
719.45
781.58
812.64
874.76
936.89
1000.00
G
.200
5.08
H
.20
5.08
J
.14
3.56
K
.031
0.79
wt
grams
5.2
Electrical Schematic
Distribution Centers
NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010
Mini-Circuits
®
INTERNET
http://www.minicircuits.com
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
Mini-Circuits
ISO 9001 & ISO 14001
Certified
REV. A
M98898
SBL-1X
DJ/TD/CP
060710
Page 1 of 2

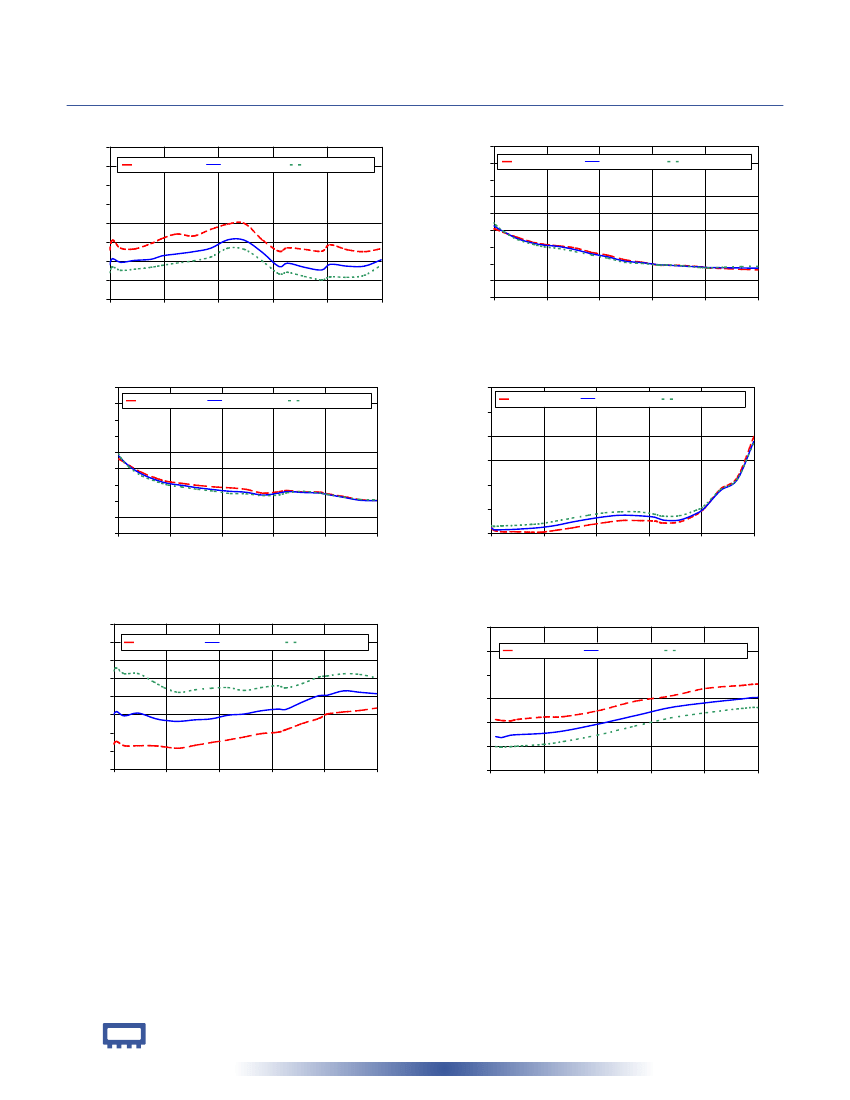

Performance Charts
9.0
CONVERSION LOSS (dB)
8.5
8.0
7.5
7.0
6.5
6.0
5.5
10
208
406
604
FREQUENCY (MHz)
802
1000
at IF Freq of 30 MHz
SBL-1X+
100
SBL-1X
L-R ISOLATION
LO=+4 dBm
LO=+7 dBm
LO=+10 dBm
SBL-1X
CONVERSION LOSS
LO=+4 dBm
LO=+7 dBm
LO=+10 dBm
90
ISOLATION (dB)
80
70
60
50
40
30
20
10
10
5.0
208
406
604
FREQUENCY (MHz)
SBL-1X
RF VSWR
802
1000
100
90
ISOLATION (dB)
80
70
60
50
40
30
20
10
10
SBL-1X
L-I ISOLATION
LO=+4 dBm
LO=+7 dBm
LO=+10 dBm
4.0
3.5
3.0
VSWR
2.5
2.0
1.5
1.0
LO=+4 dBm
LO=+7 dBm
LO=+10 dBm
208
406
604
FREQUENCY (MHz)
SBL-1X
LO VSWR
802
1000
10
208
406
604
FREQUENCY (MHz)
802
1000
SBL-1X
IF VSWR
4.0
LO=+10 dBm
5.0
4.5
4.0
VSWR
3.0
2.5
2.0
1.5
1.0
10
208
3.5
LO=+4 dBm
LO=+7 dBm
3.5
3.0
VSWR
2.5
2.0
1.5
LO=+4 dBm
LO=+7 dBm
LO=+10 dBm
406
604
FREQUENCY (MHz)
802
1000
1.0
0
100
200
300
FREQUENCY (MHz)
400
500
Distribution Centers
NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010
Mini-Circuits
®
INTERNET
http://www.minicircuits.com
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
Mini-Circuits
ISO 9001 & ISO 14001
Certified
Page 2 of 2
