M3R16TAJFREQ: DescriptionHCMOS/TTL Output Clock Oscillator, 1MHz Min, 80MHz Max, ROHS COMPLIANT, J LEADED PACKAGE-4; CategoryPassive components oscillator; File Size454KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric View All

M3R16TAJFREQ Overview

HCMOS/TTL Output Clock Oscillator, 1MHz Min, 80MHz Max, ROHS COMPLIANT, J LEADED PACKAGE-4

M3R16TAJFREQ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	MtronPTI
Reach Compliance Code	unknown
Other features	TRISTATE FUNCTION
maximum descent time	8 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Manufacturer's serial number	M3R
Installation features	SURFACE MOUNT
Maximum operating frequency	80 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS/TTL
Output load	2 TTL, 15 pF
physical size	14.0mm x 9.8mm x 4.7mm
longest rise time	8 ns
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	40/60 %

Preview

Download Datasheet

View All

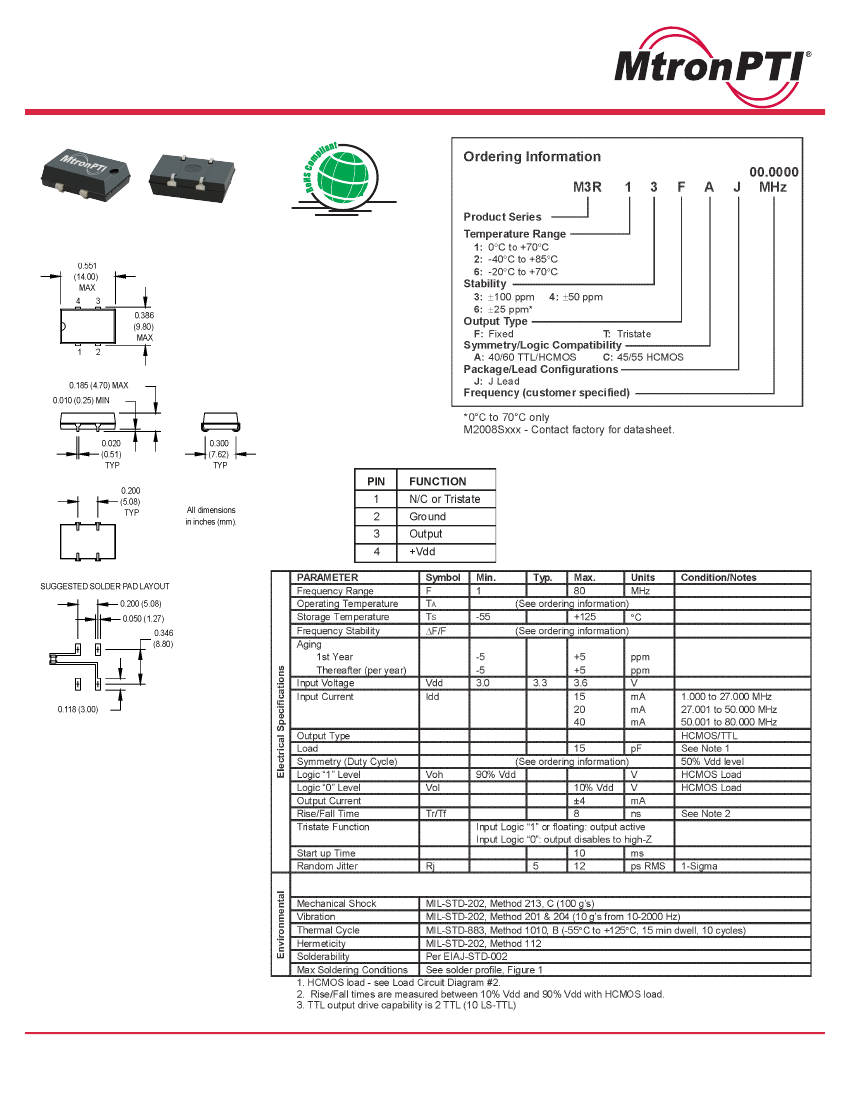

M3R Series

9x14

Series

Volt, HCMOS/TTL, Clock Oscillator

M3R

mm, 3.3

9x14 mm, 3.3 Volt, HCMOS/TTL, Clock Oscillator

Pin Connections

NOTE:

A capacitor of value 0.01

µF

or greater between Vdd and

Ground is recommended.

NOTE:

A capacitor of value

0.01

mF

or greater between Vdd

and Ground is recommended.

1. See load circuit diagram #2 on page 116.

2. Rise/Fall times are measured between 10% Vdd and 90% Vdd with HCMOS load.

3. TTL output drive capability is 2 TTL (10 LS - TTL).

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our

changes to

offering and detailed datasheets. Contact us for your

notice. No liability is assumed as a result of their

1-800-762-8800.

MtronPTI reserves the right to make

complete

the product(s) and service(s) described herein without

application specific requirements: MtronPTI

use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

94

Revision: 8-21-07
