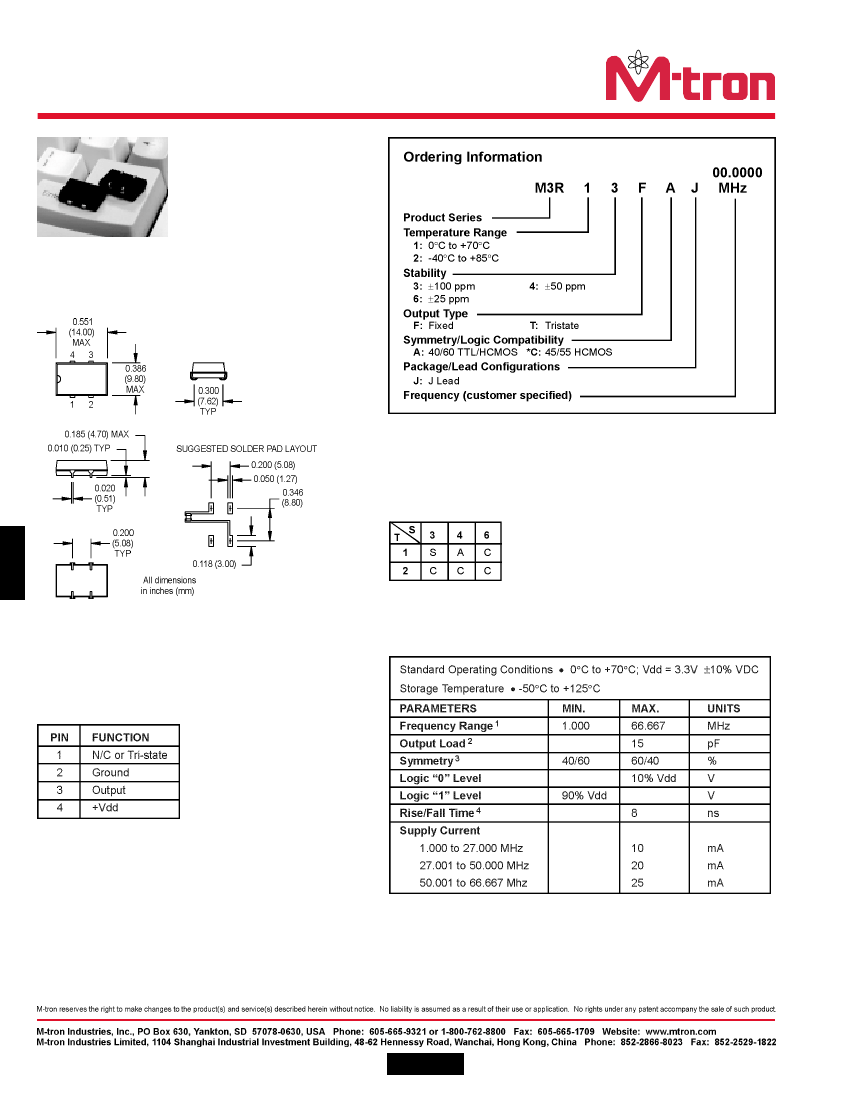

M3R Series 3.3 Volt HCMOS/TTL
Compatible Oscillators
M3R Series HCMOS/TTL Compatible, 3.3 Volt,
Plastic Package, Surface Mount Oscillator
* Consult factory regarding availability of C symmetry code.
Available Stabilities
vs. Temperature
A = Available
S = Standard
C = Consult Factory
NOTE:
A capacitor of value 0.01
mF
or greater between
Vdd and Ground is recommended.
Electrical Specifications
Pin Connections
Tri-state Control Logic
Pin 1 high or floating: clock signal output.
Pin 1 low: output disabled to high impedance.
Because this product is based on AT-strip technology, not all frequencies in the range stated are
available. Contact the factory for availability of specific frequencies.
2
See load circuit diagram #2 on page 137.
3
Symmetry is measured at 50% Vdd.
4
Rise/Fall times are measured between 10% Vdd and 90% Vdd.
See page 136, Figure 2 for suggested solder profile.
TTL output drive capability is 2 TTL (10 LS - TTL).
1
70
