Datasheet> All Categories > Analog mixed-signal IC> filter> 2404-007-X5W0-502Z
PDF
Preview

2404-007-X5W0-502Z

Description
Feed Through Capacitor, 1 Function(s), 500V, 15A,
CategoryAnalog mixed-signal IC    filter
File Size38KB，1 Pages
ManufacturerCTS
Download Datasheet Parametric Compare View All

2404-007-X5W0-502Z Overview

Feed Through Capacitor, 1 Function(s), 500V, 15A,

2404-007-X5W0-502Z Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresC-TYPE CIRCUIT
capacitance5000 µF
diameter5.77 mm
filter typeFEED THROUGH CAPACITOR
Maximum insertion loss50 dB
JESD-609 codee3
Manufacturer's serial number2404
Installation typeTHROUGH HOLE MOUNT
Number of functions1
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
physical sizeD5.77XL9.65 (mm)/D0.227XL0.38 (inch)
Rated current15 A
Rated voltage500 V
Terminal surfaceTin (Sn)
Base Number Matches1

Preview

Download Datasheet
7741 North Business Park Drive
Tucson, Arizona 85743
Ph: 520-744-0400 Fax: 520-744-6155
www.tusonix.com
Web site: www.tusonix.com E-mail: sales@tusonix.com

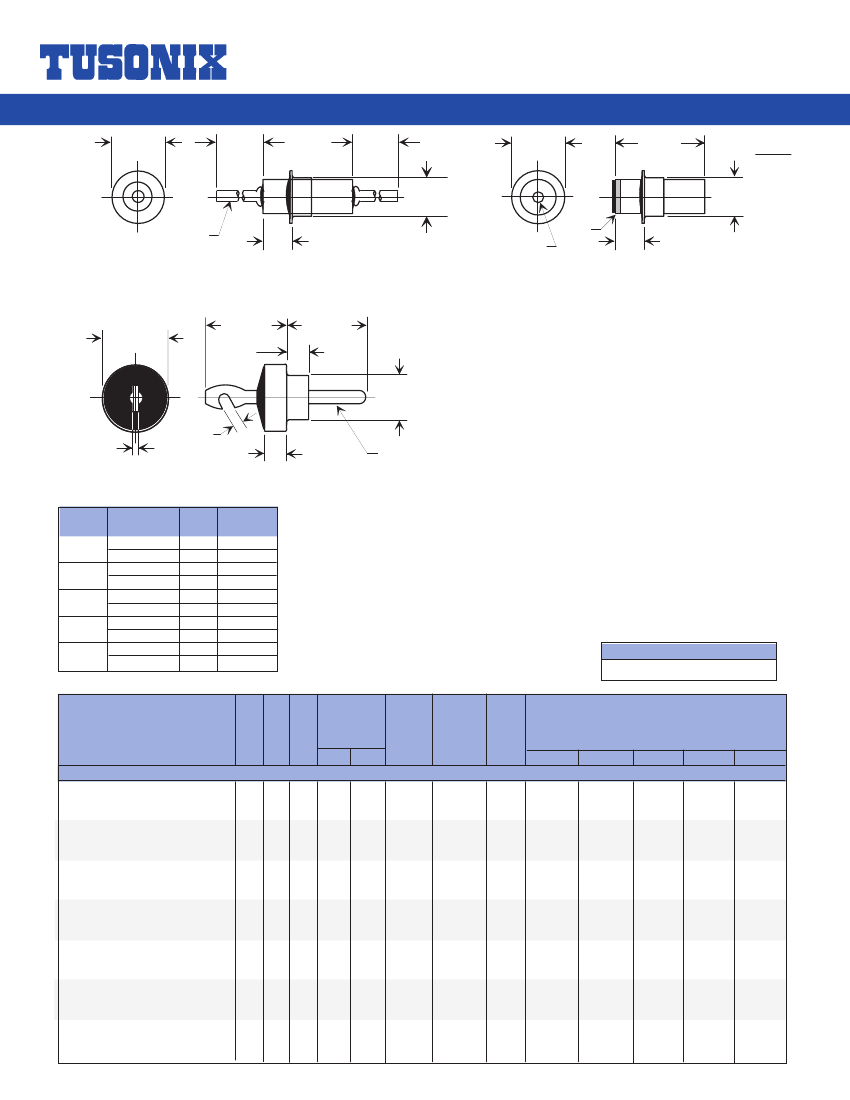

Solder Mount Feed-Thru Capacitors
.2 2 7 ± .0 1 5
[5 .7 7 ± 0 .3 8 ]
.2 5 0 ± .0 1 5
[6 .3 5 ± 0 .3 8 ]
.3 8 0 ± .0 1 5
[9 .6 5 ± 0 .3 8 ]
.2 5 0 ± .0 1 5
[6 .3 5 ± 0 .3 8 ]
.2 2 7 ± .0 1 0
[5 .7 7 ± 0 .2 5 ]
.3 8 0 ± .0 1 5
[9 .6 5 ± 0 .3 8 ]
inches
[mm]
.1 6 0 M A X .
[4 .0 6 M A X .]
.1 6 0 M A X .
[4 .0 6 M A X .]
T IN N E D
.1 2 5 ± .0 1 5
[3 .1 8 ± 0 .3 8 ]
.0 4 8 M IN .
[1 .2 2 M IN .]
.1 2 5 ± .0 1 5
[3 .1 8 ± 0 .3 8 ]
# 1 6 A W G .
(.0 5 1 ) [1 .3 0 ]
S T Y L E 1 1
.3 4 4 ± .0 3 1
[8 .7 4 ± 0 .7 9 ]
.0 9 3 ± .0 1 5
[2 .3 6 ± 0 .3 8 ]
.3 2 8 ± .0 3 1
[8 .3 3 ± 0 .7 9 ]
S T Y L E 1 2
.2 8 1 ± .0 1 5
[7 .1 4 ± 0 .3 8 ]
.1 9 0 M A X .
[4 .8 3 M A X .]
.0 3 1 ± .0 0 5
[0 .7 9 ± 0 .1 3 ]
.0 5 0 ± .0 1 0
[1 .2 7 ± 0 .2 5 ]
.0 9 3 ± .0 1 5
[2 .3 6 ± 0 .3 8 ]
.0 6 2 [1 .5 7 ]
S T Y L E 1 3
Series Temperature
Number
Range
Z5, Y5, X5
2404
X7
Z5, Y5, X5
2482
X7
Z5, Y5, X5
2450
X7
Z5, Y5, X5
2461
X7
Z5, Y5, X5
2463
X7
WVDC
500
250
300
150
500
250
200
100
200
100
CAP.
MAX. CAP.
Nominal
(pF)
7000
7000
4000
4000
1800
1800
1000
1000
2000
2000
Notes:
v
Capacitance
(pF)
Capacitance
Tolerance
#14 AWG Lead 0.064 Dia.
Please see temperature Characteristics and EIA Codes on page 21.
Working
Voltage
(dc)
85°C 125°C
200
200
200
--
--
--
--
200
200
300
300
300
500
500
--
500
500
500
500
500
500
--
--
--
100
100
100
100
--
--
--
--
--
--
--
250
--
--
--
--
--
--
Typical No-Load Insertion Loss
(dB) at 25°C per MIL-Std-220
1MHz
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
10MHz
--
--
--
3
3
3
5
5
5
--
3
3
--
--
--
3
3
3
15
15
15
100MHz
12
12
12
20
20
20
22
22
22
12
20
20
3
12
12
20
20
20
30
30
30
1GHz
27
27
27
35
35
35
35
35
35
27
35
35
20
27
27
35
35
35
45
45
45
10GHz
27
27
27
40
40
40
40
40
40
27
40
40
28
27
27
40
40
40
50
50
50
C Configuration
2463-001-X5S0-471M
2463-002-X5S0-471M
2463-003-X5U0-471P
2461-000-X7V0-102P
2461-001-X7V0-102AA
2461-002-X7V0-102M
2463-000-X7U0-152P
2463-002-X5U0-152P
2463-003-X5U0-152P
2482-001-X5U0-471M
2482-012-X5U0-102M
2482-001-X5U0-102M
2450-001-X5R0-101K
2450-001-X5R0-471M
2404-000-X7R0-471M
2450-001-X5U0-102P
2404-000-X5U0-102P
2404-014-X5U0-102P
2404-014-X5W0-502M
2404-000-X5W0-502Z
2404-007-X5W0-502Z
Drawings not to scale.
Style
Circuit
Notes
TUSONIX
Part
Number
2
3
4
5
6
7
1
3
4
9
8
9
13
13
11
13
11
12
12
11
10
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
v
--
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
470
470
470
1000
1000
1000
1500
1500
1500
470
1000
1000
100
470
470
1000
1000
1000
5000
5000
5000
±20%
±20%
+100-0%
+100-0%
GMV
±20%
+100-0%
+100-0%
+100-0%
±20%
±20%
±20%
±10%
±20%
±20%
+100-0%
+100-0%
+100-0%
±20%
+80-20%
+80-20%
Current
(A)
--
10
10
--
20
20
--
10
10
20
--
20
20
20
20
20
20
--
--
20
15
4

2404-007-X5W0-502Z Related Products

2404-007-X5W0-502Z 2463-000-X7U0-152P 2482-001-X5U0-471M 2450-001-X5R0-471M 2404-000-X7R0-471M 2450-001-X5R0-101K
Description Feed Through Capacitor, 1 Function(s), 500V, 15A, Feed Through Capacitor, 1 Function(s), 100V, Feed Through Capacitor, 1 Function(s), 300V, 20A, Feed Through Capacitor, 1 Function(s), 500V, 20A, Feed Through Capacitor, 1 Function(s), 250V, 20A, Feed Through Capacitor, 1 Function(s), 500V, 20A,
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible
Reach Compliance Code compli compli compli compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Other features C-TYPE CIRCUIT C-TYPE CIRCUIT C-TYPE CIRCUIT C-TYPE CIRCUIT C-TYPE CIRCUIT C-TYPE CIRCUIT
capacitance 5000 µF 1500 µF 470 µF 470 µF 470 µF 100 µF
diameter 5.77 mm 2.39 mm 4.95 mm 7.14 mm 5.77 mm 7.14 mm
filter type FEED THROUGH CAPACITOR FEED THROUGH CAPACITOR FEED THROUGH CAPACITOR FEED THROUGH CAPACITOR FEED THROUGH CAPACITOR FEED THROUGH CAPACITOR
Maximum insertion loss 50 dB 40 dB 27 dB 27 dB 27 dB 28 dB
Installation type THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT
Number of functions 1 1 1 1 1 1
Maximum operating temperature 85 °C 125 °C 85 °C 85 °C 125 °C 85 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
physical size D5.77XL9.65 (mm)/D0.227XL0.38 (inch) D2.39XL3.94 (mm)/D0.0.94XL0.155 (inch) D4.95XL6.35 (mm)/D0.195XL0.25 (inch) D7.14XL4.72 (mm)/D0.281XL0.186 (inch) D5.77XL9.65 (mm)/D0.227XL0.38 (inch) D7.14XL4.72 (mm)/D0.281XL0.186 (inch)
Rated voltage 500 V 100 V 300 V 500 V 250 V 500 V
Manufacturer's serial number 2404 2463 2482 - 2404 2450
Rated current 15 A - 20 A 20 A 20 A 20 A
Base Number Matches 1 1 1 1 1 -
