DN74LS74AS

Description
D Flip-Flop, 2-Func, Positive Edge Triggered, TTL, PDSO14
Categorylogic    logic
File Size87KB,3 Pages
ManufacturerPanasonic
Websitehttp://www.panasonic.co.jp/semicon/e-index.html
Download Datasheet Parametric View All

DN74LS74AS Overview

D Flip-Flop, 2-Func, Positive Edge Triggered, TTL, PDSO14

DN74LS74AS Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerPanasonic
package instructionSOP, SOP14,.25
Reach Compliance Codeunknown
JESD-30 codeR-PDSO-G14
JESD-609 codee0
Logic integrated circuit typeD FLIP-FLOP
Maximum Frequency@Nom-Sup25000000 Hz
MaximumI(ol)0.008 A
Number of functions2
Number of terminals14
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Encapsulate equivalent codeSOP14,.25
Package shapeRECTANGULAR
Package formSMALL OUTLINE
power supply5 V
Maximum supply current (ICC)8 mA
Certification statusNot Qualified
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Trigger typePOSITIVE EDGE

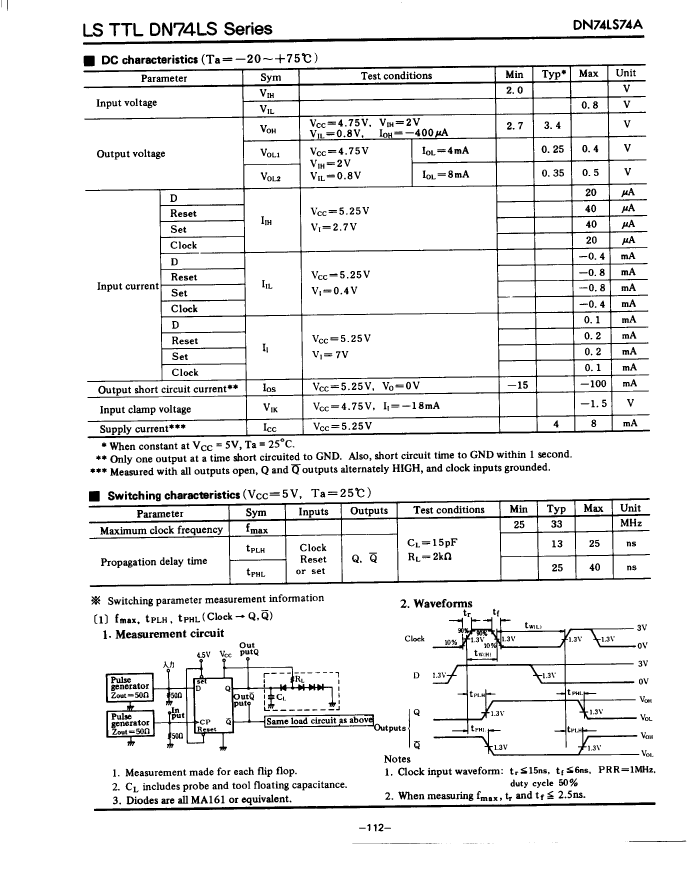

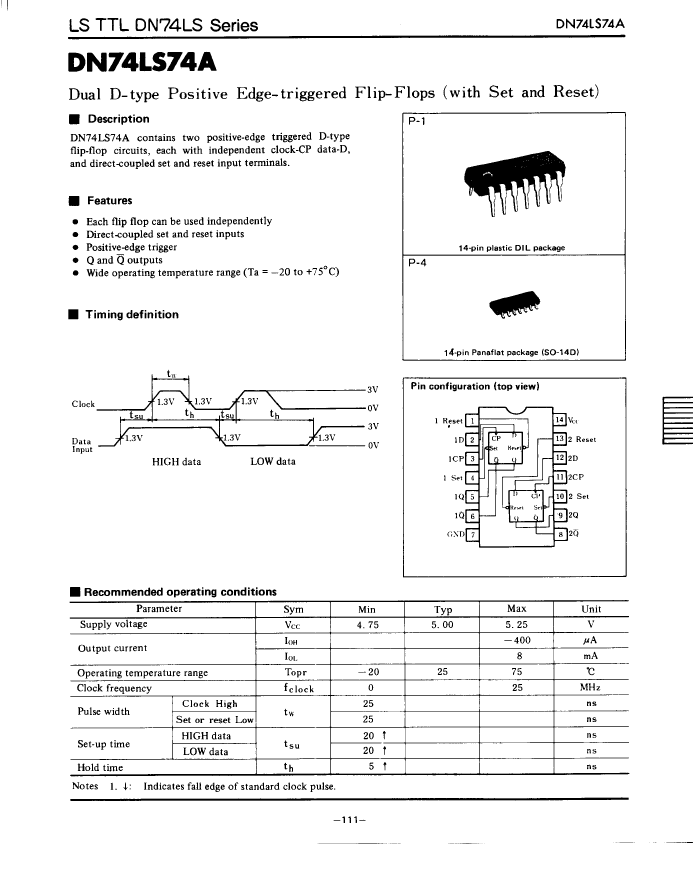

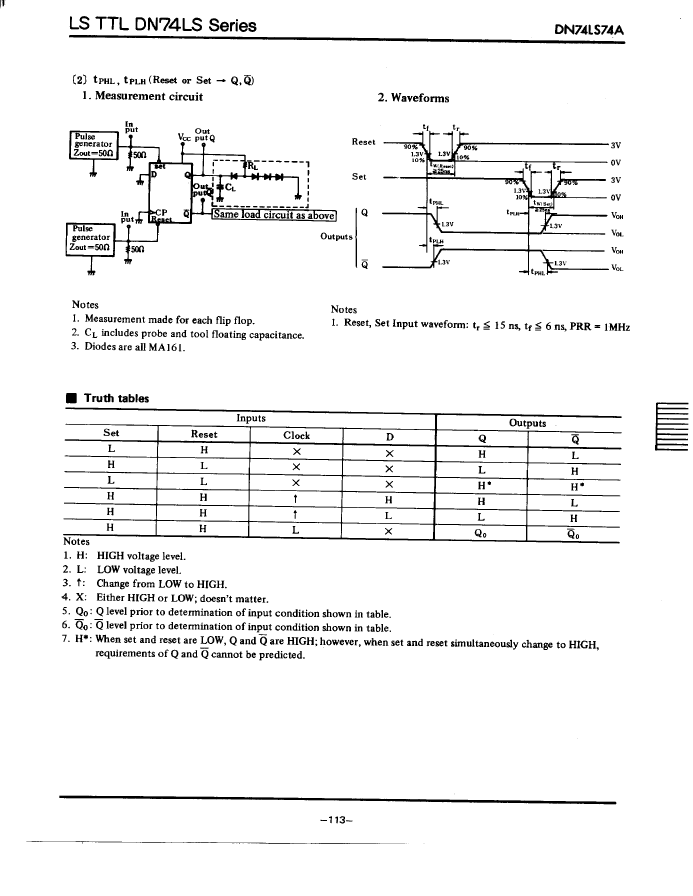

DN74LS74AS Preview

This Material Copyrighted By Its Respective Manufacturer
This Material Copyrighted By Its Respective Manufacturer
This Material Copyrighted By Its Respective Manufacturer
