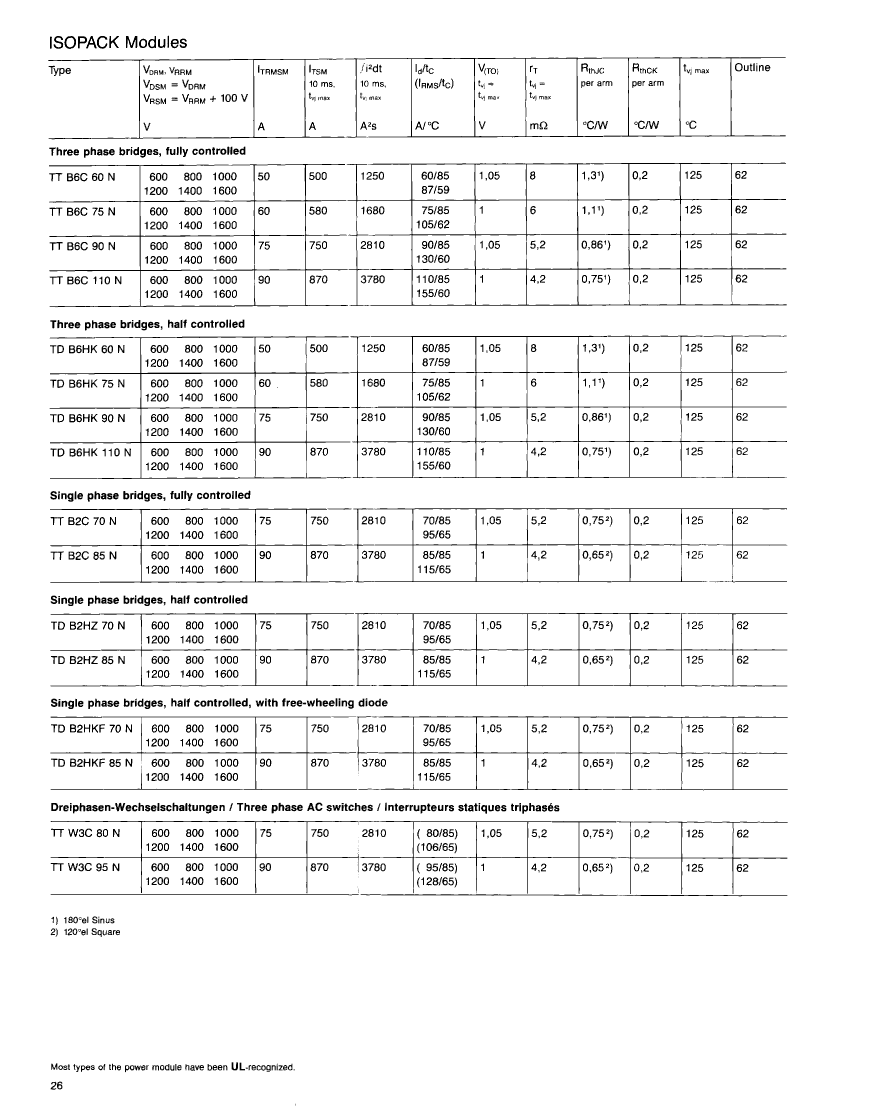

TDB2HKF85N16KOF datasheet, PDF

TDB2HKF85N16KOF: DescriptionSilicon Controlled Rectifier, 90A I(T)RMS, 85000mA I(T), 1600V V(DRM), 1600V V(RRM), 2 Element, ISOPACK-7; CategoryAnalog mixed-signal IC Trigger device; File Size43KB，1 Pages; ManufacturerEUPEC [eupec GmbH]

Download Datasheet Parametric View All

TDB2HKF85N16KOF Overview

Silicon Controlled Rectifier, 90A I(T)RMS, 85000mA I(T), 1600V V(DRM), 1600V V(RRM), 2 Element, ISOPACK-7

Parameter Name	Attribute value
Maker	EUPEC [eupec GmbH]
package instruction	ISOPACK-7
Reach Compliance Code	unknown
Shell connection	ISOLATED
Configuration	BRIDGE, HALF-CONTROLLED, COMMON CATHODE WITH BUILT-IN FREE-WHEELING DIODE
Critical rise rate of minimum off-state voltage	1000 V/us
Quick connection description	2G
Description of screw terminals	2AK-2CA-CK
JESD-30 code	R-PUFM-X7
On-state non-repetitive peak current	870 A
Number of components	2
Number of terminals	7
Maximum on-state current	85000 A
Maximum operating temperature	125 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum rms on-state current	90 A
Off-state repetitive peak voltage	1600 V
Repeated peak reverse voltage	1600 V
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Trigger device type	SCR
