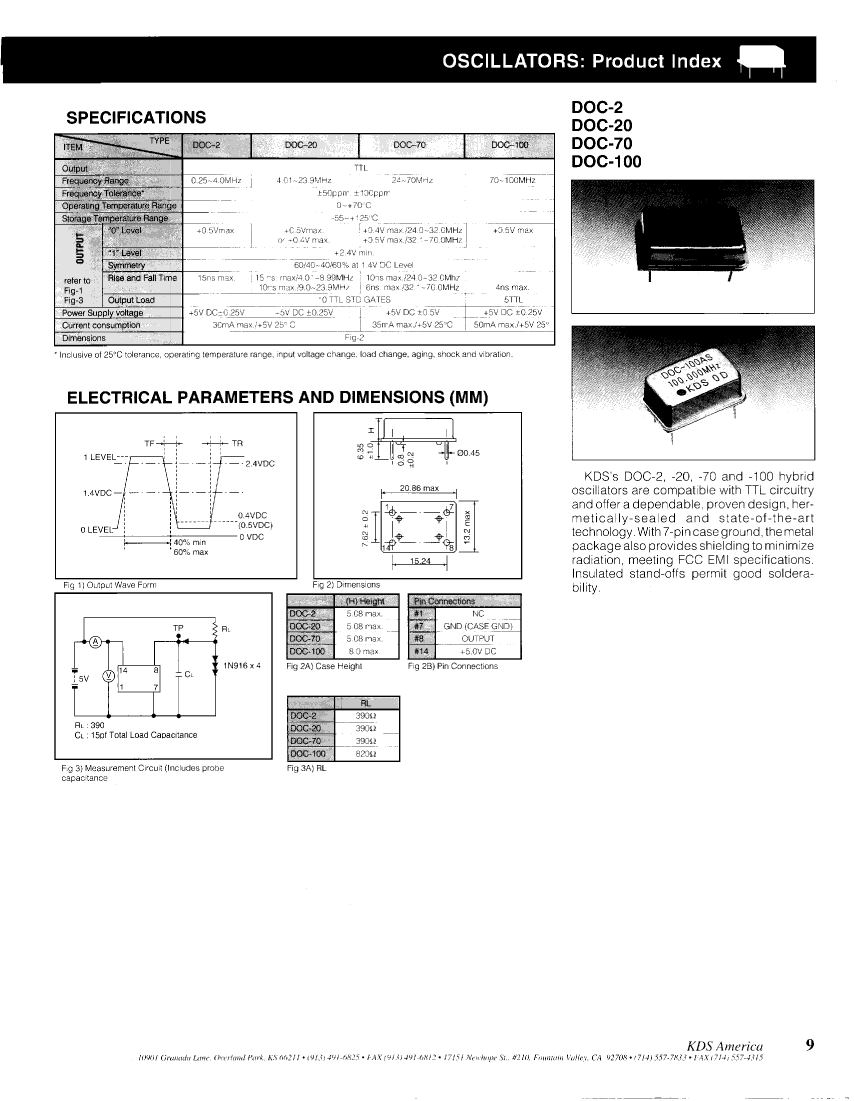

TTL Output Clock Oscillator, 4.01MHz Min, 23.9MHz Max, HERMETICALLY SEALED, RESISTANCE WELD, METAL, DIP-4
| Parameter Name | Attribute value |
| Maker | Daishinku Corp. |
| Reach Compliance Code | unknown |
| maximum descent time | 15 ns |
| Frequency Adjustment - Mechanical | NO |
| frequency stability | 100% |
| Manufacturer's serial number | DOC-20 |
| Installation features | THROUGH HOLE MOUNT |
| Maximum operating frequency | 23.9 MHz |
| Minimum operating frequency | 4.01 MHz |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Oscillator type | TTL |
| Output load | 10 TTL |
| physical size | 20.86mm x 13.2mm x 5.08mm |
| longest rise time | 15 ns |
| Nominal supply voltage | 5 V |
| surface mount | NO |
| maximum symmetry | 60/40 % |
| DOC-20-FREQ-STBY2-OUT3 | DOC-2-FREQ-STBY2-OUT3 | DOC-70-FREQ-STBY1-OUT3 | DOC-70-FREQ-STBY2-OUT3 | DOC-2-FREQ-STBY1-OUT3 | DOC-20-FREQ-STBY1-OUT3 | DOC-100-FREQ-STBY2-OUT3 | DOC-100-FREQ-STBY1-OUT3 | |
|---|---|---|---|---|---|---|---|---|
| Description | TTL Output Clock Oscillator, 4.01MHz Min, 23.9MHz Max, HERMETICALLY SEALED, RESISTANCE WELD, METAL, DIP-4 | TTL Output Clock Oscillator, 0.25MHz Min, 4MHz Max, HERMETICALLY SEALED, RESISTANCE WELD, METAL, DIP-4 | TTL Output Clock Oscillator, 24MHz Min, 70MHz Max, HERMETICALLY SEALED, RESISTANCE WELD, METAL, DIP-4 | TTL Output Clock Oscillator, 24MHz Min, 70MHz Max, HERMETICALLY SEALED, RESISTANCE WELD, METAL, DIP-4 | TTL Output Clock Oscillator, 0.25MHz Min, 4MHz Max, HERMETICALLY SEALED, RESISTANCE WELD, METAL, DIP-4 | TTL Output Clock Oscillator, 4.01MHz Min, 23.9MHz Max, HERMETICALLY SEALED, RESISTANCE WELD, METAL, DIP-4 | TTL Output Clock Oscillator, 70MHz Min, 100MHz Max, HERMETICALLY SEALED, RESISTANCE WELD, METAL, DIP-4 | TTL Output Clock Oscillator, 70MHz Min, 100MHz Max, HERMETICALLY SEALED, RESISTANCE WELD, METAL, DIP-4 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| maximum descent time | 15 ns | 15 ns | 10 ns | 10 ns | 15 ns | 15 ns | 4 ns | 4 ns |
| Frequency Adjustment - Mechanical | NO | NO | NO | NO | NO | NO | NO | NO |
| frequency stability | 100% | 100% | 50% | 100% | 50% | 50% | 100% | 50% |
| Manufacturer's serial number | DOC-20 | DOC-2 | DOC-70 | DOC-70 | DOC-2 | DOC-20 | DOC-100 | DOC-100 |
| Installation features | THROUGH HOLE MOUNT | THROUGH HOLE MOUNT | THROUGH HOLE MOUNT | THROUGH HOLE MOUNT | THROUGH HOLE MOUNT | THROUGH HOLE MOUNT | THROUGH HOLE MOUNT | THROUGH HOLE MOUNT |
| Maximum operating frequency | 23.9 MHz | 4 MHz | 70 MHz | 70 MHz | 4 MHz | 23.9 MHz | 100 MHz | 100 MHz |
| Minimum operating frequency | 4.01 MHz | 0.25 MHz | 24 MHz | 24 MHz | 0.25 MHz | 4.01 MHz | 70 MHz | 70 MHz |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| Oscillator type | TTL | TTL | TTL | TTL | TTL | TTL | TTL | TTL |
| Output load | 10 TTL | 10 TTL | 10 TTL | 10 TTL | 10 TTL | 10 TTL | 5 TTL | 5 TTL |
| physical size | 20.86mm x 13.2mm x 5.08mm | 20.86mm x 13.2mm x 5.08mm | 20.86mm x 13.2mm x 5.08mm | 20.86mm x 13.2mm x 5.08mm | 20.86mm x 13.2mm x 5.08mm | 20.86mm x 13.2mm x 5.08mm | 20.86mm x 13.2mm x 8mm | 20.86mm x 13.2mm x 8mm |
| longest rise time | 15 ns | 15 ns | 10 ns | 10 ns | 15 ns | 15 ns | 4 ns | 4 ns |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO |
| maximum symmetry | 60/40 % | 60/40 % | 60/40 % | 60/40 % | 60/40 % | 60/40 % | 60/40 % | 60/40 % |
| Maker | Daishinku Corp. | - | - | - | Daishinku Corp. | Daishinku Corp. | Daishinku Corp. | Daishinku Corp. |
