T600F12TEC datasheet, PDF - EEWORLD Datasheet

T600F12TEC: DescriptionSilicon Controlled Rectifier, 1500A I(T)RMS, 600000mA I(T), 1200V V(DRM), 1200V V(RRM), 1 Element,; CategoryAnalog mixed-signal IC Trigger device; File Size297KB，4 Pages; ManufacturerEUPEC [eupec GmbH]

Download Datasheet Parametric View All

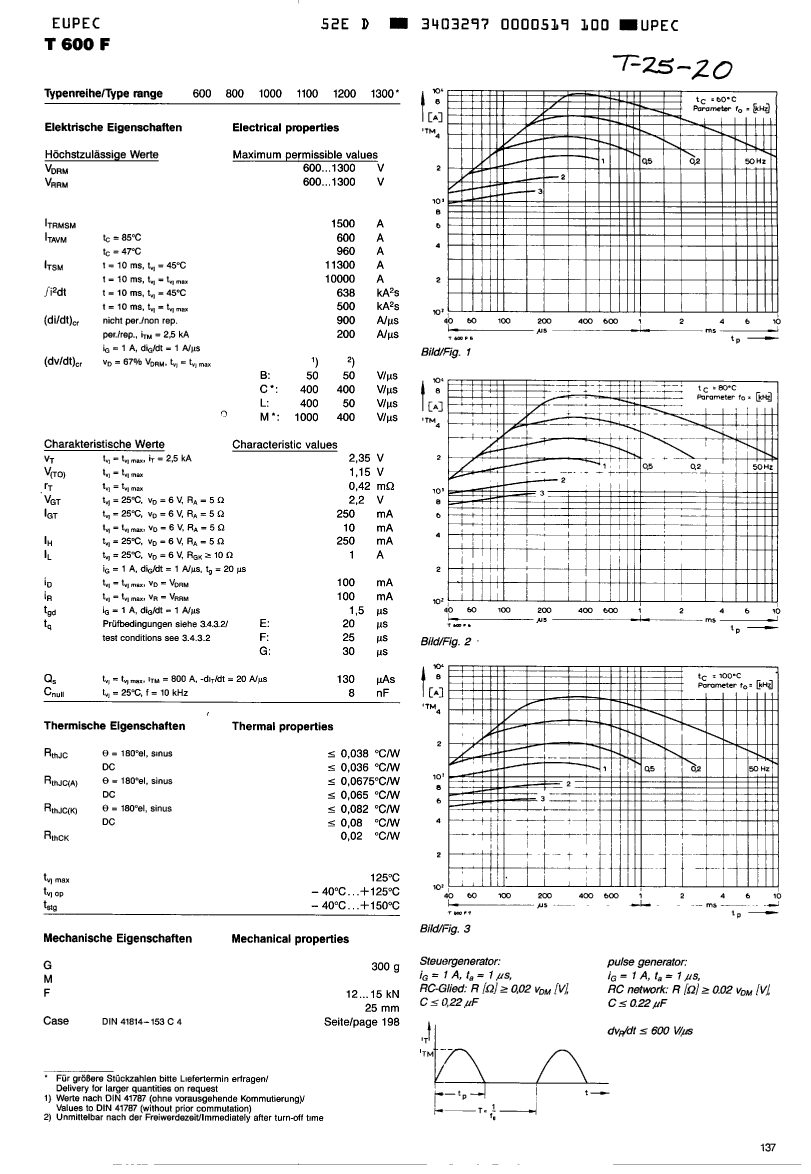

T600F12TEC Overview

Silicon Controlled Rectifier, 1500A I(T)RMS, 600000mA I(T), 1200V V(DRM), 1200V V(RRM), 1 Element,

Parameter Name	Attribute value
Maker	EUPEC [eupec GmbH]
Reach Compliance Code	unknown
Other features	FAST

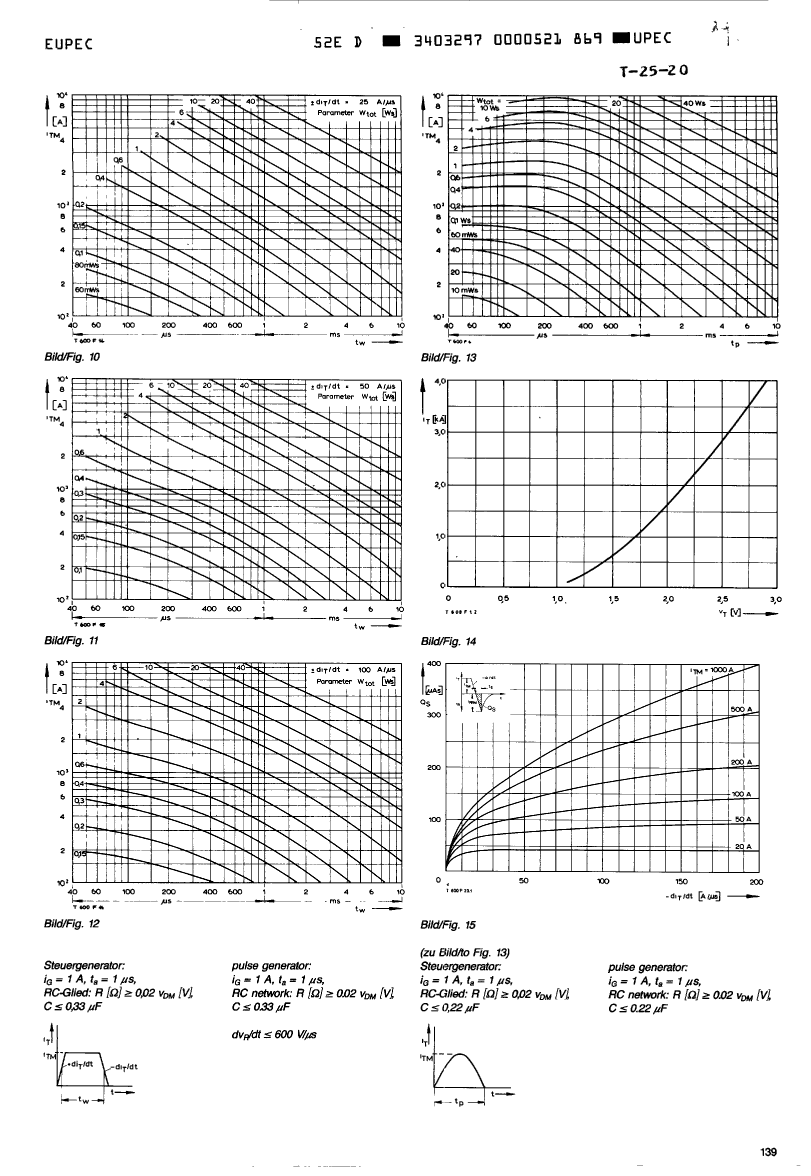

Nominal circuit commutation break time	20 µs
Configuration	SINGLE

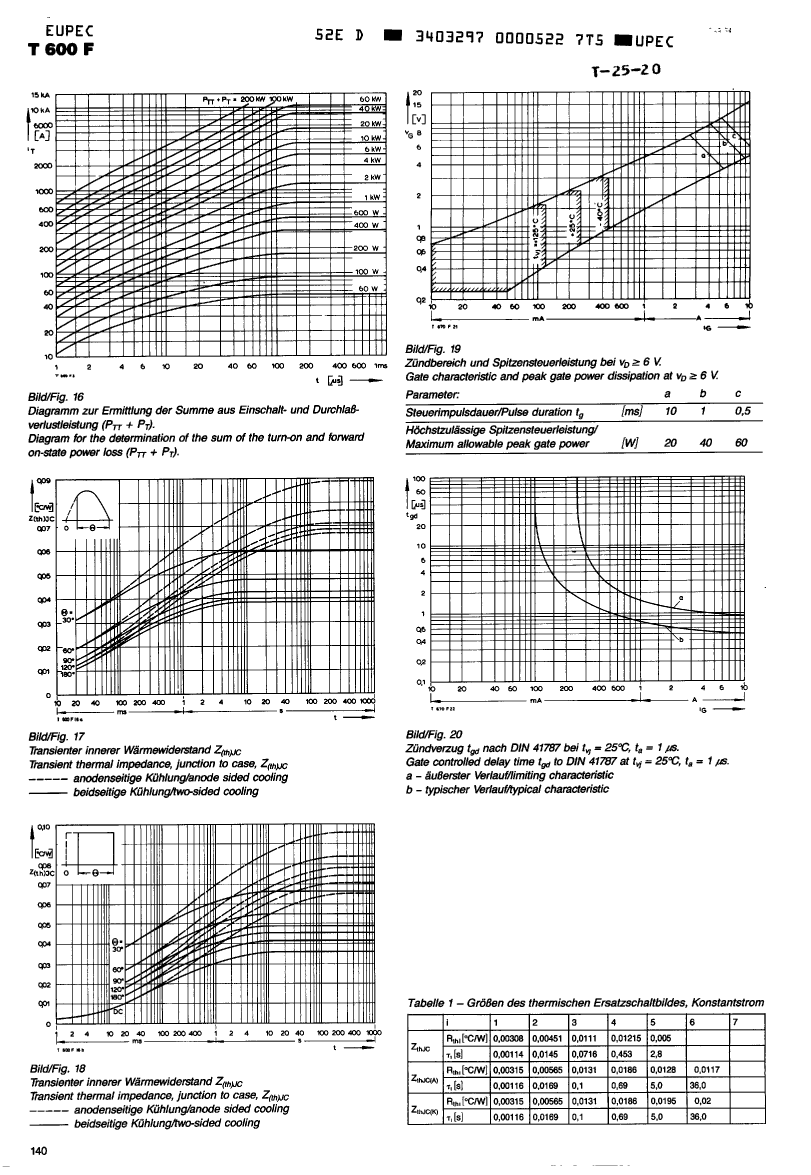

Critical rise rate of minimum off-state voltage	500 V/us
Maximum DC gate trigger current	250 mA
Maximum DC gate trigger voltage	2.2 V
Maximum holding current	250 mA
JESD-30 code	O-CXDB-X4
Maximum leakage current	100 mA

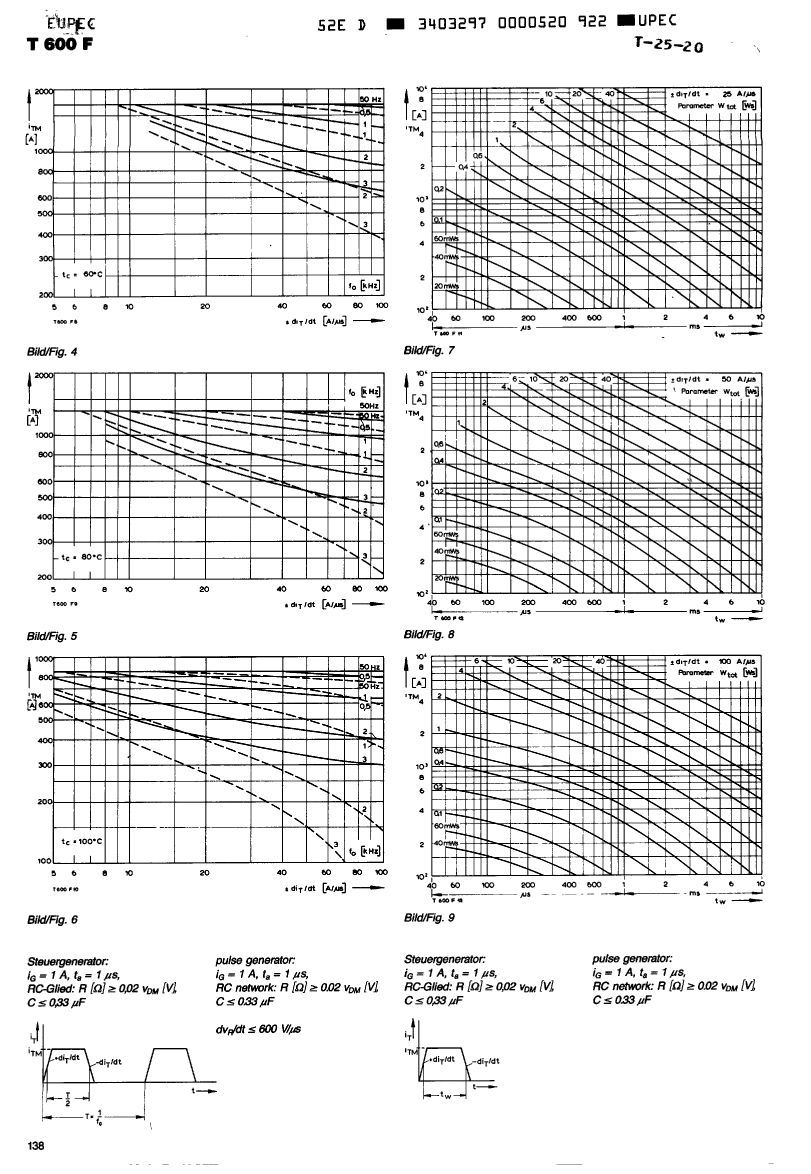

On-state non-repetitive peak current	10000 A
Number of components	1
Number of terminals	4
Maximum on-state current	600000 A
Maximum operating temperature	125 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	DISK BUTTON
Certification status	Not Qualified
Maximum rms on-state current	1500 A
Off-state repetitive peak voltage	1200 V
Repeated peak reverse voltage	1200 V
surface mount	YES
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Trigger device type	SCR
