SMD Type
●SSB84 Series（SSB 84-□□□）
Model
Inductance
Ｌ（μH）
at 10 kHz, 1mA
Rdc
（mΩ）
max
Rated current
（Ａ）
ΔT=20℃
Current (Ref.)
（Ａ）
ΔT=40℃
L change rate 10%
SSB84-1R0
SSB84-1R5
SSB84-2R2
SSB84-3R3
SSB84-4R7
SSB84-6R8
SSB84-100
SSB84-150
SSB84-220
SSB84-330
SSB84-470
SSB84-680
SSB84-101
SSB84-151
SSB84-221
SSB84-331
SSB84-471
SSB84-681
SSB84-102
1.0± 20%
1.5± 20%
2.2± 20%
3.3± 20%
4.7± 20%
6.8± 20%
10± 20%
15± 20%
22± 20%
33± 20%
47± 10%
68± 10%
100± 10%
150± 10%
220± 10%
330± 10%
470± 10%
680± 10%
1000± 10%
40
40
50
50
60
80
100
110
160
200
300
410
570
1100
1450
2000
3300
4100
5600
2.30
2.20
2.00
1.90
1.70
1.60
1.40
1.20
1.20
1.00
0.75
0.70
0.60
0.40
0.35
0.30
0.20
0.20
0.18
3.20
3.00
2.80
2.60
2.30
2.20
1.90
1.60
1.60
1.40
1.00
0.98
0.84
0.56
0.49
0.42
0.28
0.28
0.25
10.00
8.30
7.10
6.20
5.00
4.10
3.30
2.70
2.10
1.70
1.50
1.20
1.10
0.96
0.77
0.62
0.55
0.45
0.35
●SSB64 Series（SSB 64-□□□）
Model
Inductance
Ｌ（μH）
at 10 kHz, 1mA
Rdc
（mΩ）
max
Rated current
（Ａ）
ΔT=20℃
Current (Ref.)
（Ａ）
ΔT=40℃
L change rate 10%
SSB64-1R0
SSB64-1R5
SSB64-2R2
SSB64-3R3
SSB64-4R7
SSB64-6R8
SSB64-100
SSB64-150
SSB64-220
SSB64-330
SSB64-470
SSB64-680
SSB64-101
SSB64-151
SSB64-221
SSB64-331
SSB64-471
SSB64-681
SSB64-102
1.0± 20%
1.5± 20%
2.2± 20%
3.3± 20%
4.7± 20%
6.8± 20%
10± 20%
15± 20%
22± 20%
33± 20%
47± 10%
68± 10%
100± 10%
150± 10%
220± 10%
330± 10%
470± 10%
680± 10%
1000± 10%
40
50
60
70
80
100
120
150
240
290
420
830
1000
1100
2400
3150
4000
6600
8400
1.70
1.50
1.50
1.50
1.40
1.30
1.20
1.00
0.80
0.70
0.55
0.40
0.35
0.30
0.30
0.20
0.19
0.15
0.14
2.30
2.10
2.10
2.10
1.90
1.80
1.60
1.40
1.10
0.98
0.77
0.56
0.49
0.42
0.42
0.28
0.26
0.21
0.19
11.60
10.00
7.70
6.30
5.30
4.30
3.60
2.90
2.40
2.00
1.60
1.40
1.00
0.86
0.71
0.59
0.49
0.41
0.34
●SSB44 Series（SSB 44-□□□）
●
Model
Inductance
Ｌ（μH）
at 10 kHz, 1mA
Rdc
（mΩ）
max
Rated current
（Ａ）
ΔT=20℃
Current (Ref.)
（Ａ）
ΔT=40℃
L change rate 10%
SSB44-1R0
SSB44-1R5
SSB44-2R2
SSB44-3R3
SSB44-4R7
SSB44-6R8
SSB44-100
SSB44-150
SSB44-220
SSB44-330
SSB44-470
SSB44-680
SSB44-101
SSB44-151
SSB44-221
SSB44-331
SSB44-471
SSB44-681
1.0± 20%
1.5± 20%
2.2± 20%
3.3± 20%
4.7± 20%
6.8± 20%
10± 20%
15± 20%
22± 20%
33± 20%
47± 10%
68± 10%
100± 10%
150± 10%
220± 10%
330± 10%
470± 10%
680± 10%
70
70
100
100
100
130
170
270
370
550
820
920
1600
1900
3000
4900
7500
8300
1.90
1.90
1.60
1.50
1.30
1.20
0.85
0.75
0.65
0.45
0.40
0.35
0.25
0.22
0.20
0.15
0.12
0.10
2.60
2.60
2.20
2.10
1.80
1.60
1.10
1.00
0.91
0.63
0.56
0.49
0.35
0.30
0.28
0.21
0.16
0.14
6.70
5.80
4.70
3.90
3.10
2.60
2.10
1.70
1.30
1.10
0.97
0.83
0.71
0.57
0.46
0.38
0.31
0.29
●Operating temperature range: −20 to +105℃ (Including self-temperature rise)
Choke Coils VOL.08
●All specifications in this catalog and production status of products are subject to change without notice. Prior to the purchase, please contact NEC TOKIN for updated product data.
●Please request for a specification sheet for detailed product data prior to the purchase.
●Before using the product in this catalog, please read "Precautions" and other safety precautions listed in the printed version catalog.
2008.08.29 P0936MCCC10VOL08E
SMD Type

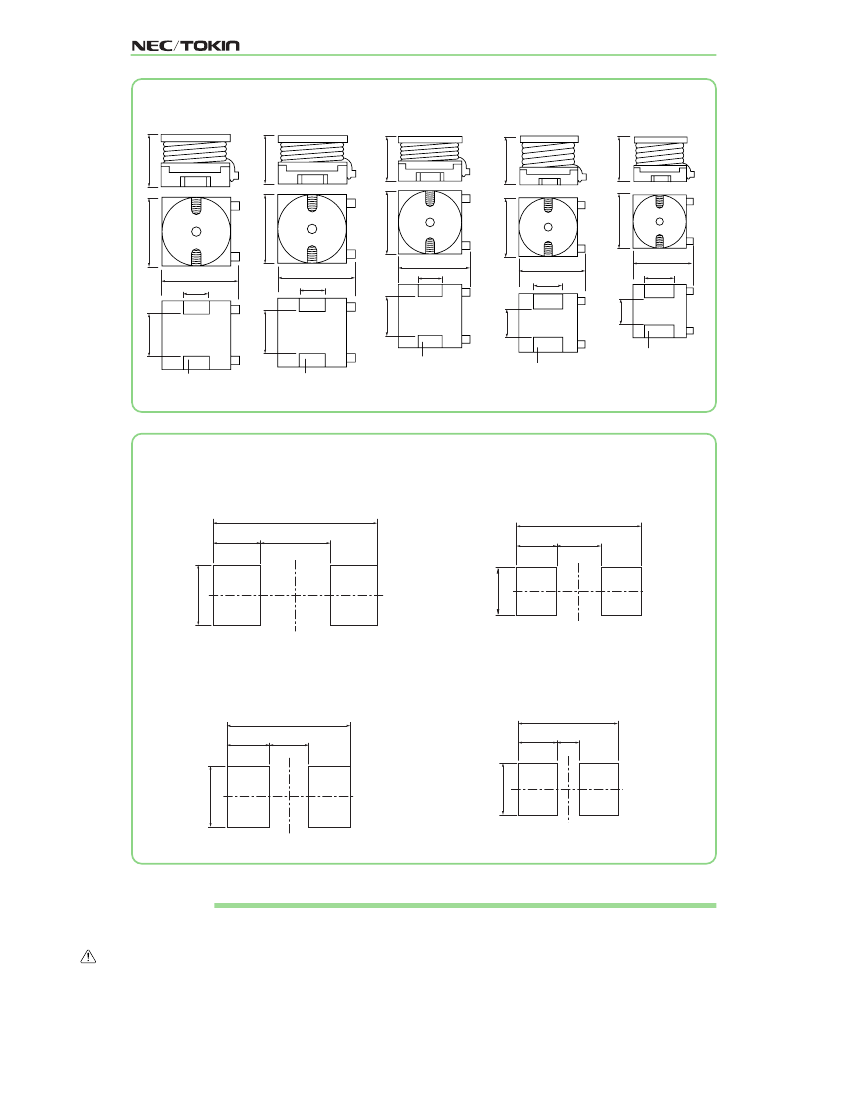

Shape and Dimensions
●SSB 15Series
●SSB 14Series
●SSB 84Series
●SSB 64Series
5.5
max.
4.8
max.
●SSB 44Series
7.0
max.
8.5
max.
6.0
max.
8.3
max.
11.6
11.6
6.3
max.
max.
max.
6.0
max.
10.0
max.
14.0
max.
14.0
max.
4.0
8.0
max.
6.5
max.
3.0
3.0
2.5
4.0
5.0
6.0
6.0
3.0
2.0
Electrode: PB material
Electrode: PB material
Electrode: brass
Electrode: brass
Electrode: PB material
[mm]
Recommended Land Pattern
b
SSB 14/15Series
b
SSB 84Series
12.7
3.65
5.4
3.1
9.6
3.4
4.6
b
SSB 64Series
b
SSB 44Series
3.6
7.6
2.6
2.4
2.35
6.1
1.4
3.6
3.1
[mm]
Choke Coils VOL.08
●All specifications in this catalog and production status of products are subject to change without notice. Prior to the purchase, please contact NEC TOKIN for updated product data.
●Please request for a specification sheet for detailed product data prior to the purchase.
●Before using the product in this catalog, please read "Precautions" and other safety precautions listed in the printed version catalog.
2008.08.29 P0936MCCC10VOL08E
SMD Type
Numbering System
SSB - 44 - 101
①
Series
②
Core size (indicated by the first numbers of the coreﾕs diameter and height.)
Model and core size
The Models use 5-digit numbers that show the core size and inductance.
The first two digits show the core size, indicated by the first numbers of the coreﾕs diameter and height.
Model
SSB 15-□□□
SSB 14-□□□
SSB 84-□□□
SSB 64-□□□
SSB 44-□□□
Core size [mm]
ø11.0 5.5
ø11.0 4.0
ø8.0 4.0
ø6.0 4.0
ø4.5 4.0
▼▼
▼
③
3Inductance: 10×10
1
=100（μH）
SSB14
,
15 Series
（500pcs./reel）
Dimensions of indented square hole plastic tape
t
F
G
H
E
[mm]
A
B
C
D
E
F
G
H
J
K
t
±
0.1
±
0.1
±
0.3
±
0.1
±
0.1
±
0.1
±
0.1
±
0.1 +0.1, –0 SSB14：6.5
±
0.1
±
0.05
11.7
14
24
11.5 1.75
16
2.0
4.0
ø1.5 SSB15：8.0
±
0.1 0.4
J
B
D
C
A
K
Reel dimensions
E
C
A
B
W
1
Packing position
[mm]
A
±
2.0
380
B
±
5.0
80
C
±
0.5
13
D
±
1.0
21
E
±
0.5
2.0
r
R1.0
W
1
±
0.1
12.5
W
2
±
0.3
15.5
r
D
W
2
SSB84 Series
（1000pcs./reel）
