PDR4018-3R3KT: DescriptionGeneral Purpose Inductor, 3.3uH, 10%, 1 Element, SMD, 1616,; CategoryPassive components inductor; File Size162KB，3 Pages; ManufacturerFenghua (HK) Electronics Ltd.

Download Datasheet Parametric View All

PDR4018-3R3KT Overview

General Purpose Inductor, 3.3uH, 10%, 1 Element, SMD, 1616,

PDR4018-3R3KT Parametric

Parameter Name	Attribute value
Maker	Fenghua (HK) Electronics Ltd.
package instruction	1616
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	1616
structure	Unshielded
DC Resistance	0.07 Ω
Nominal inductance(L)	3.3 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	PDR
Number of functions	1
Number of terminals	2
Package height	1.5 mm
Package length	4 mm
Package form	SMT
Package width	4 mm
method of packing	TR
Maximum rated current	2 A
self resonant frequency	44 MHz
series	PDR
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	DCR IS MEASURED AT 30% TOLERANCE
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	10%

Preview

Download Datasheet

View All

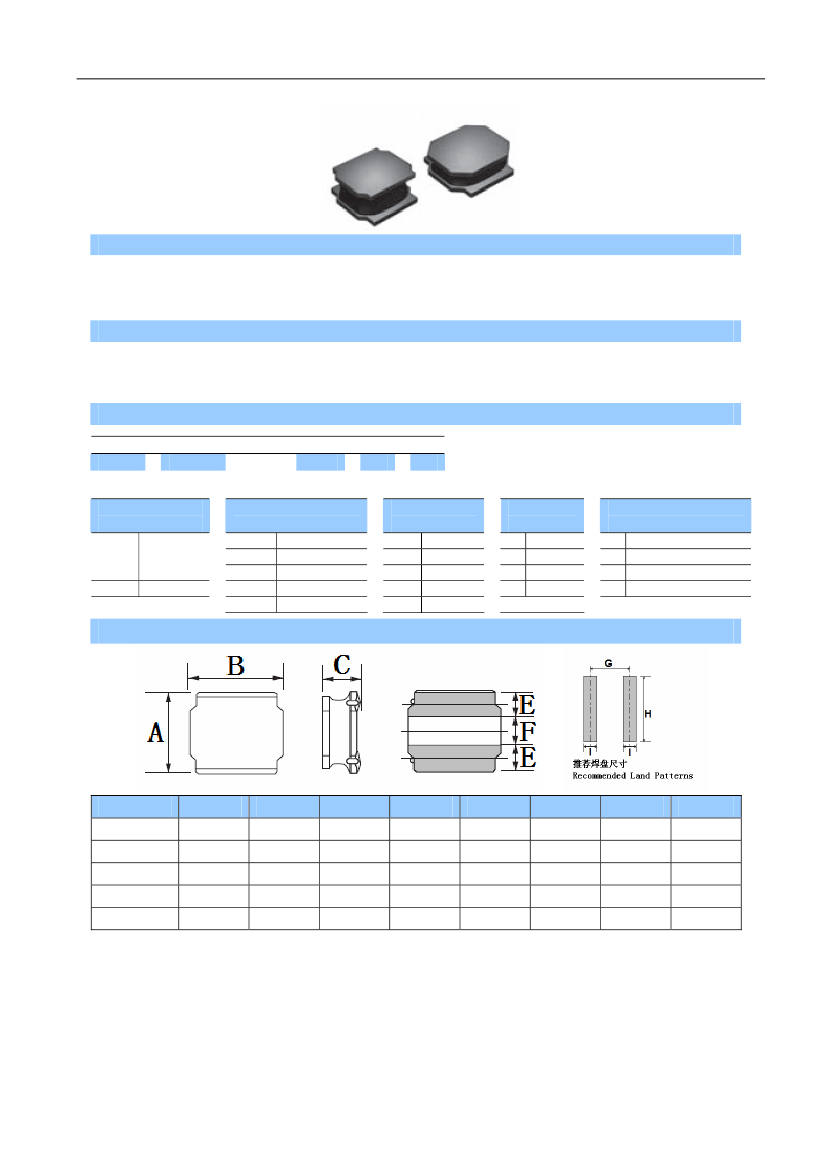

广东肇庆英达电感器件有限公司

GUANGDONG ZHAOQING YINGDA INDUCTOR CO.，LTD

表面贴装元件

SMD COMPONENTS

PDR 系列功率电感

PDR Series SMD Power Inductors

特征 FEATURES

·超薄、不带磁屏½

·小尺寸，大电流

·适合于表面贴装,适合于回流焊

·

Low profile and magnetic open structure

·

·small

dimension,High saturation current

·

SMT type, suitable for solder reflow

应用 APPLICATIONS

·手机、PDA、液晶显示器等小型 DC/DC 变换器用

·DC/DC ½换

·

For small DC/DC converter(cellular Phone,PDA ,LCD

display etc.

·

DC/DC converters

产品规格型号表示方法 ORDERING CODE

PDR

①

产品代号

Code

PDR

系列

PDR

功率电感

8040

②

—

220

③

M

④

③

T

⑤

④

误差

Tolerance

K

±10%

M

±20%

⑤

包装方式

Packaging Style

T

B

Tape&Reel

Bulk

规格尺寸

Dimensions

(L×W×T) (mm)

3015

3.0×3.0×1.5

4018

4.0×4.0×1.8

6020

6.0×6.0×2.0

6045

6.0×6.0×4.5

8040

8.0×8.0×4.0

感量(µH)

Inductance

100

150

220

10

15

22

外½尺寸 Dimensions

单½(Unit)：mm

型号

Part

PDR3015

PDR4018

PDR6020

PDR6045

PDR8040

A

3.0±0.2

4.0±0.2

6.0±0.2

8.0±0.2

B

3.0±0.2

4.0±0.2

6.0±0.2

8.0±0.2

C

1.2±0.3

1.5±0.3

1.7±0.3

4.2±0.3

3.7±0.3

E

0.9±0.2

1.1±0.2

1.3±0.2

2.3±0.3

F

1.4±0.2

1.6±0.2

3.1±0.2

3.4±0.3

G

2.2

2.8

4.7

5.6

H

2.7

3.7

5.7

7.5

I

0.8

1.2

1.6

1.8
