DM5407W/883 datasheet, PDF - EEWORLD Datasheet

DM5407W/883: DescriptionBuffer, TTL/H/L Series, 6-Func, 1-Input, TTL, CDFP14, CERAMIC, FP-14; Categorylogic logic; File Size102KB，2 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric View All

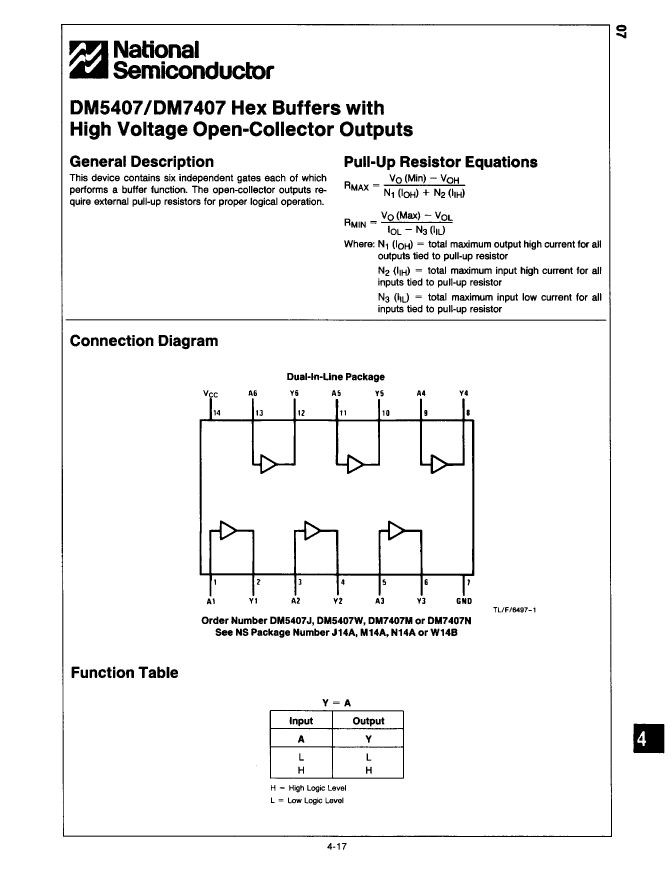

DM5407W/883 Overview

Buffer, TTL/H/L Series, 6-Func, 1-Input, TTL, CDFP14, CERAMIC, FP-14

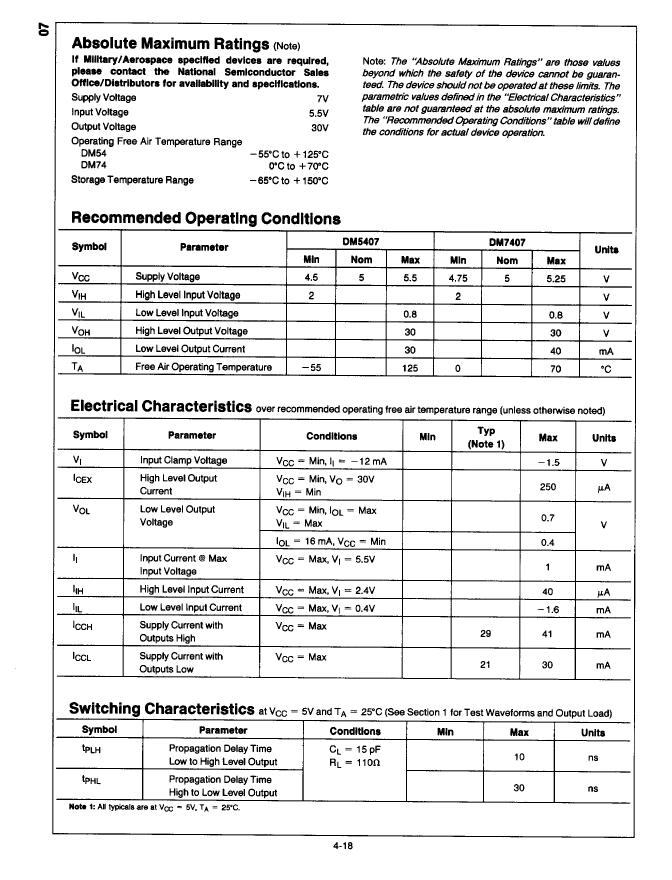

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DFP,
Reach Compliance Code	unknown
Other features	IOL = 30MA @ VOL = 0.7V; IOH = 250UA @ VOH = 30V
series	TTL/H/L
JESD-30 code	R-GDFP-F14
length	9.5885 mm
Logic integrated circuit type	BUFFER
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-COLLECTOR
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	30 ns
Maximum seat height	2.032 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
width	6.35 mm
