MKS19077-6-1-707: DescriptionBoard Connector, 7 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size50KB，1 Pages; ManufacturerStocko Contact GmbH & Co Kg; Websitehttps://www.stocko-contact.com; Environmental Compliance

Download Datasheet Parametric View All

MKS19077-6-1-707 Overview

Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking, Receptacle

MKS19077-6-1-707 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Stocko Contact GmbH & Co Kg
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FIRST&LAST PINS KINKED,0.6 DIA
body width	0.193 inch
subject depth	0.232 inch
body length	0.784 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	POLYAMIDE
MIL compliance	NO
Manufacturer's serial number	MKS19070
Plug contact pitch	0.098 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	7

Preview

Download Datasheet

View All

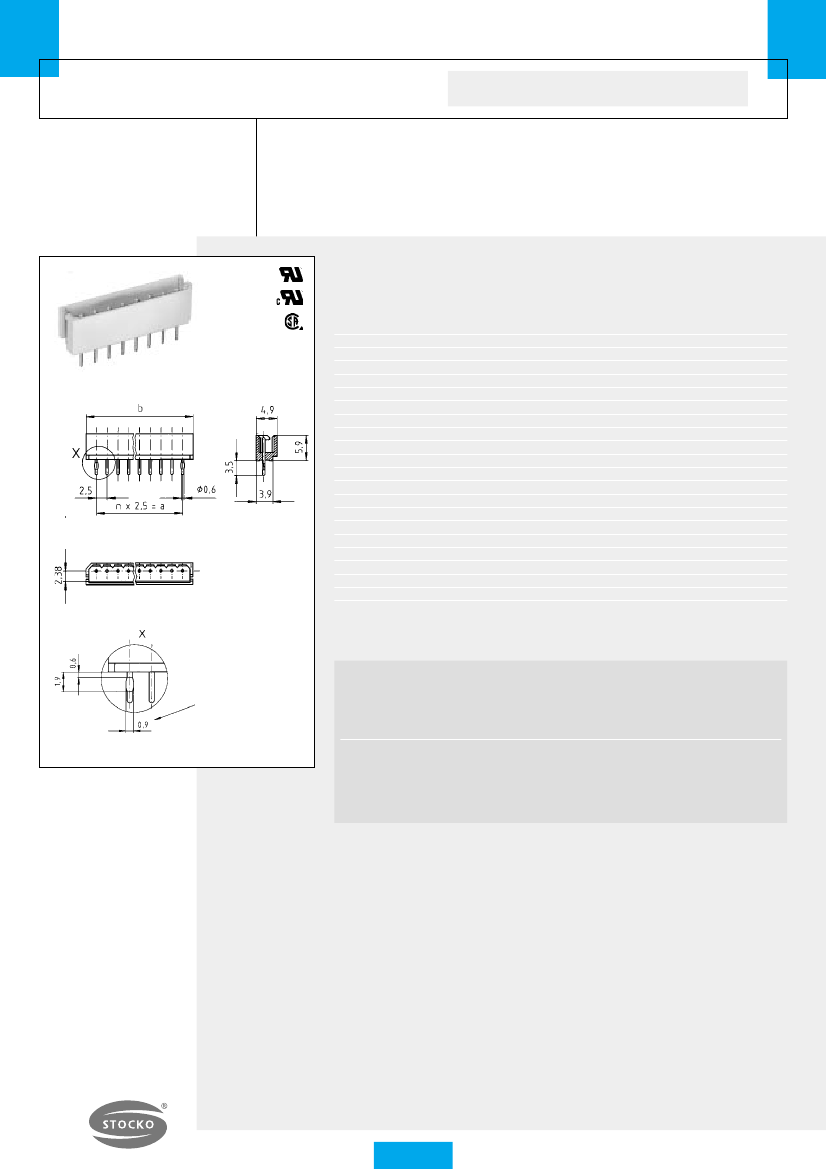

Serie / Series

Stift

S tiftwannen mit Stift Ø 0,6 mm

Pin connectors with pin Ø 0.6 mm

MKS 19070

Serie MKS 19070, Stiftwanne stehend

Series MKS 19070, Pin connector for vertical connections

Polzahl

Positions

Artikel-Nummer

Part number

MKS

19072 - 6 -

- 202

19073 - 6 -

- 303

19074 - 6 -

- 404

19075 - 6 -

- 505

19076 - 6 -

- 606

19077 - 6 -

- 707

19078 - 6 -

- 808

19079 - 6 -

- 909

19080 - 6 -

- 1010

19081 - 6 -

- 1111

19082 - 6 -

- 1212

19083 - 6 -

- 1313

19084 - 6 -

- 1414

19085 - 6 -

- 1515

19086 - 6 -

- 1616

19087 - 6 -

- 1717

19088 - 6 -

- 1818

19089 - 6 -

- 1919

19090 - 6 -

- 2020

Abmessungen A

Dimensions A

2,5

5,0

7,5

10,0

12,5

15,0

17,5

20,0

22,5

25,0

27,5

30,0

32,5

35,0

37,5

40,0

42,5

45,0

47,5

Abmessungen B

Dimensions B

7,4

9,9

12,4

14,9

17,4

19,9

22,4

24,9

27,4

29,9

32,4

34,9

37,4

39,9

42,4

44,9

47,4

49,9

52,4

Jeweils erster und letzter Stift.

Nur bei der Ausführung MKS ... - 6 - 1

...

Only first and last pin.

Only version MKS ... - 6 - 1 ...

Bitte fügen Sie hier die

Kennziffer

für die Stiftversion gemäß folgender Tabelle ein.

Please enter here the

code number

for the pin version as indicated in the chart below.

Stiftversion

Pin version

Stift Ø 0,6 mm

Pin Ø 0.6 mm

Stift Ø 0,6 mm mit Sicke im Einlötbereich

Pin Ø 0.6 mm with kinked solder area

Kennziffer

Code number
