2025-76-9 datasheet, PDF - EEWORLD Datasheet

2025-76-9: DescriptionRF BNC Connector, Male, Cable Mount, Crimp/Solder Terminal, Plug; CategoryThe connector The connector; File Size427KB，2 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric View All

2025-76-9 Overview

RF BNC Connector, Male, Cable Mount, Crimp/Solder Terminal, Plug

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	CAPTIVATED CENTRE CONTACT
Body/casing type	PLUG
Characteristic impedance	75 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	2025
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	3 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP/SOLDER
Base Number Matches	1

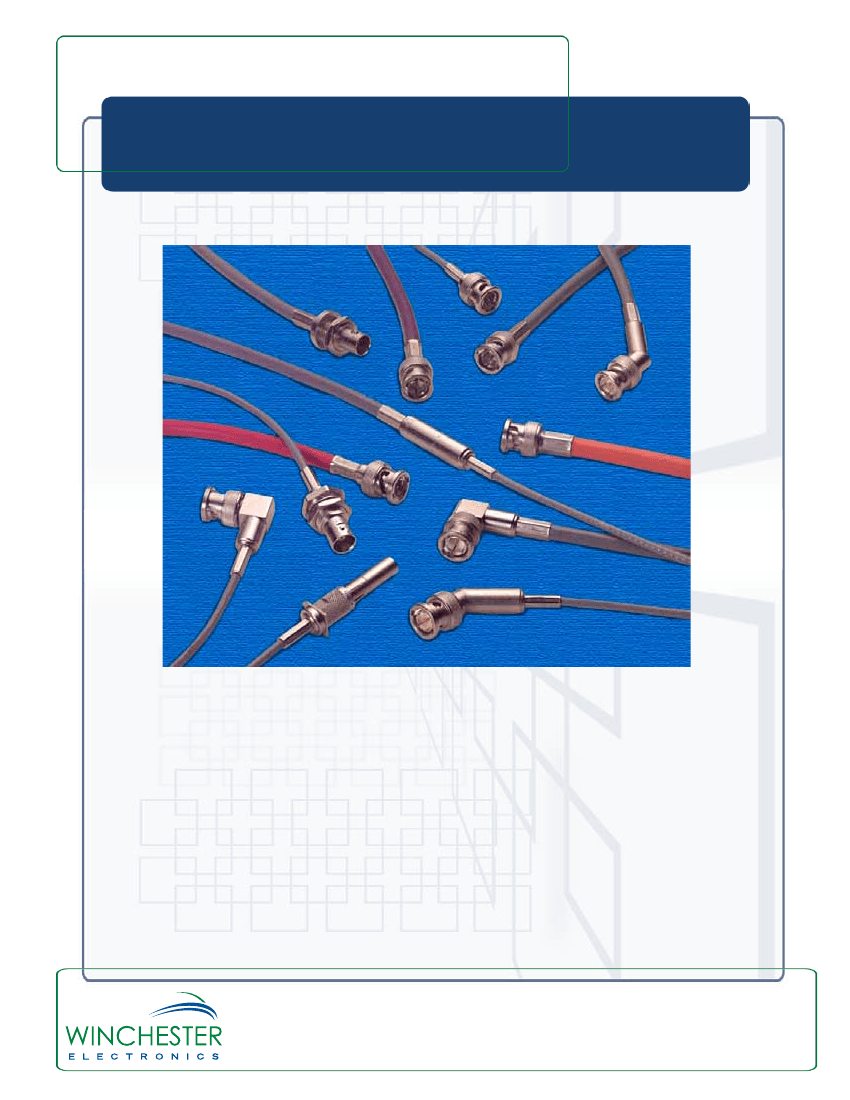

Winchester Electronics Presents...

True 75 Ohm RF Coaxial Connectors

For Telecommunication Markets

Winchester Electronics’ KINGS

®

Brand 75 Ohm RF Connectors are designed to

terminate the most commonly utilized coaxial cables in the telecom markets, and meet or

exceed the industry’s most stringent performance requirements. The connectors feature full

crimp designs making them field installable and user friendly when terminating with KINGS

®

recommended crimp tools. Various configurations are available offering an opportunity to

satisfy the needs of most telecom RF connector applications. Product designs include TRUE

75 Ohm 180° (straight), 90° (right angle) and 45° (angle) BNC plugs. Additionally, TRUE

75 Ohm 440 mini patch plugs, adapters, terminations, splices, and bulkhead receptacles

are available. All of Winchester’s KINGS

®

Telco/Datacom connectors are of the highest

quality and incorporate the use of gold plated center contacts, Teflon

®

insulators, and TR-5

®

KINGS

®

tarnish resistant alloy electrodeposit finish.

July 2011

www.winchesterelectronics.com
