DV74LS242D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DV74LS242D

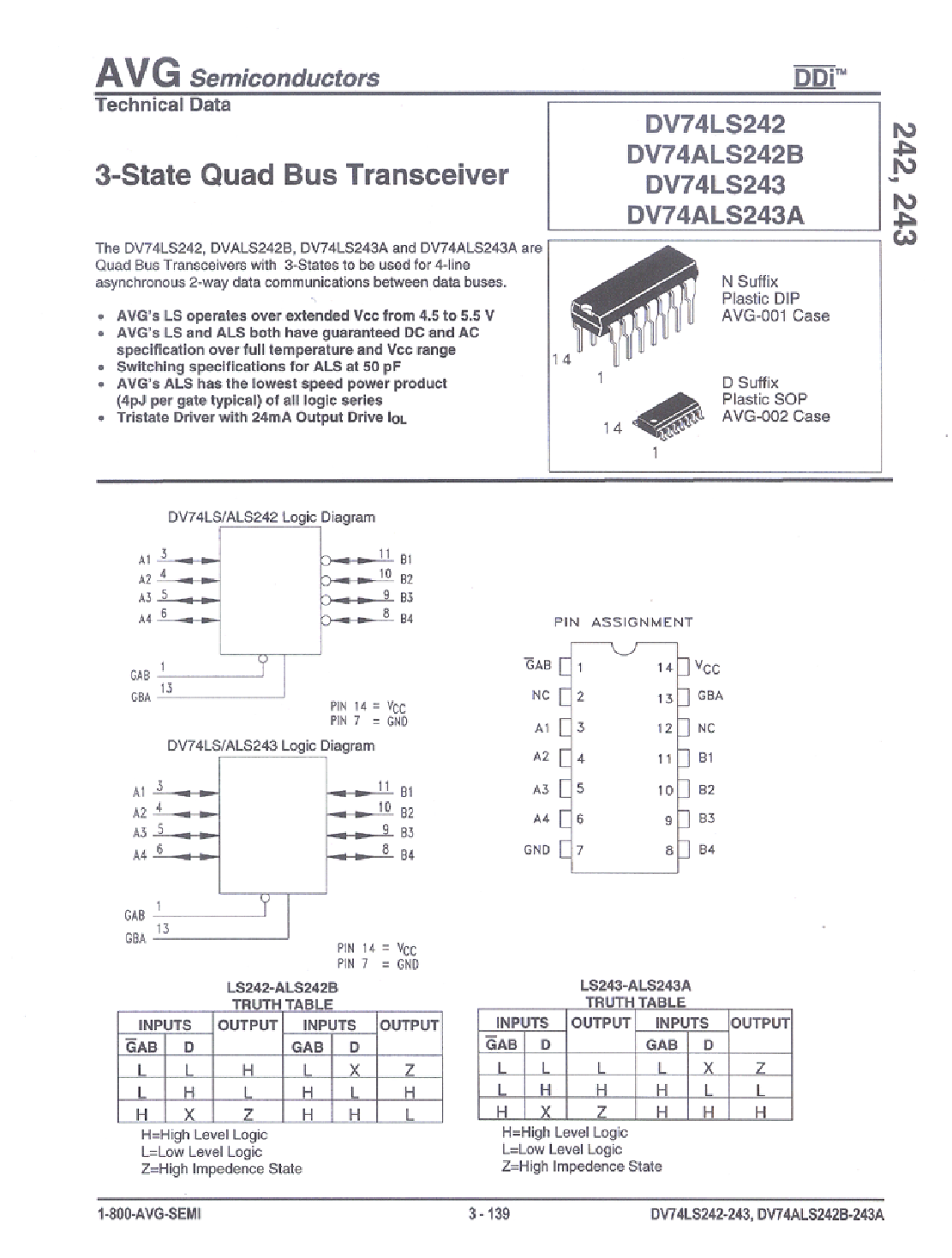

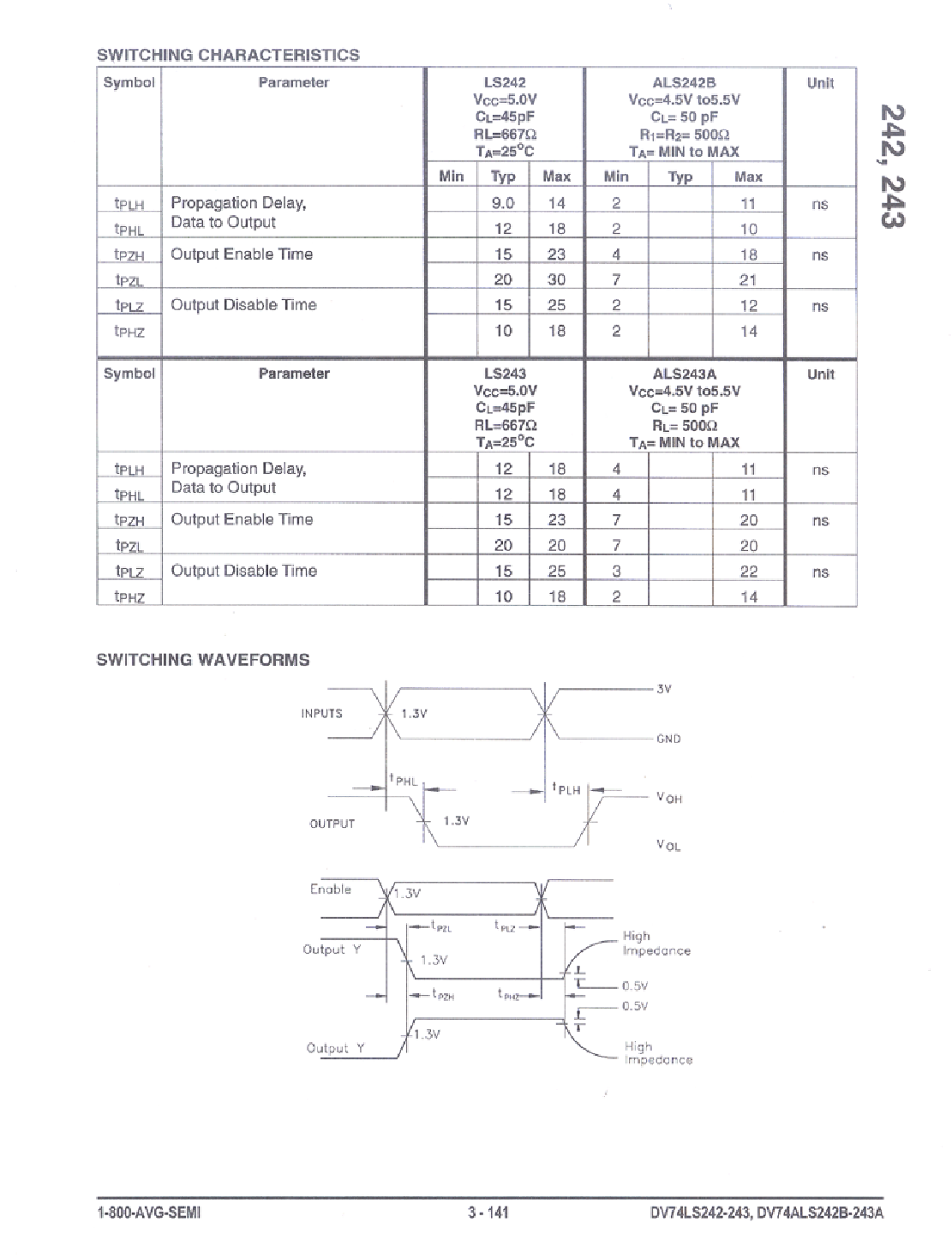

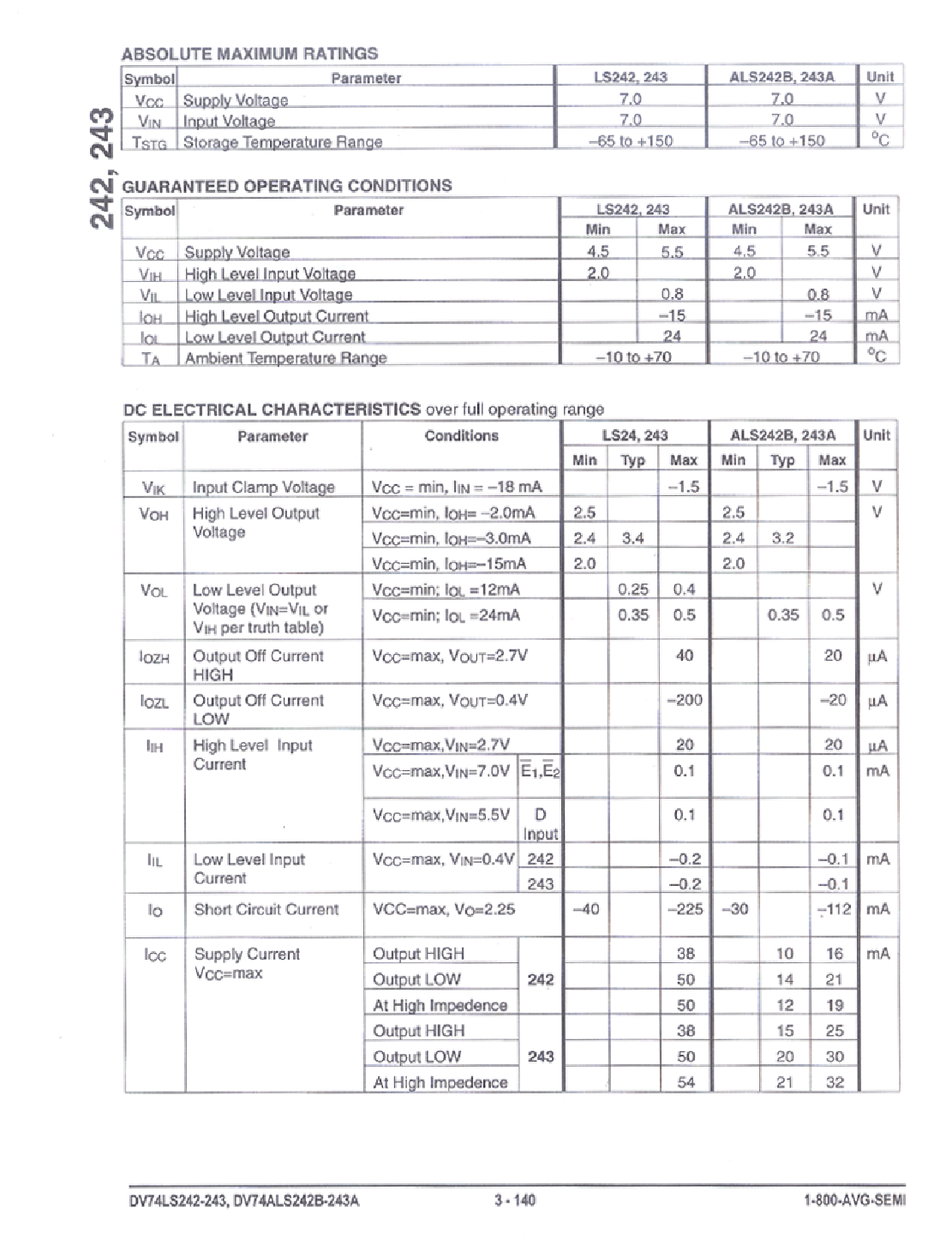

DV74LS242D: DescriptionBus Transceiver, LS Series, 1-Func, 4-Bit, Inverted Output, TTL, PDSO14, PLASTIC, SOP-14; Categorylogic logic; File Size406KB，3 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

DV74LS242D Overview

Bus Transceiver, LS Series, 1-Func, 4-Bit, Inverted Output, TTL, PDSO14, PLASTIC, SOP-14

DV74LS242D Parametric

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC
package instruction	SOP,
Contacts	14
Reach Compliance Code	unknown
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
series	LS
JESD-30 code	R-PDSO-G14
length	8.65 mm
Load capacitance (CL)	45 pF
Logic integrated circuit type	BUS TRANSCEIVER
Number of digits	4
Number of functions	1
Number of ports	2
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum supply current (ICC)	50 mA
propagation delay (tpd)	18 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm

Preview

Download Datasheet

View All

DV74LS242D Related Products

	DV74LS242D	DV74LS243D	DV74ALS242BD	DV74ALS242BN	DV74LS242N	DV74ALS243AN	DV74ALS243AD
Description	Bus Transceiver, LS Series, 1-Func, 4-Bit, Inverted Output, TTL, PDSO14, PLASTIC, SOP-14	Bus Transceiver, LS Series, 1-Func, 4-Bit, True Output, TTL, PDSO14, PLASTIC, SOP-14	Bus Transceiver, ALS Series, 1-Func, 4-Bit, Inverted Output, TTL, PDSO14, PLASTIC, SOP-14	Bus Transceiver, ALS Series, 1-Func, 4-Bit, Inverted Output, TTL, PDIP14, PLASTIC, DIP-14	Bus Transceiver, LS Series, 1-Func, 4-Bit, Inverted Output, TTL, PDIP14, PLASTIC, DIP-14	Bus Transceiver, ALS Series, 1-Func, 4-Bit, True Output, TTL, PDIP14, PLASTIC, DIP-14	Bus Transceiver, ALS Series, 1-Func, 4-Bit, True Output, TTL, PDSO14, PLASTIC, SOP-14
Maker	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC	SOIC	SOIC	DIP	DIP	DIP	SOIC
package instruction	SOP,	SOP,	SOP,	DIP,	DIP,	PLASTIC, DIP-14	PLASTIC, SOP-14
Contacts	14	14	14	14	14	14	14
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
series	LS	LS	ALS	ALS	LS	ALS	ALS
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDIP-T14	R-PDIP-T14	R-PDIP-T14	R-PDSO-G14
length	8.65 mm	8.65 mm	8.65 mm	18.86 mm	18.86 mm	18.86 mm	8.65 mm
Load capacitance (CL)	45 pF	45 pF	50 pF	50 pF	45 pF	50 pF	50 pF
Logic integrated circuit type	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER
Number of digits	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2	2
Number of terminals	14	14	14	14	14	14	14
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	TRUE	INVERTED	INVERTED	INVERTED	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	DIP	DIP	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE
Maximum supply current (ICC)	50 mA	50 mA	21 mA	21 mA	50 mA	30 mA	30 mA
propagation delay (tpd)	18 ns	18 ns	11 ns	11 ns	18 ns	11 ns	11 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm	1.75 mm	4.69 mm	4.69 mm	4.69 mm	1.75 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO	NO	NO	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	3.9 mm	3.9 mm	3.9 mm	7.62 mm	7.62 mm	7.62 mm	3.9 mm
