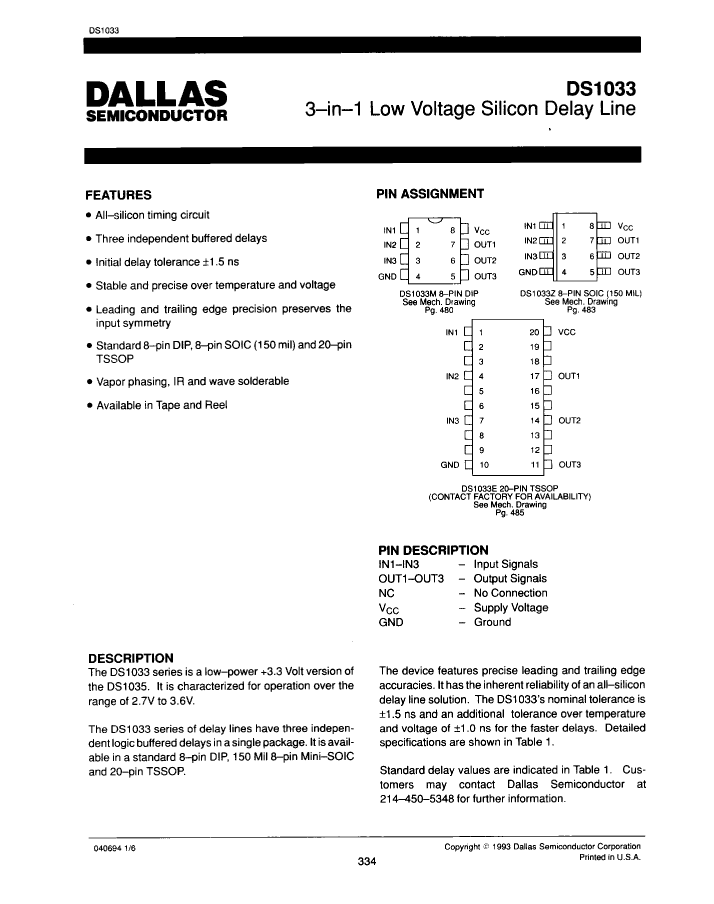

Silicon Delay Line, 3-Func, 1-Tap, True Output, CMOS, PDSO20,

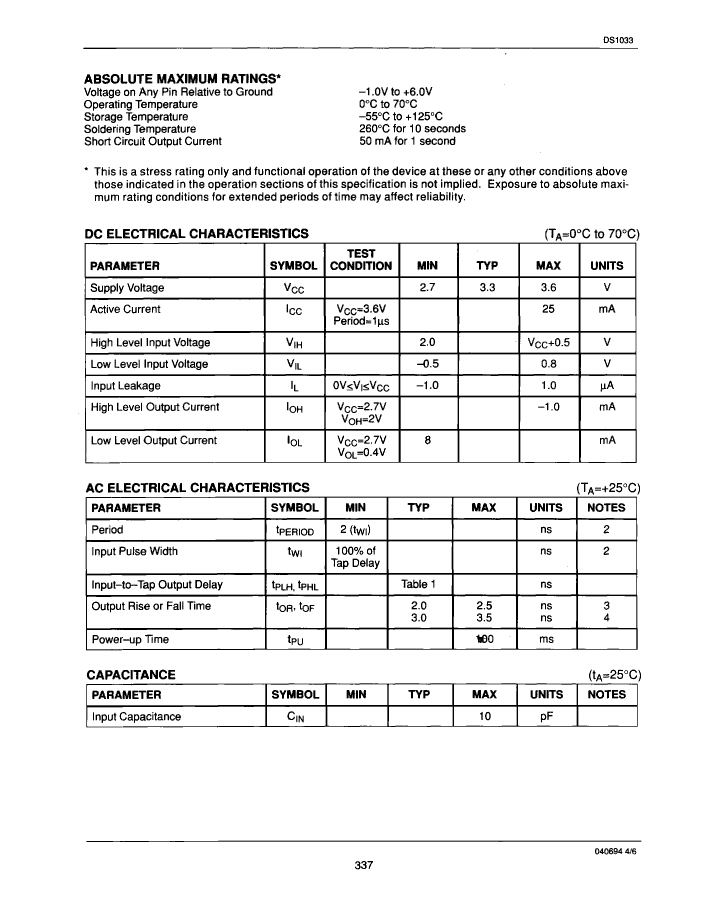

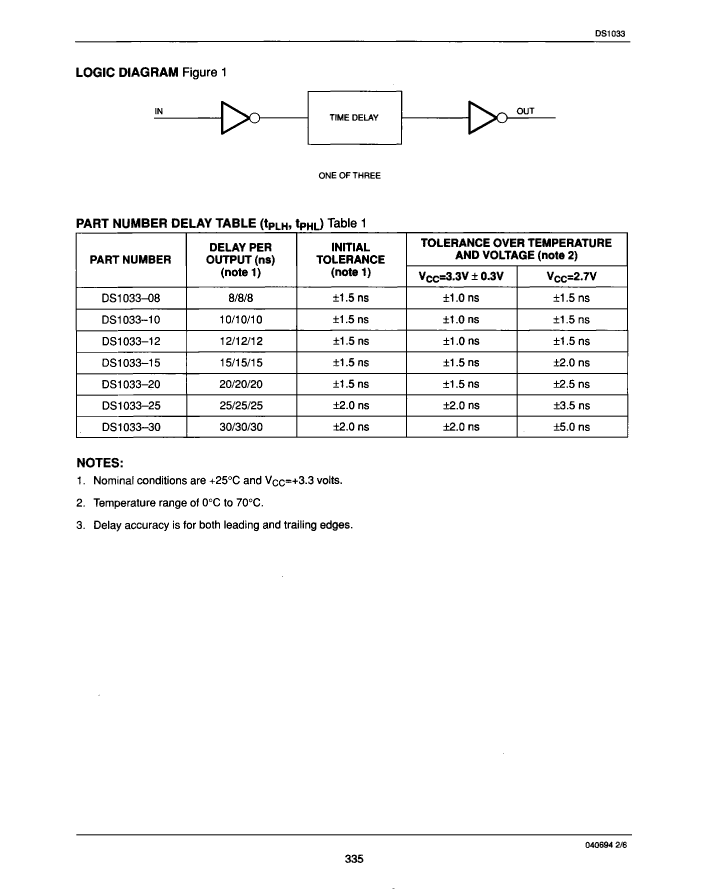

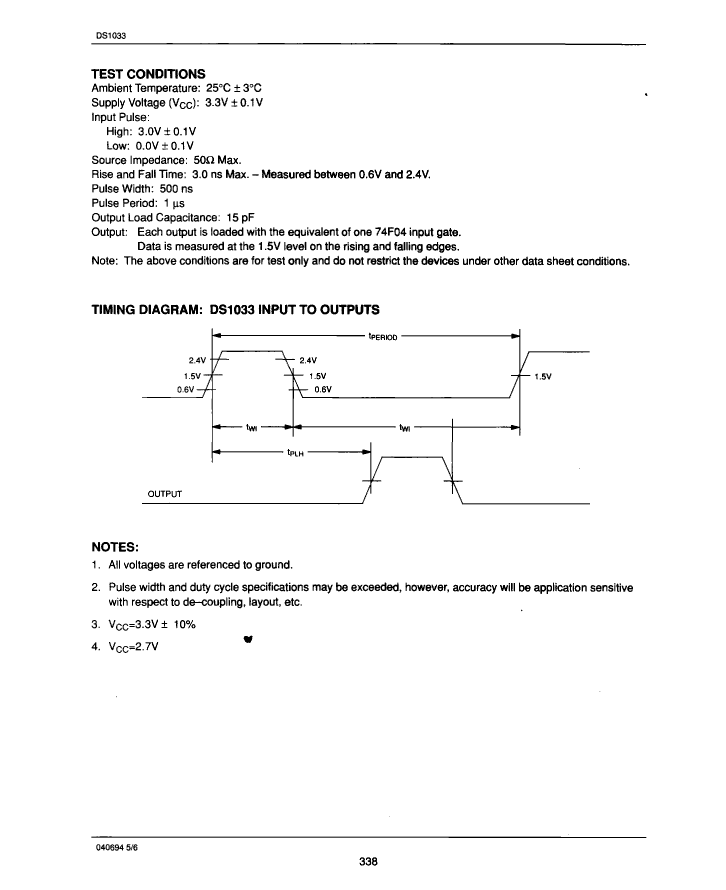

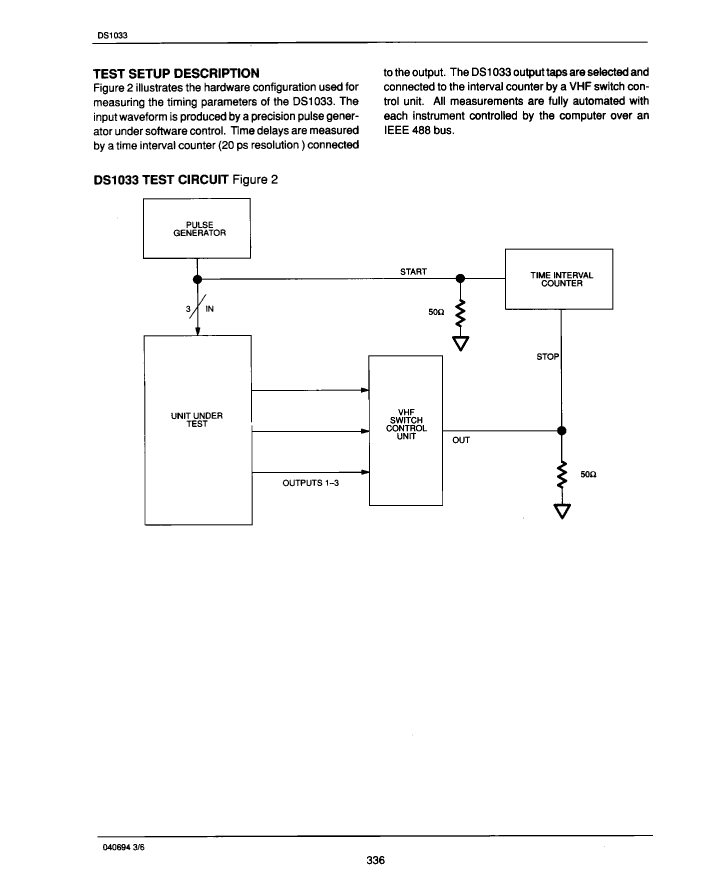

| Parameter Name | Attribute value |
| Maker | DALLAS |
| Reach Compliance Code | unknown |
| Other features | BOTH LEADING & TRAILING EDGE ACCURACY |
| series | CMOS/TTL |
| Input frequency maximum value (fmax) | 62.5 MHz |
| JESD-30 code | R-PDSO-G20 |
| Load capacitance (CL) | 15 pF |
| Logic integrated circuit type | SILICON DELAY LINE |
| Number of functions | 3 |
| Number of taps/steps | 1 |
| Number of terminals | 20 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| programmable delay line | NO |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 3.6 V |
| Minimum supply voltage (Vsup) | 2.7 V |
| Nominal supply voltage (Vsup) | 3.3 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal form | GULL WING |
| Terminal location | DUAL |
| Total delay nominal (td) | 8 ns |
| DS1033E-08(TAPE&REEL) | DS1033Z-08(TAPE&REEL) | DS1033E-12(TAPE&REEL) | DS1033E-10(TAPE&REEL) | DS1033E-15(TAPE&REEL) | DS1033E-25(TAPE&REEL) | DS1033E-30(TAPE&REEL) | DS1033E-20(TAPE&REEL) | DS1033E-08 | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Silicon Delay Line, 3-Func, 1-Tap, True Output, CMOS, PDSO20, | Silicon Delay Line, 3-Func, 1-Tap, True Output, CMOS, PDSO8, | Silicon Delay Line, 3-Func, 1-Tap, True Output, CMOS, PDSO20, | Silicon Delay Line, 3-Func, 1-Tap, True Output, CMOS, PDSO20, | Silicon Delay Line, 3-Func, 1-Tap, True Output, CMOS, PDSO20, | Silicon Delay Line, 3-Func, 1-Tap, True Output, CMOS, PDSO20, | Silicon Delay Line, 3-Func, 1-Tap, True Output, CMOS, PDSO20, | Silicon Delay Line, 3-Func, 1-Tap, True Output, CMOS, PDSO20, | Silicon Delay Line, 3-Func, 1-Tap, True Output, CMOS, PDSO20, |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Other features | BOTH LEADING & TRAILING EDGE ACCURACY | BOTH LEADING & TRAILING EDGE ACCURACY | BOTH LEADING & TRAILING EDGE ACCURACY | BOTH LEADING & TRAILING EDGE ACCURACY | BOTH LEADING & TRAILING EDGE ACCURACY | BOTH LEADING & TRAILING EDGE ACCURACY | BOTH LEADING & TRAILING EDGE ACCURACY | BOTH LEADING & TRAILING EDGE ACCURACY | BOTH LEADING & TRAILING EDGE ACCURACY |
| series | CMOS/TTL | CMOS/TTL | CMOS/TTL | CMOS/TTL | CMOS/TTL | CMOS/TTL | CMOS/TTL | CMOS/TTL | CMOS/TTL |
| Input frequency maximum value (fmax) | 62.5 MHz | 62.5 MHz | 41.6667 MHz | 50 MHz | 33.3333 MHz | 20 MHz | 16.6667 MHz | 25 MHz | 62.5 MHz |
| JESD-30 code | R-PDSO-G20 | R-PDSO-G8 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 |
| Load capacitance (CL) | 15 pF | 15 pF | 15 pF | 15 pF | 15 pF | 15 pF | 15 pF | 15 pF | 15 pF |
| Logic integrated circuit type | SILICON DELAY LINE | SILICON DELAY LINE | SILICON DELAY LINE | SILICON DELAY LINE | SILICON DELAY LINE | SILICON DELAY LINE | SILICON DELAY LINE | SILICON DELAY LINE | SILICON DELAY LINE |
| Number of functions | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of taps/steps | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 20 | 8 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| Output polarity | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| programmable delay line | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 3.6 V | 3.6 V | 3.6 V | 3.6 V | 3.6 V | 3.6 V | 3.6 V | 3.6 V | 3.6 V |
| Minimum supply voltage (Vsup) | 2.7 V | 2.7 V | 2.7 V | 2.7 V | 2.7 V | 2.7 V | 2.7 V | 2.7 V | 2.7 V |
| Nominal supply voltage (Vsup) | 3.3 V | 3.3 V | 3.3 V | 3.3 V | 3.3 V | 3.3 V | 3.3 V | 3.3 V | 3.3 V |
| surface mount | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Total delay nominal (td) | 8 ns | 8 ns | 12 ns | 10 ns | 15 ns | 25 ns | 30 ns | 20 ns | 8 ns |
| Maker | DALLAS | DALLAS | DALLAS | DALLAS | - | - | DALLAS | DALLAS | DALLAS |
| Base Number Matches | - | 1 | 1 | 1 | 1 | 1 | - | - | - |
