THLY648021BFG-10L datasheet, PDF

Datasheet> All Categories > storage> storage> THLY648021BFG-10L

THLY648021BFG-10L: DescriptionIC 8M X 64 SYNCHRONOUS DRAM MODULE, 7 ns, DMA144, DIMM, SO-144, Dynamic RAM; Categorystorage storage; File Size616KB，13 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

THLY648021BFG-10L Overview

IC 8M X 64 SYNCHRONOUS DRAM MODULE, 7 ns, DMA144, DIMM, SO-144, Dynamic RAM

THLY648021BFG-10L Parametric

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
Parts packaging code	MODULE
package instruction	DIMM, DIMM144,32
Contacts	144
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FOUR BANK PAGE BURST
Maximum access time	7 ns
Maximum clock frequency (fCLK)	100 MHz
I/O type	COMMON
JESD-30 code	R-XDMA-N144
memory density	536870912 bit
Memory IC Type	SYNCHRONOUS DRAM MODULE
memory width	64
Number of functions	1
Number of ports	1
Number of terminals	144
word count	8388608 words
character code	8000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	8MX64
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	DIMM
Encapsulate equivalent code	DIMM144,32
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	4096
Maximum standby current	0.002 A
Maximum slew rate	0.6 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	0.8 mm
Terminal location	DUAL

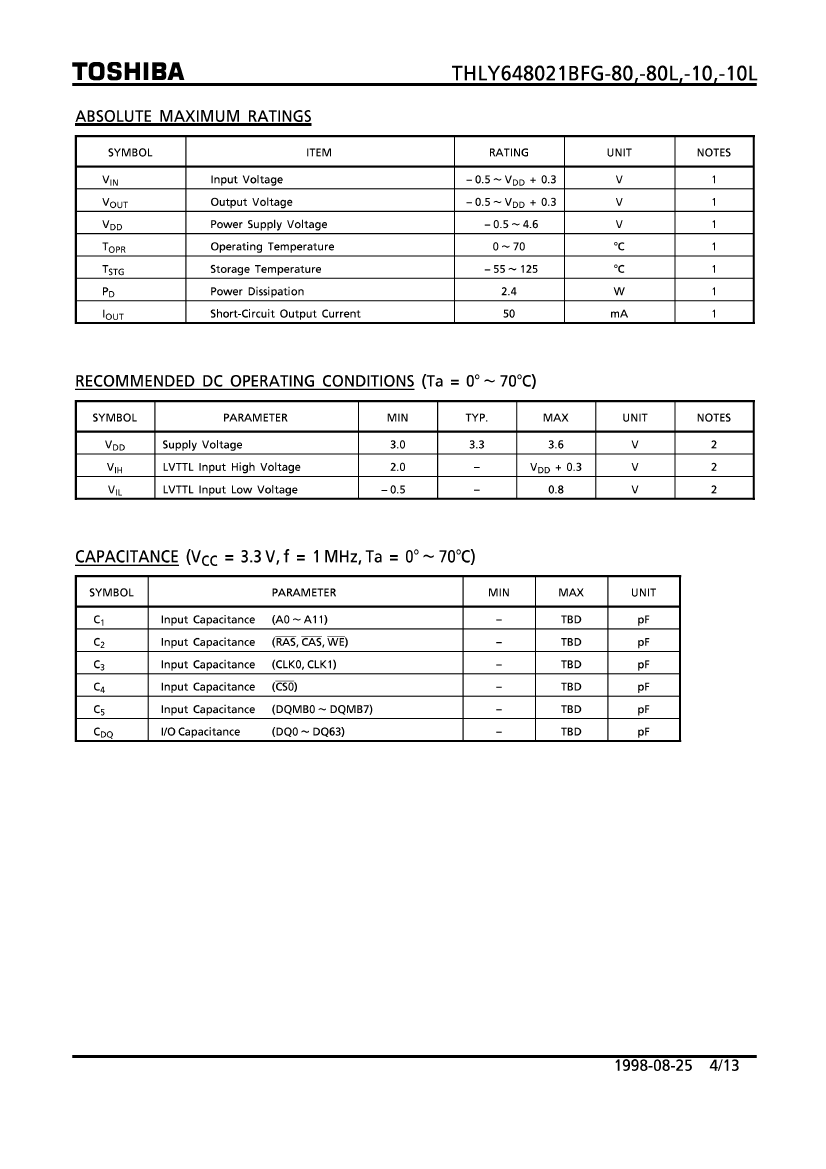

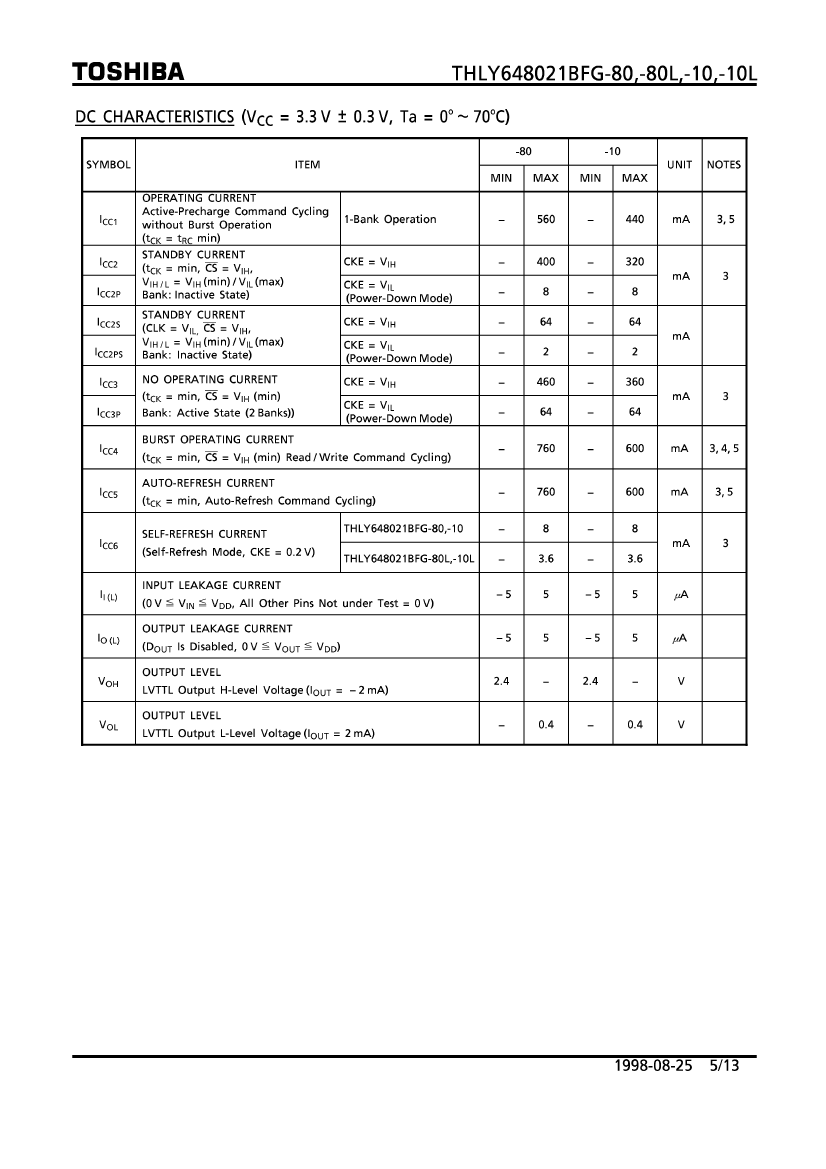

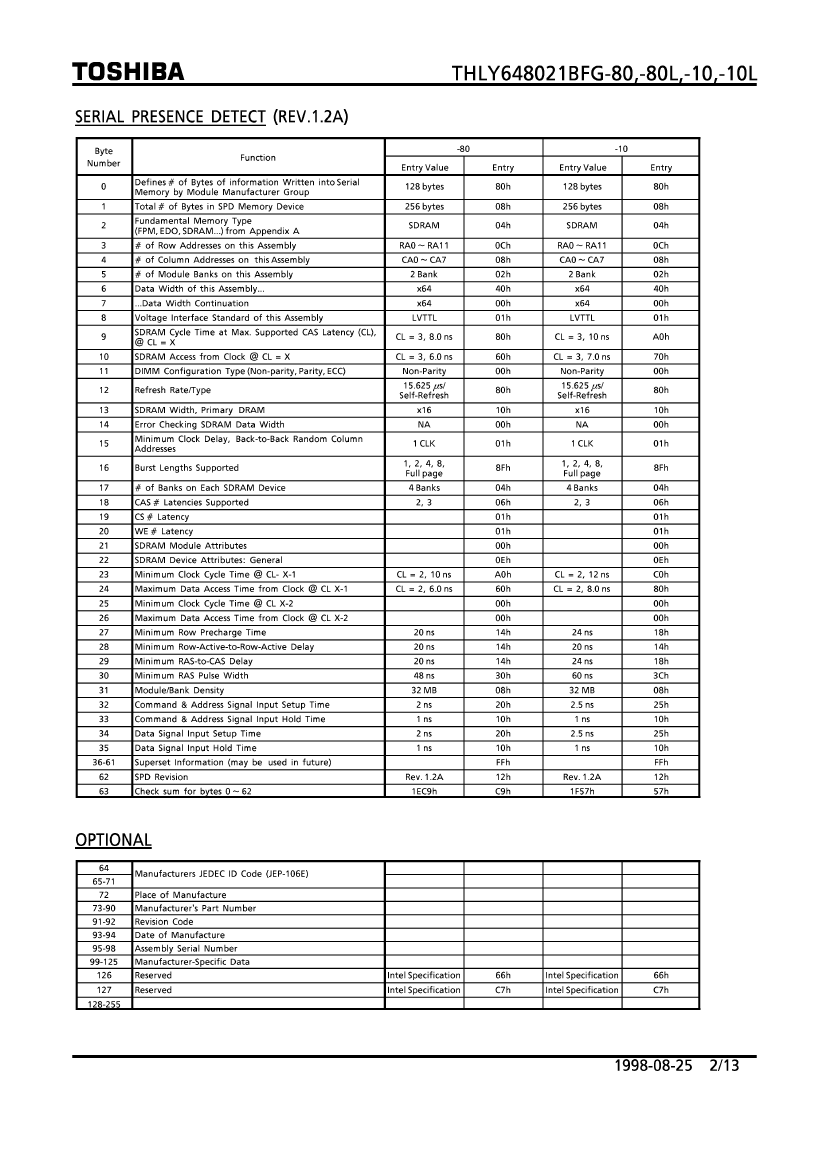

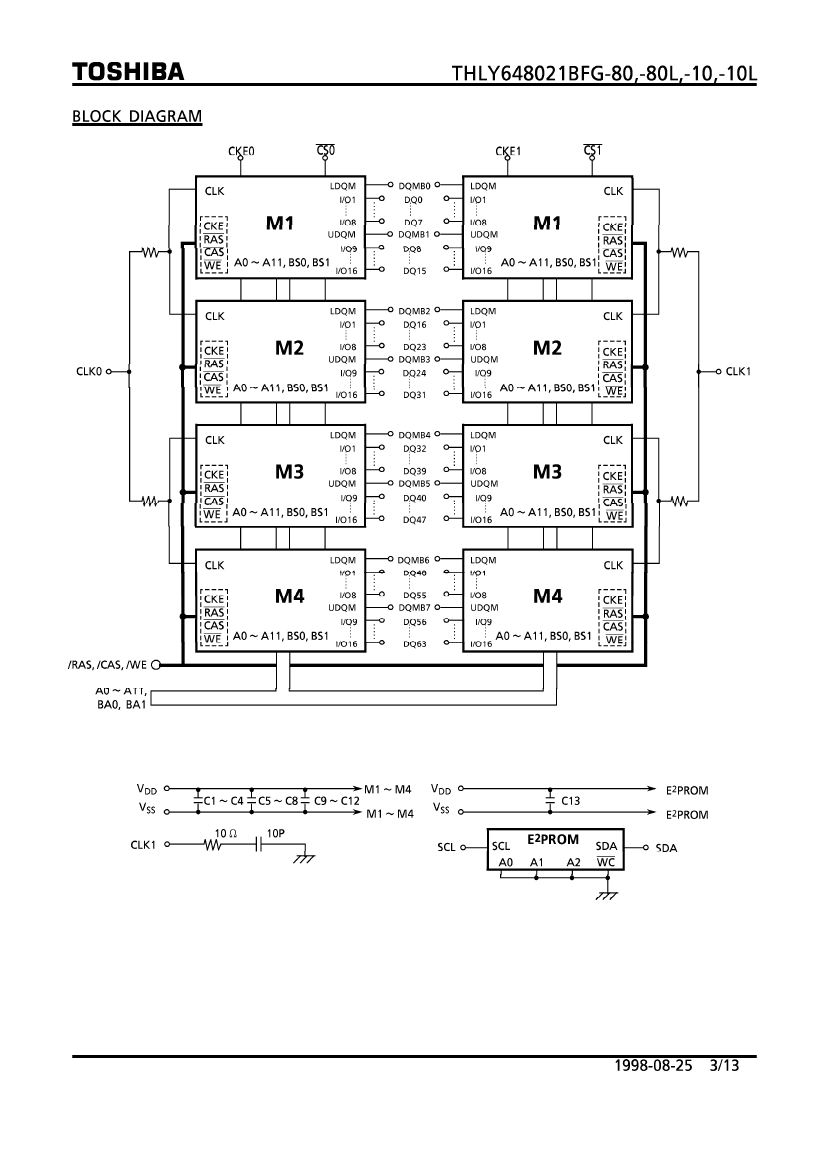

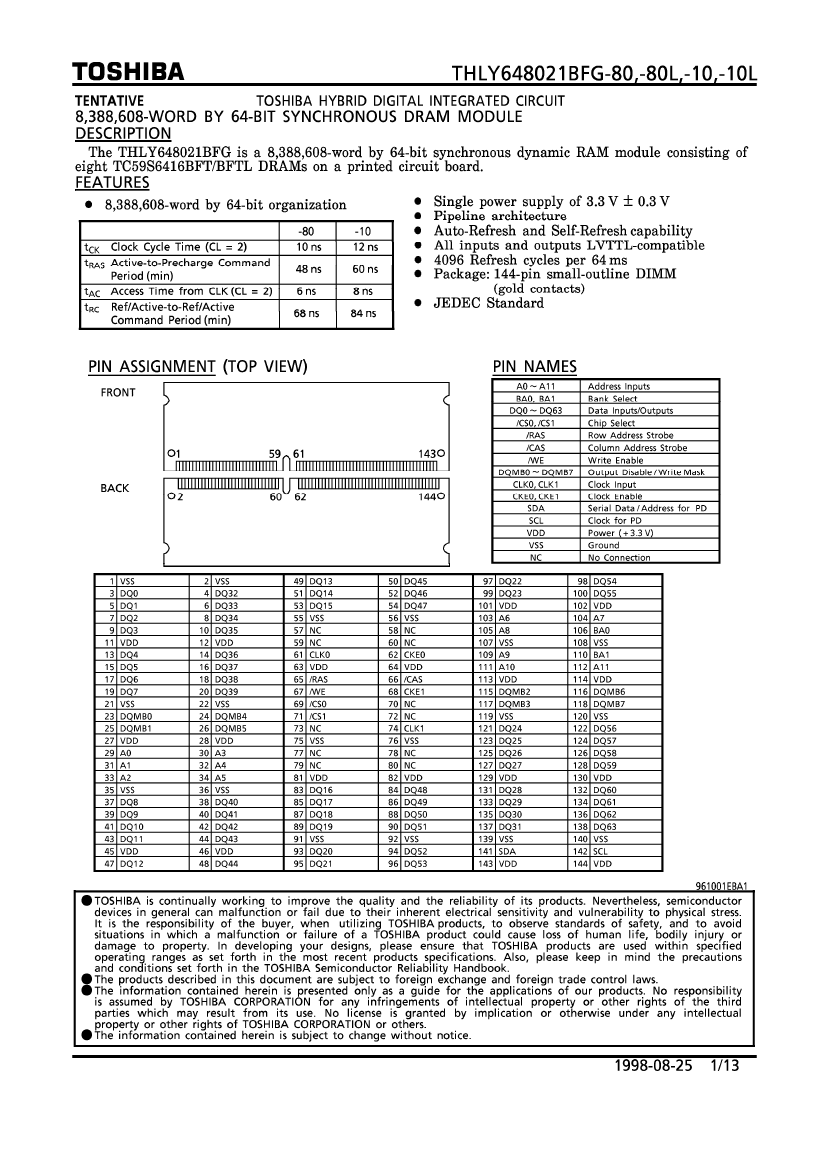

Preview

Download Datasheet

View All

THLY648021BFG-10L Related Products

	THLY648021BFG-10L	THLY648021BFG-80	THLY648021BFG-80L	THLY648021BFG-10
Description	IC 8M X 64 SYNCHRONOUS DRAM MODULE, 7 ns, DMA144, DIMM, SO-144, Dynamic RAM	IC 8M X 64 SYNCHRONOUS DRAM MODULE, 6 ns, DMA144, DIMM, SO-144, Dynamic RAM	IC 8M X 64 SYNCHRONOUS DRAM MODULE, 6 ns, DMA144, DIMM, SO-144, Dynamic RAM	IC 8M X 64 SYNCHRONOUS DRAM MODULE, 7 ns, DMA144, DIMM, SO-144, Dynamic RAM
Parts packaging code	MODULE	MODULE	MODULE	MODULE
package instruction	DIMM, DIMM144,32	DIMM, DIMM144,32	DIMM, DIMM144,32	DIMM, DIMM144,32
Contacts	144	144	144	144
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
access mode	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST
Maximum access time	7 ns	6 ns	6 ns	7 ns
Maximum clock frequency (fCLK)	100 MHz	125 MHz	125 MHz	100 MHz
I/O type	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XDMA-N144	R-XDMA-N144	R-XDMA-N144	R-XDMA-N144
memory density	536870912 bit	536870912 bit	536870912 bit	536870912 bit
Memory IC Type	SYNCHRONOUS DRAM MODULE	SYNCHRONOUS DRAM MODULE	SYNCHRONOUS DRAM MODULE	SYNCHRONOUS DRAM MODULE
memory width	64	64	64	64
Number of functions	1	1	1	1
Number of ports	1	1	1	1
Number of terminals	144	144	144	144
word count	8388608 words	8388608 words	8388608 words	8388608 words
character code	8000000	8000000	8000000	8000000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	8MX64	8MX64	8MX64	8MX64
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIMM	DIMM	DIMM	DIMM
Encapsulate equivalent code	DIMM144,32	DIMM144,32	DIMM144,32	DIMM144,32
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
power supply	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	4096	4096	4096	4096
Maximum standby current	0.002 A	0.002 A	0.002 A	0.002 A
Maximum slew rate	0.6 mA	0.76 mA	0.76 mA	0.6 mA
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
