204210-3 Overview

Ring Terminal, 33.86mm2, ROHS COMPLIANT

204210-3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
terminal gender	FEMALE
Terminal and terminal strip types	RING TERMINAL
Conductor cross section	33.86 mm2
Wire gauge	2 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

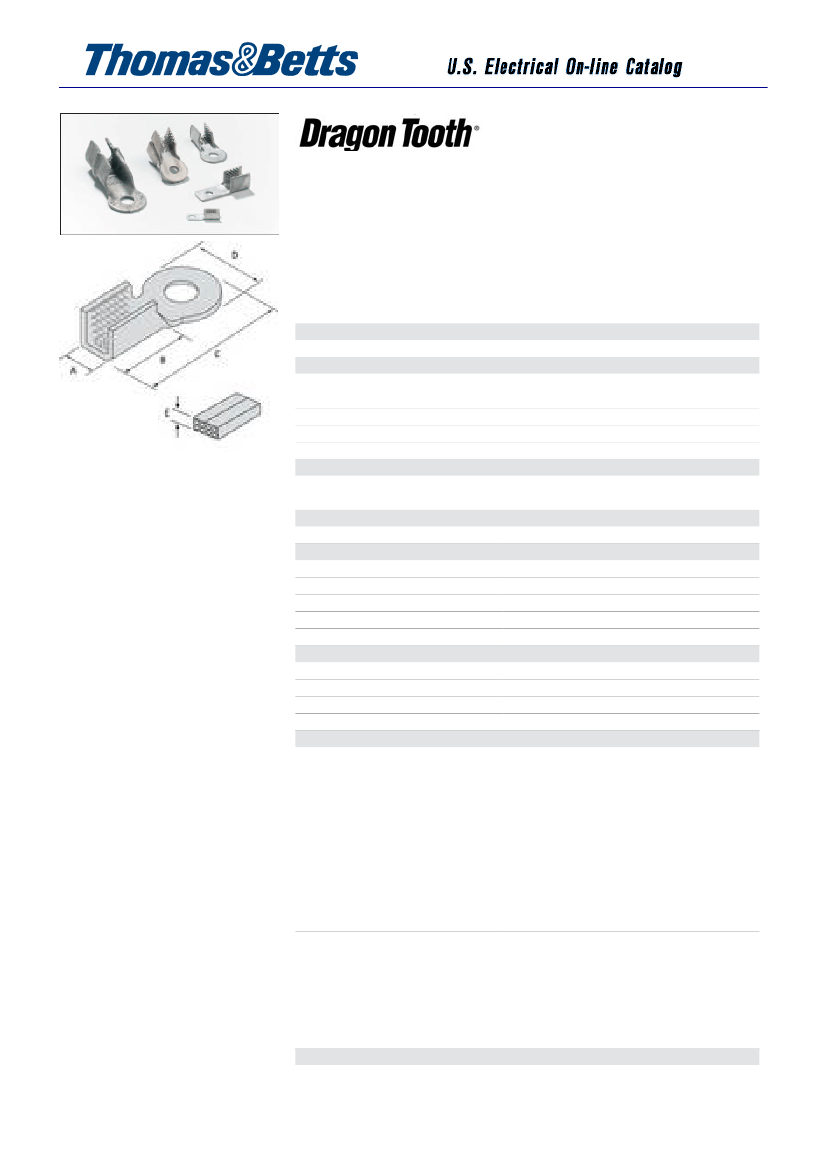

T&B Catalog Number:

UPC Number:

Description:

204210-3

78621086774

Connector Insulation Piercing Ring Ter-

minals 3/8 Stud, .53x.61x1.58 10,380 -

52,480 CMA

Active

Status:

General

-Stud Size

3/8

.25

.53

.61

1.58

.81

10,380 - 52,480

12(b) - 2(c)

13100A, 13400, TBM15i

100

500

Each

2.87 lbs. per 100

DT_prod_selector_ringterm

TA00193-TB2

Available on Website

Reference dimension (crimped height). See in-

stalling die illustration for gauging.

Not recommended for aluminum magnet wire fin-

er than 21 gauge or 0.4 mm². (a) Four wires max.

(b) Six wires max. (c) Six wires max. each barrel

(d) Conductors heavier than 6 AWG or 13 mm² re-

quire special dies. Contact Thomas & Betts for as-

sistance. (e) Crimping dies may not bottom. Con-

nector height will depend on number and size of

wires in barrel. Pump must deliver 9800 psi mini-

mum.

Dimension Information

-E* (inches)

-A (inches)

-B (inches)

-C (inches)

-D (inches)

Specifications

-Circular Mil Area

-Round Wire Range AWG

Tooling

-Tooling

Packaging

-T&B Order Multiple

-T&B Inner Pack

-Package in Units

-T&B Sold in UOM

-T&B Weight Per UOM

Application Support

-Product Selector

-T&B Instruction Sheets

-Overview

-Connector & Tooling Chart

Notes

-*Note

-**Note

-

Wire sizes and combinations shown have been

tested to and meet or exceed Thomas & Betts

specifications. Connectors may be suitable for oth-

er wire sizes or combinations. Thomas & Betts sells

these connectors with the understanding that the

user will perform necessary tests to determine their

suitability for the intended purpose.

Certifications

204210-3 Related Products

	204210-3
Description	Ring Terminal, 33.86mm2, ROHS COMPLIANT
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
terminal gender	FEMALE
Terminal and terminal strip types	RING TERMINAL
Conductor cross section	33.86 mm2
Wire gauge	2 AWG
Base Number Matches	1
