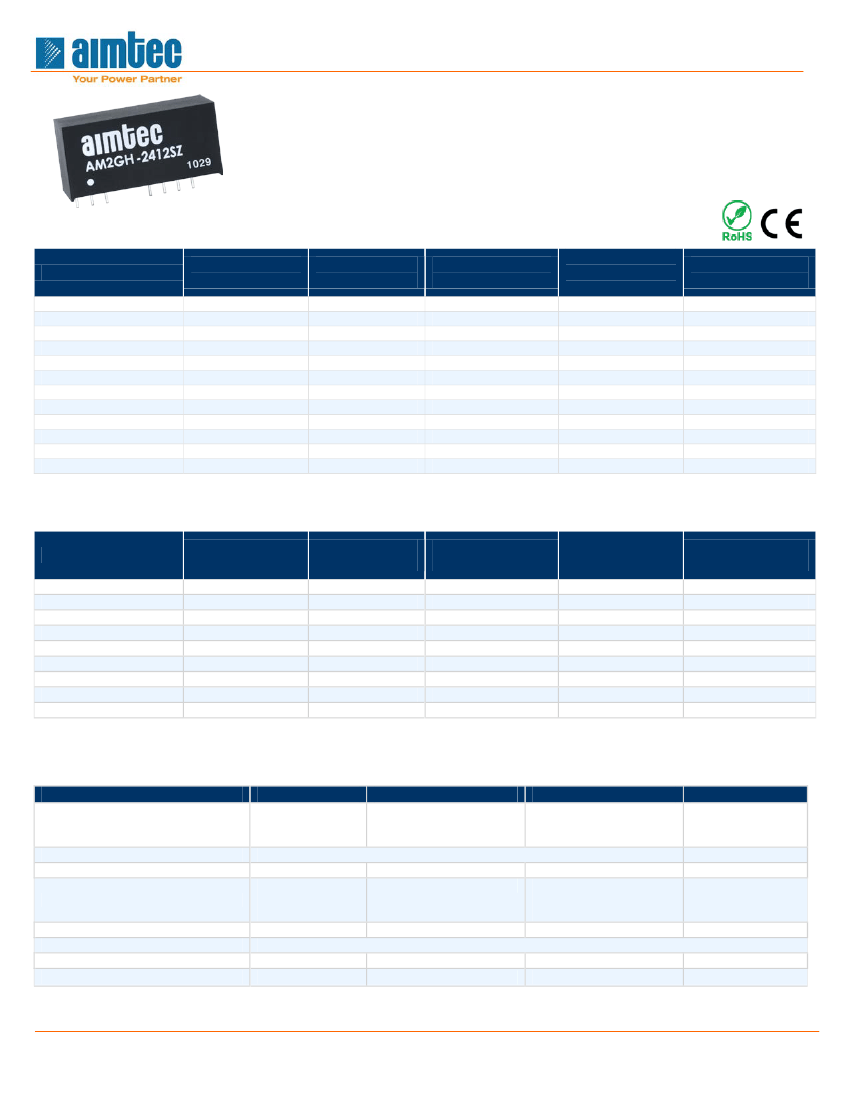

DC/DC Converter; Product Weight (grams): 4.5; Input voltage min (V): 4.5; Input voltage max (V): 18; Output voltage min: 12; Output voltage max: 12; Output voltage dual assymetric (y/n): Single; Output Power (W): 2; Max Output current (A): 0.167; Efficiency (%): 78; Max Capacitive load (µF): 220; Package type: SIP8; Mounting: PCB; W (in): 0.36; L (in): 0.86; H (in): 0.44; W (mm): 9.2; L (mm): 21.85; H (mm): 11.1; Min Operating temperature: -40; Max operating temperature (°C): 85; Isolation (VDC): 1600; EMC compliance 2: EN 55032 class A; Case material: Plastic (flammability to UL 94V-0) ; Application 4 (building automation/IoT): 1; MTBF (h): 1700000; Derating : 71; Voltage Accuracy (%): ±1; Line Regulation (% of Vin): ±0.2; Load Regulation %: ±0.1; Ripple & Noise (mV p-p): 30; Switching Frequency typ (KHz): 100; Short circuit protection: Continuous; On/Off Control: 1
DC/DC Converter; Product Weight (grams): 4.5; Input voltage min (V): 4.5; Input voltage max (V): 18; Output voltage min: 12; Output voltage max: 12; Output voltage dual assymetric (y/n): Single; Output Power (W): 2; Max Output current (A): 0.167; Efficiency (%): 78; Max Capacitive load (µF): 220; Package type: SIP8; Mounting: PCB; W (in): 0.36; L (in): 0.86; H (in): 0.44; W (mm): 9.2; L (mm): 21.85; H (mm): 11.1; Min Operating temperature: -40; Max operating temperature (°C): 85; Isolation (VDC): 1600; EMC compliance 2: EN 55032 class A; Case material: Plastic (flammability to UL 94V-0) ; Application 4 (building automation/IoT): 1; MTBF (h): 1700000; Derating : 71; Voltage Accuracy (%): ±1; Line Regulation (% of Vin): ±0.2; Load Regulation %: ±0.1; Ripple & Noise (mV p-p): 30; Switching Frequency typ (KHz): 100; Short circuit protection: Continuous; On/Off Control: 1
IEC61000-4-2:1995 + A1:1998 + A2:2000, Perf. Criteria B
IEC61000-4-3:2006, Perf. Criteria A
IEC61000-4-4:2004, Perf. Criteria B (external 220uF/100V cap required)
IEC61000-4-5:2005, Perf. Criteria B (external 220uF/100V cap required)
IEC61000-4-6:2007, Perf. Criteria A
IEC61000-4-8, Perf:1993 + A1:2000, Criteria A
NOTE: Also designed to meet IEC 60950-1:2001
Standards
Pin Out Specifications
Pin
1
2
3
5
6
7
Single
- V Input
+ V Input
On/Off Control
N.C.
+ V Output
- V Output
Dual
- V Input
+ V Input
On/Off Control
N.C.
+ V Output
Common
Tel: +1 514 620 2722
2 of 4
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
www.aimtec.com
F 051e R12.B
Series AM2GH-Z
2 Watt | DC-DC Converter
8
N.C.
- V Output
NC: Not Connected

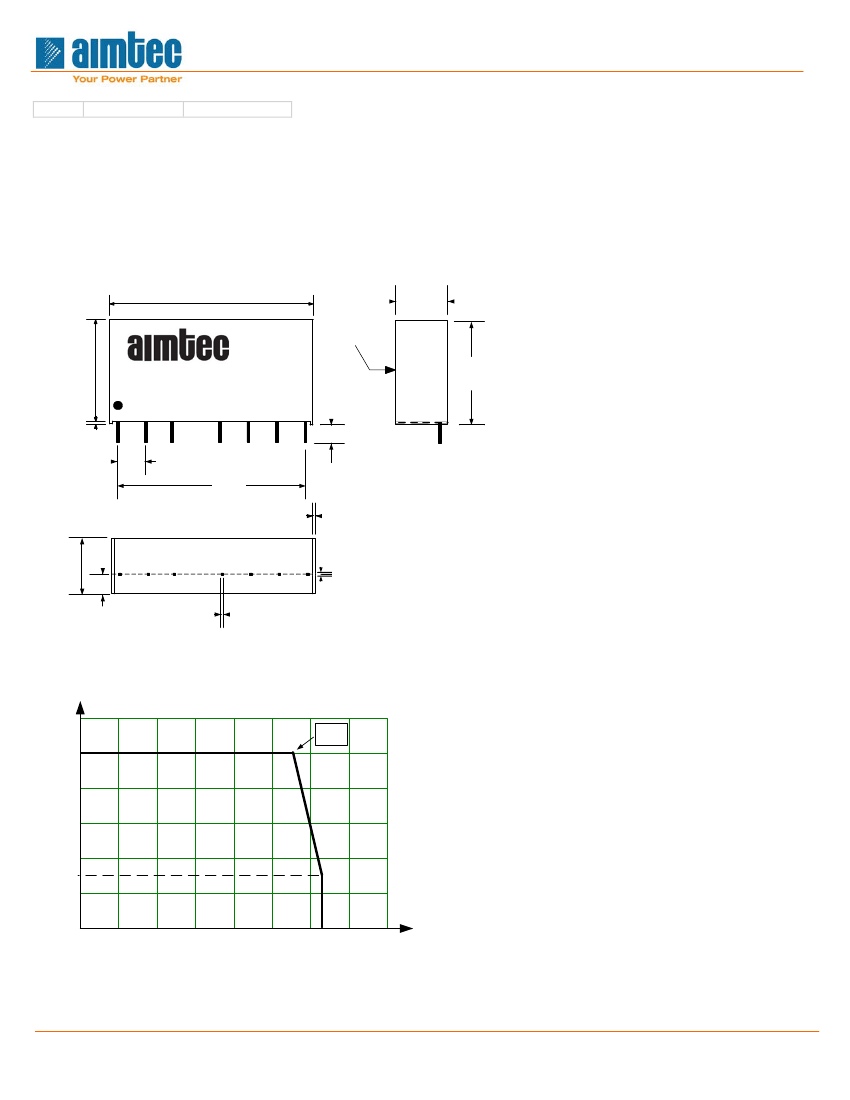

Dimensions
21.85
(0.85)
PRINTED
FACE
9.20
(0.36)
0.50
(0.02)
17.78
(0.70)
0.50
(0.02)
9.20
(0.36)
Derating
Free Air Convection
71º C
100
Output Power (%)
80
60
40
30
3.50
(0.14)
0.50
(0.02)
Safe Operating Area
20
0
- 40
- 20
0
20
40
60
80
85
Ambient Temperature
º C

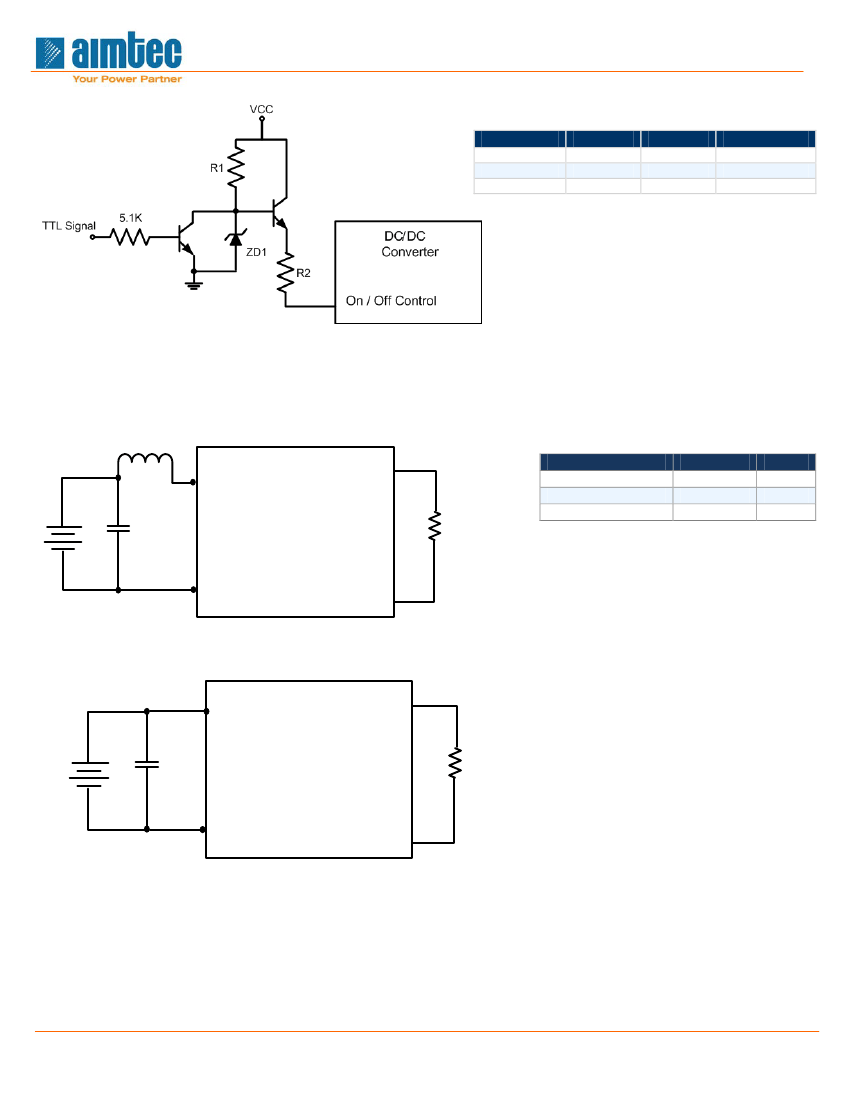

Control ON/OFF pin connection example
www.aimtec.com
F 051e R12.B
0.25
(0.01)
3.05
(0.12)
2.54
(0.10)
100
Tel: +1 514 620 2722
3 of 4
11.10
(0.44)
10.60
(0.42)
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM2GH-Z
2 Watt | DC-DC Converter
R2(KΩ)
0
2.2
6.8
VCC (VDC)
4.5 -18
9 - 36
18 - 75
R1 (KΩ)
7.5
18
33
ZD1(V , mA)
10, 5
18, 5
36, 5
Recommended Circuits
Conducted and Radiated Emissions
L
C1
+V input
DC/DC
Converter
+V output
Input Voltage (V)
12
24
48
Load
C1 (uF/V)
10/35
2.2/35
2.2/35
L(uH)
2.5
10
18
-V input
-V output
EFT/ Surge
+V input
C2
220uF
/100V
-V input
-V output
DC/DC
Converter
+V output
Load
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all internal components
and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
6.
This
product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate
specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at www.aimtec.com.
