NOTE: On dual output models Pin 5 and Pin 10 are connected internally together.
Either Pin 5 or Pin 10, or both can be used as the -Vout
NC: not connected

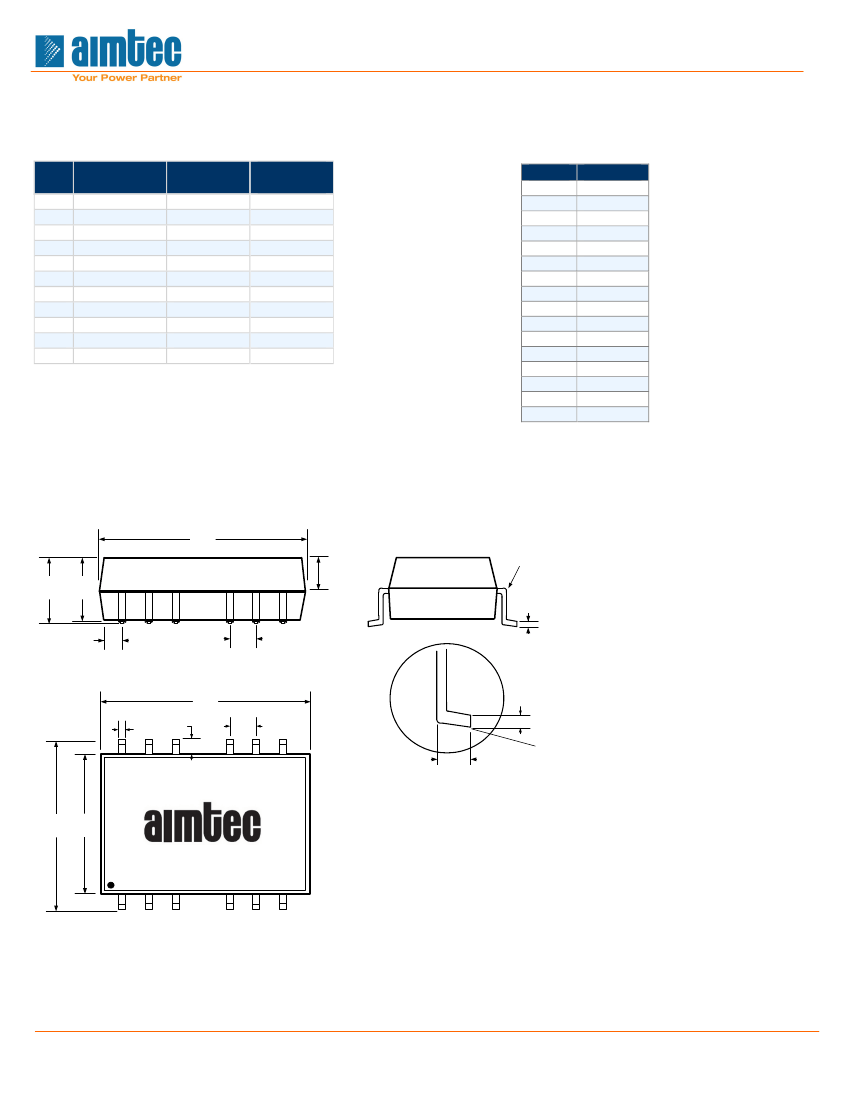

Dimensions
1000VDC
Side View
17.78
(0.70)
2.75
(0.11)
Front View
A
0.25
(0.01)
6.00 5.75
(0.24) (0.23)
1.27
(0.05)
2.54
(0.10)
A
Top View
17.78
(0.70)
1.00
2.00
(0.04) (0.08)
2.54
(0.10)
0.25
(0.01)
5.00º angle
10
9
8
14
13
12
1.30 ±0.13
(0.05 ±0.005) MAX
17.78 12.70
(0.70) (0.50)
1
2
3
5
6
7
www.aimtec.com
F 051e R12.H
Tel: +1 514 620 2722
3 of 5
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM2L-NZ
2 Watt | DC-DC Converter

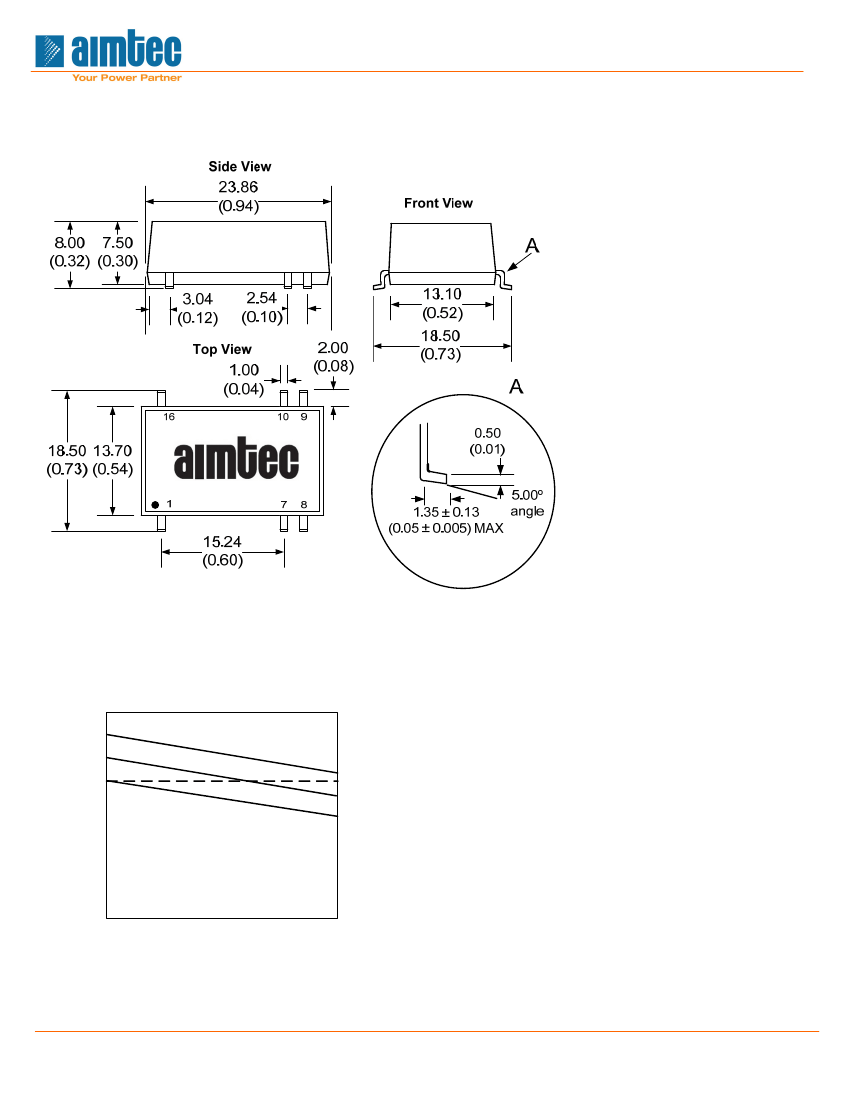

Dimensions
6000VDC
Tolerance Envelope Graph
+10%
+5%
+2.5%
Output Voltage
-2.5%
-7.5%
Typical Load Line
10%
50%
Output Current(%)
100%
www.aimtec.com
F 051e R12.H
Tel: +1 514 620 2722
4 of 5
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM2L-NZ
2 Watt | DC-DC Converter
Recommended Filter Circuit
+ Vin
Cin +
L
Single Output
L
+Vout
+ Vin
+
Cout
Cin +
L
Dual Output
L
+Vout
+
Cout
Common
L
+
Cout
-Vout
DC
DC
DC
DC
- Vin
- Vin
- Vin
+ Vin
Cin +
L
Dual Separated Output
L
+
+V1output
Cout
-V1 output
+V2 output
Cout
-V2 output
DC
DC
L
+
- Vin
If it is required to decrease the input/output ripple an “LC” filter network can be installed on the input and output of the
converter (see above).
It should be noted that the inductance and the resonant frequency of the “LC” filtering network should differ from the DC/DC
converter switching frequency to avoid mutual interference.
The capacitance of the output filter capacitor must not exceed the values in the Table below to avoid startup problems and
ensure safe and reliable operation.
It’s not recommended to connect any external capacitor in the application field when output loading is less than 0.5
watt.
External Capacitor Tables
Input Capacitor (Cin)
Vin
(VDC)
5
12
24
Output Capacitor (Cout)
Single
Vout
(VDC)
5
9
12
15
Cin
(uF)
4.7
2.2
1
Cout
(uF)
10
4.7
2.2
1
Dual
Vout
(Vdc)
±5
±9
±12
±15
Cout
(uF)
4.7
2.2
1
0.47
Dual
Separated
Vout (Vdc)
5/5
9/9
12/12
15/15
Cout
(uF)
4.7
2.2
1
0.47
Overload Protection
The output circuit of these products has no protection against overload. It is recommended to install external overload
protection in the form of a self-recovery fuse or a circuit breaker in series at the converter’s input.
To achieve a high degree of output voltage regulation, over-voltage, and over-current protection it is suggested to use the
AM2LV-NZ series as an alternative.
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all internal components
and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
6.
This
product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate
specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at www.aimtec.com.
