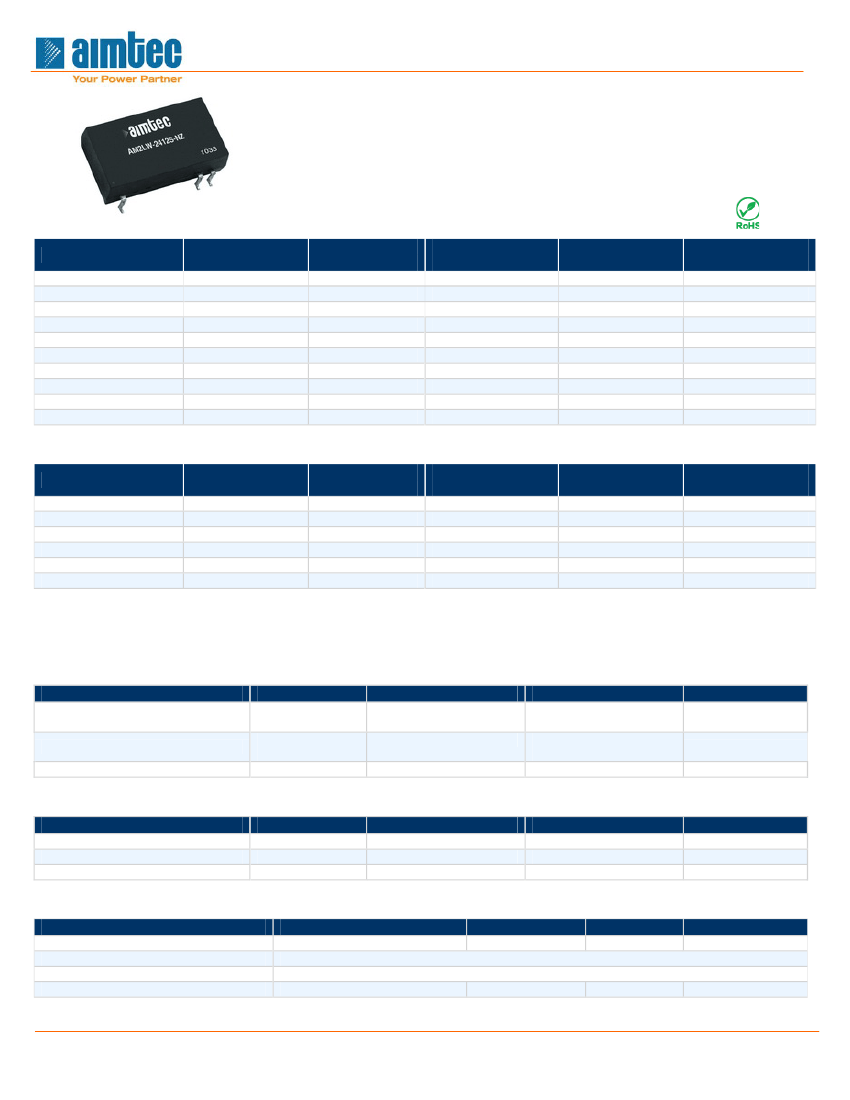

Series AM2LW-NZ
1.5 Watt | DC-DC Converter
FEATURES:
•
•
•
•
SMD package
Ultra Wide (4:1) input range
1500VDC isolation
Continuous short circuit protection
•
•
•
•
Operating temperature: -40°C to +85°C
Regulated single/dual output
MTBF>1,000,000 hours
RoHS compliant
Models: Single output
Model
AM2LW-2403S-NZ
AM2LW-2405S-NZ
AM2LW-2409S-NZ
AM2LW-2412S-NZ
AM2LW-2415S-NZ
AM2LW-4803S-NZ
AM2LW-4805S-NZ
AM2LW-4809S-NZ
AM2LW-4812S-NZ
AM2LW-4815S-NZ
Input Voltage
(V)
9-36
9-36
9-36
9-36
9-36
18-72
18-72
18-72
18-72
18-72
Output Voltage
(V)
3.3
5
9
12
15
3.3
5
9
12
15
Output Current
max
(mA)
455
300
167
125
100
455
300
167
125
100
Isolation
(VDC)
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
Efficiency
(%)
72
76
78
79
80
72
76
78
79
80
Models: Dual output
Model
Input Voltage
(V)
Output Voltage
(V)
Output Current
max
(mA)
Isolation
(VDC)
1500
1500
1500
1500
1500
1500
Efficiency
(%)
74
77
75
74
76
76
AM2LW-2405D-NZ
9-36
±5
±150
AM2LW-2412D-NZ
9-36
±12
±63
AM2LW-2415D-NZ
9-36
±15
±50
AM2LW-4805D-NZ
18-72
±5
±150
AM2LW-4812D-NZ
18-72
±12
±63
AM2LW-4815D-NZ
18-72
±15
±50
NOTE 1: Add suffix “TR” to a part number when ordering in tape and reel package
NOTE 2: Unless otherwise specified, all specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load.
Input Specifications
Parameters
Voltage range
Absolute Maximum Rating
Peak Input Voltage time
Nominal
24
48
24
48
Typical
9-36
18-72
Maximum
40
80
100
Units
VDC
VDC
ms
Isolation Specifications
Parameters
Tested I/O voltage
Resistance
Capacitance
Conditions
60 sec
At 500 Vdc
Input to Output
Typical
1000
1000
Rated
1500
Units
VDC
MOhm
pF
Output Specifications
Parameters
Voltage accuracy
Short Circuit protection
Short circuit restart
Line voltage regulation
Conditions
Typical
±5
Continuous
Auto-Recovery
±0.75
Maximum
Units
%
From Low in to High In
%
www.aimtec.com
F 051e R8.B
Tel: +1 514 620 2722
1 of 3
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM2LW-NZ
1.5 Watt | DC-DC Converter
Output Specifications (continued)
Parameters
Load voltage regulation (Single)
Load voltage regulation (Dual)
Temperature coefficient
Ripple & Noise
Minimum Load Current*
Conditions
From 10% to 100% load
From 10% to 100% load
Unbalanced load
20MHz Bandwidth
Typical
±1.5
±5
±0.03
100
10
Maximum
Units
%
%
%/ C
mV p-p
% of Max
o
*
Operation under 10% load will not damage the converter; however, not all specifications will be met.
General Specifications
Parameters
Switching frequency
Operating temperature
Storage temperature
Maximum case temperature
Derating
Cooling
Humidity
Case material
Weight
Dimensions
(L x W x H)
MTBF
Maximum Soldering Temperature
.
Conditions
100% load
Typical
550
-40 to +85
-55 to +125
Maximum
Units
KHz
o
C
o
C
o
C
o
%/ C
% RH
g
o
100
Above 71º
2.9
Free Air Convection
95
Plastic (UL94-V0)
5.2
0.94 x 0.54 x 0.32 inches 23.86 x 13.70 x 8.00 mm
>1,000,000 hours (MIL-HDBK -217F, Ground Benign, t=+25ºC)
1.5mm from case for 10 seconds
300
C
Pin Out Specifications
Pin
1
7
8
9
10
16
Single
- Vin
NC
NC
+Vout
- Vout
+ Vin
Dual
- Vin
NC
Common
+Vout
-Vout
+ Vin
NC – not connected

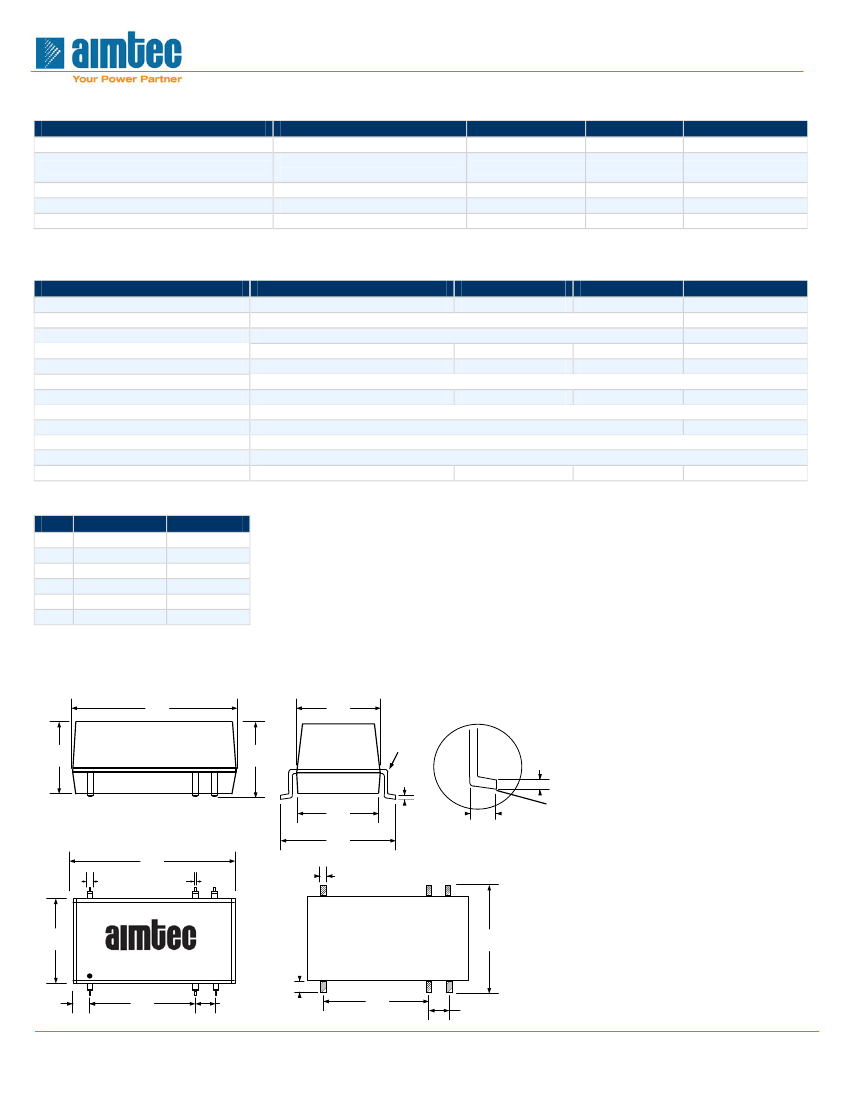

Dimensions
Side View
23.86
(0.94)
Front View
15.00
(0.59)
A
A
0.50
(0.02)
0.50
(0.02)
7.50
(0.30)
8.20
(0.32)
5.00º angle
13.10
(0.52)
Top View
23.86
(0.94)
1.02
0.50
(0.04)
(0.02)
16
10
9
17.50
(0.69)
0.80
(0.03)
Footprint
1.36
(0.05) MAX
13.70
(0.54)
1
7
8
18.50
(0.73)
0.20
(0.08)
2.54
(0.10)
3.04
(0.12)
15.24
(0.60)
15.24
(0.60)
2.54
(0.10)
www.aimtec.com
F 051e R8.B
Tel: +1 514 620 2722
2 of 3
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM2LW-NZ
1.5 Watt | DC-DC Converter
Recommended Filter Circuit
Single Output
Dual Output
+ Vin
Cout
Cin +
DC
DC
Cout
+
+
+Vout
+ Vin
Cin +
DC
DC
Cout
+
+Vout
Common
-Vout
- Vin
- Vout
- Vin
All the AM2LW-Z Series have been tested with the above recommended test circuit.
This series should be tested under load.
If it is necessary to further decrease the input/output ripple, the value of the filter capacitor can be increased; a capacitor with a low ESR
should be used. Excessive filter capacitance can cause start up problems with the converter.
In general, the recommended capacitance values are:
Cin: 10μF~47μF
Cout: 10μF/100mA
Refer to table below for maximum capacitor values:
External Capacitor Value
Single Output
Vout (VDC)
5
12
15
Cout (uF)
1000
470
330
Dual Output
Vout (VDC)
±5
±12
±15
Cout (uF)
±680
±330
±220
Derating
Free Air Convection
71º C
100
Output Power (%)
80
Safe Operating Area
60
40
20
0
- 40
- 20
0
20
40
60
80
85
100
Ambient Temperature
º C
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all internal components
and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
6.
This
product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate
specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at www.aimtec.com.
