T-1 3/4 (5mm) SOLID STATE LAMPS
L-63Ix HIGH EFFICIENCY RED
L-63SRx SUPER BRIGHT RED
L-63Gx GREEN
L-63Yx YELLOW
Features
!
HIGH
!
LOW
!
LOW
Description
The High Efficiency Red source color devices are made with
Gallium Arsenide Phosphide on Gallium Phosphide Orange
Light Emitting Diode.
The Green source color devices are made with Gallium
Phosphide Green Light Emitting Diode.
The Yellow source color devices are made with Gallium
Arsenide Phosphide on Gallium Phosphide Yellow Light
Emitting Diode.
The Super Bright Red source color devices are made
with Gallium Aluminum Arsenide Red Light Emitting Diode.
INTENSITY.
PROFILE.
POWER CONSUMPTION.
LIFE - SOLID STATE RELIABILITY.
AND RUGGED.
AND TRANSPARENT TYPE.
!
LONG
!
RELIABLE
!
DIFFUSED
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subject to change without notice.
SPEC NO: KDA0029
APPROVED : J. Lu
REV NO: V.1
CHECKED :
DATE: NOV/11/2001
DRAWN: R.X.Jin
PAGE: 1 OF 5
Selection Guide
Par t No .
L-63ID
L-63IT
L-63GD
L-63GT
L-63YD
L-63YT
L-63SRD
L-63SRT
L-63SRC
SUPER BRIGHT RED (GaAlAs)
Dic e
L en s Ty p e
RED DIFFUSED
RED TRANSPARENT
GREEN DIFFUSED
GREEN TRANSPARENT
YELLOW DIFFUSED
YELLOW TRANSPARENT
RED DIFFUSED
RED TRANSPARENT
WATER CLEAR
Iv (m c d )
@ 10 m A * 20m A
Min .
HIGH EFFICIENCY RED (GaAsP/GaP)
12
30
5
20
5
20
*100
*300
*200
Ty p .
20
50
12
40
10
35
*300
*600
*700
V i ew i n g
An g l e
2θ1/2
60 °
30 °
60 °
30 °
60 °
30 °
60 °
30 °
30 °
GREEN (GaP)
YELLOW (GaAsP/GaP)
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
2. * Luminous intensity with asterisk is measured at 20mA.
Electrical / Optical Characteristics at T
)
=25°C
°
Sy m b o l
Par am et er
D ev i c e
High Efficiency Red
Green
Yellow
Super Bright Red
High Efficiency Red
Green
Yellow
Super Bright Red
Ty p .
627
565
590
660
625
568
588
640
45
30
35
20
15
15
20
45
2.0
2.2
2.1
1.85
2.5
2.5
2.5
2.5
10
Max .
Un it s
Tes t Co n d it io n s
λ
peak
Peak Wavelength
nm
IF=20mA
λ
D
Dominate Wavelength
nm
IF=20mA
∆λ
1/2
High Efficiency Red
en
Spectral Line Halfwidth Greow
Yell
Super Bright Red
Capacitance
High Efficiency Red
Green
Yellow
Super Bright Red
High Efficiency Red
Green
Yellow
Super Bright Red
All
nm
IF=20mA
C
pF
VF=0V;f=1MHz
V
F
I
R
Forward Voltage
V
IF=20mA
Reverse Current
uA
V R = 5V
SPEC NO: KDA0029
APPROVED : J. Lu
REV NO: V.1
CHECKED :
DATE: NOV/11/2001
DRAWN: R.X.Jin
PAGE: 2 OF 5
Absolute Maximum Ratings at T
)
=25°C
°
Par am et er
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Solder Temperature [2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 4mm below package base.
H i g h E f f i c i en c y
R ed
10 5
30
160
5
Gr een
10 5
25
140
5
Yello w
105
30
140
5
-40
°
C To +85
°C
260
°
C For 5 Seconds
S u p er B r i g h t
R ed
10 0
30
155
5
Un it s
mW
mA
mA
V
High Efficiency Red
L-63ID,L-63IT
SPEC NO: KDA0029
APPROVED : J. Lu
REV NO: V.1
CHECKED :
DATE: NOV/11/2001
DRAWN: R.X.Jin
PAGE: 3 OF 5
Green L-63GD,L-63GT
Yellow L-63YD,L-63YT
SPEC NO: KDA0029
APPROVED : J. Lu
REV NO: V.1
CHECKED :
DATE: NOV/11/2001
DRAWN: R.X.Jin
PAGE: 4 OF 5

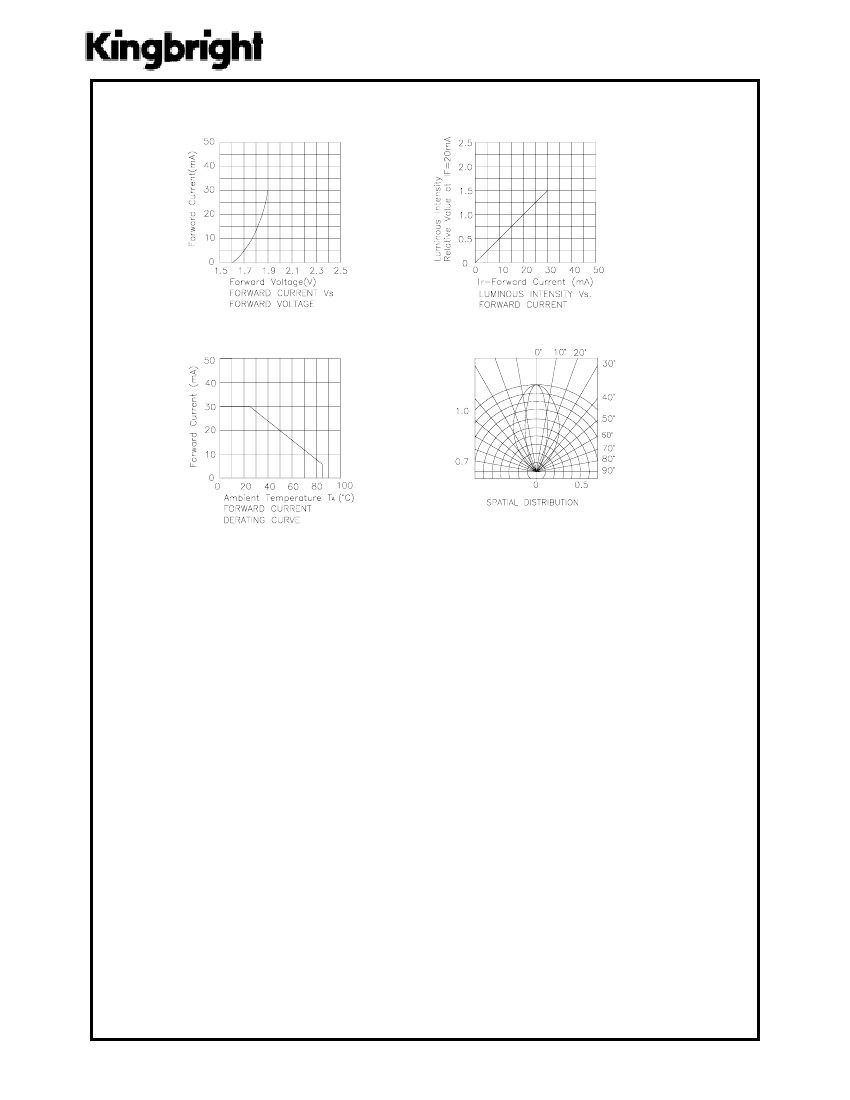

Super Bright Red
L-63SRD,L-63SRC,L-63SRT
SPEC NO: KDA0029
APPROVED : J. Lu
REV NO: V.1
CHECKED :
DATE: NOV/11/2001
DRAWN: R.X.Jin
PAGE: 5 OF 5
