CDRH4D18NP-680NB datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CDRH4D18NP-680NB

CDRH4D18NP-680NB: DescriptionGeneral Purpose Inductor, 68uH, 30%, 1 Element, Ferrite-Core, SMD, 1919, ROHS COMPLIANT; CategoryPassive components inductor; File Size169KB，3 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CDRH4D18NP-680NB Overview

General Purpose Inductor, 68uH, 30%, 1 Element, Ferrite-Core, SMD, 1919, ROHS COMPLIANT

CDRH4D18NP-680NB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	1919
Reach Compliance Code	unknown
ECCN code	EAR99

Preview

Download Datasheet

View All

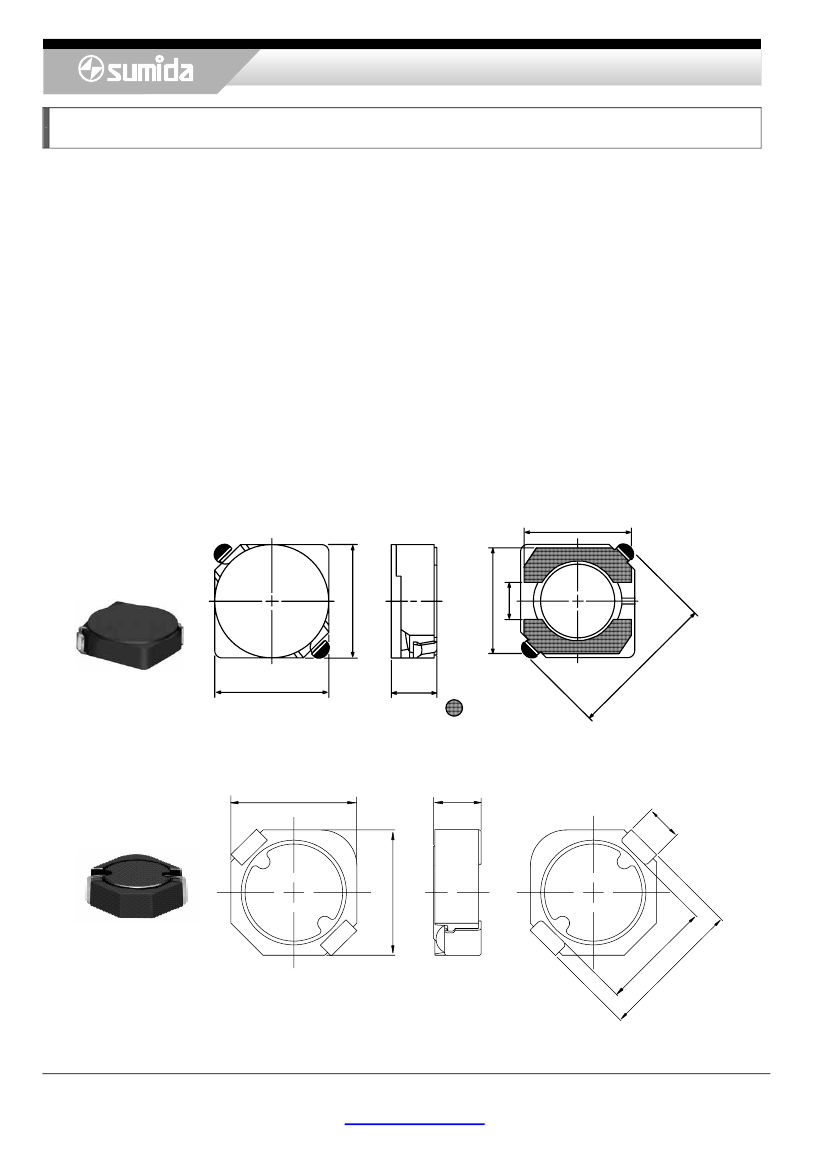

Power Inductors <SMD Type: CDRH Series>

Type: CDRH4D18 , CDRH4D18C , CDRH4D18C/LD

◆Product

Description

・5.0×5.0mm

Max.(L×W), 2.0mm Max. Height.(CDRH4D18)

・5.1×5.1mm

Max.(L×W), 2.0mm Max. Height.(CDRH4D18C,CDRH4D18C/LD)

・Standard

type CDRH4D18, CDRH4D18C and Low DCR type CDRH4D18C/LD are available.

・Inductance

range:1.0½180µH(CDRH4D18); 1.1½100µH(CDRH4D18C,CDRH4D18C /LD);

・Rated

current range:0.14½1.72A(CDRH4D18); 0.25½2.4A(CDRH4D18C); 0.2½2.1A (CDRH4D18C /LD);

・Custom

design is available.

◆

Feature

・Magnetically

shielded construction.

・Ideally

used in Mobile phone,PDA,MP3,HDD,DSC/DVC,Note book PC,etc as DC-DC Converter inductors.

・RoHS

Compliance.

◆

Dimensions (mm)

4.5

4.7±0.3

4.5

1.5

4.7±0.3

MAX.2.0

ELECTRODE

CDRH4D18

4 . 9 ± 0 .2

2.0 Max.

4±

4.9 ± 0 .2

CDRH4D18C,

CDRH4D18C/LD
