DOMINANT
Innovating Illumination
TM
DATA SHEET:
Opto Technologies
5mm Oval Lamp
InGaN: 70/35
Lamp Type LED - 5mm Oval

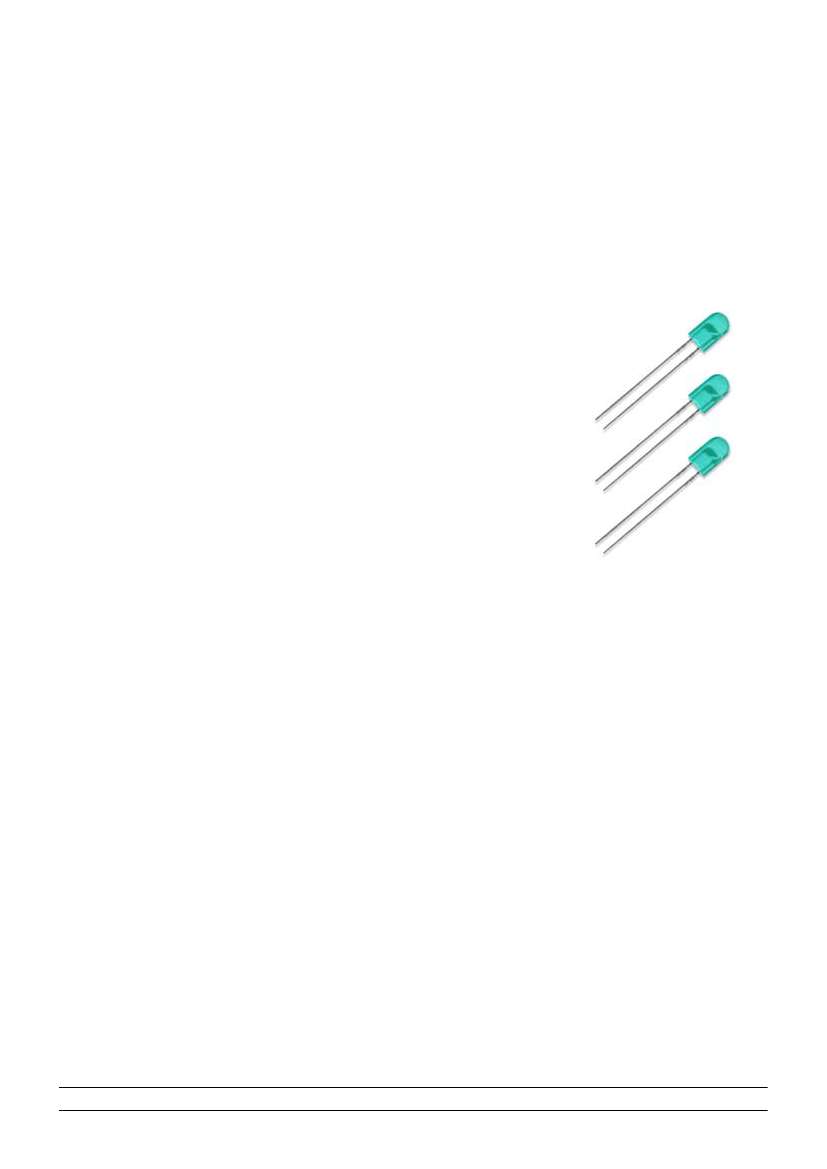

Synonymous with function and performance, the
5mm
Oval LED has
superior performance in outdoor applications due to its well-defined
radiation pattern and wide viewing angle. These lamps are made with
an advanced optical grade epoxy, offering superior high temperature
and high moisture resistance performance in outdoor signal and sign
applications
Features:
>
>
>
>
High brightness tinted clear lamp.
70
o
x 35
o
viewing angle.
Superior resistance to moisture.
Suitable for TTW soldering.
Applications:
>
>
Full color signs
Outdoor displays/signs
All rights reserved. Product specifications are subject to change without notice.
1
01/07/2010 V(4)
DOMINANT
Innovating Illumination
TM
Opto Technologies
5mm Oval InGaN: 70/35
Optical Characteristics at Tj=25˚C
Part Ordering
Number
L6T-E73C0-Y2Z-1
L6B-E73C0-WX1-1
Color
True Green, 530nm
Blue, 470nm
Viewing Angle˚
70/35
70/35
Luminous Intensity @ 20mA IV (mcd)
Min.
Typ.
Max.
3550.0
1125.0
5000.0
1400.0
7150.0
2240.0
NOTE
1. Luminous intensity is measured with an accuracy of ± 15%.
2. Wavelength binning is carried for all units as per the wavelength-binning table. Only one wavelength group is allowed for each pack.
Electrical Characteristics at Tj=25˚C
Part Number
L6x-E73xx
Vf @ If = 20mA
Min. (V)
2.9
V
r
@ I
r
= 10uA
Max. (V)
3.8
Typ. (V)
3.3
Min. (V)
5
Forward voltages are measure using a current pulse of 1 ms and with an accuracy of ± 0.1V.
Absolute Maximum Ratings
Maximum Value
DC forward current
Peak pulse current; (tp ≤ 10µs, Duty cycle = 0.10)
Reverse voltage ; Ir (max) = 10µA.
ESD threshold voltage (HBM)
LED junction temperature
Operating temperature
Storage temperature
Power dissipation (at room temperature)
25
100
5
500
120
-40 … +95
-40 … +100
95
Unit
mA
mA
V
V
˚C
˚C
˚C
mW
2
01/07/2010 V(4)
DOMINANT
Innovating Illumination
TM
Opto Technologies
5mm Oval InGaN: 70/35
Wavelength Grouping at Tj=25˚C
Color
L6T; True Green
Group
Full
A
B
C
Wavelength distribution (nm)
520 - 535
520 - 525
525 - 530
530 - 535
465 - 475
465 - 470
470 - 475
L6B; Blue
Full
A
B
Dominant wavelength is measured with an accuracy of ± 1 nm.
Luminous Intensity Group at Tj=25˚C
Brightness Group
W1
W2
X1
Y2
Z1
Z2
Luminous intensity is measured with an accuracy of ± 15%.
Luminous Intensity @
IV (mcd)
1125.0...1400.0
1400.0...1800.0
1800.0...2240.0
3550.0...4500.0
4500.0...5600.0
5600.0...7150.0
Vf Binning (Optional)
Vf Bin @ 20mA
V7
V8
V9
V10
V11
Group
Forward Voltage (V)
Wavelength distribution (nm)
2.80 ... 3.00
3.00 ... 3.20
3.20 ... 3.40
3.40 ... 3.60
3.60 ... 3.80
Forward voltage, Vf is measured with an accuracy of ± 0.1 V.
Parts with the Vf binning option will be defined as L6x-E73xx-xxxx-x-Vx.
Please consult sales and marketing for special part number to incorporate Vf binning.
3
01/07/2010 V(4)
DOMINANT
Innovating Illumination
TM
Opto Technologies
5mm Oval InGaN: 70/35

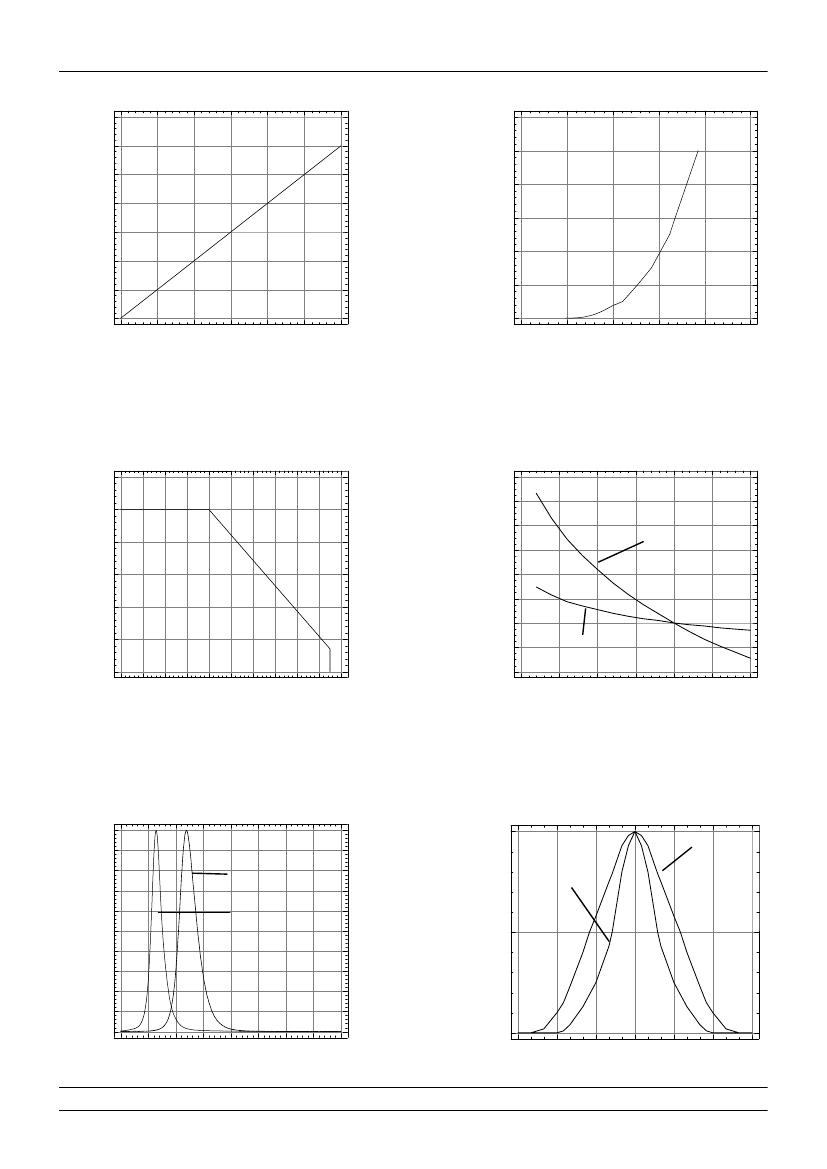

Forward Current Vs Forward Voltage
60
50
40
30
20
10
0
Relative Intensity Vs Forward Current
Relative Intensity; Normalized at 20mA
3.5
3
2.5
2
1.5
1
0.5
0
0
10
20
30
40
50
60
Forward Current, mA
2
2.5
3
3.5
4
4.5
Forward Current; mA
Forward Voltage, V
Relative Luminous Intensity Vs Forward Current
Relative
Forward Current; mA
at 20mA
Intensity; Normalized
Maximum Current Vs Ambient Temperature
30
Dominant Wavelength Shift Vs Forward Current
2.5
2.4
Forward Current Vs Forward Voltage
3.5
3
2.5
12
Forward Voltage, V
25
20
10
2.3
2.2
8
2.1
True Green
2
6
4
15
1.5
2
1.9
1
10
0.5
5
0
0
2
1.8
1.7
0
1.6
-2
1.5
Blue
0
0
10
10
20
30
20
40
30
50
60
40
70
80
50
90 100
60
-4
0
0
10
5
20
10
30
40
15
50
20
60
25
70
80
30
Forward Current, mA
Ambient Temperature
Forward Current, mA
Forward Current, mA
Maximum Current Vs Temperature
Relative Inyensity Vs Wavelength
60
1
Plot of R15 vs V15
Relative
Radiation
Vs Viewing Angle
Intensity
Pattern
1
1
1
Major
Plot of R30 vs V30
Forward Current, mA
0.9
50
Relative Intensity
Relative Intensity
Relative Intensity
0.8
40
0.7
30
0.6
0.5
True Green
Minor
Blue
0.5
0.5
0.5
0.4
20
10
0.3
0.2
0.1
0
0
400
0
0
10
20
30
500
40
550
50
600
60
650
70
80
90 100
750
800
450
Ambient Temperature
Wavelength, nm
700
0
0
-90
-90
-90
-60
-30
0
30
60
90
-60
-60
Viewing Angle (Degree)
4
01/07/2010 V(4)
Viewing Angle (Degree)
-30
-30
0
30
60
90
90
Plot of R60 vs V60
Relative Intensity Vs Viewing Angle
DOMINANT
Innovating Illumination
TM
Opto Technologies
5mm Oval InGaN: 70/35
5mm Oval Lamp
• InGaN : Package Outlines
Epoxy meniscus may extend 1.5mm max. down the LED
5
01/07/2010 V(4)
