Series AM3GW-Z
3 Watt | DC-DC Converter
FEATURES:
•
•
•
•
SIP9 Package
Low Ripple and Noise
Continuous Short Circuit Protection
-40ºC to +85ºC Operating Temperature Range
•
•
•
•
Ultra-Wide Input Range 4:1
1500VDC I/O Isolation
Efficiency up to 85%
Remote ON / OFF Control
Models
Single output
Model
AM3GW-2403SZ
AM3GW-2405SZ
AM3GW-2412SZ
AM3GW-2415SZ
AM3GW-4803SZ
AM3GW-4805SZ
AM3GW-4812SZ
AM3GW-4815SZ
Input
Voltage (V)
9-36
9-36
9-36
9-36
18-75
18-75
18-75
18-75
Output
Voltage
(V)
3.3
5
12
15
3.3
5
12
15
Output Current
Max (mA)
700
600
250
200
700
600
250
200
Maximum
Capacitive
Load (µF)
2200
1000
165
100
2200
1000
165
100
Input Current
Full Load | No
Load (mA)
125
153
149
148
65
78
75
75
10
10
10
10
5
5
5
5
Efficiency
(%)
77
82
84
85
75
81
84
84
Models
Dual output
Model
AM3GW-2405DZ
AM3GW-2412DZ
AM3GW-2415DZ
AM3GW-4805DZ
AM3GW-4812DZ
AM3GW-4815DZ
Input
Voltage (V)
9-36
9-36
9-36
18-75
18-75
18-75
Output
Voltage
(V)
±5
±12
±15
±5
±12
±15
Output Current
Max (mA)
±300
±125
±100
±300
±125
±100
Maximum
Capacitive
Load (µF)
±470
±100
±47
±470
±100
±47
Input Current
Full Load | No
Load (mA)
155
149
149
78
75
76
10
10
10
5
5
5
Efficiency
(%)
81
84
84
81
84
83
NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at rated output load
unless otherwise specified.
Input Specifications
Parameters
Voltage Range
Filter
Start Up Time
Absolute Maximum Rating
Peak Input Voltage Time
On/Off Control
Input Reflected Ripple Current
24
48
Nominal
24
48
Typical
9-36
18-75
Capacitor
10
Maximum
Units
VDC
50
100
100
ms
ON: 0 to 0.6VDC (or open) ; OFF:2.7 to 15.0VDC, OFF idle current: 5mA, max
IEC61000-4-4, Perf. Criteria B (external 220uF/100V cap required)
IEC61000-4-5, Perf. Criteria B (external 220uF/100V cap required)
IEC61000-4-6, Perf. Criteria A
IEC61000-4-8, Perf. Criteria A
Standards
Pin Out Specifications
Pin
1
2
3
6
7
8
9
Single
- V Input
+ V Input
On/Off Control
+ V Output
NC
NC
- V Output
Dual
- V Input
+ V Input
On/Off Control
+ V Output
Common
NC
-V Output
www.aimtec.com
F 051e R11.I
Tel: +1 514 620 2722
2 of 5
Toll free: + 1 888 9 AIMTEC (924 6832)
North America only
REV: 11/19/A
Series AM3GW-Z
3 Watt | DC-DC Converter
Dimensions
26.00
(1.02)
9.30
(0.36)
Printed Face
12.5
(0.49)
12.50
(0.49)
3.00
(0.12)
2x2.54
(2x0.10)
7.62
(0.3)
3x2.54
(3x0.10)
0.50
(0.02)
0.25
(0.01)
1 2 3
6 7 8 9
0.50
(0.02)
2.5
(0.1)
1.80
(0.08)
3.88
(1.53)
All dimensions are in millimeters (inches)
Pin diameter: 1.0 ±0.05 ( 0.04 ±0.002 )
Pin pitch tolerance: ±0.35 ( ±0.014 )
Case Tolerance: ±0.5 ( ±0.02 )
Derating
Free Air Convection
75 º C
100
Output Power (%)
80
Safe Operating Area
60
40
20
0
- 40
- 20
0
20
40
60
80
85
9.30
(0.36)
100
Ambient Temperature º C
www.aimtec.com
F 051e R11.I
Tel: +1 514 620 2722
3 of 5
Toll free: + 1 888 9 AIMTEC (924 6832)
North America only
REV: 11/19/A
Series AM3GW-Z
3 Watt | DC-DC Converter

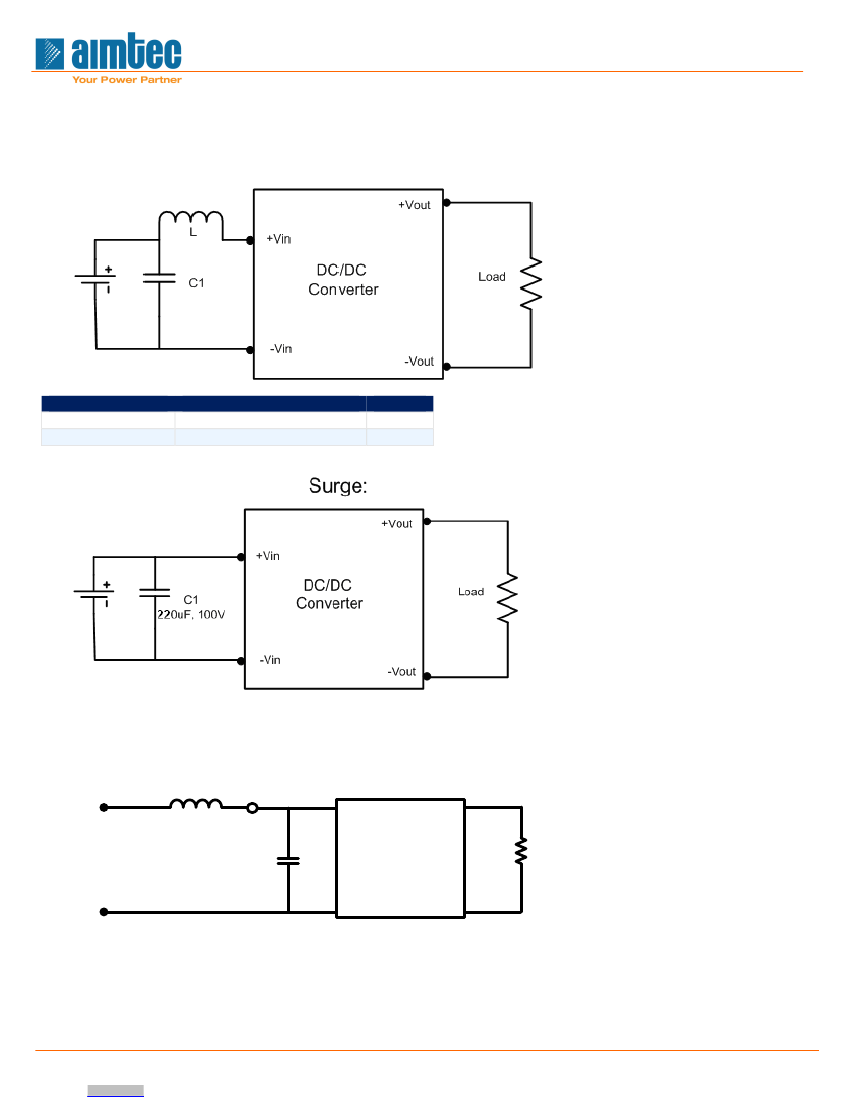

Conducted Emissions
Models
AM2GW-24XX-Z
AM2GW-48XX-Z
C1
1210,225K/100V,X7R, 2pcs
1210,105k/100V,X7R
L1
6.8µH
56µH
Input Reflected Ripple Current
Lin
12µH
Test
Point
Vin+
+
Cin
47µF
Vin-
Vo+
Aimtec
DC-DC
Converter
-
Vo-
* Tested at full load, and nominal input
www.aimtec.com
F 051e R11.I
Tel: +1 514 620 2722
4 of 5
RL
(Full Load)
Toll free: + 1 888 9 AIMTEC (924 6832)
North America only
REV: 11/19/A
Series AM3GW-Z
3 Watt | DC-DC Converter
Typical Efficiency Example Charts
AM3GW-2405SZ Efficiency vs. Loading
100
90
80
70
60
50
40
30
20
10
0
20%
40%
60%
Loading %
80%
100%
Eff %
AM3GW-4815SZ Efficiency vs. Loading
100
90
80
70
60
50
40
30
20
10
0
20%
40%
60%
Loading %
80%
100%
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all internal components
and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
6.
This
product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate
specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at www.aimtec.com.
