Part Number

Search

X2816BDMB

Description
EEPROM, 2KX8, 300ns, Parallel, NMOS, CDIP24, HERMETIC SEALED, CERDIP-24
Categorystorage    storage

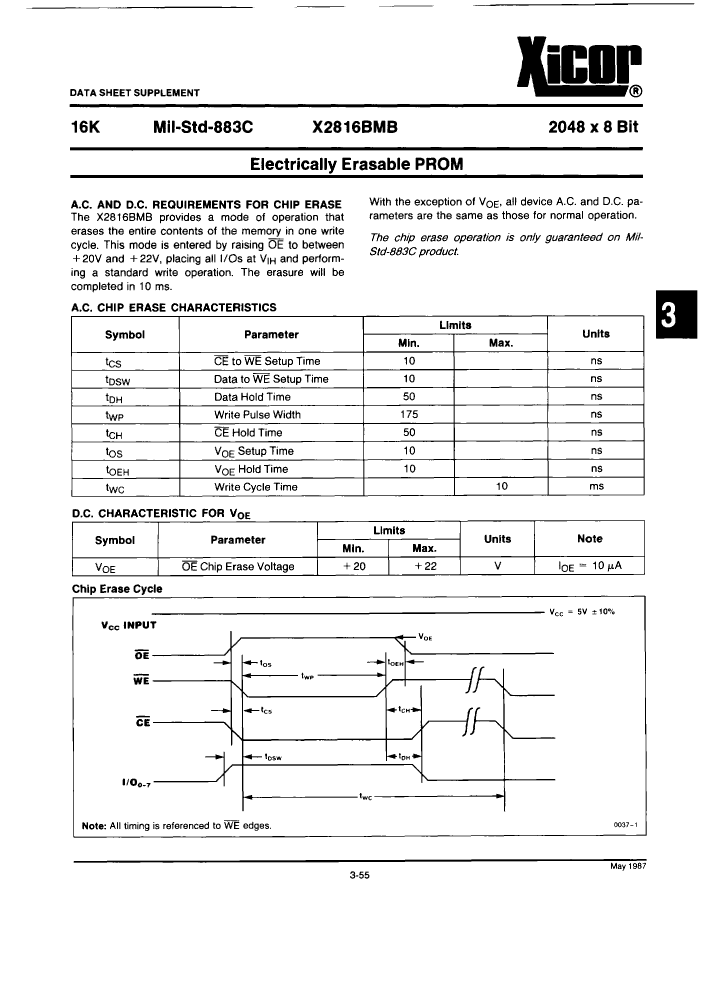

File Size26KB,1 Pages
ManufacturerXicor Inc.
Download Datasheet Parametric Compare View All

X2816BDMB Overview

EEPROM, 2KX8, 300ns, Parallel, NMOS, CDIP24, HERMETIC SEALED, CERDIP-24

X2816BDMB Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerXicor Inc.
package instructionHERMETIC SEALED, CERDIP-24
Reach Compliance Codeunknown
Maximum access time300 ns
command user interfaceNO
Data pollingYES
JESD-30 codeR-GDIP-T24
JESD-609 codee0
length32.07 mm
memory density16384 bit
Memory IC TypeEEPROM
memory width8
Number of functions1
Number of terminals24
word count2048 words
character code2000
Operating modeASYNCHRONOUS
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
organize2KX8
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDIP
Encapsulate equivalent codeDIP24,.6
Package shapeRECTANGULAR
Package formIN-LINE
page size16 words
Parallel/SerialPARALLEL
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5 V
Programming voltage5 V
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Maximum seat height5.72 mm
Maximum standby current0.07 A
Maximum slew rate0.14 mA
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyNMOS
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
switch bitNO
width15.24 mm

X2816BDMB Related Products

X2816BDMB X2816BEMB
Description EEPROM, 2KX8, 300ns, Parallel, NMOS, CDIP24, HERMETIC SEALED, CERDIP-24 EEPROM, 2KX8, 300ns, Parallel, NMOS, CQCC32, CERAMIC, LCC-32
Is it Rohs certified? incompatible incompatible
package instruction HERMETIC SEALED, CERDIP-24 CERAMIC, LCC-32
Reach Compliance Code unknown unknown
Maximum access time 300 ns 300 ns
command user interface NO NO
Data polling YES YES
JESD-30 code R-GDIP-T24 R-CQCC-N32
JESD-609 code e0 e0
length 32.07 mm 13.97 mm
memory density 16384 bit 16384 bit
Memory IC Type EEPROM EEPROM
memory width 8 8
Number of functions 1 1
Number of terminals 24 32
word count 2048 words 2048 words
character code 2000 2000
Operating mode ASYNCHRONOUS ASYNCHRONOUS
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C
organize 2KX8 2KX8
Package body material CERAMIC, GLASS-SEALED CERAMIC, METAL-SEALED COFIRED
encapsulated code DIP QCCN
Encapsulate equivalent code DIP24,.6 LCC32,.45X.55
Package shape RECTANGULAR RECTANGULAR
Package form IN-LINE CHIP CARRIER
page size 16 words 16 words
Parallel/Serial PARALLEL PARALLEL
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED
power supply 5 V 5 V
Programming voltage 5 V 5 V
Certification status Not Qualified Not Qualified
Filter level 38535Q/M;38534H;883B 38535Q/M;38534H;883B
Maximum seat height 5.72 mm 3.048 mm
Maximum standby current 0.07 A 0.07 A
Maximum slew rate 0.14 mA 0.14 mA
Maximum supply voltage (Vsup) 5.5 V 5.5 V
Minimum supply voltage (Vsup) 4.5 V 4.5 V
Nominal supply voltage (Vsup) 5 V 5 V
surface mount NO YES
technology NMOS NMOS
Temperature level MILITARY MILITARY
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE NO LEAD
Terminal pitch 2.54 mm 1.27 mm
Terminal location DUAL QUAD
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED
switch bit NO NO
width 15.24 mm 11.43 mm
